Dry Gunite Machine - Guniting machine 5m3/hour for Dry or Damp ready mix Shotcreting
Product Description

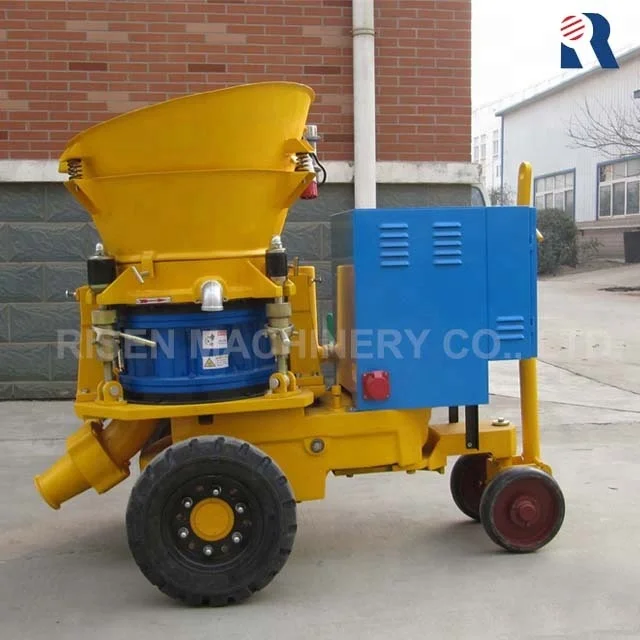

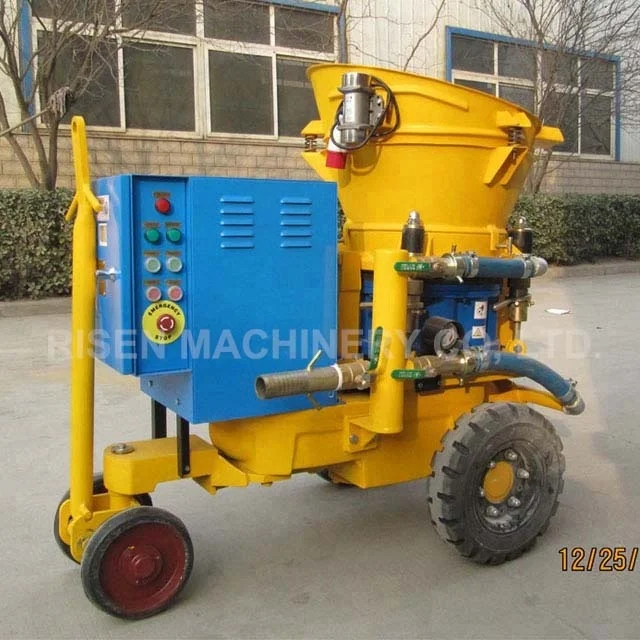

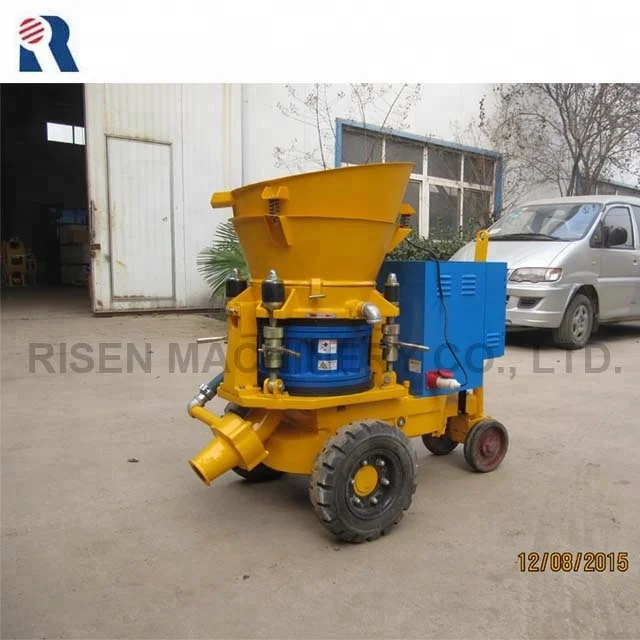

RISEN has engaged in the manufacturing and export of RISEN PZ-5 dry gunite machine / guniting machine since 2004. Among RISEN PZ series, the PZ-5 is a middle-size model with output 5m3/hour and is a very popular model, mainly applied for dry or damp mix shotcreting.
Based on the excellent quality, mature work principle and competitive price, RISEN PZ-5 has been exported to many countries, such as, Malaysia, Singpore, philppines, Sri Lanka, Lebanon, South Afrida, French, Oman, Australia, Peru, etc, widely applied in the construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc.
Technical Data
Output Capacity:
5 cubic meter/hour
Maximum Conveying Distance:
200 m (660 ft)
Desired Shotcrete Ingredient Ratio:
Cement/sand and gravel < 0.35
Maximum Aggregate Size:
15 mm (3/5”)
Inner Diameter of Conveying Hose:
51 mm (2”)
Working Compressed Air Pressure:
29 ~ 87 psi (0.2 ~ 0.6 MPa)
Conveying Air Consumption:
250 ~ 285 cfm (7 ~ 8cubic meter / min)
Ideal Rotor Speed:
11 rpm
E-Motor Power:
5.5kW (7.5 hp), 3-phase
Dimensions:
1500 x 780x 1250mm
Net Weight:
720 Kg
Chasis:
Rubber wheel*

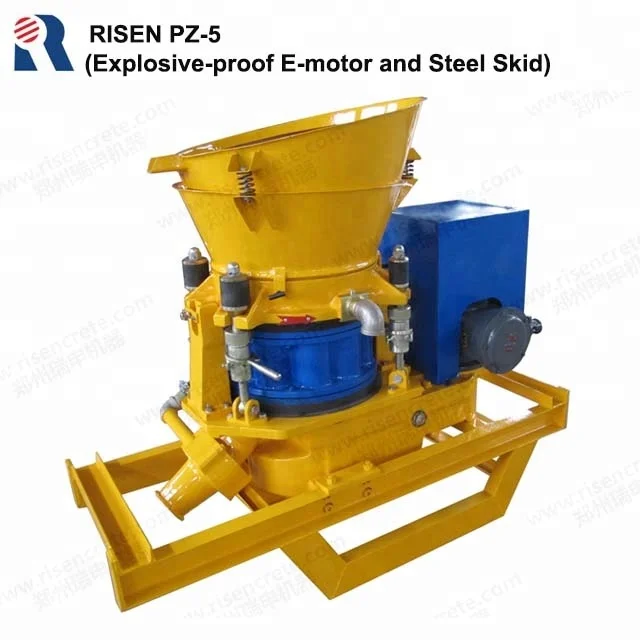

Note: *Railway wheel or Skid Steel is optional.
Application
Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Features
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

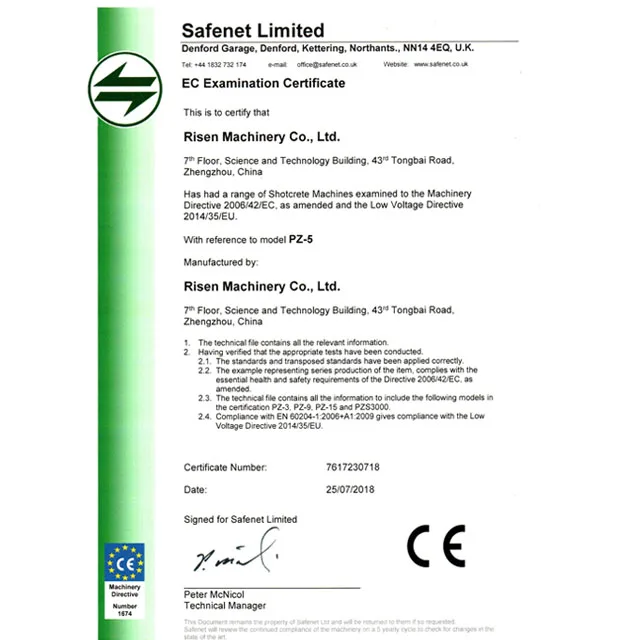

For the most specific risks of this machine, safety and compliance with the essential health and safety requirements of the Directive 2006/42/EC

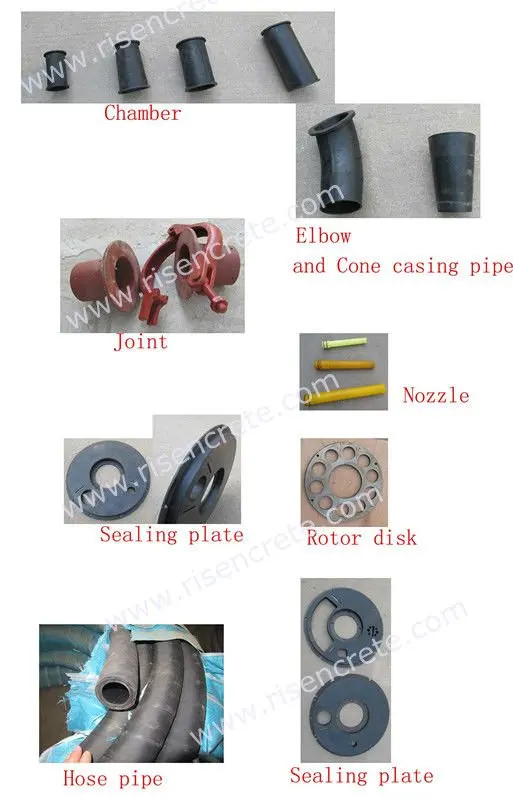

Spare parts of RISEN PZ-5

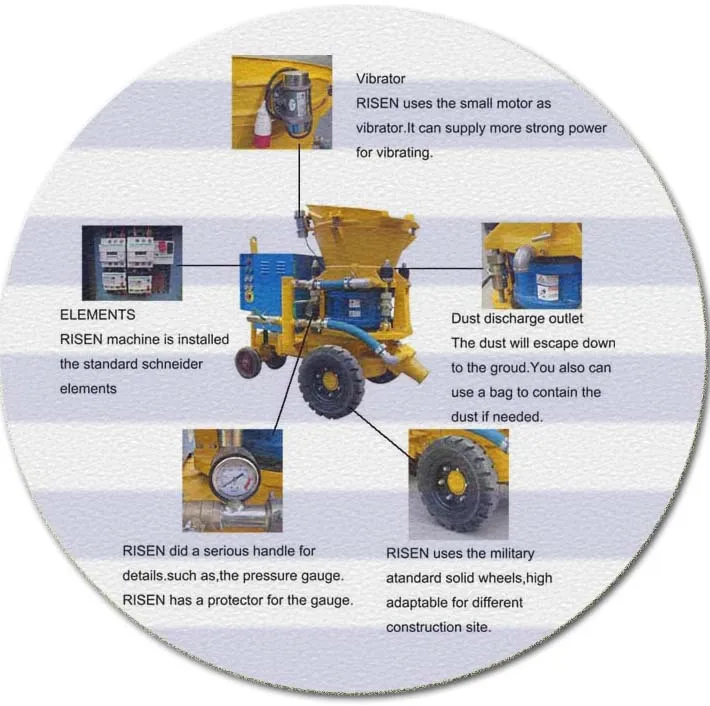

Advantages
High-accuracy Gearbox, high clean degree inside;
High wear resistance and longer use life consumable parts;
Military standard solid wheels for different construction site;
IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
