force multiplier for labor saving wrench /tire repair tool for truck torque multiplier
- Category: >>>
- Supplier: Shaanxi Dongfang Aviation Instrument Co. Ltd.
Share on (450059367):
Product Overview
Description
Product Description
NZ series of torque multiplier is the precise device that can multiply the moment of force to 5-125 times.
1. It is used in the difficult situation and places that big torque wrench is unable to use. The product operates easily and can save the manpower.
2. The accuracy is superior to +/- 4%.
3. Due to the high multiply ratio, people even can operate it with small torque. It also applies to small size and poor working environment.
4. All kinds of reaction torque arms can be used for many conditions.
5. The anti-rebound safety devices makes sure that the operation is easier and safety. (Except the 5:1 magnification ratio)
6. It can match with the torque transducer and monitor to display the torque value.

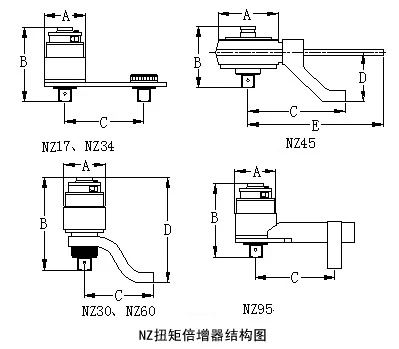

Size
ITEM | MODEL | BODT HEIGHT (N.m) | MAXIMUM EXTERNAL DIAMETER (mm) | INPUT SQUARE(mm) | OUTPUT SQUARE (mm) | MAGNIFICATION MULTIPLE | MAXIMUM OUTPUT TORQUE (N.m) | WEIGHT (Kg) |
1 | NZ17 | 156 | 108 | 1/2' | 1' | 25 | 1700 | 7.8 |
2 | NZ30 | 224 | 108 | 1/2' | 1' | 25 | 3000 | 9 |
3 | NZ34 | 195 | 119 | 1/2' | 3/2' | 25 | 3400 | 10 |
4 | NZ45 | 173 | 108 | 1/2' | 1' | 25 | 4500 | 8.9 |
5 | NZ60 | 271 | 119 | 1/2' | 3/2' | 25 | 6000 | 14.6 |
6 | NZ95 | 234 | 184 | 1/2' | 3/2' | 125 | 9500 | 27.2 |
Packaging & Shipping
Certifications
For more information, please contact us. Tel: +86-916-5302096, +86-916-5302092; Fax: +86-916-530253
