SA40EZ Metal thickness measuring Gauge supplier wide measurement

Product Overview

Description

Metal thickness measuring Gauge SA40EZ

SA40EZ Metal thickness measuring Gauge wide measurement



Detailed Product Description

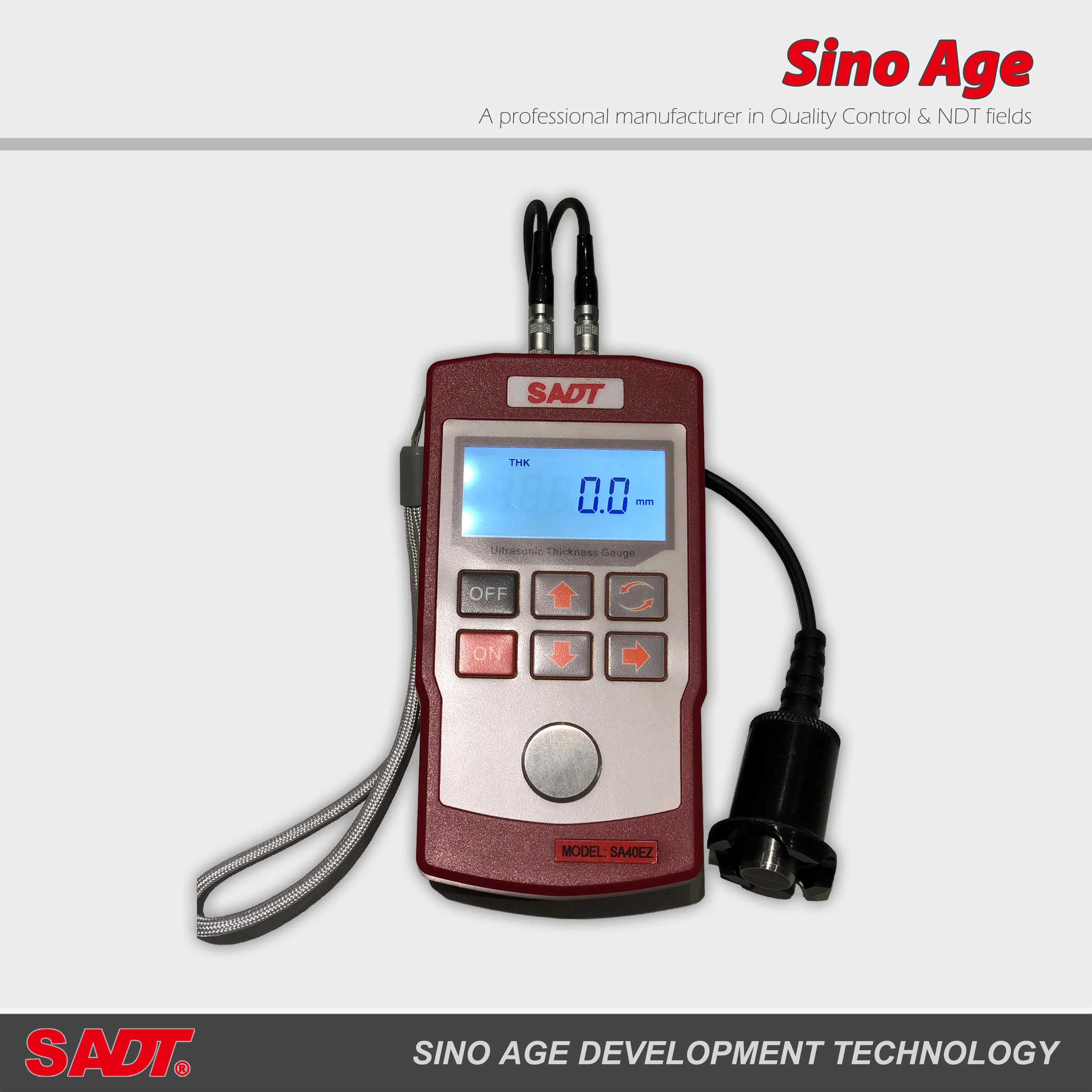

   SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



Specifications

• Technique: pulse echo with dual probe

• Display: 4 digits LCD with backlight

• Measuring range: 0.8 to 300.0mm

• Resolution : 0.1mm

• Velocity range: 500-9999m/sec.

• Display circle: 1 sec.

• Coupling indication

• Units: mm

• Low battery indicator on LCD

• Auto shut-off: after 5 min. of non-use

• Power: 2 ea. 1.5V AA alkaline cells

• Operating temperature: 0-40°C

• Operating humidity: 20-90%RH

• Size: 124x67x30mm

• Weight: 240g



Optional Probes

PT-5 5MHZ Dia.Φ10mm For standard applications

XT-5 5MHZ Dia.Φ6mm For tubes with small diameter

GT-5 5MHZ Dia.Φ12mm For high temperature up to 400°C

PT-5	5MHZ	Dia.Φ10mm	For standard applications
XT-5	5MHZ	Dia.Φ7mm	For tubes with small diameter
GT-5	5MHZ	Dia.Φ12mm	For high temperature up to 400°C
CT-2.5	2.5MHZ	Dia.Φ12mm	For unfavorable attenuation
