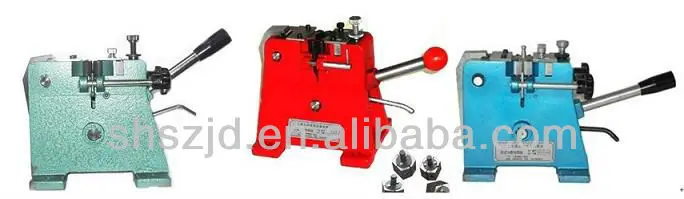

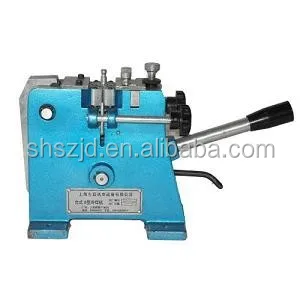

SZ 2T welding equipment / cable or wire welding machine, weld copper wire 0.30mm to 1.30mm

Product Overview

Description

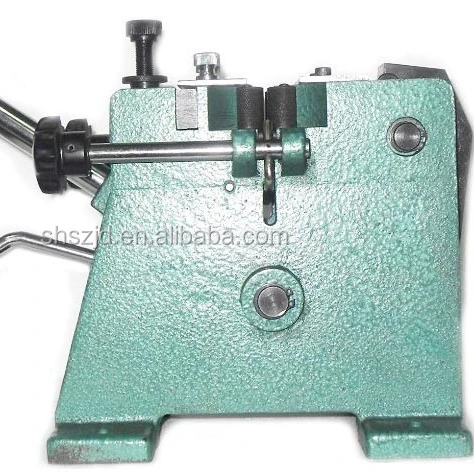

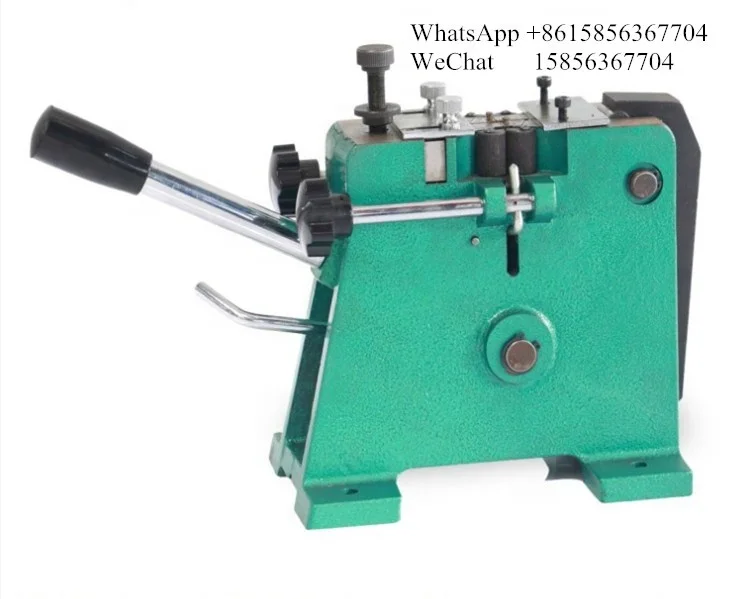

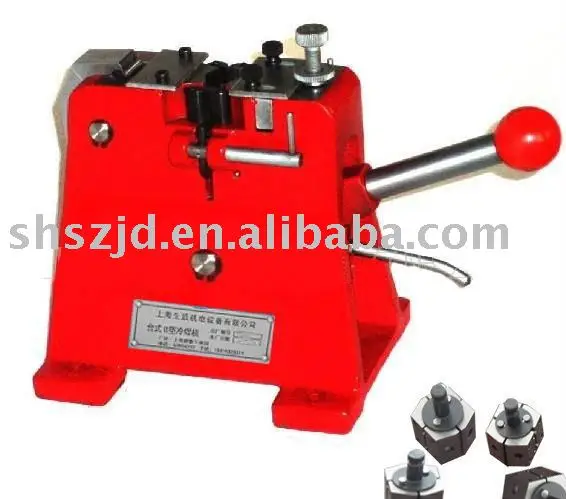

 SZ-2T welding equipment / cable or wire welding machine, weld copper wire 0.30mm to 1.30mm

 1.No need of heat or electricity and some form of flux to join the wires

2. It is possible to weld two wires with different material.

3.Provide desk/trolly to make welding more convenient ans stable.

4.All dies is fitable to other brands machine.

5.Precision single cavity or double cavity dies are compatible with our machine.



6.Application:

Widely used in the cold welding for the wire of  copper, aluminum, gold, silver, nickel, Platinum, zinc, Tin, niobium tantalum and other non-ferrous metal wire/rod

7.Welding range:

  Copper: 0.30mm-1.30mm

    Aluminium: 0.30mm-1.50mm

 8.Advantage:

No power, no change of the resistance, clean, light, thin deposit, easy of operation ,  portability,aloft working is available.

9.Net Weight: 10.8KG

10.Overall dimensions:250mm*65mm *145mm (L*W*H)

11. ISO, CCC certificate

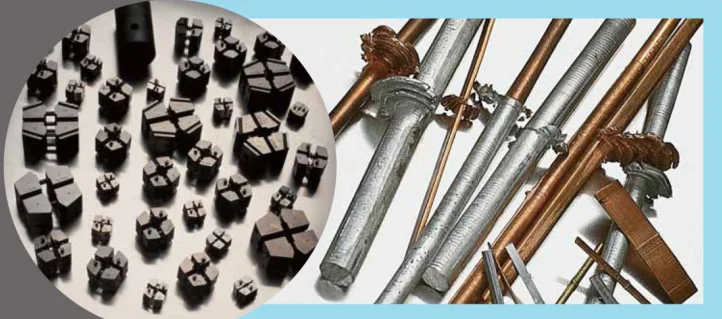

Copper wire and aluminum wire can be widely welded









Welding process:

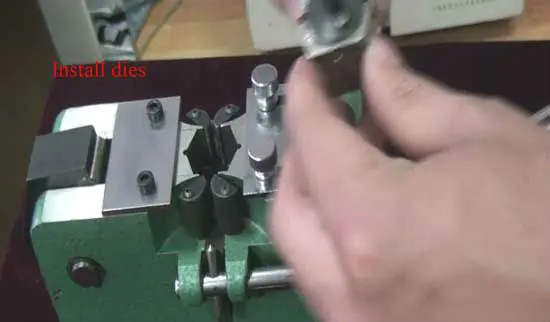

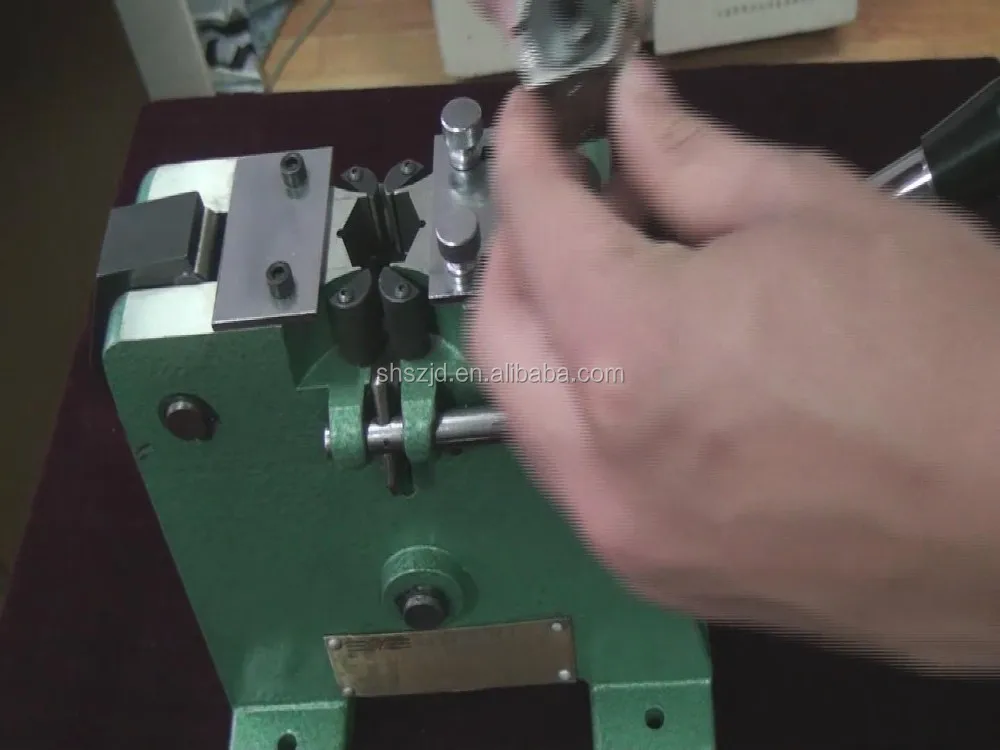

1. Install the dies:



2. Thread the wires, into the dies:

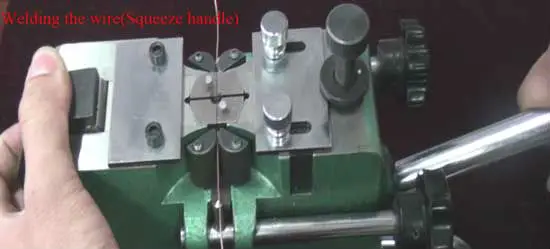

3. Welding the wire, by squeeze the machine's handle.

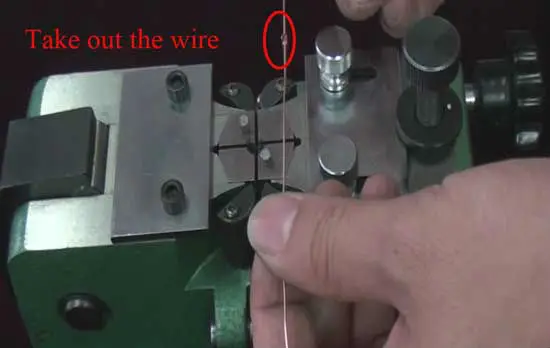

4. Take out the wire, then clean the flash:



5. After clean the flash, the welded wire can do drawing again.



Service we provide:

1.All-in-one service, including parts/accessories/metal design, producing, machine processing and post processing.

2.Operating manual with each product.

3.Provide flat pliers for cutting slitter edge.

4.Replaceable within three months from the date of sale.

5.One year quality warranty and technical guidance.

6.Provide operating video or show customers learn to use the machine.

7.Other product maintenance tracking services.

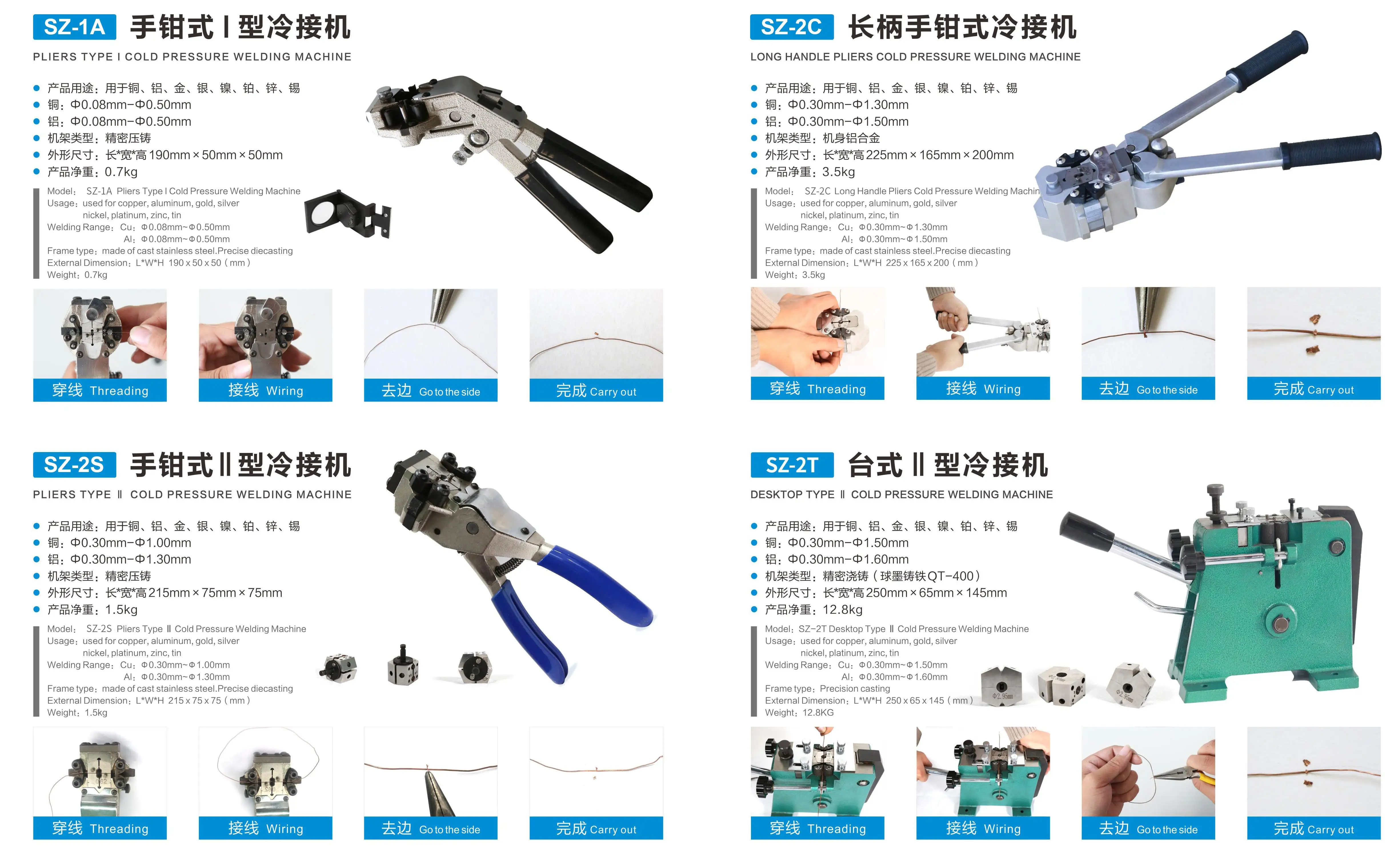

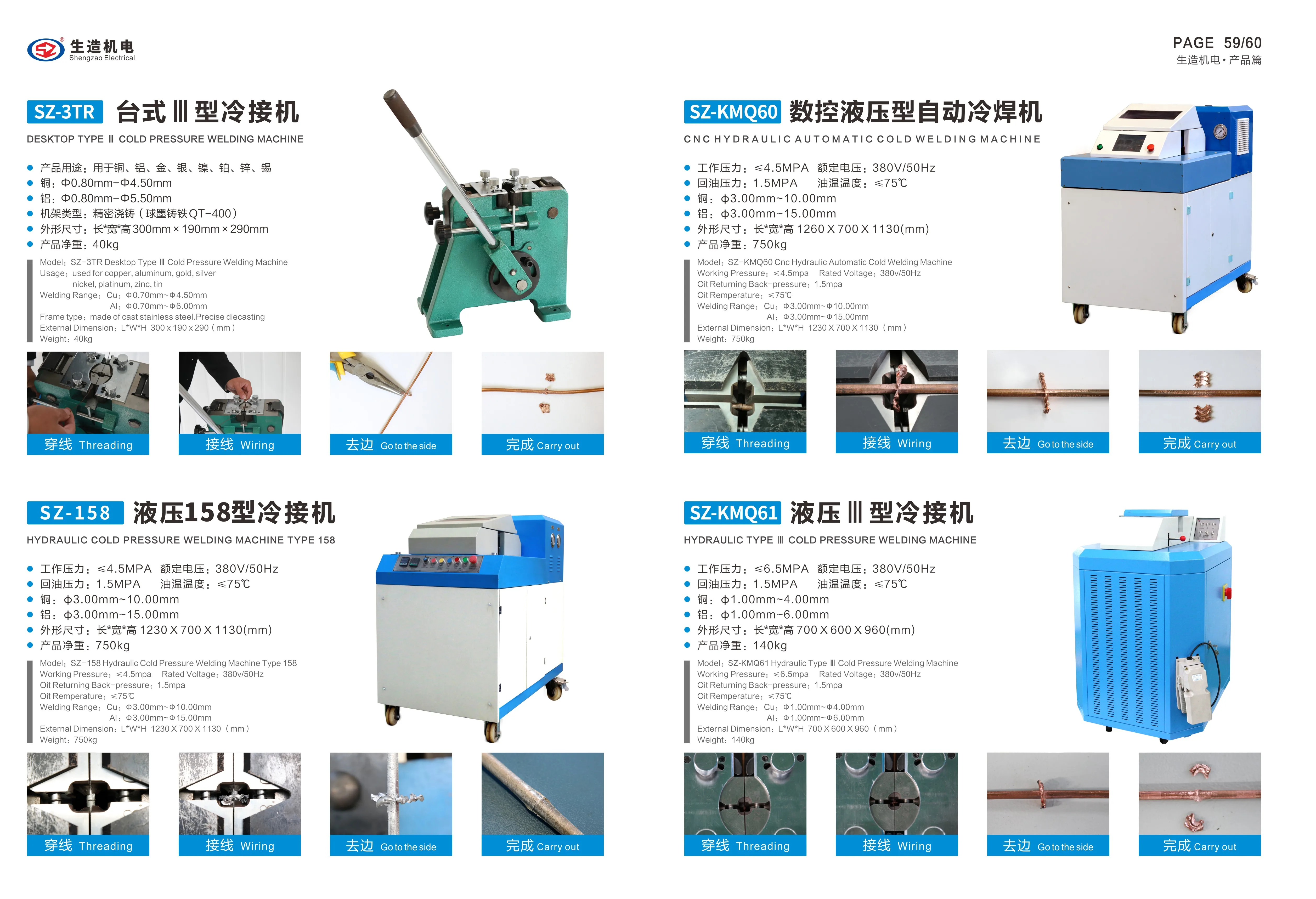

All the welding machine welding range

Model	Operating	Copper wire range	Aluimnum wire range
SZ-1A	hand clamp / manual	0.06mm-0.50mm	0.06mm-0.50mm
SZ-1B	hand clamp / manual	0.12mm-0.60mm	0.12mm-0.65mm
SZ-2S	hand clamp / manual	0.30mm-1.00mm	0.30mm-1.30mm
SZ-2T	benchtop / manual	0.30mm-1.30mm	0.30mm-1.50mm
SZ-3T	benchtop / manual	0.80mm-4.00mm	0.80mm-5.50mm
SZ-3TR	benchtop / manual	0.70mm-4.50mm	0.70mm-6.00mm
SZ-107	hydraulic / automatic	1.50mm-6.8mm	1.50mm-9.5mm
SZ-158	hydraulic / automatic	3.0mm-10.0mm	3.0mm-15.0mm
