best price for rgb led pcb board 30x30/30x60/60x60/20x20

Product Overview

Description

best price for rgb led pcb board 30x30/30x60/60x60/20x20



Energy efficient, energy-saving more than 60% for backlight advertising



Long-life, life over 50,000 hours



Aluminum board, excellent heat dispersing performance ,more reliable



low voltage DC power supply, more secure



Waterproof design, waterproof grade IP67



Lead-free mercury-free, no harmful rays infrared, ultraviolet

Light and thin, thickness 3mm



Various sizes or customized



CE,RoHS approval



3 Years warranty

Aging test is more powerful, 24-hours of continuous work, more than 3 years







Recommended use:

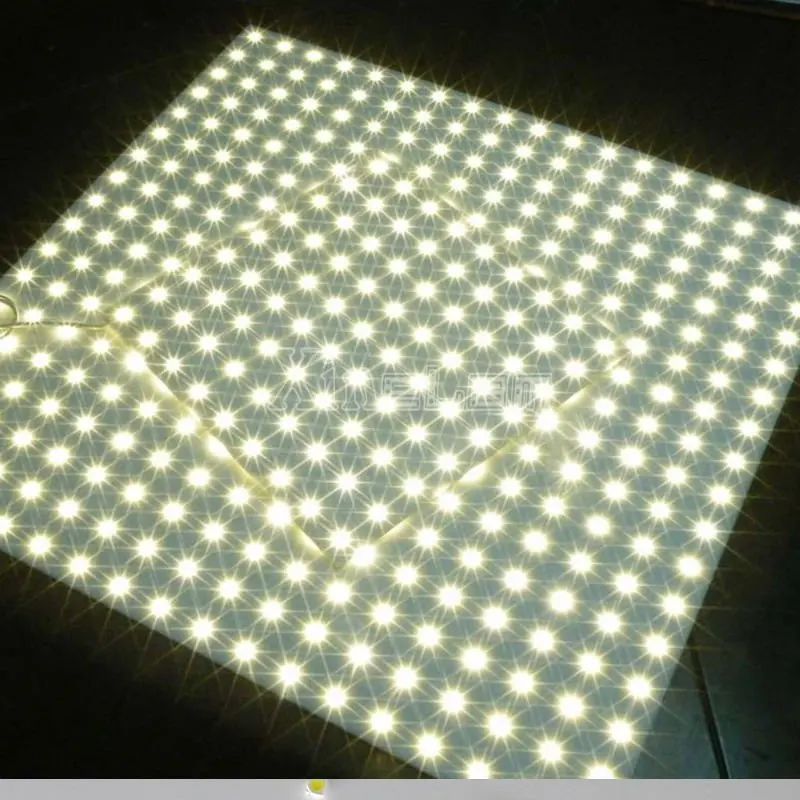

-Outdoor Advertising LED backlight instead of the fluorescent light box
-Indoor signs backlight, such as shopping malls, hotel restaurant advertising signs
-Direct replacement of the same size as the ceiling lighting

-Decorative lighting

- Diy your own projects

Model	Dimension	LED QTY	Lumen	Power DC12V	LED spacing Brightness/ m2
RX-ALF5050-33-3030	300x300mm	81LED	1500Lm	15W	33.33mm   Min. Cabinet Depth* 48mm   160W / m2 16100Lm / m2
RX-ALF5050-33-3060	300x600mm	162LED	3000Lm	30W
RX-ALF5050-33-6060	600x600mm	324LED	5800Lm	58W

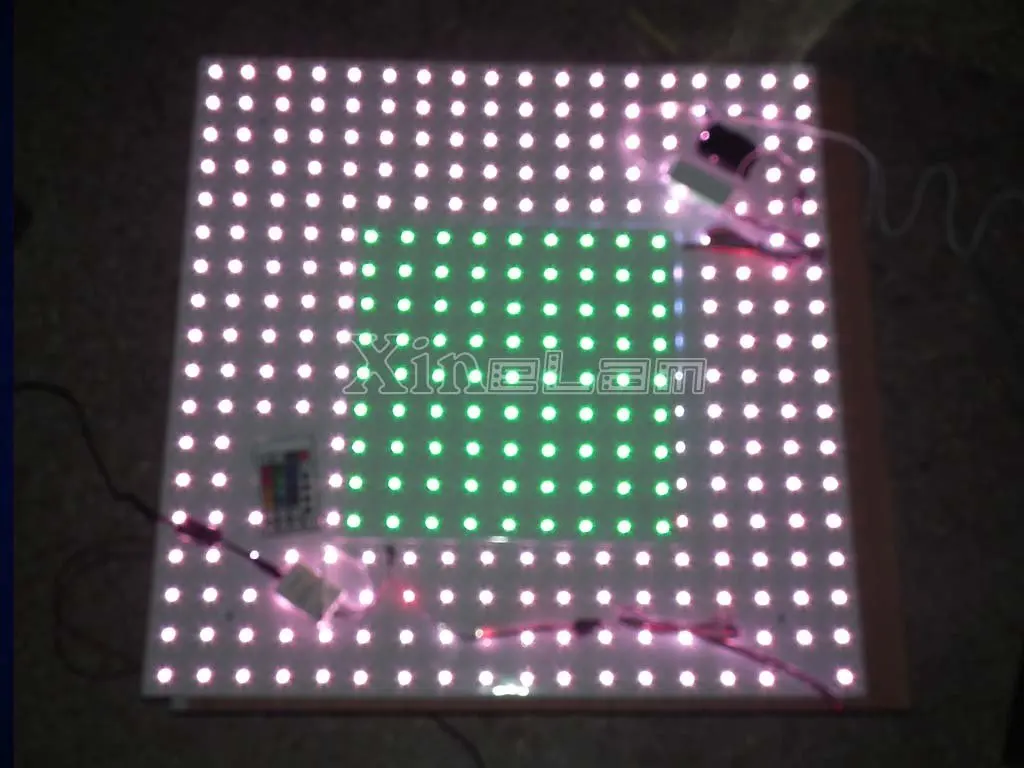

RX-ALF5050-33-RGB-3030	300x300mm	81LED	405Lm	Max15W
RX-ALF5050-25-1030	100x300mm	48LED	960Lm	9.6W	25mm Min. Cabinet Depth* 36mm   277W / m2 27700Lm / m2
RX-ALF5050-25-1060	100x600mm	96LED	1800Lm	18W
RX-ALF5050-25-2050	200x500mm	160LED	2800Lm	28W
RX-ALF5050-25-20100	200x1000mm	320LED	5600Lm	56W
RX-ALF5050-25-3030	300x300mm	144LED	2500Lm	25W
RX-ALF5050-25-3060	300x600mm	288LED	5000Lm	50W
RX-ALF5050-25-6060	600x600mm	576LED	10000Lm	100W
RX-ALF5050-16-660	60x600mm	3x36=108LED	2000Lm	20W	16mm Min. Cabinet Depth* 25mm   555W / m2 55550Lm / m2
RX-ALF5050-16-3030	300x300mm	324LED	5800Lm	58W
RX-ALF5050-16-2050	200x500mm	360LED	6500Lm	65W

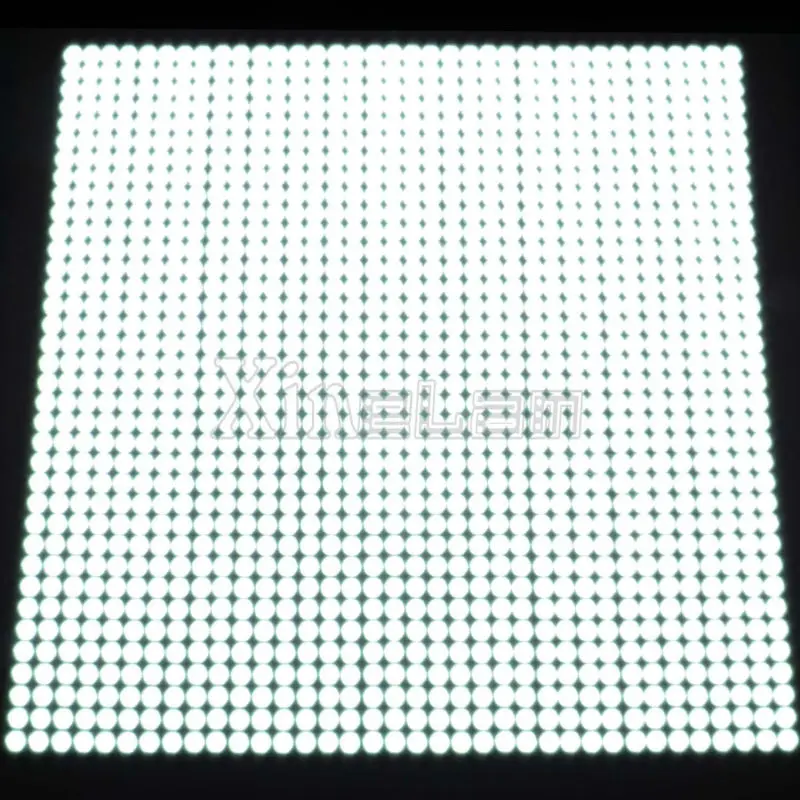

RX-ALF5050-16-6060	600x600mm	1296LED	20000Lm	200W



• Research and development since 2006, began production in 2008
• Many technical improvements, more large-scale practical applications, more reliable
• Effective use of top-light LED, more energy efficient
  China Patent No.: ZL200820131053, ZL200820132702
