High Quality Wet Gunite Machine for Wet Concrete Spraying - Wet Gunning Machine
Product Description

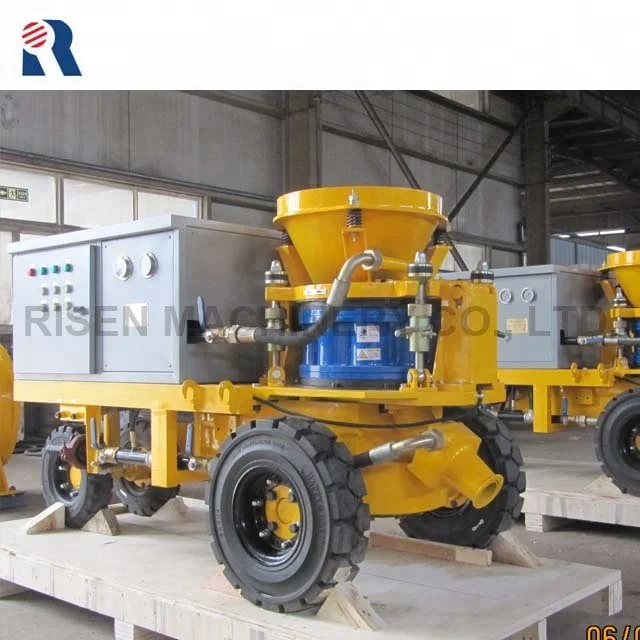

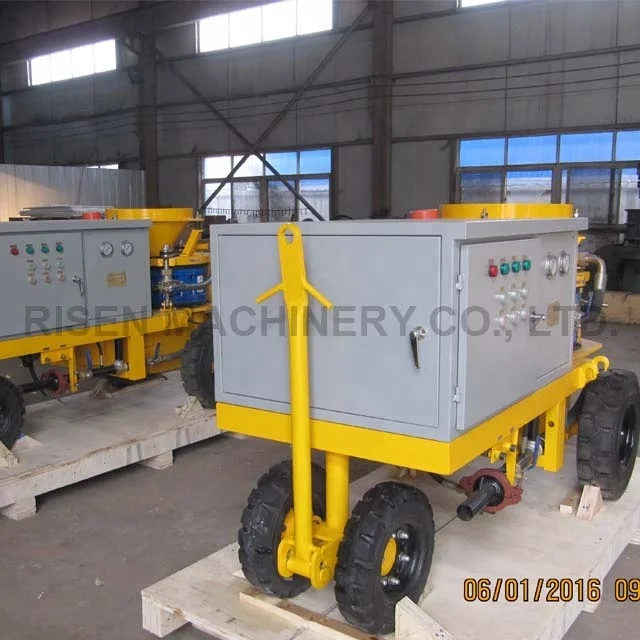

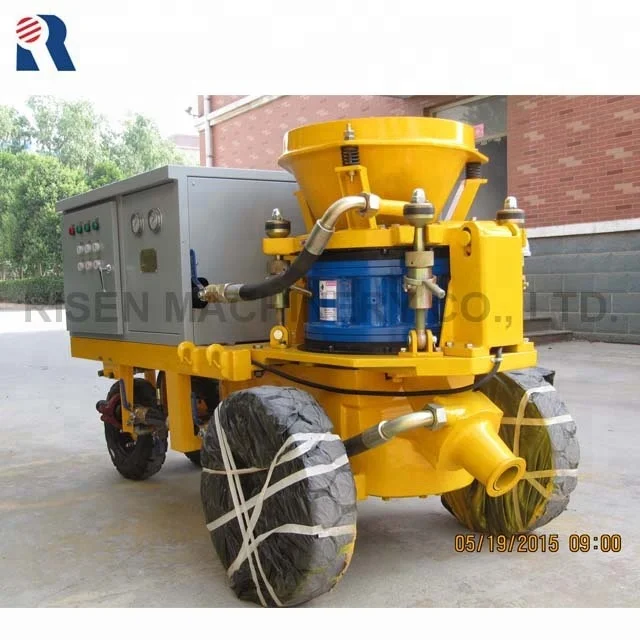

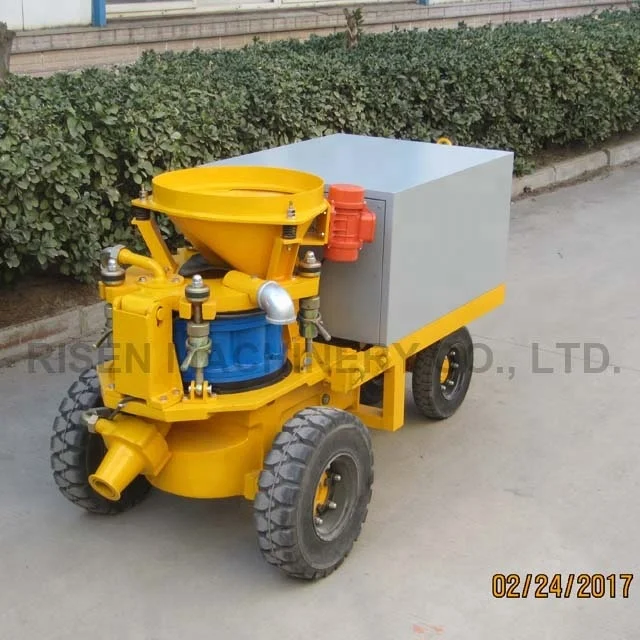

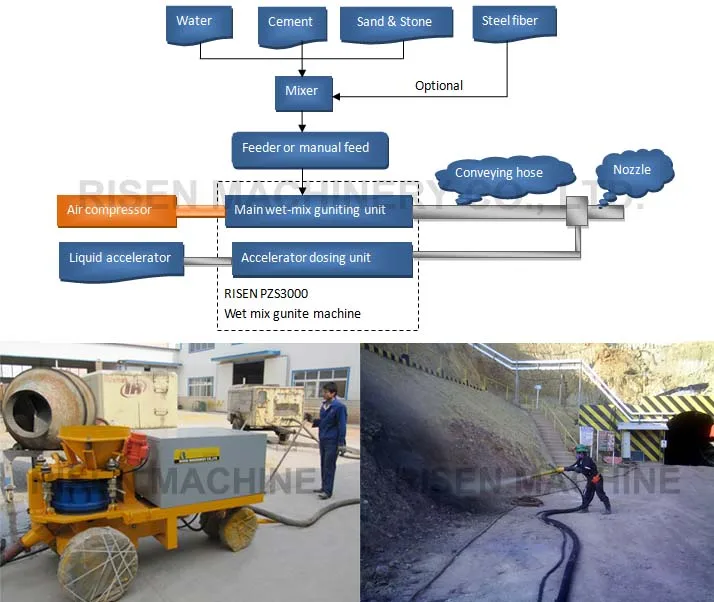

RISEN PZS3000 wet gunite machine, designed and manufactured as the CE safety standard, is a very excellent and mature rotary concrete guniting machine of RISEN CO. It is equipped with the dosing unit of liquid accelerator, mainly applied for wet mix shotcreting.
RISEN PZS3000 has been exported to overseas since 2004. Based on its excellent work principle and quality, it got the satisfaction of its users in China, Southeast Asia, Middle east, South America, Middle America, etc.
Technical Data
Output
5 CBM/h
Max.convey dist.
35 m
Max.aggregate size
φ15 mm
Concrete slump
8-15 cm
Hose inner size
φ50/65 mm
Operating air pressure
0.2-0.6 MPa
Air consumption
9-10 /min
Discharge height
1.17 m
Rotor Rev.
11 r/min
Main electric motor power
7.5 kW
Dosing pupmp model
BRJ15
Dosing pump rated pressure
0.6 MPa
Dosing pump output
28-140 L/h
Overall dimension
2050×950×1180 mm
weight
1200 kg

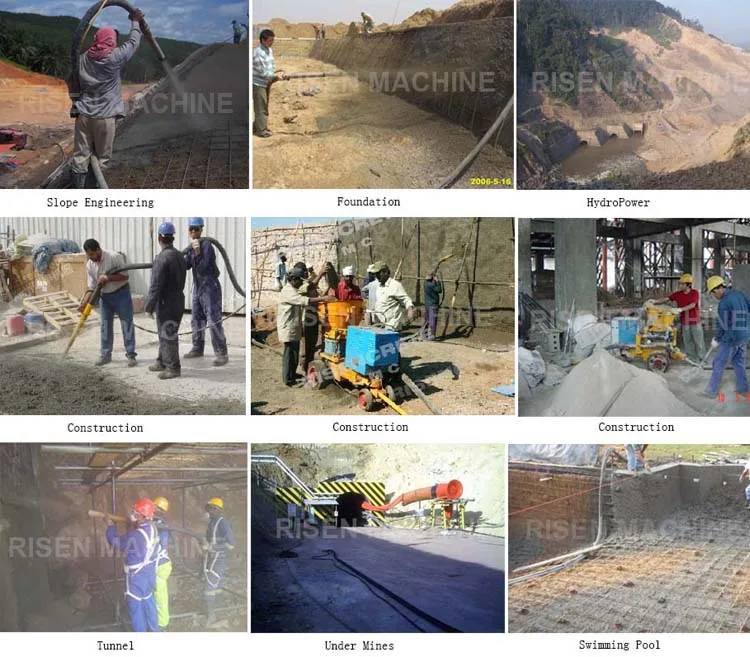

Application
Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Features
Going-through rotor and forced vibrating hopper make mixture smoothly falling.
Hose dosing pump unit provides constant dosing.
Thin flow conveying method, used for wet-mix and dry-mix shotcrete.

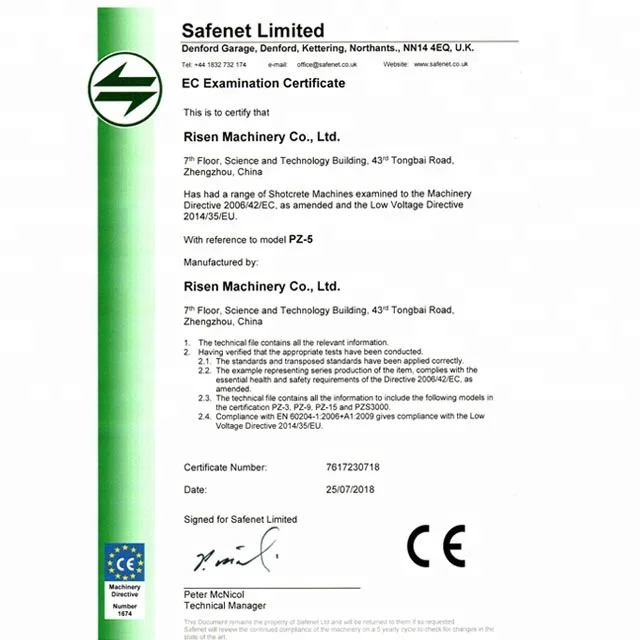

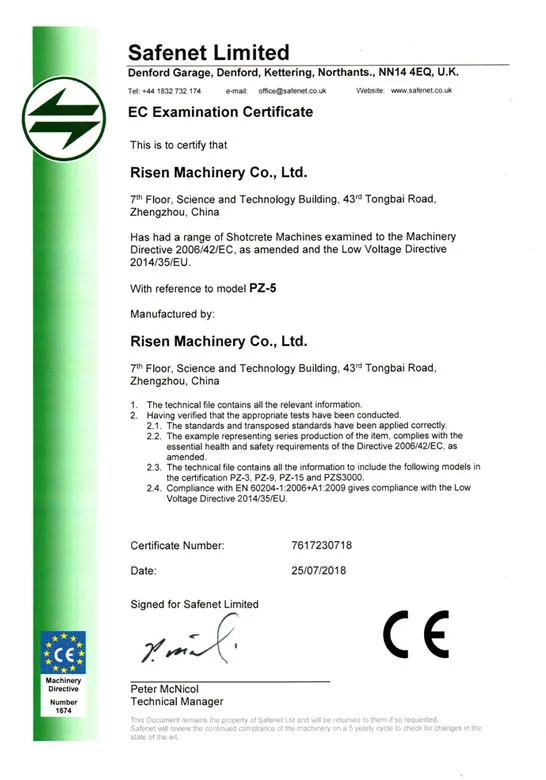

Reinforced shotcrete with steel or various polyment fibre. Complies with the essential health and safety requirements of the Directive 2006/42/EC
Advantages
High-accuracy Gearbox, high clean degree inside;
High wear resistance and longer use life consumable parts;
Military standard solid wheels for different construction site;
IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
National standard bearing, valve and screw etc.;
All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
Painted after sandblasting for a pretty appearance;
