Chemical feritlizer powdered material auger feeding double roller hydraulic compacting briquette maker
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (450505758):
Product Overview
Description
We are small factory but dedicated in roller compactor for granulating & briquetting powders
Chemical feritlizer briquette maker applications:
1.fertilizer:
2.powder material
zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
3.chemical raw material, fine chemical material
Chemical feritlizer briquette maker operating principle:
Difference of Chemical feritlizer briquette maker type A and type B
Chemical feritlizer briquette maker technical parameter: type B takes FGD gypsum for instance,final briquettes are oval ball
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Effective width (mm) | 180 | 300 | 310 | 330 |
Roller rotating speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Max. pressure rate (kN/cm) | 55 | 55 | 55 | 55 |
Briquette's size and shape(mm) | On request | On request | On request | On request |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of compacting machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |

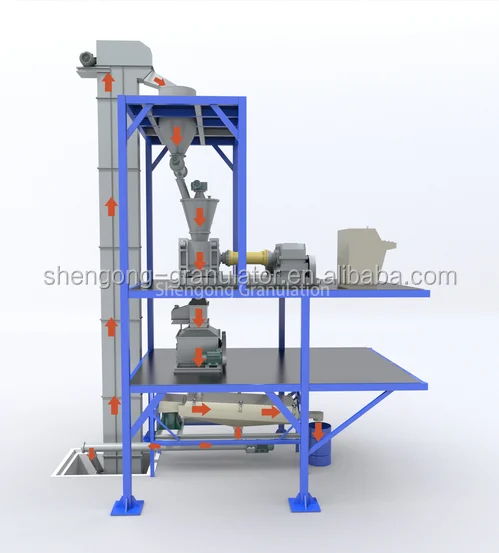

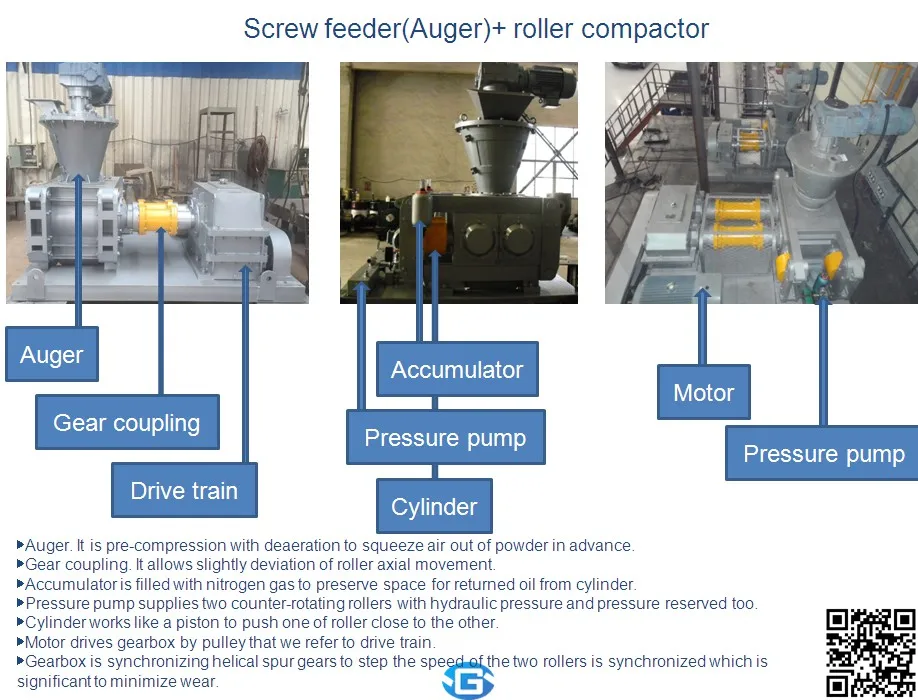

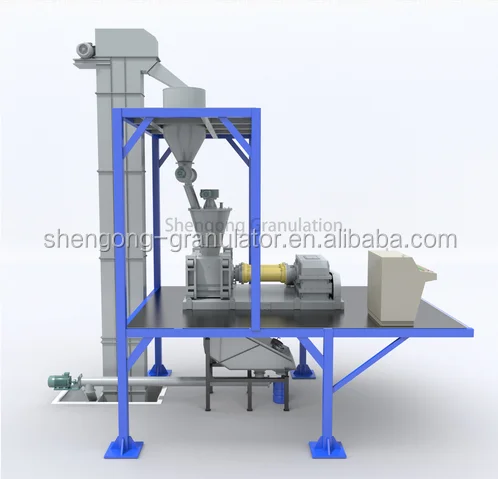

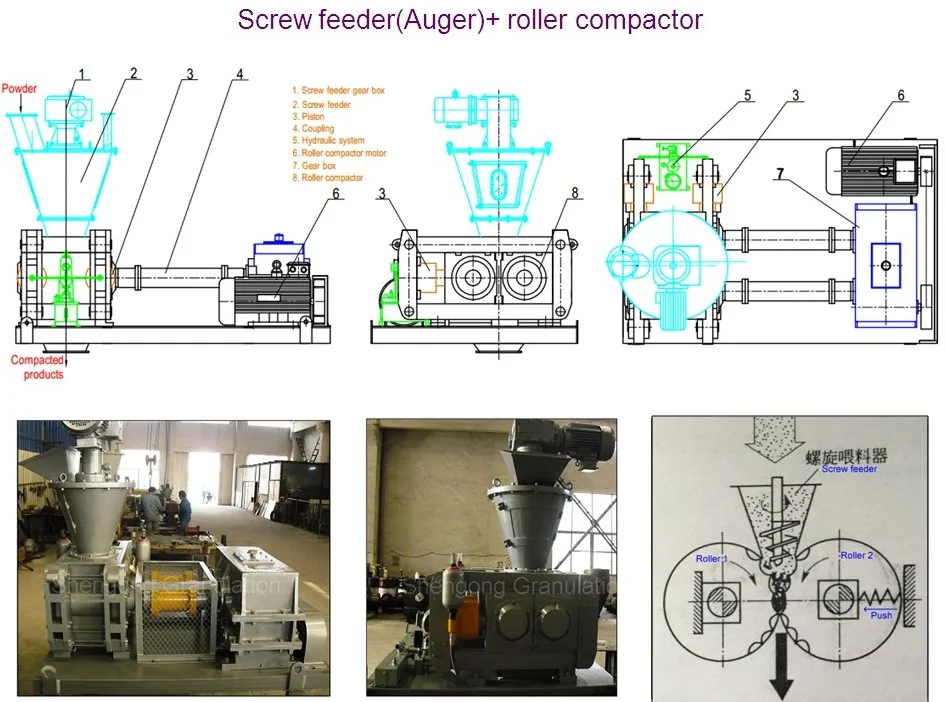

Chemical feritlizer briquette maker consists of screw feeder (upper taper) and double roller compactor

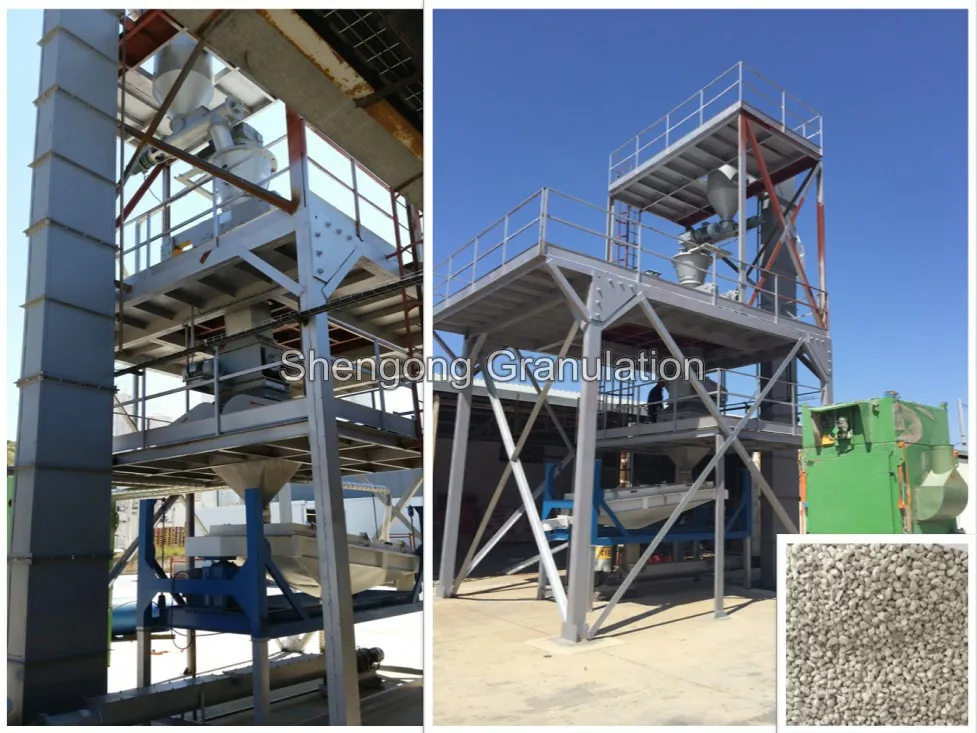

Chemical feritlizer briquette maker's peripheral equipments
Chemical feritlizer briquette maker final briquettes variable shapes
Briquettes and rollers

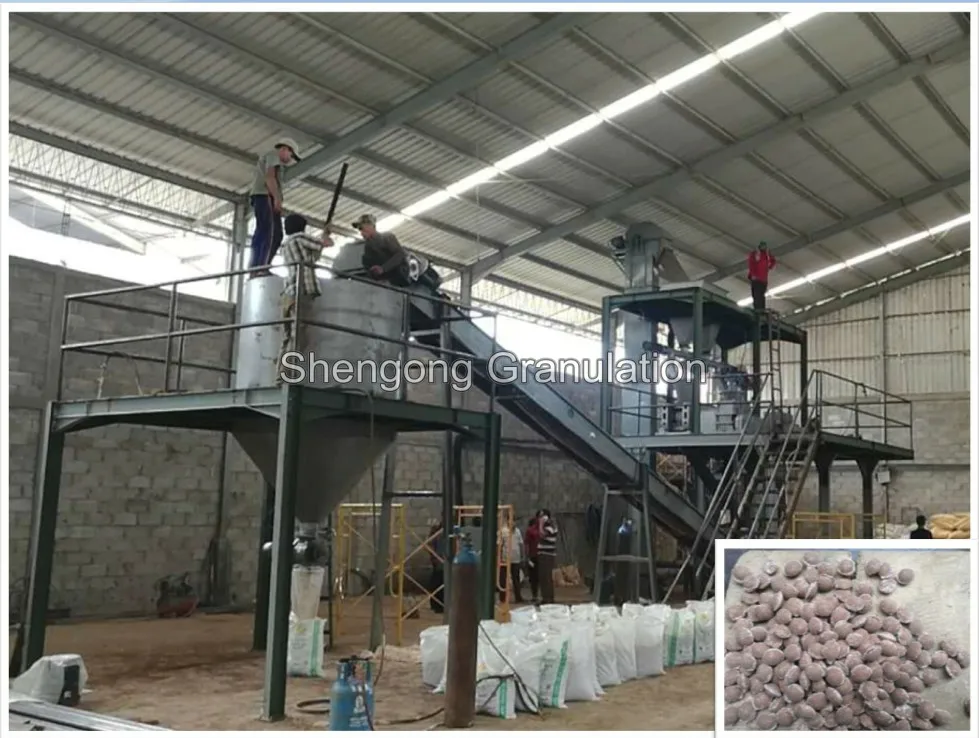

Chemical feritlizer briquette maker line is being loaded into one 40ft. container.
