Digital Ultrasonic Thickness Gauge manufacturer price SA40EZ

Product Overview

Description

SA40EZ Ultrasonic Thickness gauge SA40EZ



Introduction:

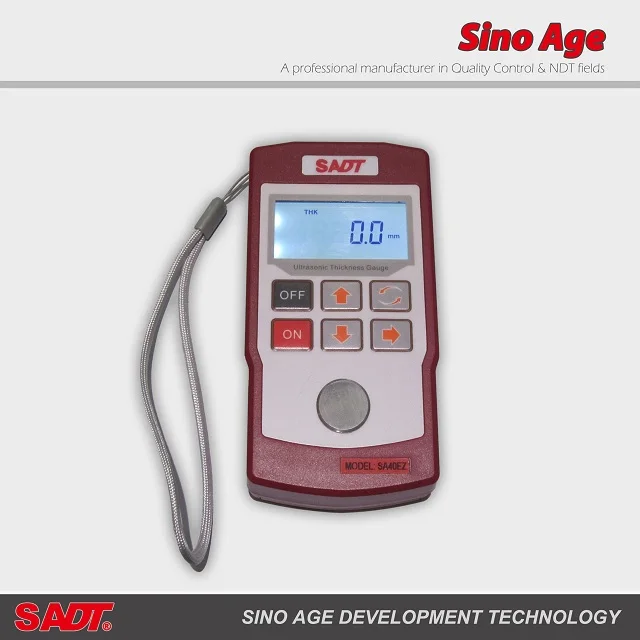

SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



Specification:



Model	SA40		SA40EZ
Range:	0.7-300.0 mm
display:	4-digit backlit LCD display
Resolution:	0.01mm @ 0.8-99.99mm, 0.1mm @ 100.0-300.0mm
Velocity:	1000-9999m/sec
Save:	400 sets of data		no such function
Power:	2 1.5- V batteries
Operating Temperature:	0-40 °C
humidity range:	20-90 % RH
Size:	124 × 67 × ; 30mm
Weight:	240g
low voltage display	have this feature
automatically shut down	non-use state under 5 seconds off
Optional probe
PT-5	5MHz	diameter φ 10mm		standard probe
XT-5	5MHz	diameter φ 7mm		small diameter probe
GT-5	5MHz	diameter φ 12mm		temperature probe
CT-2.5	2.5MHz	diameter φ 12mm		coarse grain probe

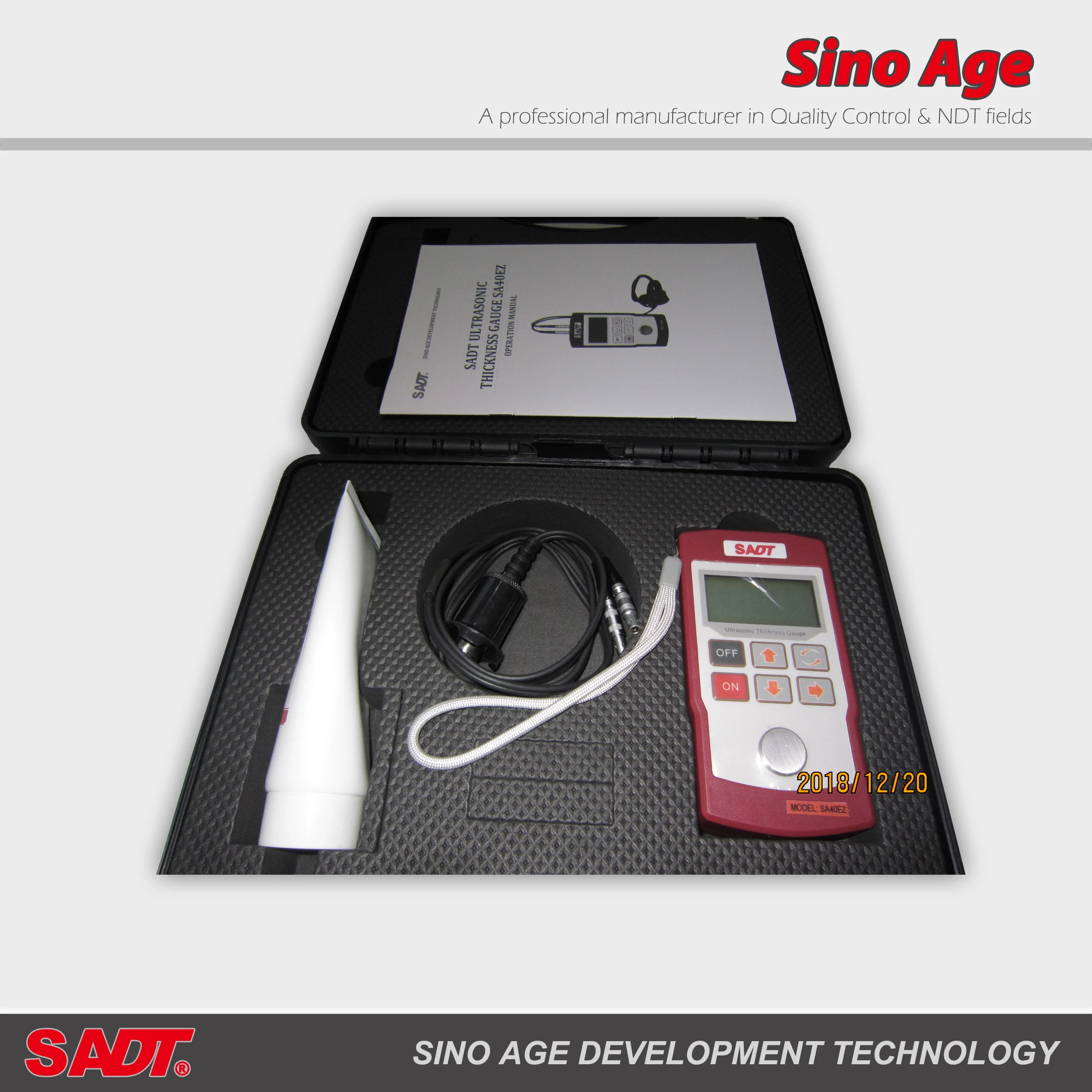

Standard Package:



SA40EZ main unit 1
Standard 5MHz probe PT-5 with
probe holder 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Test certificate 1
Operation manual 1
Carrying case 1
