30 Bar Marine Air Compressor
- Category: >>>
- Supplier: Chongqing Hi-Sea Marine Equipment Import & Export Co. Ltd.
Share on (450942289):
Product Overview
Description
Marine Air Compressor:
30 Bar Marine Air Compressor
We can supply all kind of compressor based on your requirement, on the meanwhile we supply parts of compressor.
Feature

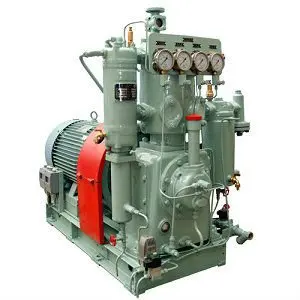

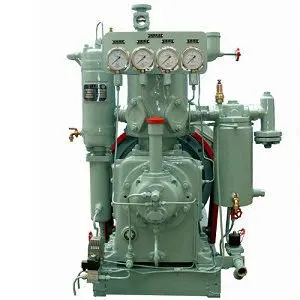

HC series air compressor is suitable for marine use, it is a vertical, water cooled 2stage compression air compressor.The main purpose of it is to start diesel engines of oceangoing ships and supply compressed air within its pressure and capacity range.
Main Parameter of HC Series Compressor
Name | Air Compressor | |||||
Type | Vertical, water cooled, two stage compression | |||||
Model No. | HC-25/30 | HC-65/30 | HC-69/30 | HC-72/30 | HC-82/30 | HC-90/30 |
Capacity m3/h | 54 | 65 | 69 | 72 | 82 | 90 |
Discharge pressure Mpa | 3 | 3 | 3 | 3 | 3 | 3 |
Shaft power kw | 12.5 | 15.2 | 15.5 | 16.5 | 19 | 20.5 |
Rotation rating r/min | 730 | 870 | 730 | 960 | 870 | 960 |
Cooling water comsumption m3/h | 1.0-1.4 | |||||
Lubrication | Forced lubrication by gear pump | |||||
Driving method | Direct coupling | |||||
Motor | ||||||
Model | Y200L-8-H | Y225S-8-H | Y225S-8-H | Y200L1-6-H | Y225M-8-H | Y200L2-6-H |
Power kw | 15 | 18.5 | 18.5 | 18.5 | 22 | 22 |
Voltage v | 380 | 440 | 380 | 380 | 440 | 380 |
Frequency Hz | 50 | 60 | 50 | 50 | 60 | 50 |
Protection grade | IP44 | |||||
Insulation class | B | |||||
Weight kg | 700 | |||||
