Double side Metal Sheet Embossing Machine

Product Overview

Description

Double Surface Metal Sheet Embossing Mill



Embossing mill feature:

1. High-precision feeder guarantee feeding stably and high efficency.

2. It is easy to operate machine and improve the work efficency greatly , working speed setting in advance.

3.The complete machine features humanization design.

4.Embossing aluminum sheet ,adopted double surface embossed patterns technique.

5.Profession embossing stucco effect.
   (effect requirement brought foward by the costomers)

6.This model is suitable for guard door,decoration board,etc.

7.Steel structure,more over rigidity of the panel will strength more after embossing.



Technical parameters:

Style	LK-S1400
Techical date	3300*1200*1500mm
Roller size	φ400*1400mm
The material of rollers	42CrMo

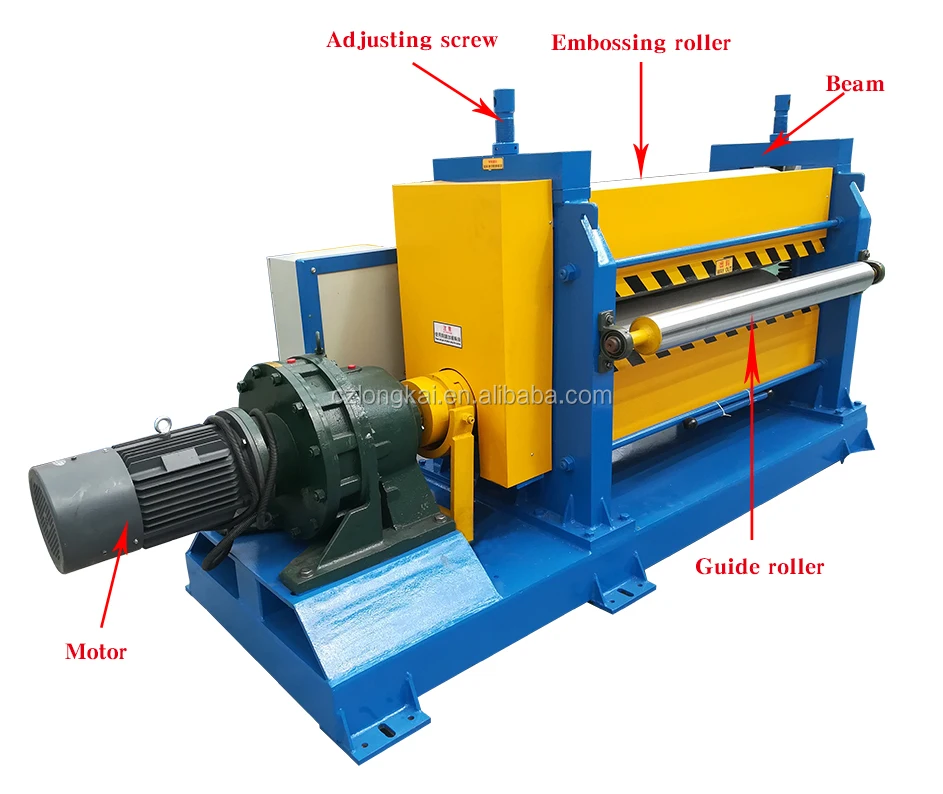

Way of embossing	the male and female rollers press esch other up and down
Pressing adjustment	by screw bolts
Motor power	11kw
PLC speed	0-25m/min
Size of target sheets	Aluminum 0.2-1.2x1250mm Steel plate 0.18-0.6x1250mm Stainless steel plate 0.1-0.5x1250mm

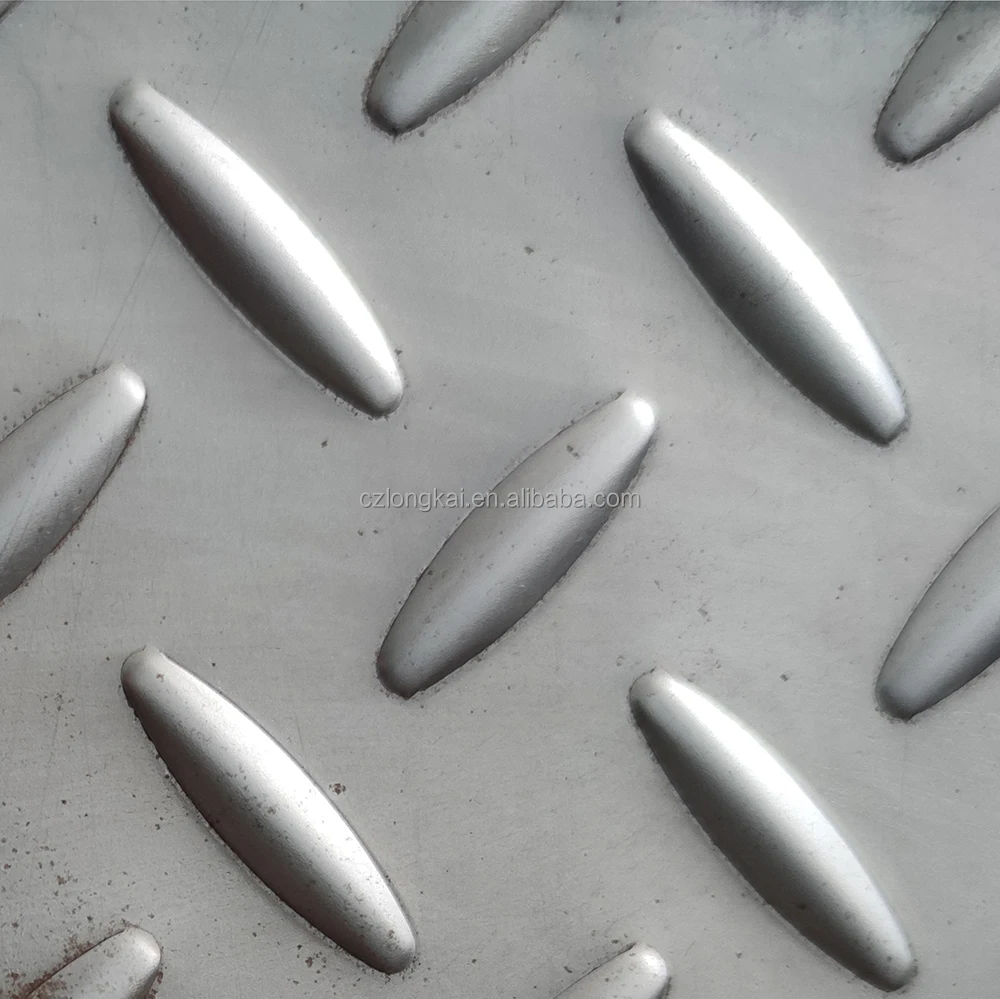

Pattern	Willow leaf



Delivery terms:

1.Pattern sample for free.

2.Time of delivery: within 45 days

3.Trade term: FOB CIF C&F

4.Term of payment: 30% T/T in advance, the balance by L/C or T/T.

5.Packaging: fixed by steel wire put in container.
