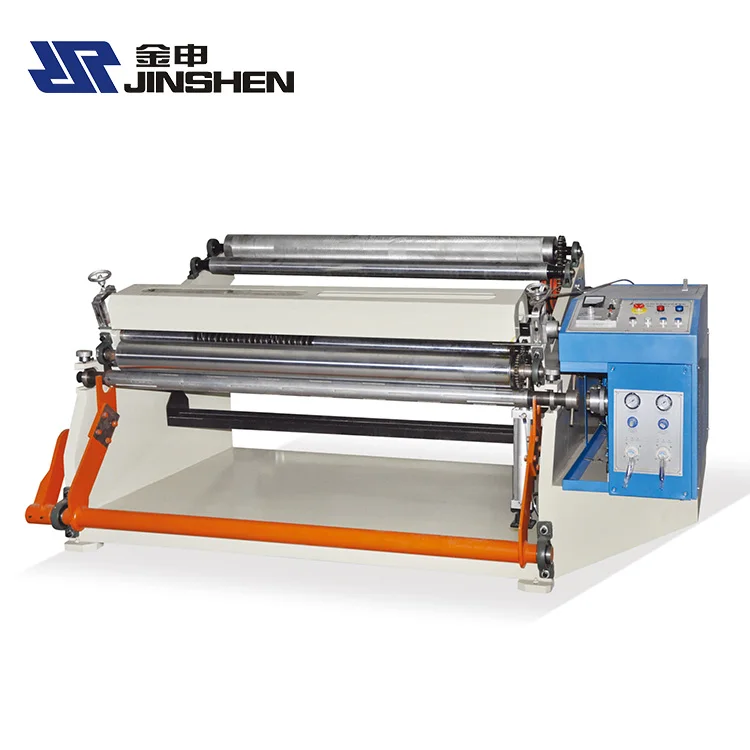

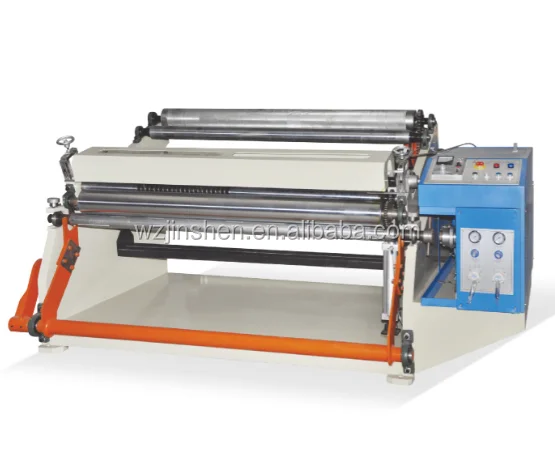

High performance CE certificated Kraft paper slitting and rewinding machine JS BX
- Category: >>>
- Supplier: Zhejiang Jinshen Machinery Manufacture Co. Ltd.
Share on (452152598):
Product Overview
Description
High performance CE certificated Kraft paper slitting and rewinding machine
Product Description
model | JS- BX paper slitter and rewinder | ||
Technical parameter | Control systerm | ||
jumbo roll max-width | 1600mm | edge-attracting controller |
|
Finished roll min-width | 35mm | Autuator | CHNT |
jumbo roll outside diameter | 1200mm | Signal component | Omron |
Rewinded max diameter | 1000mm | Pneumatic component | Airtac |
Slitting speed | 150m/min |
|
|
Slitting range | 100-600gsm | Component |
|
Winding way | Air shaft winding | Unload | Pneumatic |
Knives number | 21 sets | Edge-correction | Electrical |
Paper giving way | Electrical drag hook | Tension adjust | By pneumatic |
Speed adjust | Speed adjust motor | Rewind unwind | Two air compressor bearing |
Power supply | 380V three phase four lines |
|
|
|
| Double-knives slit with thicknessful knives | |
|
|
| |
|
|
| |
Size(mm) |
| ||
Rewind:L*W*H | 2700mm*1600mm*1250mm |
| |
Up knife | 4*105*70mm |
| |
down knife | 4*105*70mm | Free components | |
weight | 3100kg | Aircompressor | -- |
Driving systerm | Usful tools | Have | |
Main motor | 4kw |
| |
Moving speed | 1400r/min |
| |
lift machinery of base paper | 2.2kw |
| |
edge-attracting blower | Y110 60:1 |
|
|
Rewind speed gear down | WPA12 Cazenove |
|
|
Paper lift speed gear down | WPA100 Cazenove |
|
|
Driving way | Connected bearing |
|
|
bearing | Wan xiang |
|
|
Use:
Paper Slitter and Rewinder,jumbo roll slitter rewinder,paper roll slitting machine,paper slitting machine is used for slitting a series of paper ,such as kraft paper,teaboard paper, pattern paper,coat paper,and so on.
Feature:
1,Double cutter cutting , thicker cutter.
2,The cut of paper reel is smooth.
3,tight rewind , flat and tidy for both sides.
4,all the operation concentrate on panel , easy to operate.
5,Steel structure of machine in a good look.
6,Unload pneumatic, easy to operate.
Our service
Pre-Sales Service
1.Inquiry and consulting support.
2.Vist our Factory.
After-Sales Service
1.Training how to install the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3. Online support
About Us
Zhejiang Jinshen Machinery Manufacture Co. Ltd. is an innovative paper tubes and paper cores machines manufacturing company based in Zhejiang Province, China, famous with this kind of industry in mainland China. Our company is started his business at 1996 and quickly became a major exporter to all around of world his economic and reliable paper tubes and cores manufacturing machines.
We have various kind of solutions for textile industry, for construction industry, for motor parts industry, for electrical parts industry, for logistics company, for food packaging industry, for luxury packaging industry by our different type of machines such as paper slitter & rewinder, spiral paper tube winder, paper tube re-cutter, paper reel stand, glue unit, paper tube slitter, paper tube trimmer, paper tube polisher, and paper tube ends rolling machine.
We main focus is always your satisfaction and your confidence that you give us feedback, we know that the main keyword is always our support after sales who makes you always unworried about your future business days. No matter where you located we are flexible to send you our technicians as quickly as possible where and when you need an on-site help.
Contact Us
Related products:
FAQ
Q1:what's your main products ?
A:We are a professional paper tube equipment manufacturer,having our own factory.
Q2:Does it easy to operate the machine?
A:Yes,our machine is stable and easy to operate by operater.They are simple, no rough shape, simple shape, all motors are deployed inside the machine, easy to clean external sanitation.
Q3: Engineer oversea service ?
A: Yes ,engineers available to service machinery overseas
