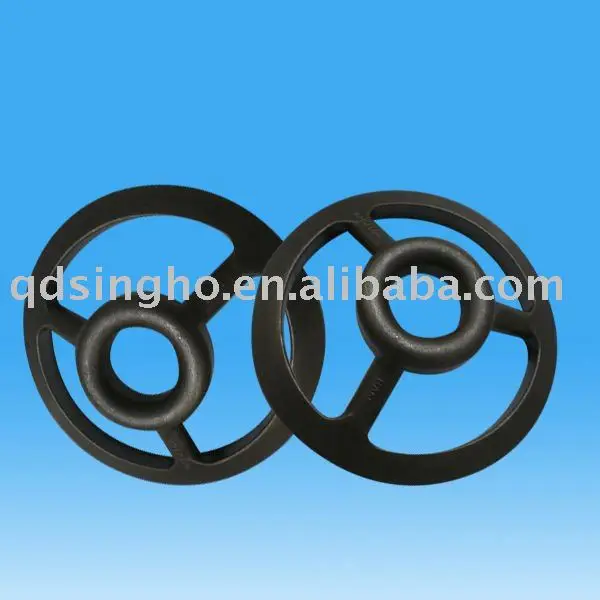

Ring Type Baffle Plate for Drill Pipe Float Valve

Product Overview

Description

Ring TypeBaffle Plate
Material:Alloy Steel
Investment Casting
Heat Treatment: Carburization
ISO9001:2008

Baffle Plates are installed on top of the Drill Pipe Float Valve as a landing tool for records, thus preventing the recorder from entering the Drill Pipe Float Valve and possibly the drill bit.



Baffle Plate,For Drill Pipe FLoat Valve

Baffle Plate,Ring Type

Investment Casting Process

Baffle Plate Material:Alloy Steel

Heat Treatment: Carburization

Dimensions and tolerances per ANSI Y14.5-82



Note: We make spare parts for the Drill Pipe Float Valve. And the pictures are just to show our production ability and business scope. We don't sell them. If you're interested, please send us the drawings or samples for development.



We manufacture spare parts for both Mdl. G&F Drill Pipe Float Valve, such as Flapper Valve, Cage, Seal Retainer Ring, Baffle Plate, Bumper, Valve Guide, Plunger/Plug etc.



MOD G Seal Retainer Ring







Cage for MOD F Drill Pipe Float Valve





Cage for MOD G Drill Pipe Float Valve





Flapper Valve with Spring&Pin for MOD G Full Open Valve



Baffle Plate

Baffle Plates are installed on top of the Drill Pipe Float Valve as a landing tool for records, thus preventing the recorder from entering the Drill Pipe Float Valve and possibly the drill bit.





G Drill Pipe Float Valve, Flapper type:

The Model G "Flapper Type" Full Open Valve incorporates a specially designed flapper which opens quickly and fully to provide a completely unresistricted bore through the valve. The Model G is especially good for use with highly abrasive fluids. When circulations stops, the flapper closes instantly to prevent cutting from entering the drill string and plugging the bit. The valve opens when the first joints drain and are not pulled wet. This is saves mud and avoids safety hazards and down time. The Flapper type valve complements primary blow out prevention equipment to provide complete internal pressure control.



Parts for Model G Full Open Valve (Flapper Type) includes:1.Spring 2.Pin 3.Small Bumper 4.Seal Retainer 5.Large Bumper 6.Flapper Valve 7.Cage 8.Seal 9.Side Seal 10. Shock Absorber.





F Drill Pipe Float Valve,Plunger Type

The Model F Plunger Type Valve provides positive and instantaneous shut off against high during drilling. For normal drilling operations, the durable Model F is the most economical choice and is available in all sizes.



Parts for Model F Plunger Type Valve includes:1.Valve Seal Disc 2. Plunger/Plug 3.Guide 4.Spring 5.Side Seal 6.Valve Seal 7.Cage



MODEL "F" Plunger Drill Pipe Float Valve & MODEL "G" Flapper Style Drill Pipe Float Valve



Standard: ASTM, BF,BS, JIS, UNI,  ANSI, ISO etc.





We are able to supply the products as follows:

1) Materials include: Stainless Steel, Carbon Steel, Alloy Steel, Ductile Iron, Grey Iron, Copper, Aluminum Bronze, Malleable Iron etc.

2) Process: Investment Casting, Sand Casting (Resin Sand Casting, Green Sand Casting), Permanent Casting, Die Casting, Centrifugal Casting, Forging and Stamping etc.

3) Machining Types: Machined by Round Bar and steel plate, Drilling, Milling, Turning, Boring, Slating, Grinding,, NC/CNC Machining etc.

4) Tolerance is controlled by CMM Machine.

5) OEM Service

6) Special design is available.

7) ISO9001:2000

8) Standard: ASTM, BF,BS, JIS, UNI,  ANSI, ISO etc.
