Рабочая платформа для подъема мачты от производителя
- Category: Other Construction Machinery >>>
- Supplier: Langfang,CABR,Construction,Machinery,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
The construction platform ( working platform) can be used in high-rise external decorating,glass curtain wall construction,external cleaning etc. The driving principle for this equipment is similar to rack&pinion building hoist, and the main parts such as section mast, rack and pinions are all the same and can exchange with each other. The length and width of the platform can be stipulated by users and can be manufactured according to users' demands.
The main features of our construction platform (working platform) are as follows:
1.Our construction platform (working platform) is easy installation and dismantling. No fixed foundation is needed,thus the working location can be conveniently changed.
2.Our construction platform (working platform) can be fitted together to meet different working conditions on flat or curved surface of the building exteriors.
3.Our construction platform (working platform) works steadily, and have excellent performance,high efficiency and large load capacity.
4.Our construction platform (working platform) is equipped with anti-overload device,anti-unbalanced load, even-speed regulator, manual release device for the construction platform (working platform), the double pillar elevating platform is equipped with additional synchronous running device.
The main features of our construction platform (working platform) are as follows:
1.Our construction platform (working platform) is easy installation and dismantling. No fixed foundation is needed,thus the working location can be conveniently changed.
2.Our construction platform (working platform) can be fitted together to meet different working conditions on flat or curved surface of the building exteriors.
3.Our construction platform (working platform) works steadily, and have excellent performance,high efficiency and large load capacity.
4.Our construction platform (working platform) is equipped with anti-overload device,anti-unbalanced load, even-speed regulator, manual release device for the construction platform (working platform), the double pillar elevating platform is equipped with additional synchronous running device.

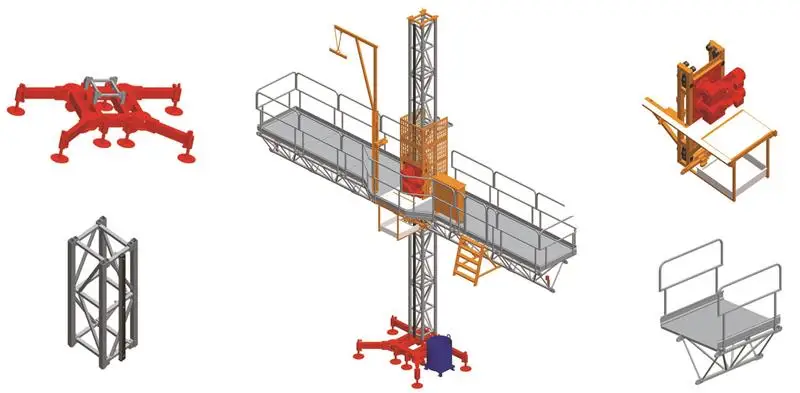

Single mast platform

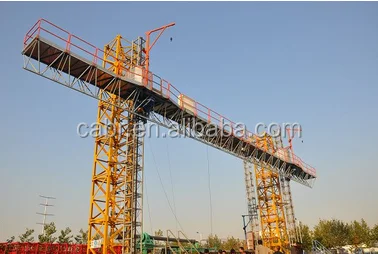

Double mast platform
Specification
Single mast | Double mast | |||
Min/Min Platform Length | 4/10m | 11/30m | ||
Max Load Capacity | 2000/1500 kg | 3600/2000kg | ||
Lifting Speed | 0~6m/min | 0~6m/min | ||
Tie-in Interval | 7.5m | 7.5m | ||
Free Standing Height when working | 6 m | 6 m | ||
Free Standing Height when erecting | 15 m | 15 m | ||
Platform Section Size | 1.5m×1.35m×0.65m | 1.5m×1.35m×0.65m | ||
Telescopic Platform max Extension | 0.9m | 0.9m | ||
Mast Section Size | 0.5m×0.5m×1.508m | 0.5m×0.5m×1.508m | ||
Driving System | 2.2kw×2 | 2.2 kw×2 +2.2 kw×2 | ||
We can customize platform according to clients' requirements. | ||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
CABR Construction Machinery Technology Co., Ltd. is a high-tech enterprise set up by Beijing Institute of Construction
Mechanization Co.,Ltd.Our company was founded in March 2003 with the registered trademark of “CABR/M”.
Mechanization Co.,Ltd.Our company was founded in March 2003 with the registered trademark of “CABR/M”.
Beijing Institute of Construction Mechanization Co.,Ltd. is a professional research institution specialized in construction
machinery technical application and development, with a history of more than 50 years. It has cooperated with more than 3,000 enterprises both at home and abroad. Relying on the solid technical strength of the research institute Co.,Ltd, CABR Construction Machinery Technology Co., Ltd. constantly provides new products and technology for the construction market with perfect testing methods, advanced processing equipment and a strict quality system.
machinery technical application and development, with a history of more than 50 years. It has cooperated with more than 3,000 enterprises both at home and abroad. Relying on the solid technical strength of the research institute Co.,Ltd, CABR Construction Machinery Technology Co., Ltd. constantly provides new products and technology for the construction market with perfect testing methods, advanced processing equipment and a strict quality system.
Our Advantages
1 We are factory affiliated to China Academy of Building Research.All of our technical engineers are staff of China Academy of Building Research,one fourth of whom are senior engineers.
2 We are the administrative department of national standard.We have the qualification of drafting national standards,inspecting and certifying.So we are at leading position in technology.
3 Our core goal is to make excellent products, quantity is our destination.
4 We have a high-caliber after sales team.
5 We promise our technician can find out electrical problems within 10 minutes and solve them within another 10 minutes.And for mechanical problems, we can solve them within 3 hours.
6 Our price is neither the highest nor the lowest.We engage in good quality and reasonable prices.Our products are cost effective.
2 We are the administrative department of national standard.We have the qualification of drafting national standards,inspecting and certifying.So we are at leading position in technology.
3 Our core goal is to make excellent products, quantity is our destination.
4 We have a high-caliber after sales team.
5 We promise our technician can find out electrical problems within 10 minutes and solve them within another 10 minutes.And for mechanical problems, we can solve them within 3 hours.
6 Our price is neither the highest nor the lowest.We engage in good quality and reasonable prices.Our products are cost effective.
