Многофункциональный измеритель серии FC для линейной скорости/длины/подсчета

Product Overview

Description

FC series Multi-function Controller for Frequency/Length/Counting

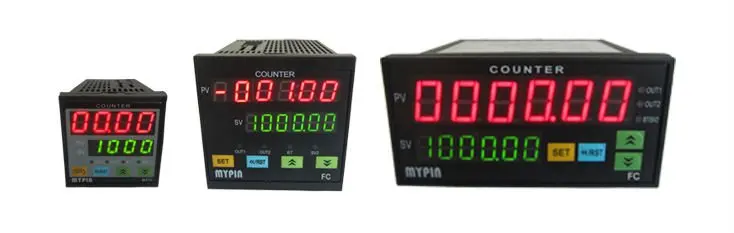

FC4,FC7,FC8 (from left to right)



Widely apply with frequency converting control in package machinery/drawing

machinery,electronics/food industry,etc.

2,Input: 2 independent inputs for various waveform pulse/raster/proximity switch/

photoelectrical switch/contact switch/encoder(PNP/NPN)etc. Photo isolation

for input & output,Strong interference.

3,Output:up to 3 alarms for counting/length and line-speed/frequency control

4,Display:4/6 digits.Range:-199999~999999.Auxiliary power 12V/24V/30mA

5,Communication:standard RS232/RS485 interface,MODBUS RTU protocol,

realize remote control by direct connection with PC/PLC/other equipment.

6,Power supply: regular: 90-260V AC/DC,   others: 12-30V AC/DC

7,Dimensions:FC4: 48*48 *80   FC8: 48*96*80   FC7: 2*72*80..

   Case class: IP65..



   We can manufacture thousands of different models of products, including Temperature Controller, Digital Adjustor,thermocouple (TC and RTD), Panel Meter, Sensor Meter, inductor, Power Meter, Coulometer, Voltage Meter, Ampere Meter, Counter, Tacho Meter,  Frequency Meter, flowmeter,Timer,Timer Relay, Solid State Relay, Proximity Sensor, ,Pressure sensor ,load cell sensor, KNE KSC box, Rotary Encoder and computer integrated control system etc.They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc.

  In addition to supply MYPIN brand products, We have successfully cooperate in more than 20 domestic and international customers on OEM basis, and provide customer PRIVATE brand services so as to achieve mutual benefits and the exchangeof needed goods. you are welcome to contact us at any time, we are ready to offer you the immediate answer.
