Marine Bronze Duplex Basket Strainer
- Category: >>>
- Supplier: Shandong Jiahe Machinery Co. Ltd.
Share on (454170663):
Product Overview
Description

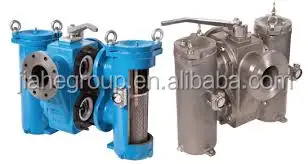

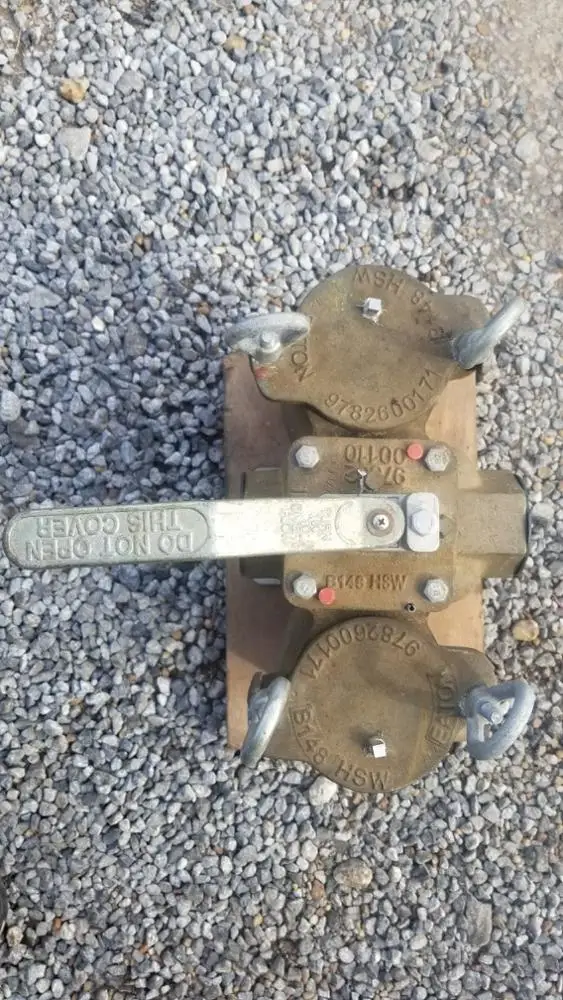

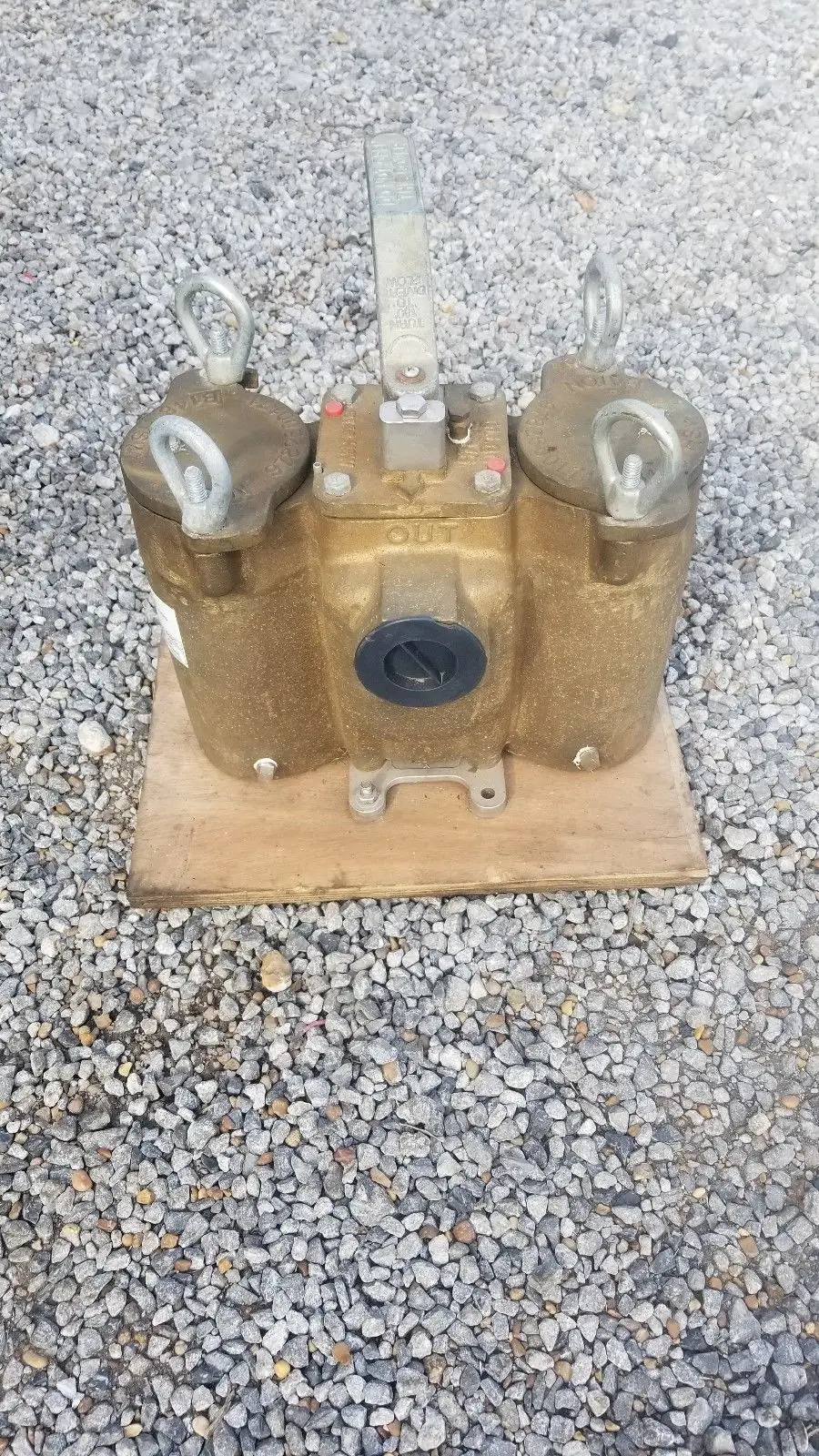

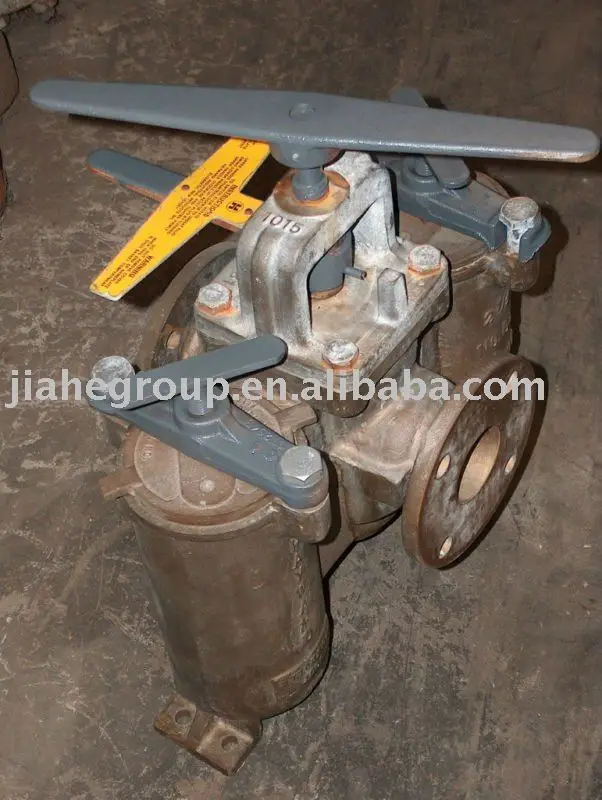

Marine Bronze Duplex Basket Strainer
| |||||
The Model DSBF and Model DSBT are an bronze duplex strainers with flanged and thread ends respectively. They are for use in continuous flow applications to avoid shutting down the system for cleaning. Simply moving the handle to the right or left will divert flow to chamber under the handle, which allows for cleaning the basket not in use.
Standard diverters are bronze, but are also available in bronze or stainless steel. And different size basket perforations and meshes are available in stainless steel, monel, and brass to meet specific media requirements.
Non-Shock Working Pressure for the DSBF is 255psi at 150F for water, gas, and oil (WOG) liquids. Not for steam service.
What Are Flanged Marine Navy Duplex Strainers?
A Bronze Marine or Navy Duplex Strainer, sometimes called a twin basket strainer, is a type of filter built into a fuel, oil, or water piping system and it is used to remove large particles of dirt and debris. The bronze marine navy duplex strainer system usually consists of two separate strainer baskets housed. The system also contains a valve handle placed between the two strainer baskets to divert the flow of liquid to one strainer while the other strainer basket is being cleaned or serviced.
How Do Flanged Marine Navy Duplex Strainers Work?
Bronze Marine Navy Duplex Strainers are installed in the pipeline systems where flow cannot be stopped. Unlike other types of bronze strainers, it is easy to conduct maintenance on these strainers. Bronze duplex Strainers are used in Marine industries to remove hazardous elements that might cause partial or complete breakdown of operations if they get into the system. Since bronze Duplex Strainers are used when fluid flow cannot be interrupted it maintains a continuous flow by utilizing two separate basket chambers with integral valves to direct flow into one of the basket chambers. Bronze Duplex strainers are available with various sizes of connections, connection styles (flanged, ffd, threaded, etc.) , materials of construction, gasket composition, valve types, closure methods, and screen openings.
Who Makes Bronze Marine Navy Duplex Strainers?
Leslie Duplex Strainers, Bailey Duplex Strainers , Hayward Duplex Strainers, S&P Duplex Strainers, Hellan Duplex Strainers and Tate Duplex Strainers are the most common brands of Duplex Strainers, especially in the Marine and Navy industry.
Each brand has slightly different styles and specifications but they perform the same function. Due to the high cost and lead time of these “made to order units”, customers will often entertain an alternate brand, face to face or drilling if supplied with matching flanges.
Strainer Materials:
- BRONZE DUPLEX STRAINERS
- CAST IRON DUPLEX STRAINERS
- STAINLESS STEEL DUPLEX STRAINERS
- STEEL DUPLEX STRAINERS
Strainer Pressure Ranges:
- 125lb Duplex Strainers
- 150lb Duplex Strainers
- 200lb Duplex Strainers
- 250lb Duplex Strainers
- 300lb Duplex Strainers
- 600lb Duplex Strainers
Packaging & Shipping
We we can ship the goods worldwide either by Ocean or by Air. The packing will be done as per clients' requirements.
Company Information
Shandong Jiahe Machinery Co., Ltd. manufactures a full line of industrial pipeline strainers including custom engineered fabricated strainers, automatic strainers. Complementary products include valves, valve operators, ball valves, check valves, wafer check valves, knife gate valves, resilient seat butterfly valves, expansion joints, rubber connectors, pneumatic actuators, electric actuators and temporary screens. Shandong Jiahe Machinery Co., Ltd. holds certifications such as ISO 9001:2008 Certificate of Registration, we could provide fabricated strainer designed as per ASME 'U' Section VIII, Div.1 and 'UM' Stamp Certification available, and we follow an approved Quality Manual. Shandong Jiahe Machinery Co., Ltd. performs testing such as hydrostatic testing.
Specialties
Strainers, Check Valves, Butterfly Valves, Ball Valves, Knife Gate Valves, Fabricated Strainers, Duplex Baskets, Dual Basket Strainers, Y Strainers, Basket Strainers, Automatic Strainers, Foot Valves, Expansion Joints,
Our Services
Shandong Jiahe Machinery Co., Ltd. has in-house engineers in order to meet all custom engineered design requirements. We can provide the total solution for pipeline strainer. We have simplex basket strainer, duplex strainer, Y strainer, T strainer, fabricated strainer, automatic strainer, temporary strainer, etc.
