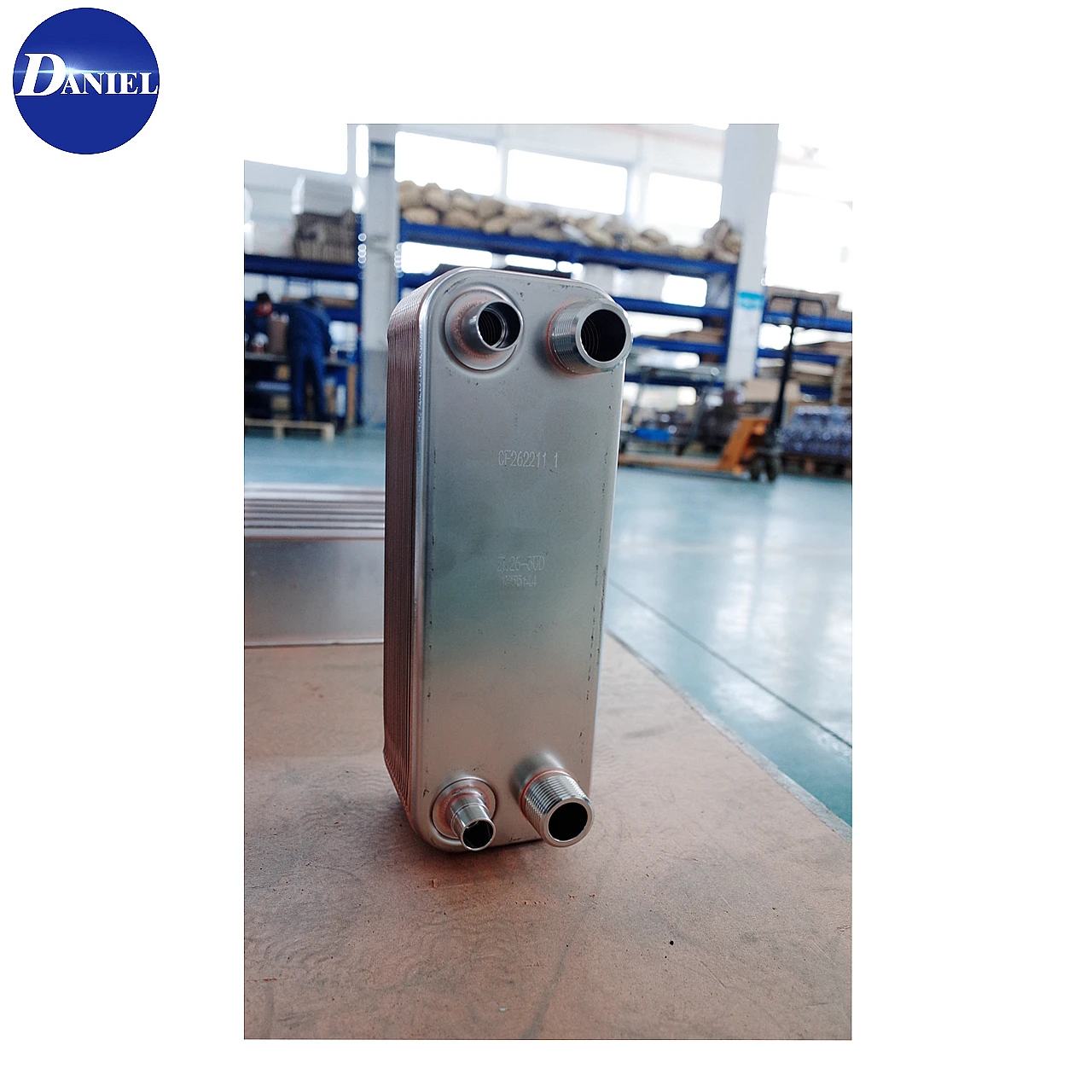

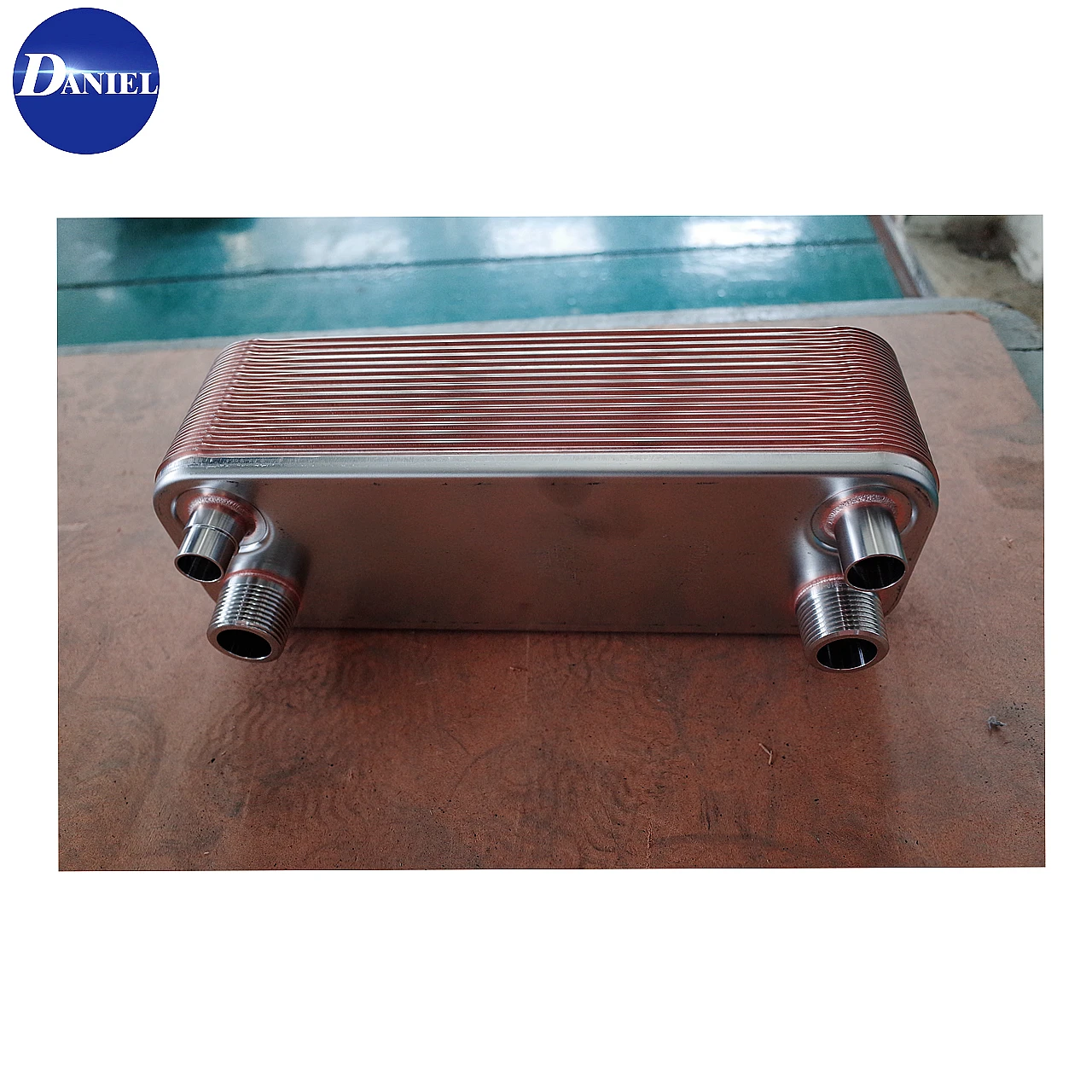

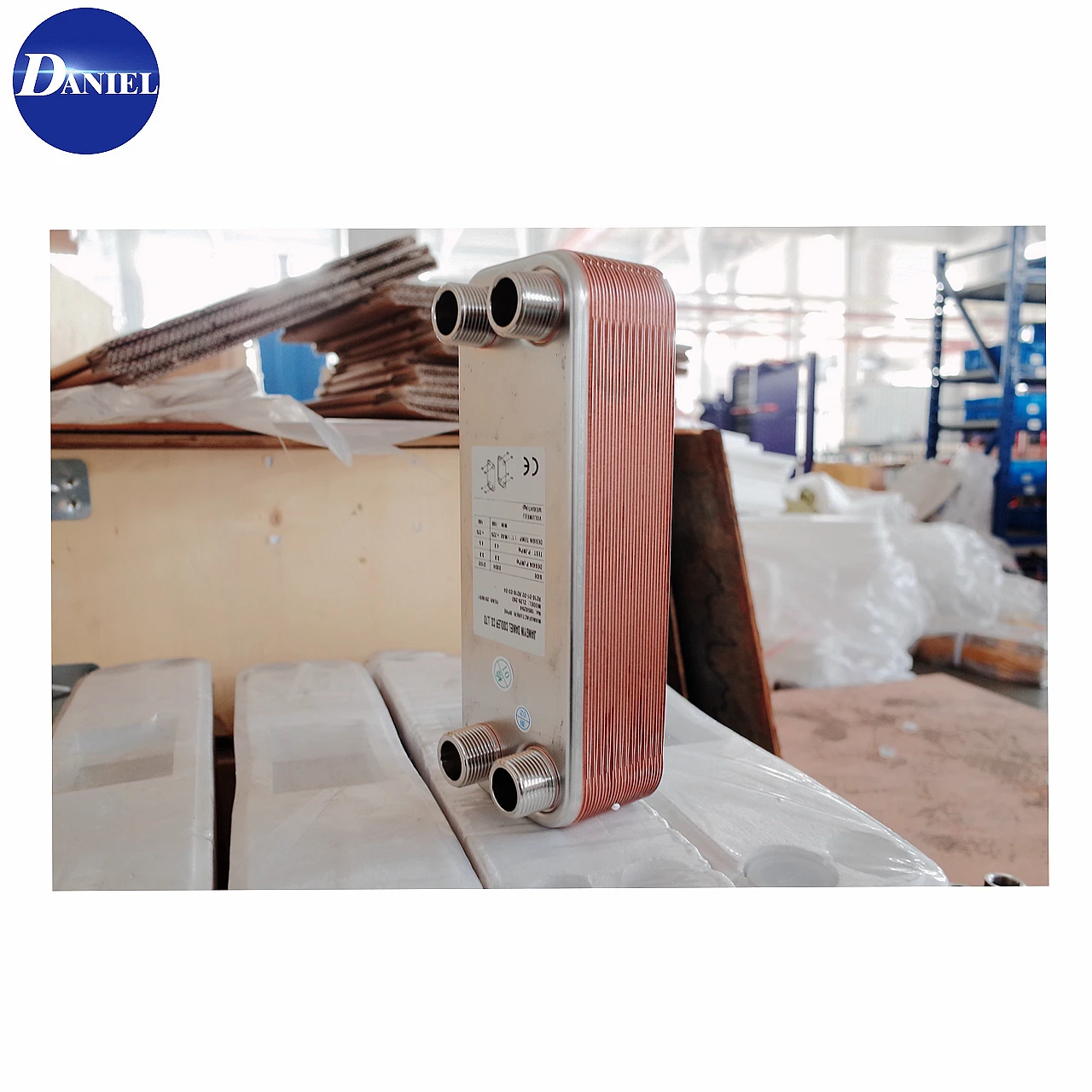

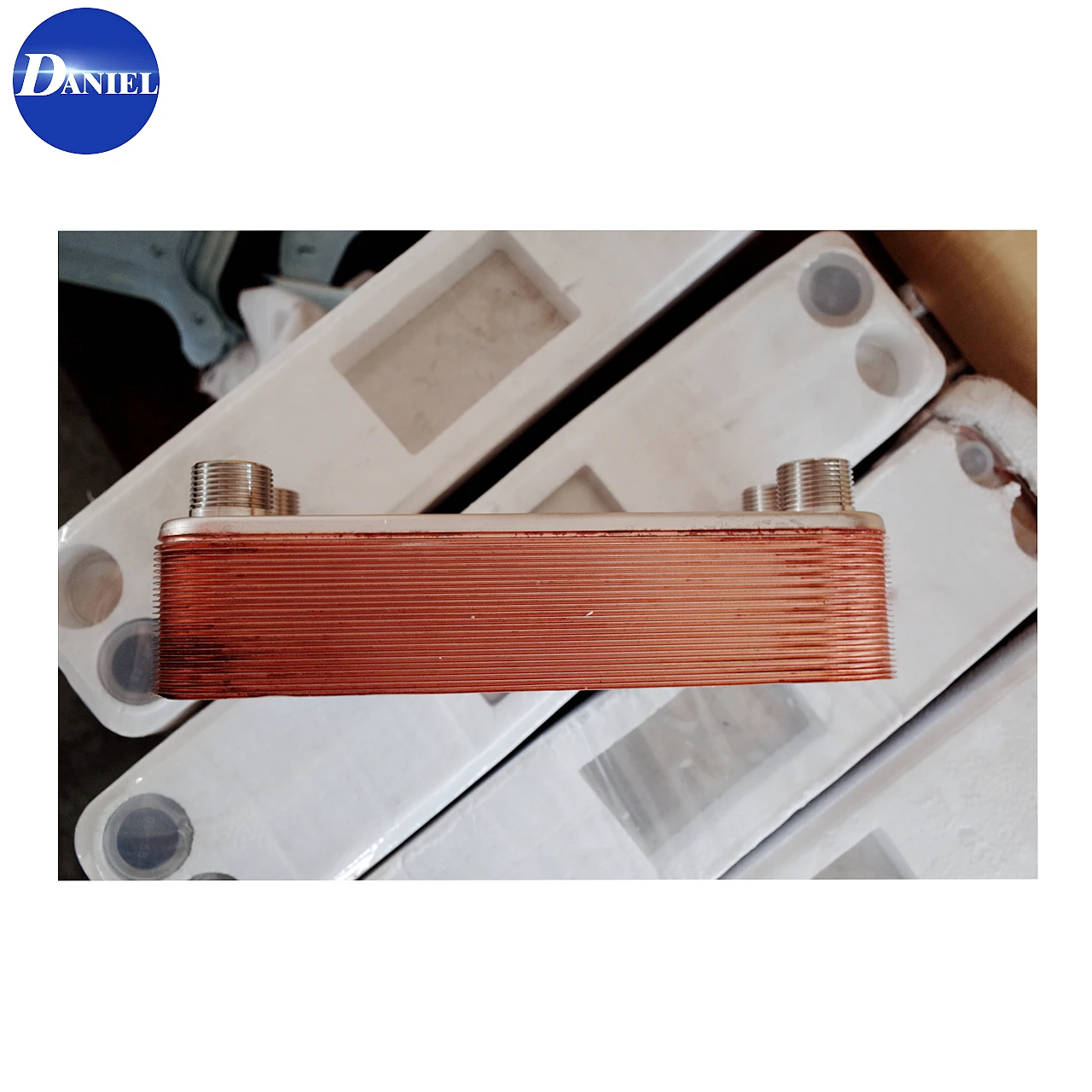

Oil water Ethylene glycol sulphuric acid cooler brazed plate heat exchanger
- Category: >>>
- Supplier: Jiangyin Daniel Cooler Co. Ltd.
Share on (454445829):
Product Overview
Description
Product Description
Applicable media of brazed sheet heat exchanger
All kinds of refrigerants except ammonia and chlorine
Water and water vapor
Organic solvents
Gas
Products character
Features | Cost effective and lower operation cost |
Compact structure, easy installation | Thin plate: High heat exchange coefficient: Less lag solution |
Less weight | Only 20-30% weight of shell-tube heat exchanger |
Less water consumption | High thermal efficiency allows BPHE only 1/3 of cold water consumption of shell-tube exchangers. |
Durable | Up to200°C temperature and 45 bar pressure No corrosion Eliminating gasket |
Minimal Fouling | The greatest turbulence in the flow results in less fouling and fewer cleaning |
High Quality | Daniel is recognized as the best heat exchanger producer in domestic market with years of operation experience and accurate computer aided design. |

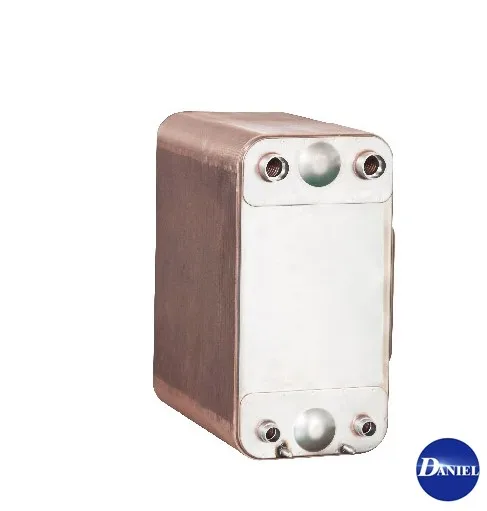

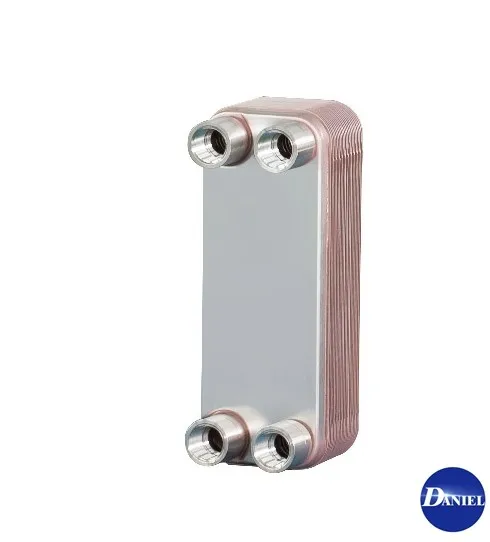

B3-014 brazed plate heat exchanger
Optional connections of model B3-014
Optional connections of model B3-014 | |
Type of connections | Model of connection |
Screw less welded connection | H103/H104/H105/H106/H107/D116/D118 |
Taper male thread connection | R104/R106 |
Straight male thread connection | W104/W106 |
Taper female thread connection | C104/C106 |
Straight female thread connection | N104/N106 |
Model B3-014(N: number of plate)
Envelop thickness of fins A±5(mm) | Weight | Volume of one-side passage | Effective working area |
9+2.3N(±5) | 0.5+0.05N | 0.020(N-2) | 0.014*(N-2) |
working principle
Related Products2
PHE PLATE,PHEGASKET,GASKETED PHE ,BRAZED PHE.
Certifications3

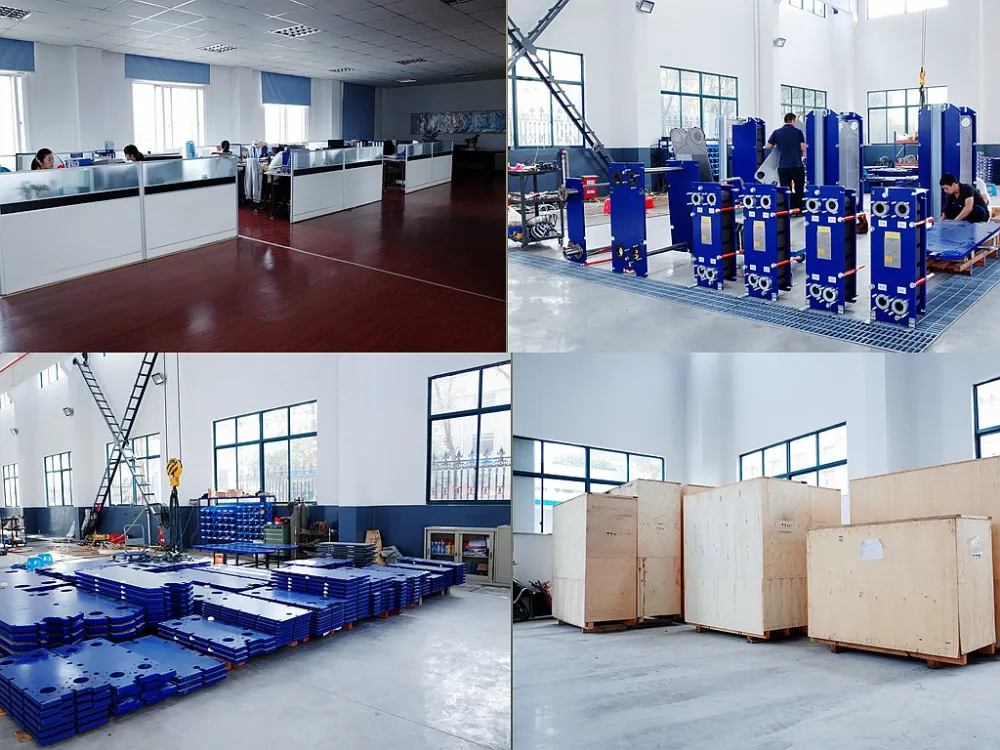

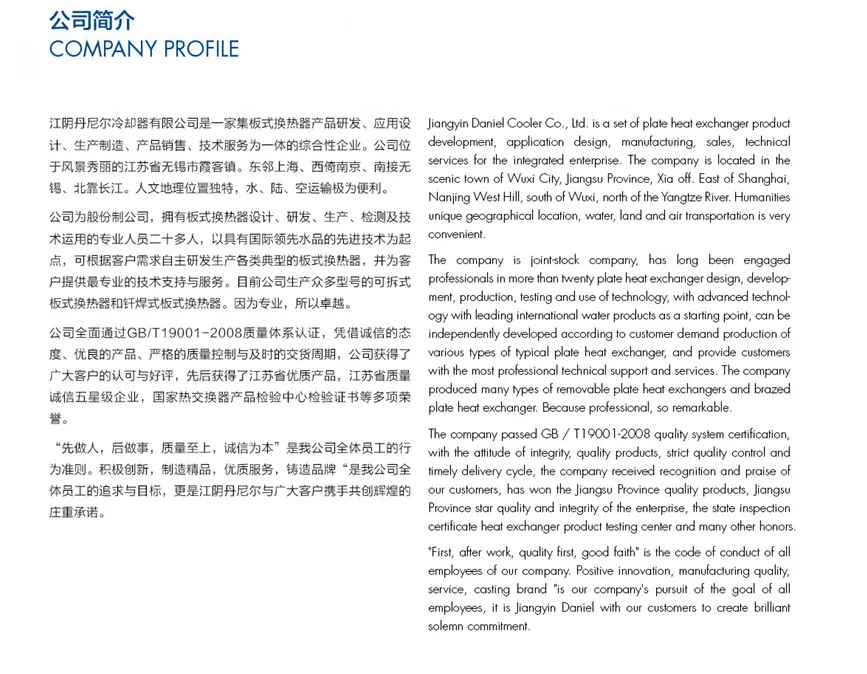

Company Information4

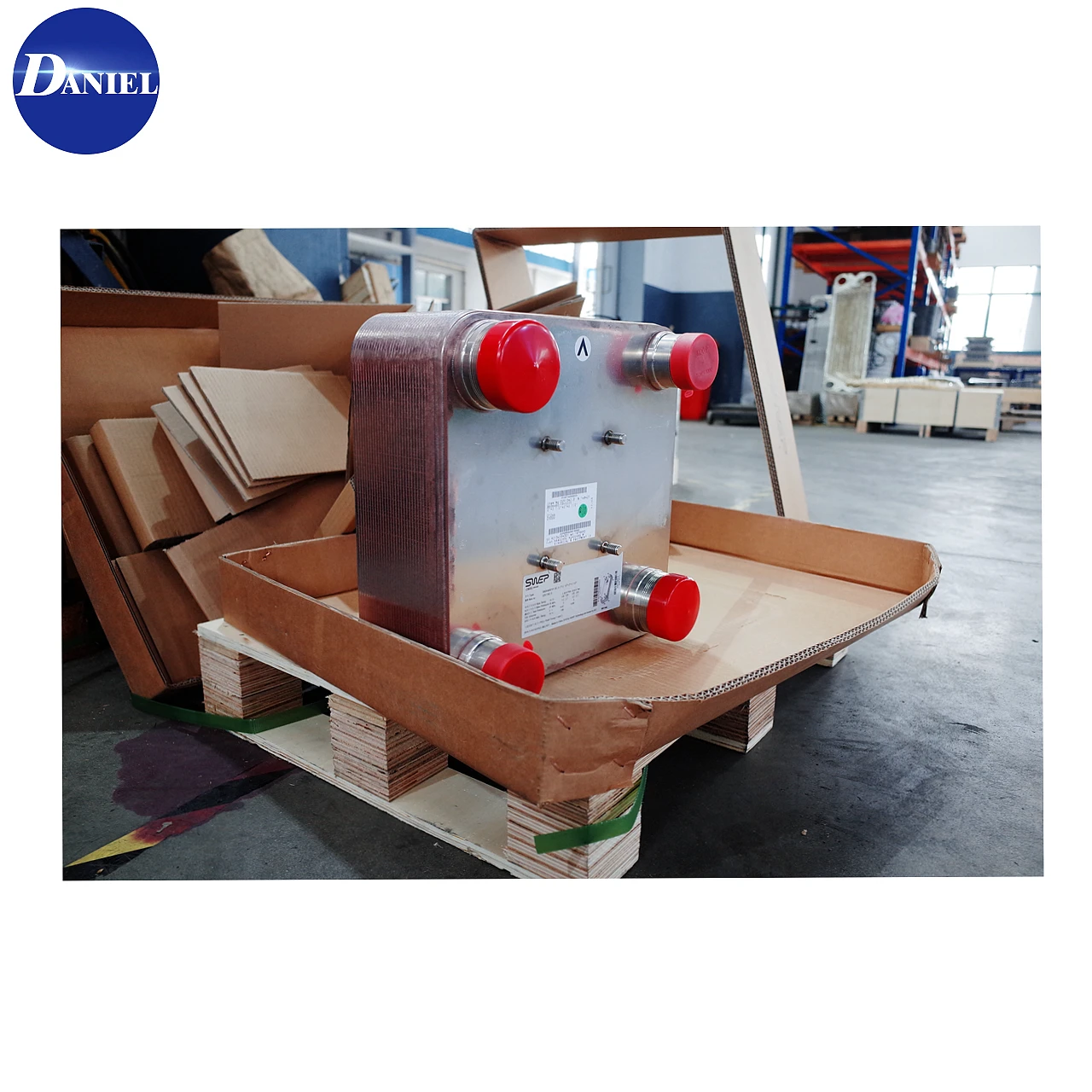

Packaging& Shipping5
FAQ6
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
