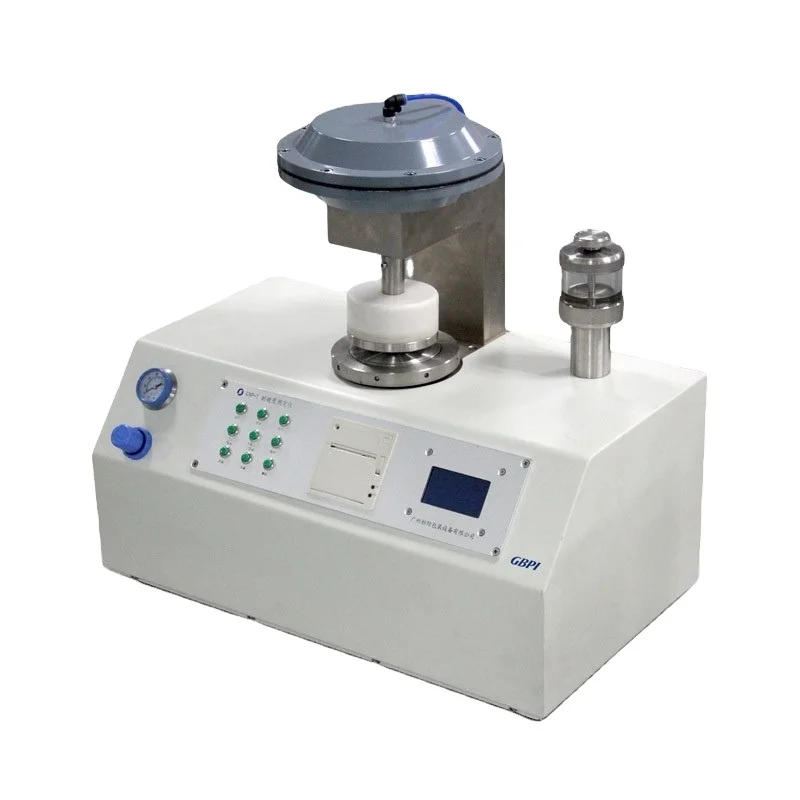

GNP 1 Bursting Strength Tester, Flexible Packaging Testing Equipment

Product Overview

Description

Function

It can measure the bursting strength of single or multi-layer paper ,at the same time can be used to test the blasting degree of intensity about fabric, leather, cardboard, thin metal films .

it is the indispensable quality inspection equipment. To meet the QB/T1057-1998 "Bursting strength of paper and cardboard instrument", GB/T454-2002 "Determination of bursting strength of paper", ISO-2759, GB-6545, JIS-P8112, ASTM-D2210 and other standards. Using mark to transmission pressure , automatically save the maximum value of rupture strength , decomposition degree is 100 times more than the table needle.



Specifications

Measuring range	(250~5600)kpa
Resolution ratio	1kpa
Measurement accuracy	±0.5% of indicating value
Sample holding force	0.4Mpa (adjust)
System tightness	1mininternal pressure decrease less 10%pmax
Hydraulic oil	glycerin 85%,distilled water15%
Oil-pressure speed	170±20cc/min
Dimensions	57×53×50cm
Weight	52kg
Power supply	AC 220V/50Hz
User-owned
Air supply	0.8MPa
