Product Overview

Description


Censtar Filling Station Fuel Dispenser pump



Product configuration option

1. CS32***G

G series is LLG05 flow meter LLJ05+GP03 gear pumpGP03





2. CS32***F

F series is LLG05LLJ05+Combined Vane PumpCombined Vane Pump





3. CS32C***A

A series is LLJ+ separate vane pump

















Suction Dispenser





Model



Nozzle/Flow meter

Petrol Product

Pump/Motor

Display

each side

Main board number

Flow rate

CS32J1110F

1

1

1

1

1

50

CS32J2120F

2

1

1

2

2

50

CS32J2220F

2

2

2

2

2

50

CS32J1110G

1

1

1

1

1

50

CS32J2120G

2

1

1

2

2

50

CS32J2220G

2

2

2

2

2

50

CS32C1110A

1

1

1

1

1

50

CS32C2120A

2

1

1

2

2

50

CS32C2220A

2

2

2

2

2

50

32

             32J1110G                         32J2120G                        32J2220G

             32J1110F                          32J2120F                        32J2220F

             32C1110A                         32C2120A                       32C2220A

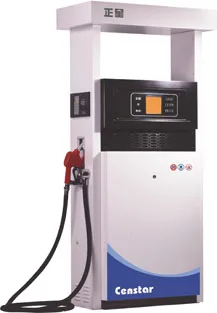

32J1110F 2.jpg



Net size: 1030*500*2100

Package size:1060*520*2255

Gross weight: from 235KG to 325KG

22 units loaded in one 20’ container


Parameters

Accuracy: ±0.25%

Flow rate range:5 to 50 liter per minute

Noise: <80dB(A)

Intake vacuum:>54kPa

Display:Sales 0.00 to 9999999

Volume 0.00 to 99999.99

Unit price:0.00 to 99999

Decimal point position can be chosen

Electrical totalizer:0.00 to 999999.99

Mechanical totalizer:0.00 to 999999.99

Power supply AC380V or AC220V with a changing range form -15% to +10%

Motors out power: 750 W for vane pump an 1000W for gear pump

Working environmental temperature:-40 to +55

Relative humidity:30% to 90%

Horizontal distance from tank to dispenser < 15m

Vertical distance form tank to dispenser pump <4m



 Advantage

1)This is the most popular model in our whole range, high performance-price ratio.

2)Fit for 20’ container,22 units can be loaded in one 20” container.



Option

Low temperature solution, printing customer’s logo, international solenoid valve, breakaway valve and swivel, international brand nozzle, mechanical totalizer.
