HSS M2/M35 Sleeved Roller Transmission Chain Wheel Sprocket Hob Cutter

Product Overview

Description

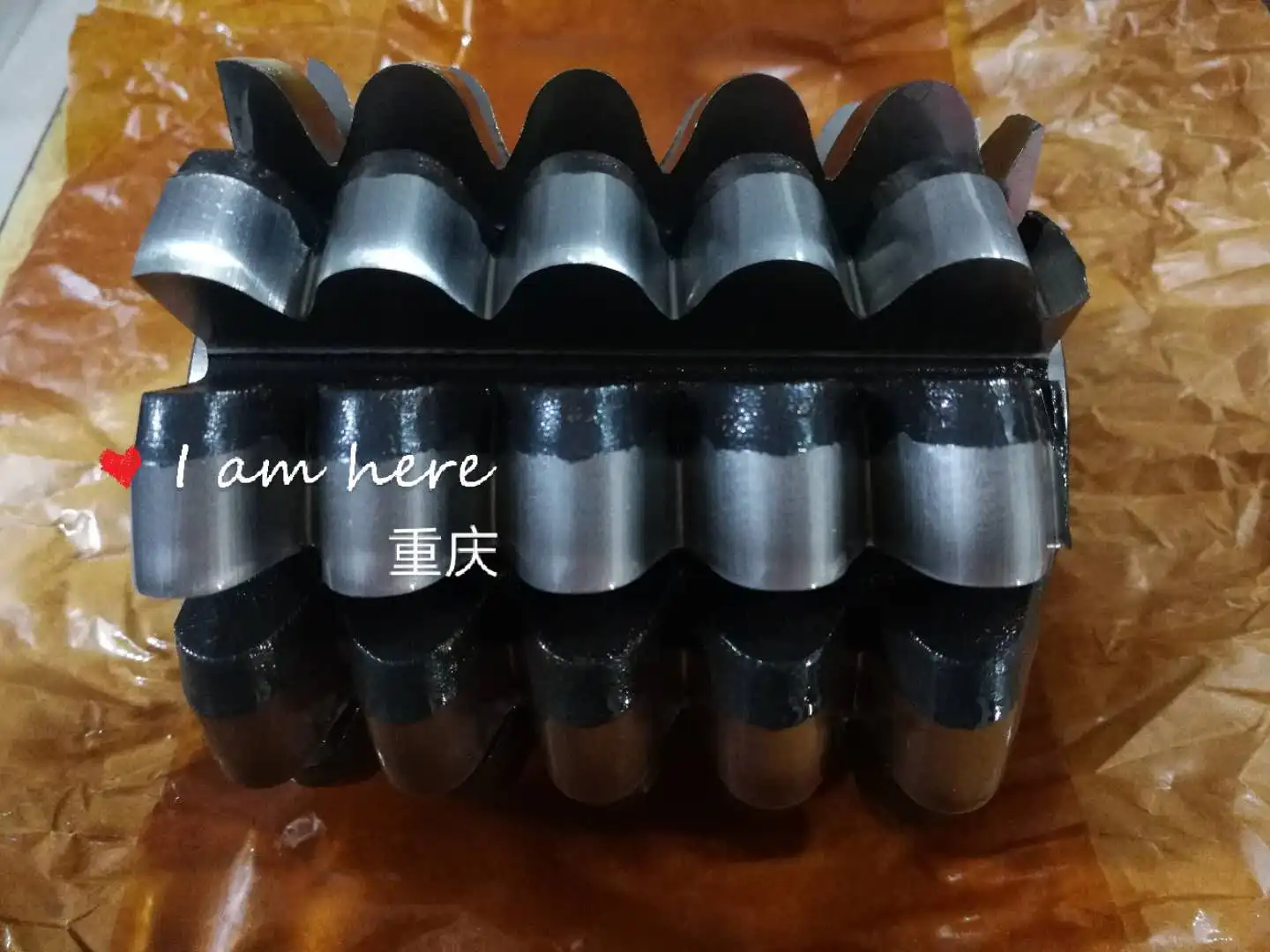

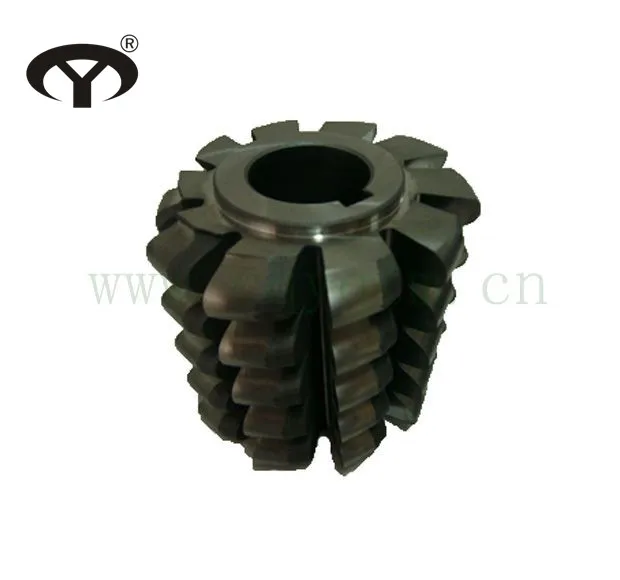

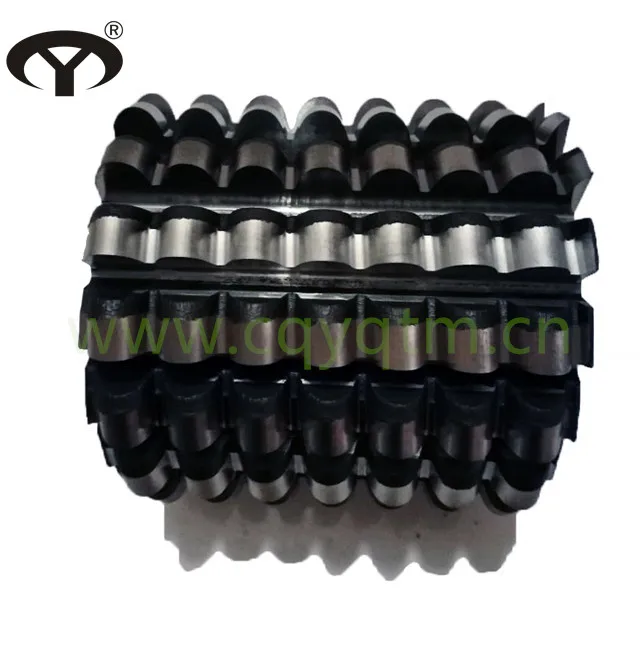

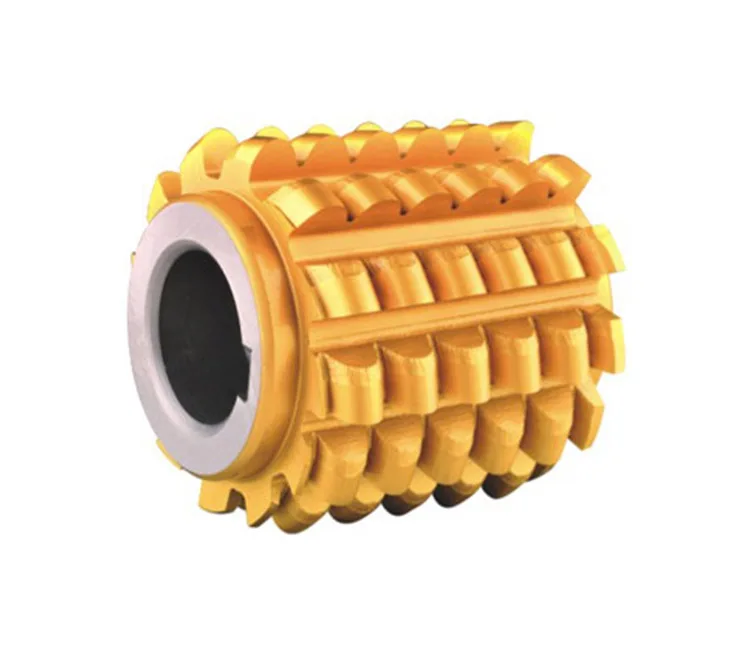

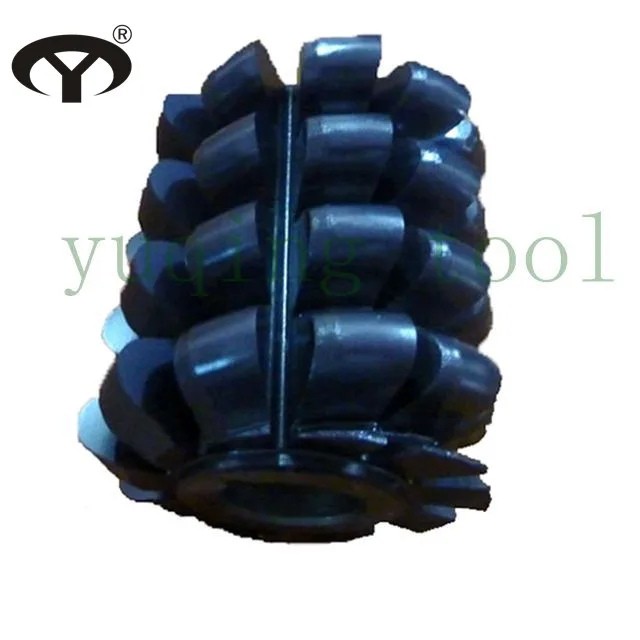

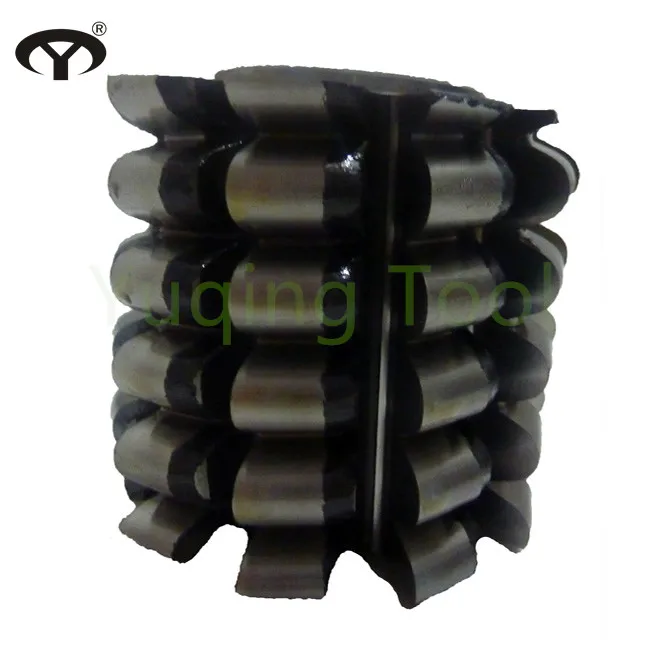

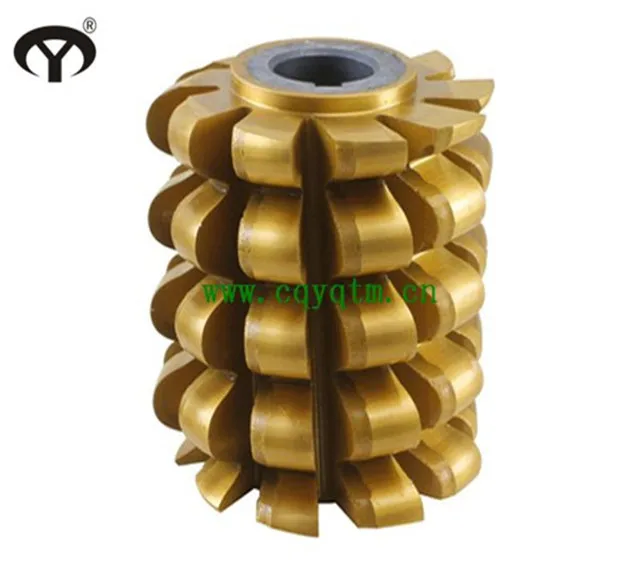

HSS M2/M35 Sleeved Roller Transmission Chain Wheel Sprocket Hob



1.Specification table of Sleeved Roller Transmission Chain Wheel Sprocket Hob :(mm)



Specification (Pitch ×Roller Dia.)	Outside Dia.	Overall Length	Hole Dia.
9.525×6.35	70	60	27
12.7×8.51	80	70
15.875×10.16	90	85	32
19.05×11.91	100	100
25.4×15.875	115	115
31.75×19.05	140	140	40
38.1×22.23	140	150
44.45×25.4	150	180
50.8×28.58	160	200
63.5×39.68	180	240



























Tooth profile of sleeved tansmission chain wheel srocket hob cutter :





2.We can produce spiral groove hob and the straight groove hob .



3.If higher accuracy is needed ,we can design and manufacture sprocket hobs for customers as the number of teeth of the sprocket to be processed or tooth profile provided by customer.



4.We can design and manufacture hobs as GB ,JIS ,DIN and ANSI standard .





Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.



The production process of sleeved transmission chain wheel sprocket hob :







Material Introdution:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
