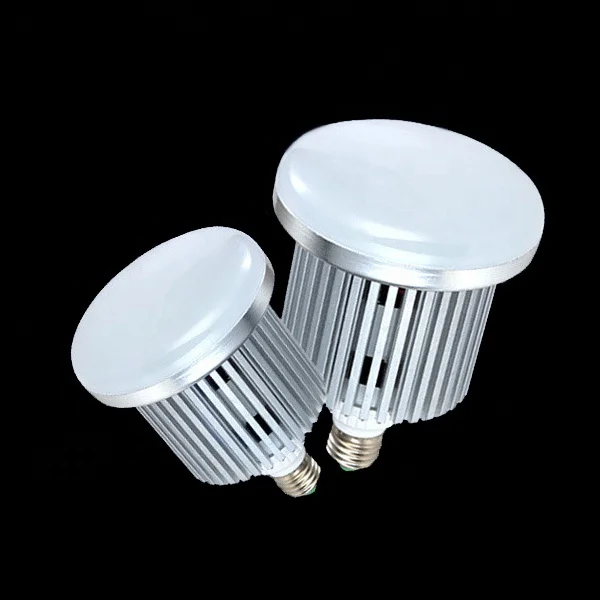

SKD of LED Mushroom Lamp for LED High Bay Light
SKD of LED Mushroom Lamp for LED High Bay Light
SKD of LED Mushroom Lamp for LED High Bay Light

SKD of LED Mushroom Lamp for LED High Bay Light

Share on (455636304):


Price:RUB 227.46 - RUB 1,516.36

Quantity:


Product Overview

Description

Descriptions:

The SKD of LED mushroom Lamp for LED High Bay Lights were designed by LENSTAR. Using SMD 5730 LED as the light sourcings, light efficiency >150Lm/Watt. Non-isolated high PF type LED driver would be made the low consumption and high cost performance ratio. Air cool type aluminum as the radiator for heat-sinking the LED working temperature. Standard socket or O-ring for installation.

ItemLamp FaceLamp BodyDriverLight SourcingSocket
 TypeSizePlateSizeRadiatorSizeTypeLoadTypeQuantityHolderCaps
12WMilky PCDia. 95mmAluminumDia. 95mmAluminumDia. 72 X35mmnon-isolated1SMD 5730 LED24PCSPlasticE27
AluminumR60
18WDia. 92 X35mm36PCSPlasticE27
AluminumR60
24WDia. 92 X45mm48PCSPlasticE27
AluminumR60
36WDia. 120mmDia. 120mmDia. 110 X45mm72PCSPlasticE27
AluminumR60
50WDia. 110 X60mm100PCSPlasticE27
AluminumR60
70WDia. 110 X75mm2144PCSPlasticE27
AluminumR60
100WDia. 150mmDia. 150mmDia. 150 X95mm200PCSPlasticE40
AluminumR80

Applications:

  • Buildings
  • Factory
  • Warehouse
  • Supermarket
  • Sculpture
  • Stadiums
  • General use

Outline Dimensions:
