Hot sales Engineering export 8 20 GHz Drop in Isolators

Product Overview

Description

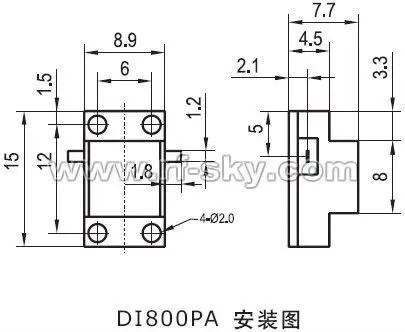

M0del No.:DI800PA
Frequency Range (MHz)	BandWidth (MHz)	Insertion Loss (dB Max)	Isolation (dB Min)	VSWR (Max)
8-20	300	0.3	23	1.2
	1000	0.4	20	1.25
8.7-10.4	Full	0.4	20	1.25
16.8-18	Full	0.5	20	1.3
17.7-19.7	Full	0.6	18	1.3
Average Power: 10 W Operating Temperature: -55~+85°C
