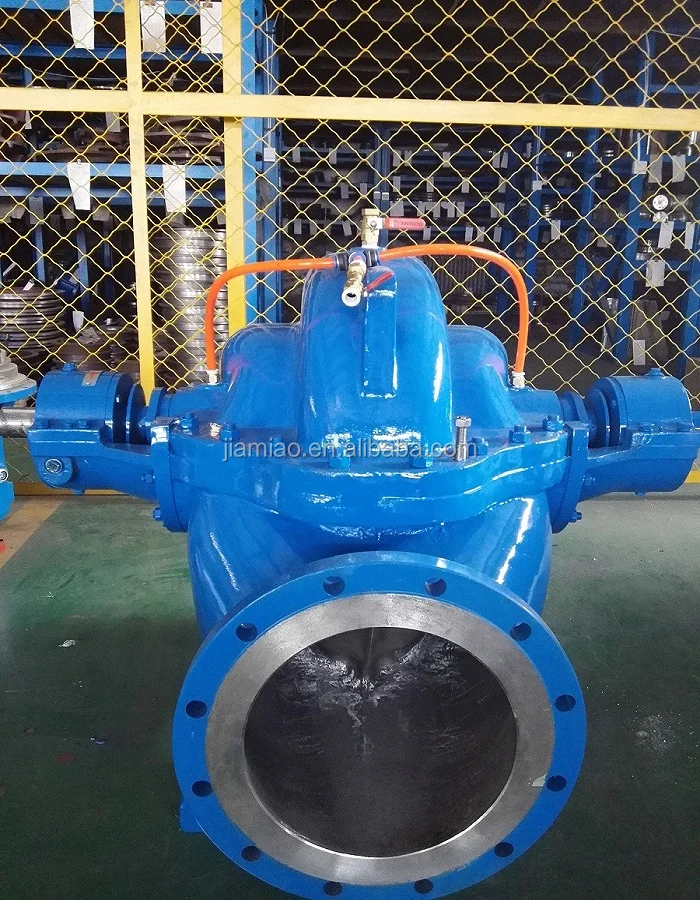

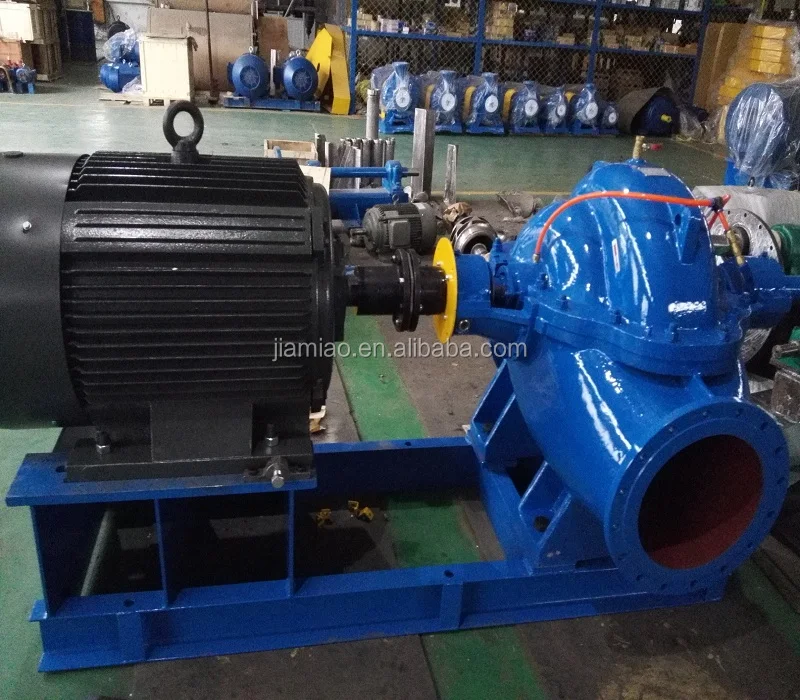

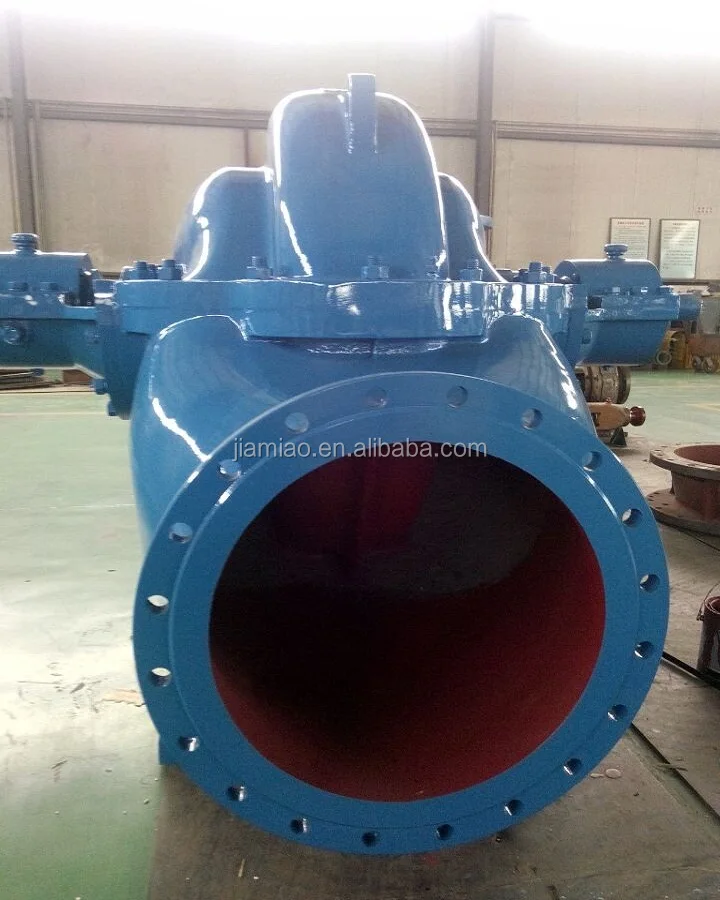

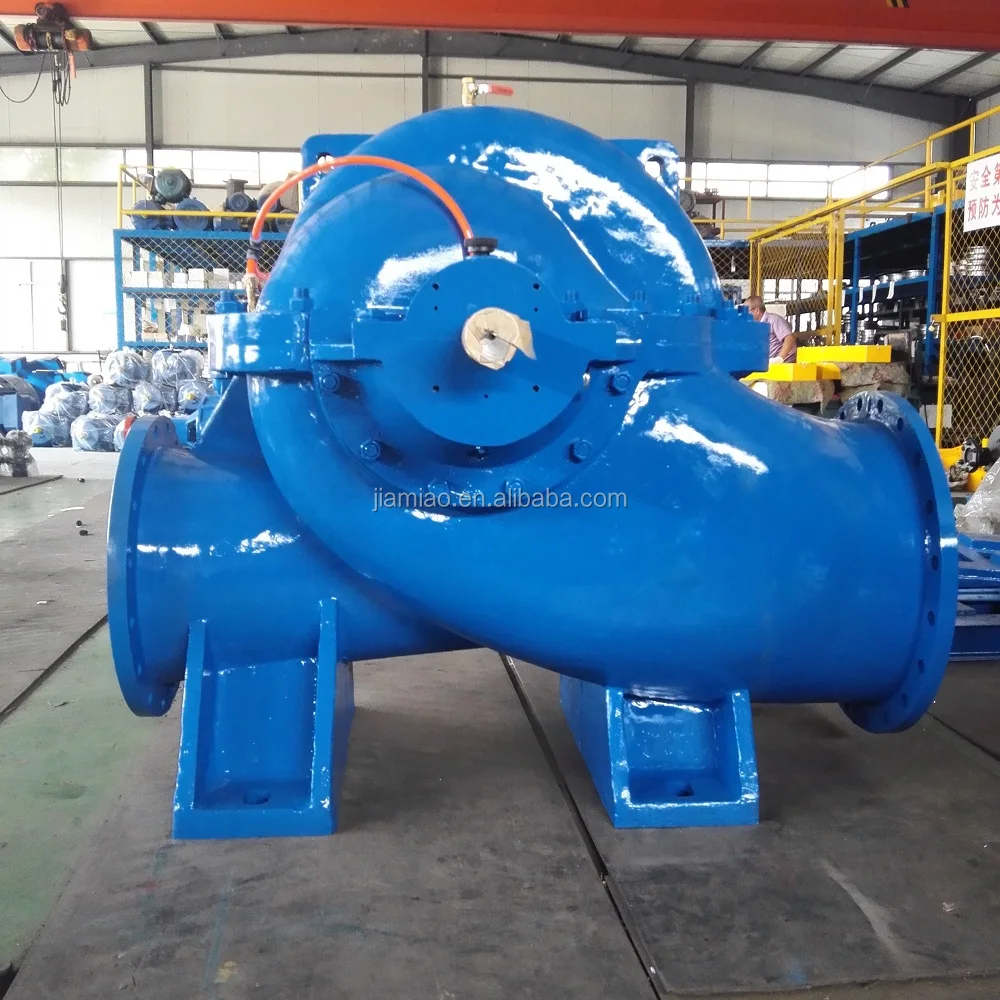

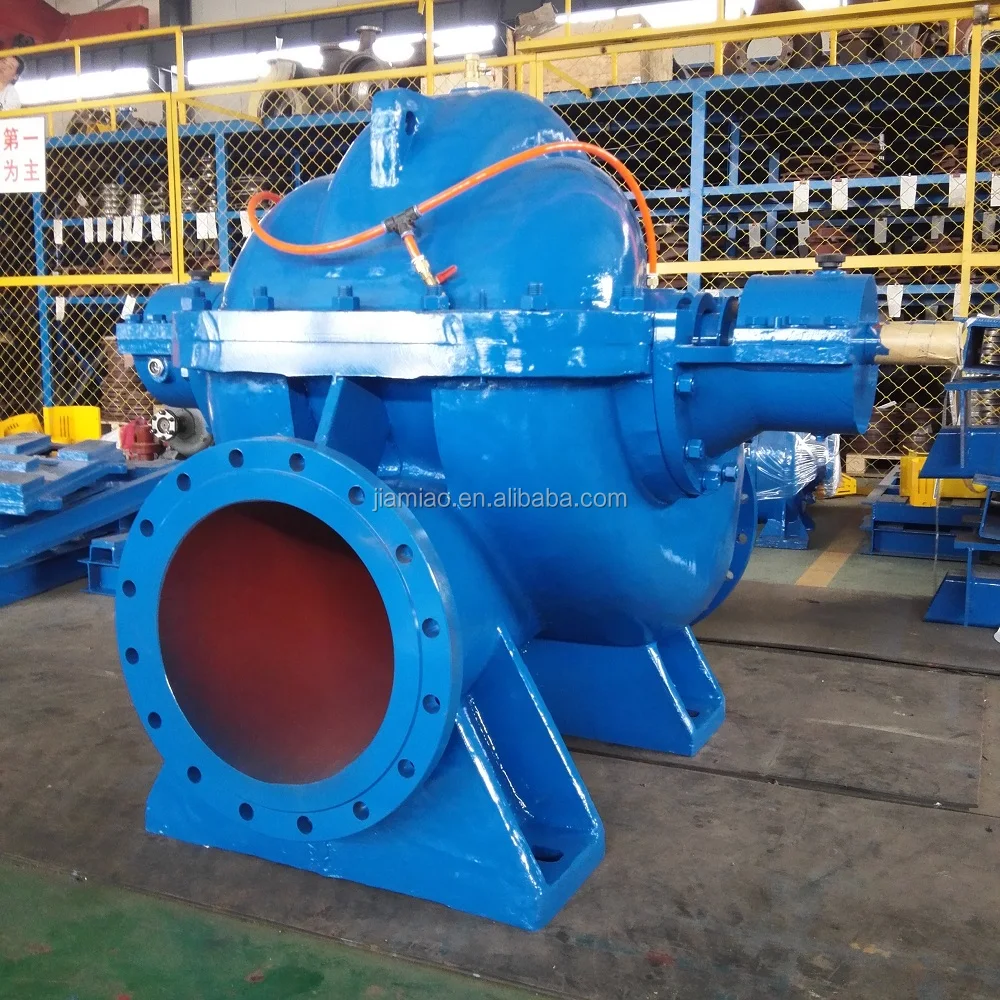

Model SS split casing closed impeller low pulse paper machine fan pump

Product Overview

Description

Model SS low pulsation impeller fan pump









Outline of the Product :

With the unique design idea from other products, Model SS Feed Pulp Pump, another brand - new product that our company offered for papermaking trade, has realized the best combination results of high efficiency, high dependability and low pulse. It is used for transporing the pulping under density of 1% in pulp supply system of paper making machine at a mediun---high speed, which is in favor of improving the volume of production and quality of the paper

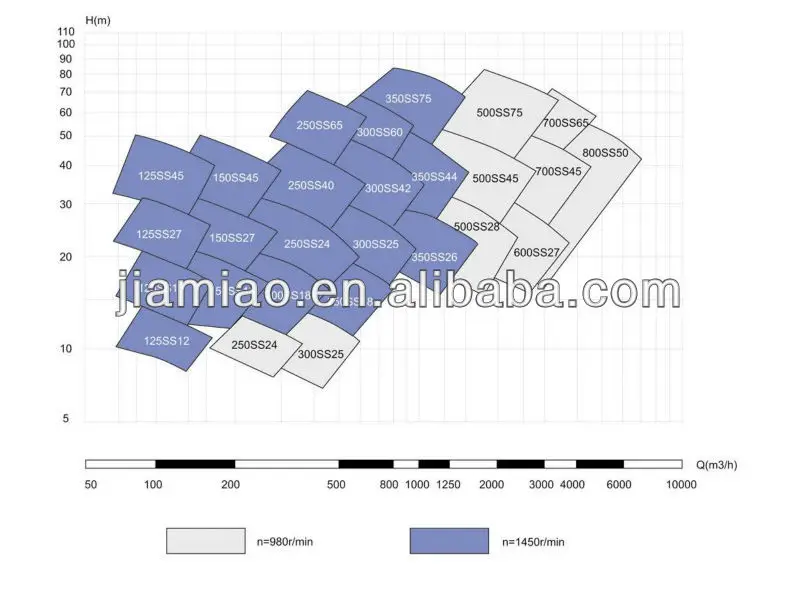

Performance Range:

Capacity: 10-5500 m³/h

Heads: 8-75m

Speed: 980,1450r/min

Steering: Double-sided pump:

Optional clockwise or ant-clockwise according to the customer’s specific request.





Configuration of the Materials:

Please indicate the apolegamy material while ordering according to user’s enquiry.

Material of	Q	F	X
Pump body, Pump bonnet	magnesium iron	304	Two-phase stainless steel
Impeller	304	Two-phase stainless steel	Two-phase stainless steel
Axle sleeve,Impeller ring	2Cr13	304	304
Shaft	40Cr	3Cr13	3Cr13
Bearing body	HT250	HT250	HT250



Structure and Design Feature :

Low pressure pulse

Stringless Suspension

Convenient Maintenance and Installation









We are good at centrifuge water pump producing!







We have been in pulp pumps and papermaking machine industry for more than 15 years. And leading manufacturer of pulp pumps in China. Our pumps is appcilabe for full line for the processing of papermaking;production of chemical and recycled fiber pulps;recovery and reuse of chemicals in the pulping proecess;stock preparation;paper, cardboard and tissue machine approach flow; production of paper, tissue, and cardboard, our sales volume is 500 million.



Factroy Area





CNC Lathe

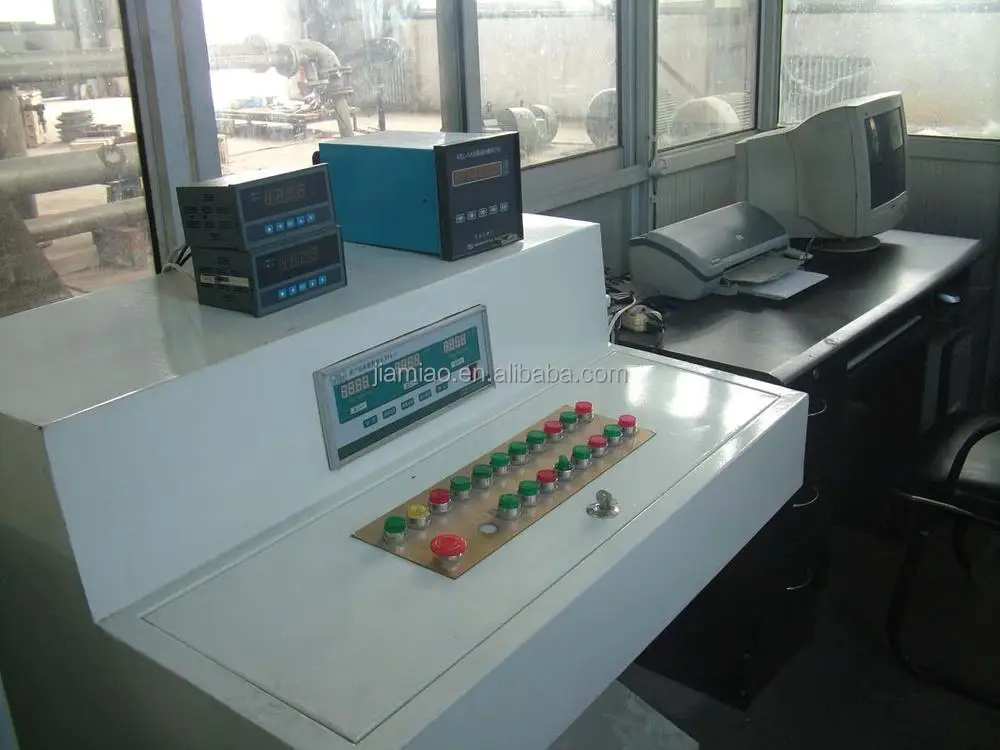

Automatic Testing Station

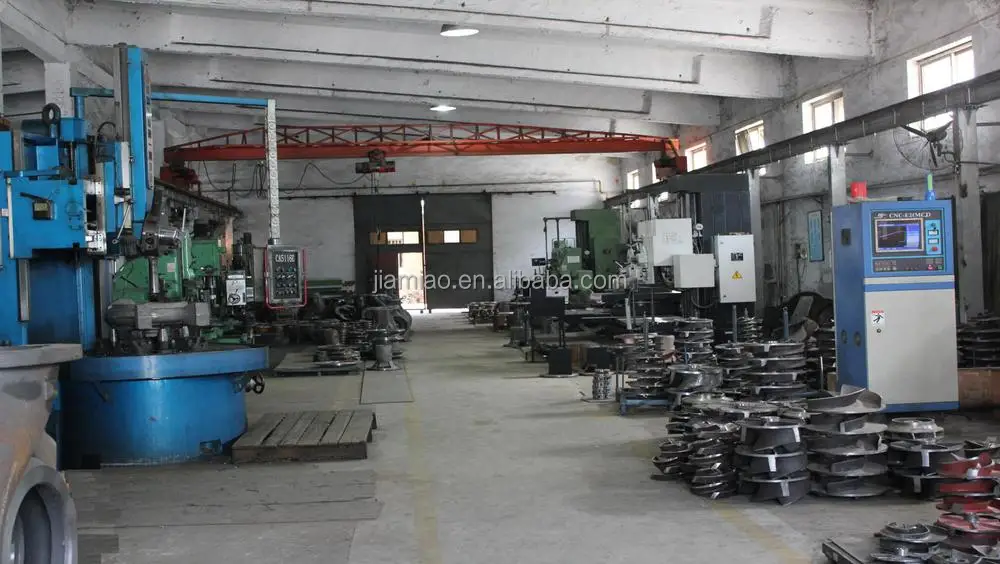

Machining Workshop
