Non Asbestos Woven brake lining roll with resin (BBH M)

Product Overview

Description

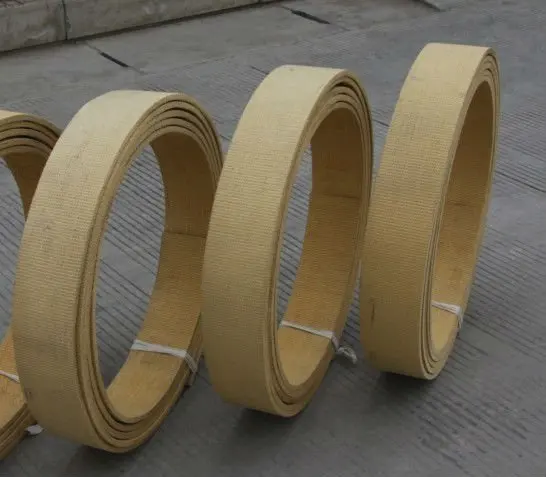

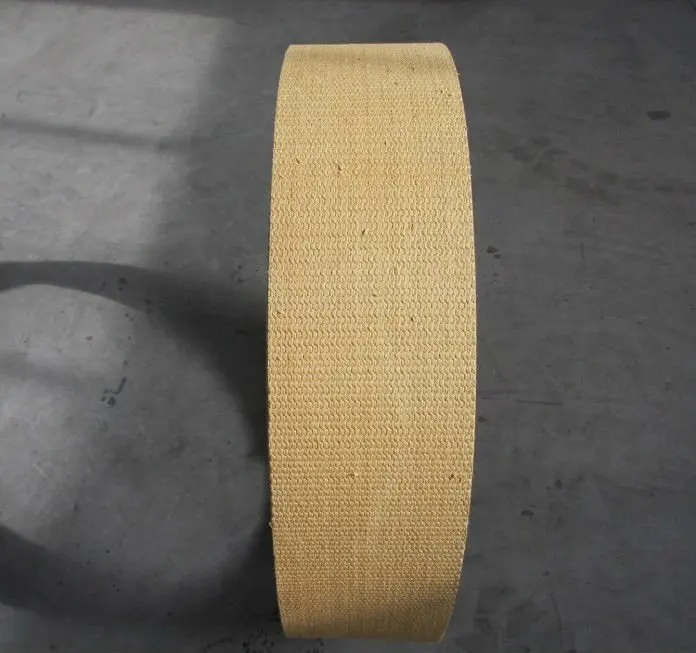

Non-asbestos woven resin brake lining roll (brake belt)



Color: as per your request

Thickness: 5-30mm;

Width: ≤600mm;

Length: 10m,15m,20m or as per your request

Material: viscose fiber, glass fiber, copper wire & melamine resin



Application: Elevator, crane, tractor, marine, escalator etc.



We can manufacture the color, length and material as per your request



                          Wear Performance of BFH-M

Interface Temperature	Friction coefficient	Wear rate(CM3/NM)
100°C	0.40—0.65	<0.7×10-7
150°C	0.35—0.65	≤1.1×10-7
200°C	0.30—0.60	≤1.3×10-7
