beef jerky automatic packaging machine
- Category: >>>
- Supplier: Foshan Hosng Packaging Machinery Co. Ltd.
Share on (456641133):
Product Overview
Description
HS-420A Beef Jerky Automatic Packaging Machine
Main packing machine Specifications
Items | Content |
Packing speed | 25-80 bag/min |
Bag size | (L)50-300mm (W)80-200mm |
Bag making mode | Pillow-type bag, standing bag, punch |
Range of measuring | 150-1500ml |
The maximum width of packing film | 420mm |
Thickness of film | 0.04-0.10mm |
Air consumption | 0.2m3/min 0.6Mpa |
Main power/voltage | 2.2KW/220V 50-60Hz |
Dimension | L1400×W970×H1700mm |
The weight of switchboard | 450kg |
The major performance and structural feature.
*Imported PLC computer control system with human-machine interface; touch screen is simple and
direct-viewing in operation;
*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
*Minimize the loss with complete automatic warn protection function;
*Supported with metric device, the machine will automatically complete all packaging processes from me asuring, feeding, filling, bag making.
*The way of bag making: the machine can make pillow type bag and standing bag according to customer's requirements.
The main components and brand of this machine as following:
Number | Name | Brand | Country |
1 | Touch sensitive screen | WEINVIEW | TAIWAN |
2 | PLC | MITISUBISHI | JAPAN |
3 | Servo motor | PANASONIC | JAPAN |
5 | Vertical cylinder | SMC | JAPAN |
6 | Cutting cylinder | SMC | JAPAN |
7 | Two units system | SNS | TAIWAN |
4 | Horizontal cylinder | SNS | TAIWAN |
8 | Solid state relay | FOTEK | TAIWAN |
9 | Intermediate state relay | OMRON | JAPAN |
10 | Photoelectric eye | AUTONICS | KOREA |
11 | Power | MW | TAIWAN |
12 | Transducer | HONGQUAN | CHINA |
13 | winding motor | VTV | TAIWAN |
14 | Thermometer control | OMRON | JAPAN |

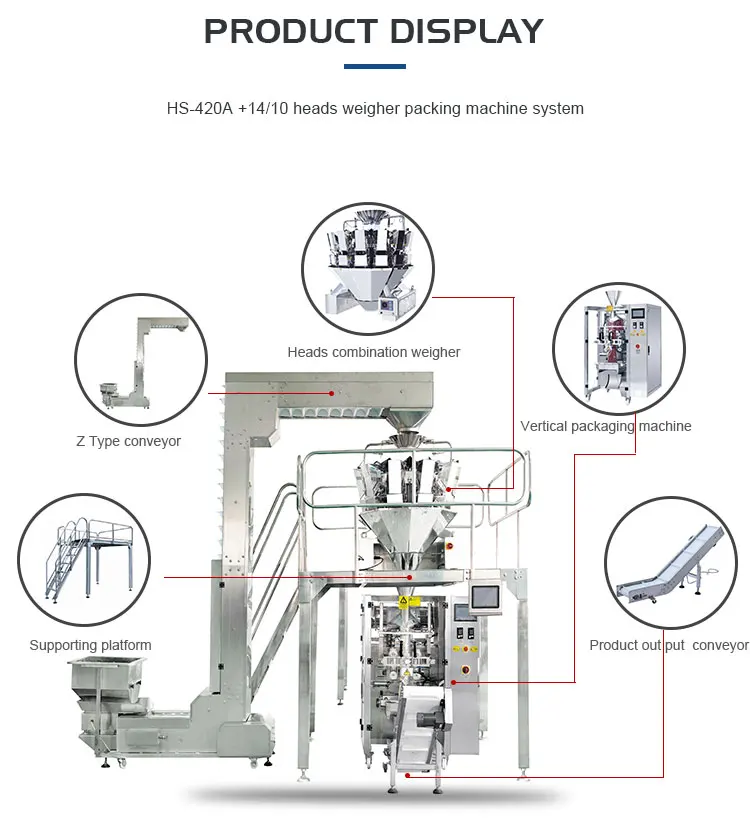

Main packing machine detail
Work process
Advantages
Related Products
Company Information
Trade Shows
Certifications
| FAQ |
Q1: When Hosng Pack was founded ?
A: It started in 2007, till now it around 13 years experience in Packaging Industry.
Q2: How about your delivery time?
A: Commonly it needs 30 days for production, but if there is anything urgent, can be finished within 15 days if spare parts in stock.
Q3: What’s the warranty?
A: Warranty is 1 year, not including easy damaged spare parts, such as heater, belts, etc.
Q4: How do you recommend to me the suitable packing machine?
A: You need to offer us detailed packing requirements, including packing products, bag size, packing weight, bag type,etc.
Q5: Can arrange technician to oversea for commissioning ?
A: Yes, we can if you need, but you need to pay the fees including: Visa charges, return ticket, accommodation and labor fees. We also accept you arrange technician to learn in our factory before shipping.
