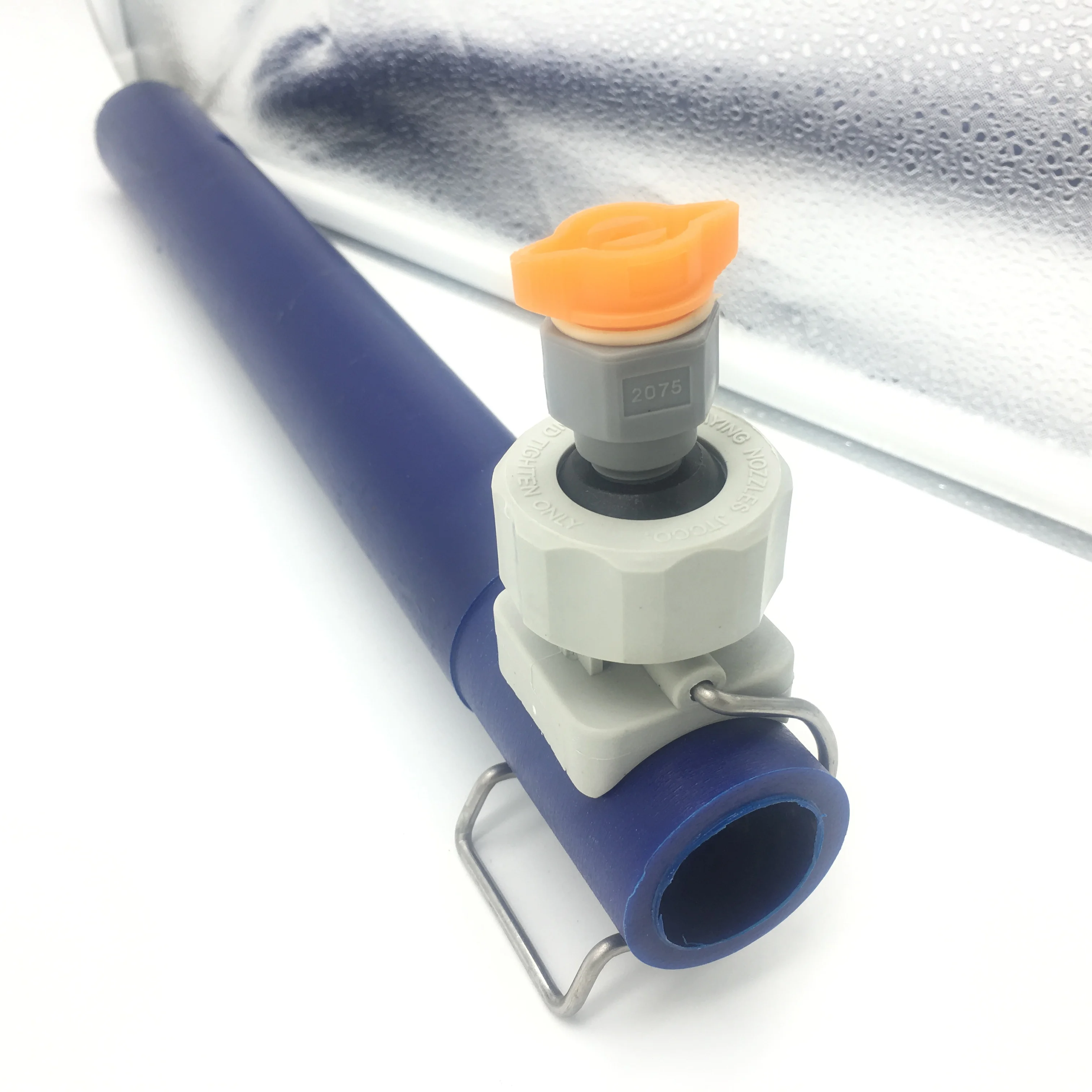

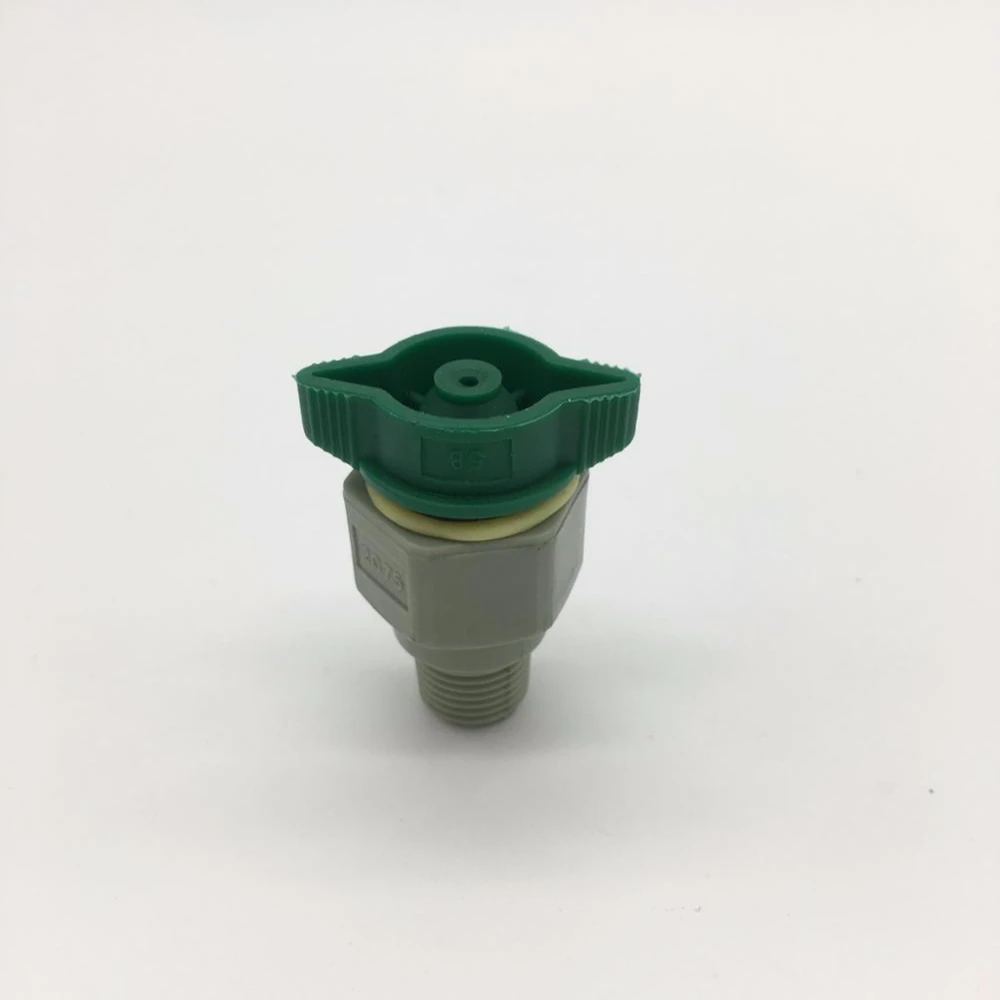

Plastic quick release and dismantle solid /full jet cone spray nozzle
- Category: >>>
- Supplier: JTC Spraying System (Dongguan) Co. Limited
Share on (457106985):
Product Overview
Description
Features and benefits

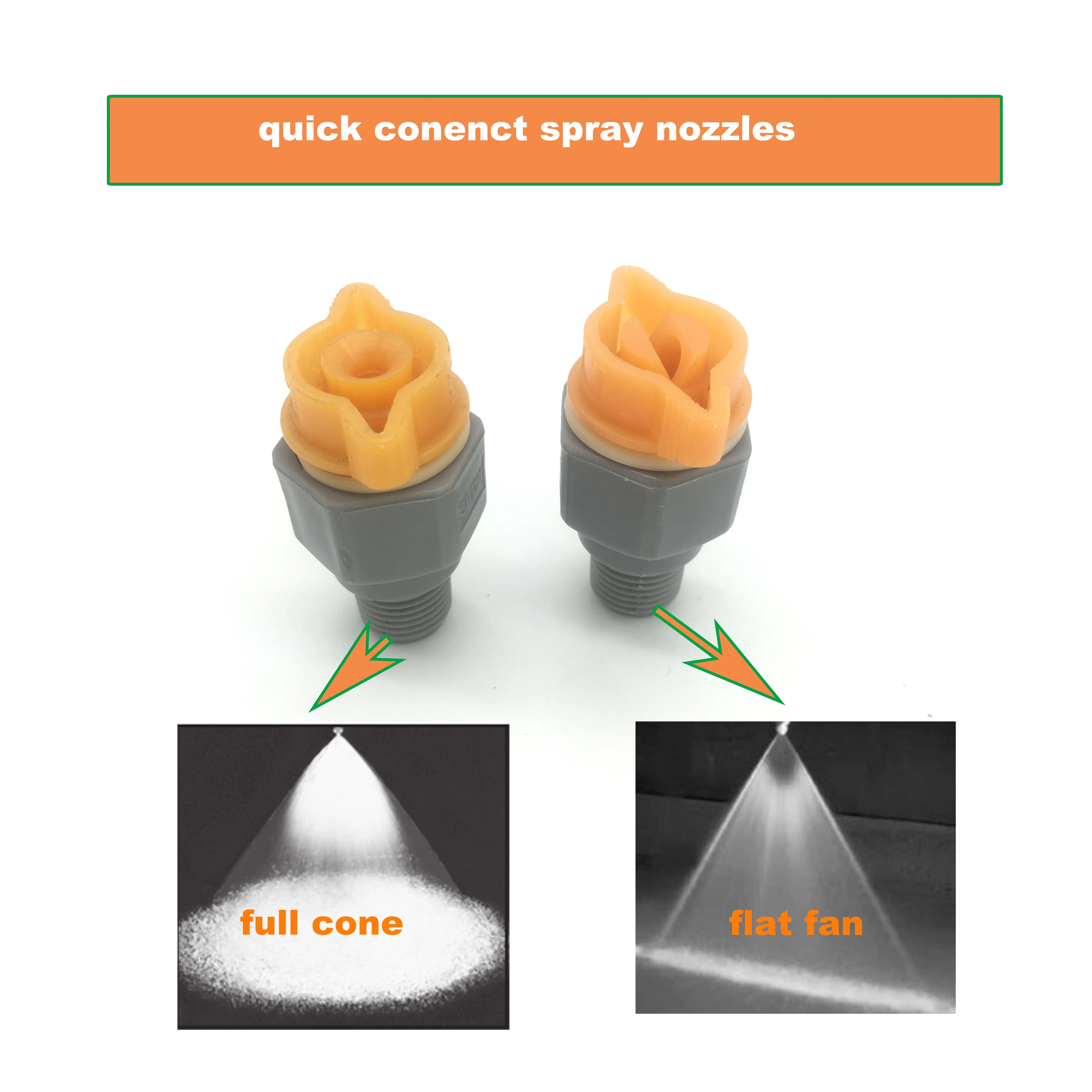

solid cone-shaped spray pattern with round impact area
fast ad easy installation of spray tips without tools
automatic alignment
lower cost-nozzle body can be reused- only spray tips are replaced .
removable caps and vvanes for easy inspection and cleaning on some models
Non-removable vane contributes to uniform distribution across the impact area.

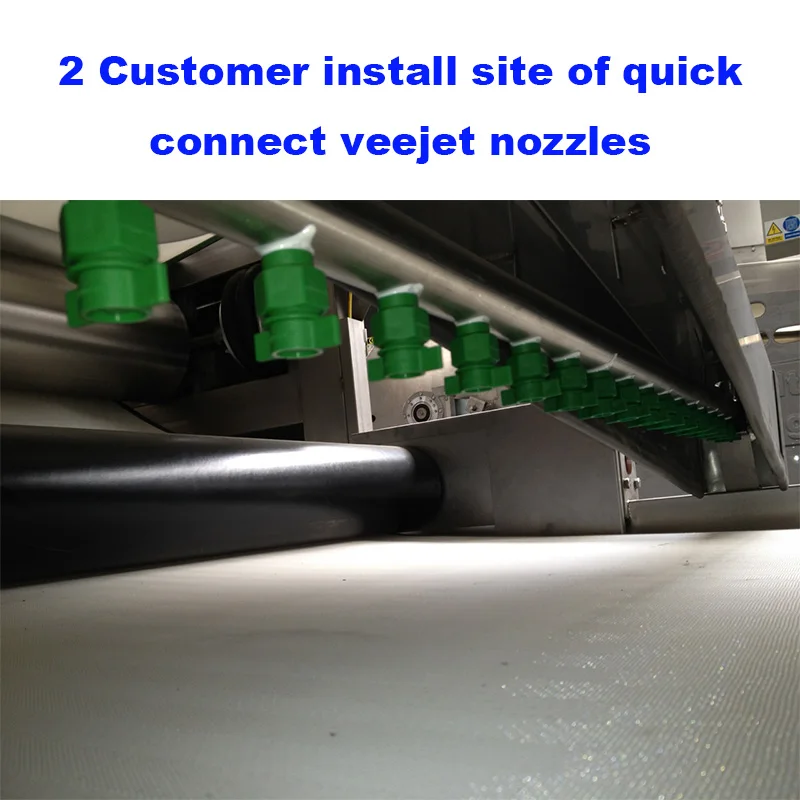

| 2057QPA Quick VeeJet | |
| Flat spray pattern | |
| Color-coded tips for easy identification | |
| Capacities: eight ranging from 1.0 to 7.0 gpm at 40 psi (4.6 to 32.0 l/min at 2.8 bar) | |
| Spray angles: 25° to 95° at 40 psi (2.8 bar) | |
| Maximum pressure: 200 psi (14 bar) | |
| 2057Quick FullJet | |
| Full cone spray pattern | |
| Color-coded tips for easy identification | |
| Capacities: ten ranging from .19 to 2.9 gpm at 40 psi (0.85 to 12.7 l/min at 2.8 bar) | |
| Spray angles: 58° to 85° at 20 psi (1.5 bar) | |
| Maximum pressure: 150 psi (10 bar) | |
| Wide spray angle: 120° at 10 psi (0.7 bar) | |
| Wide angle capacities: seven ranging from 0.51 to 2.6 gpm at 40 psi (2.3 to 11.5 l/min at 2.8 bar) | |
| Wide angle maximum pressure: 80 psi (6 bar) | |

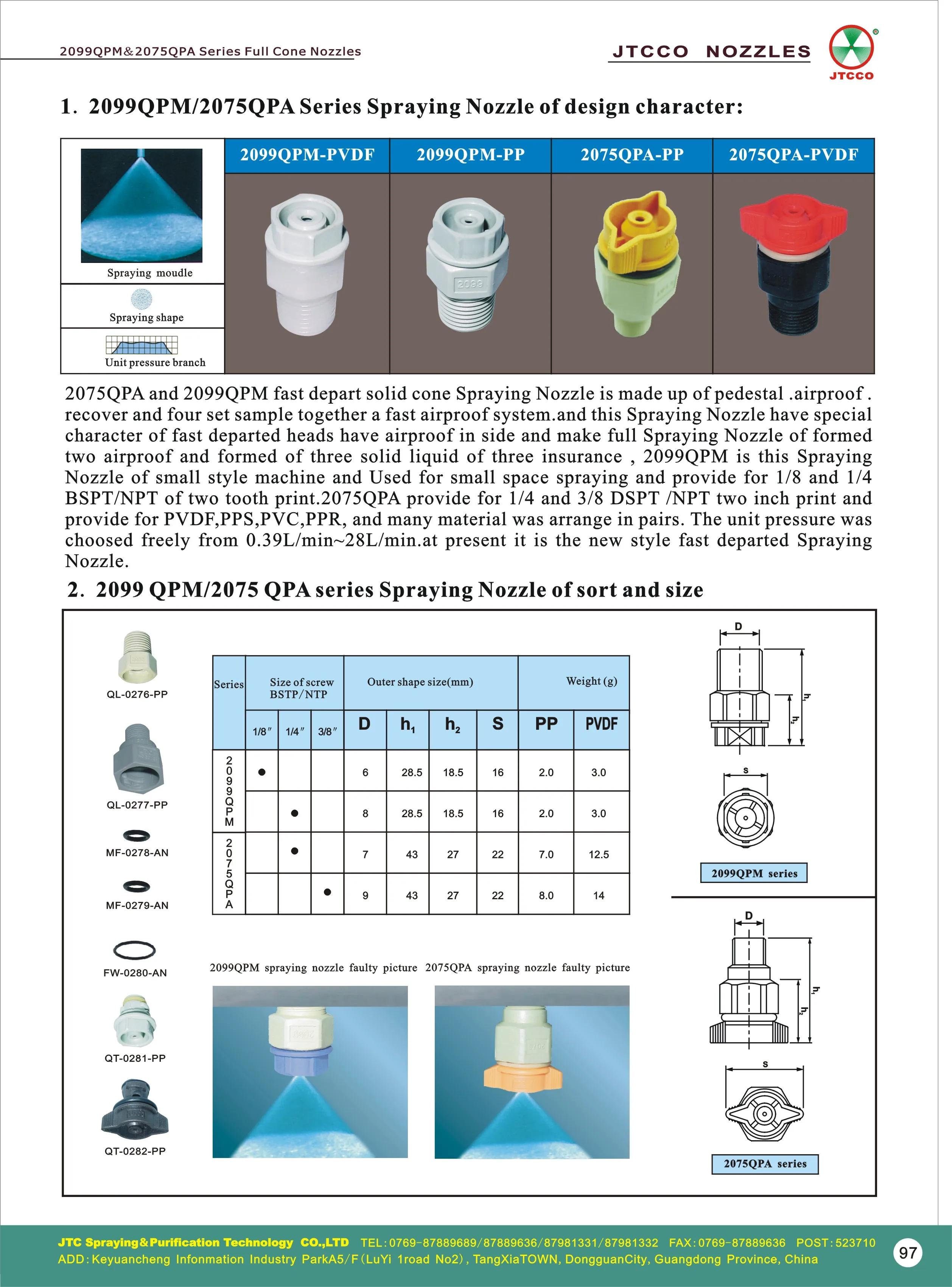

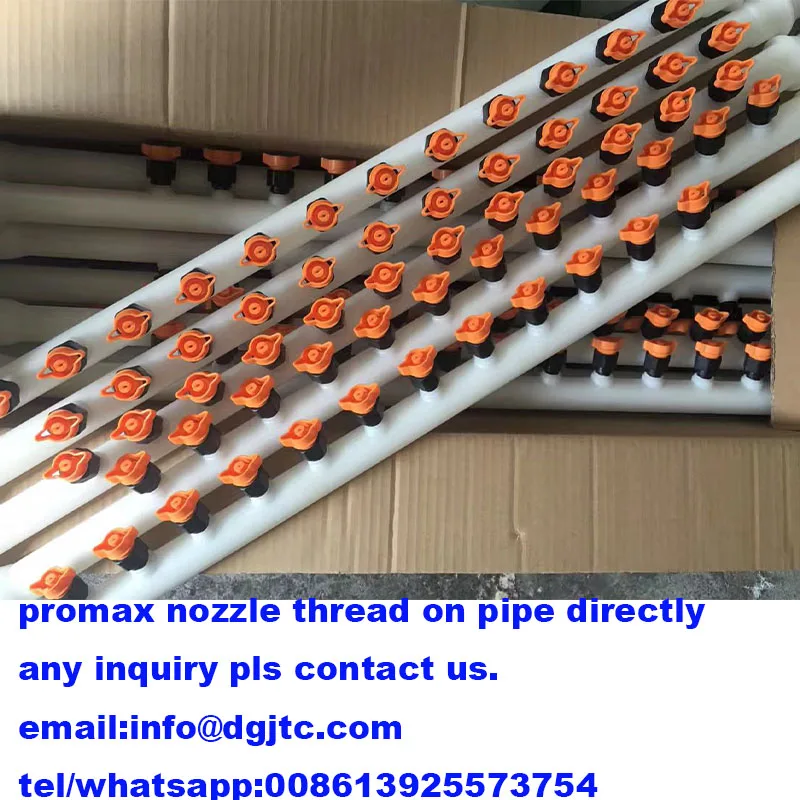

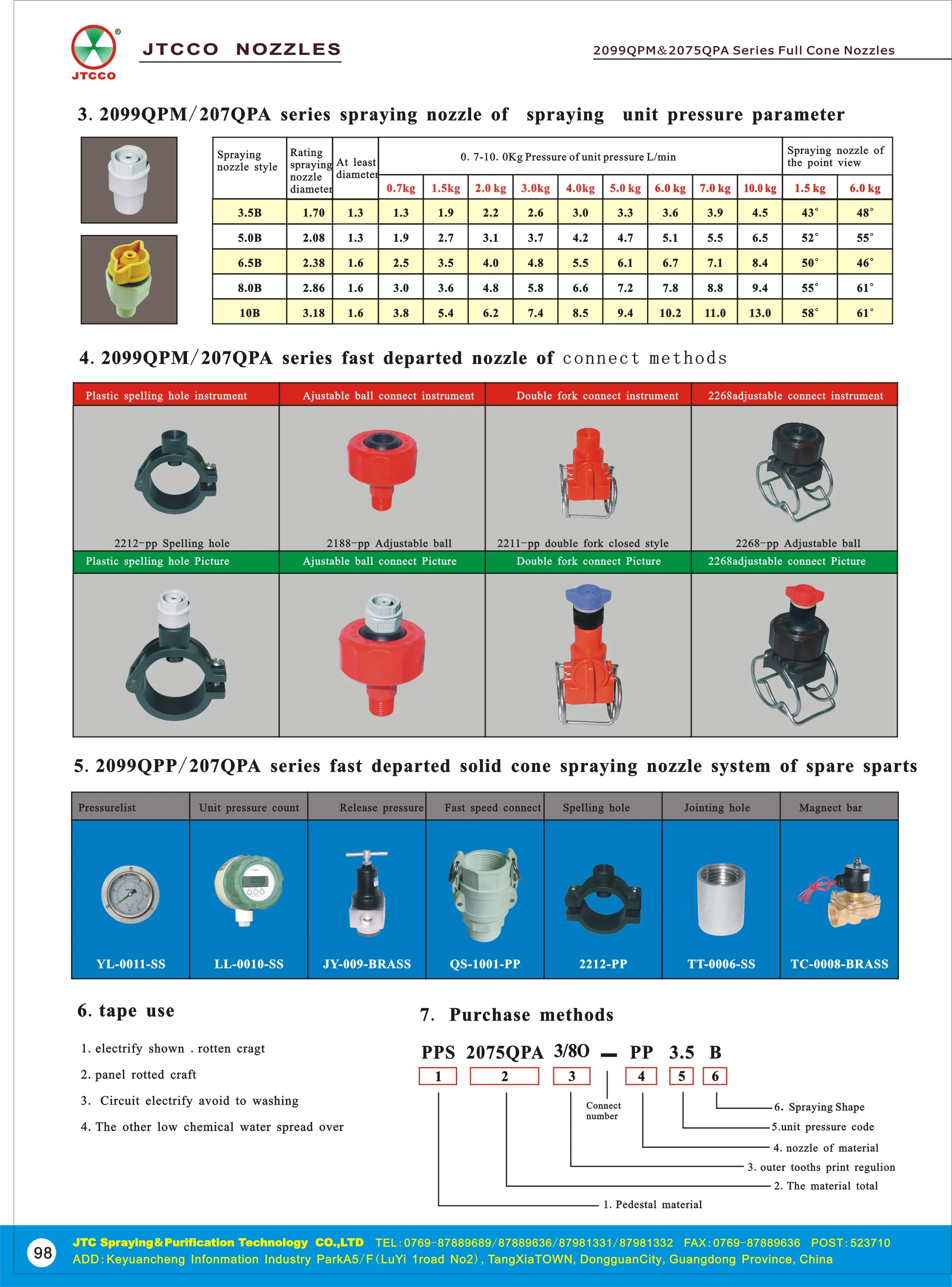

2099QPM Quick VeeJet | |
| Ideal for applications with limited space | |
| Nozzle measures slightly over 1" (2.54 cm) when mounted in standard header | |
| Color coded tips for easy identification | |

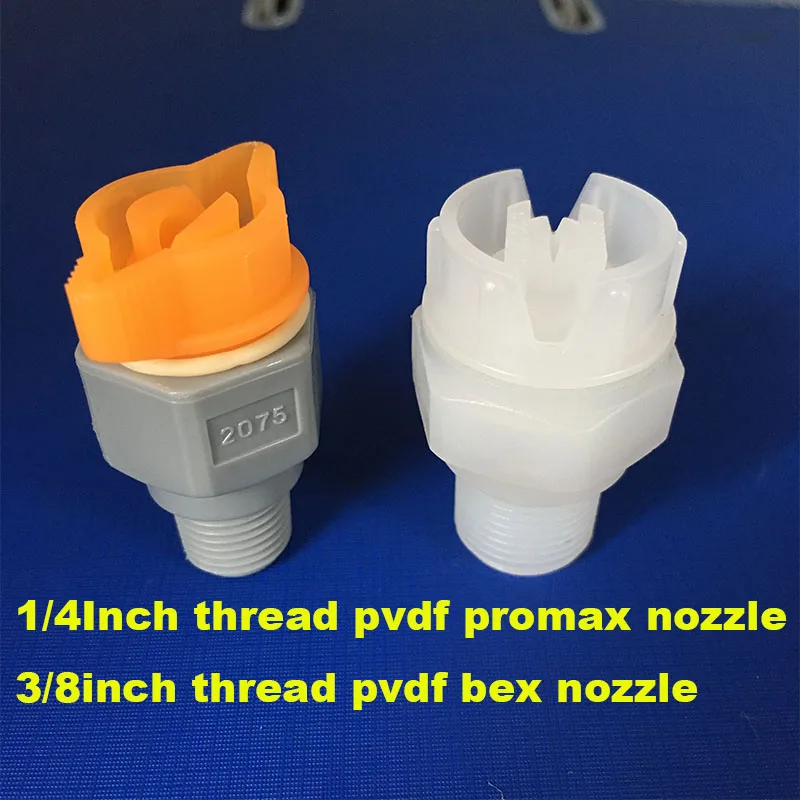

| Also available (PVDF) with no colorants or fillings to leach into spray | |
| Capacities: seven ranging from .15 to .8 gpm at 40 psi (0.59 to 3.2 l/min at 2.8 bar) | |
| Spray angles: 25° to 110° at 40 psi (2.8 bar) | |
| Maximum pressure in ProMax: 175 psi at 40°F (12 bar at 4°C) | |
| Maximum pressure in Kynar: 225 psi at 40°F (15.5 bar at 4°C) | |
| Maximum temperature in ProMax: 200°F at 50 psi (93°C at 3.5 bar) | |
Product Overviews
Technology
Advantages
1:over 20 years spray nozzle proffesional experience
2:good skilled engneer to design and provide proffesional advice for your spray nozzle choice
3:samples provide before order
4:7*24hours sales service (+008613925573754(whatsapp/wechat are avalble ) email:info at dgjtc.com
5:real true raw material and high precision flow rate manufacturing ,each one pc spray nozzle tested before delivery .
6:competitve price and fast delivery
Company Information
Buying Guides
spray nozzle technical data include:
1:thread size :1/8inch ,1/4inch,3/8inch,1/2inch ,1-1/2inch ,2inch ...
2:thread connection type and unit:male /female . BSPT /NPT
3:spray angle :0-110 degreee ,110-360 degree
4:spray pattern:flat fan ,full cone ,hollow cone ,straight cone.
5:flow rate :such as 1 liter per min@1bar
