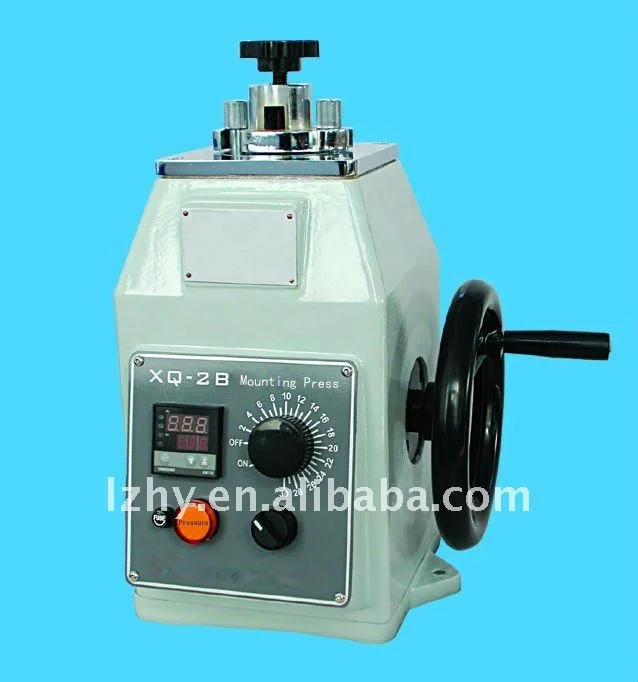

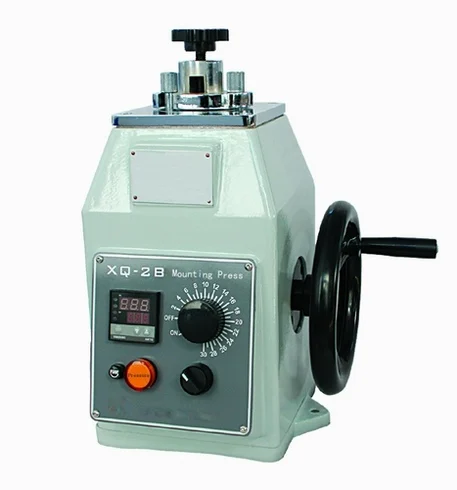

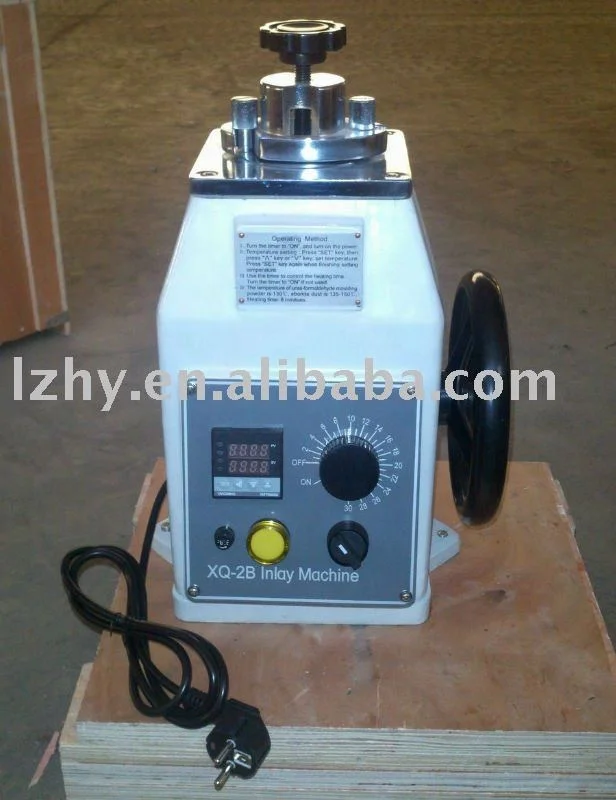

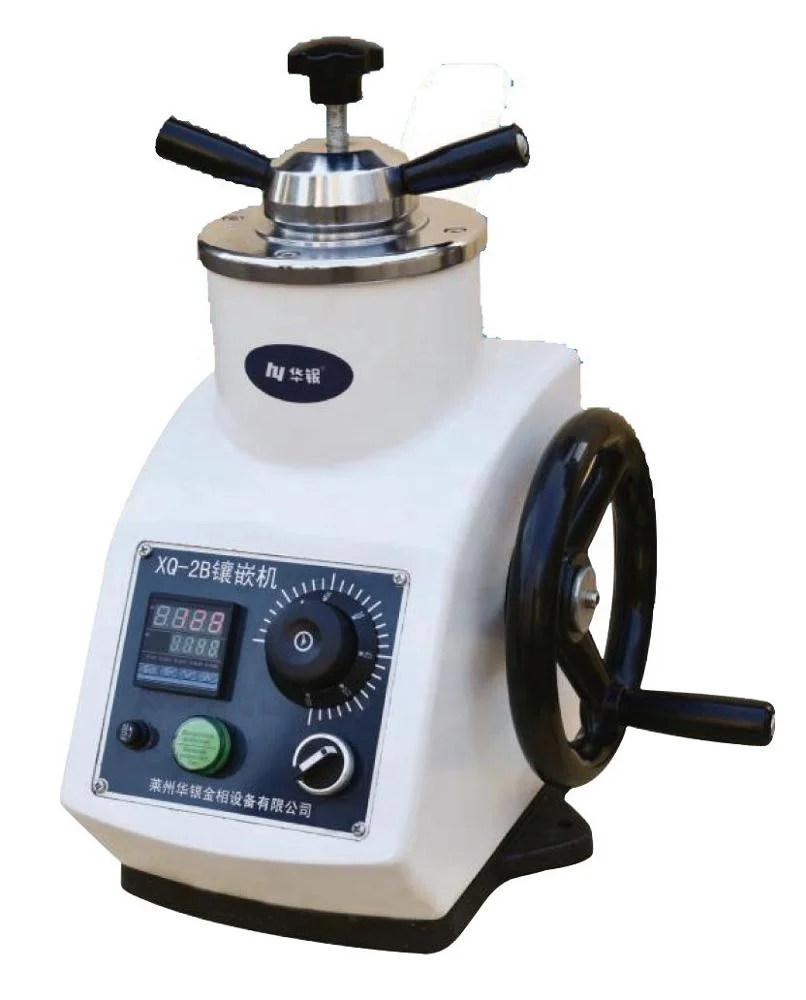

XQ 2B (22mm) manual mounting press machine

Product Overview

Description

Metallographic mounting press Model XQ-2B (22mm) mounting press



The machine may work stablely under the following working condition:

1. The temperature of surrounding medium can not be less than

      10 °C  and more than 40 °C
2. The relative humidity of air should be no more than 85% (20 °C)
3. There should be no obvious vibration source around
4. There should be no current conducting dust, explosive and

      corrosive air.



Technical specifications

1. Diameter of specimen: Ø22×15mm, Ø30×15mm, Ø45×18mm

2. Heater: 650W, 220V

3. Temperature adjusting range: 100-180 ºC

4. Control power supply: 220V 50Hz. The voltage fluctuation should

    be no more than 15%.

5. Dimensions: 34 × 27 × 40 cm

6. Net weight: 33Kg
