GDQ150/300/450A Fully Automatic Gummy/Jelly(QQ)Candy machine

Product Overview

Description

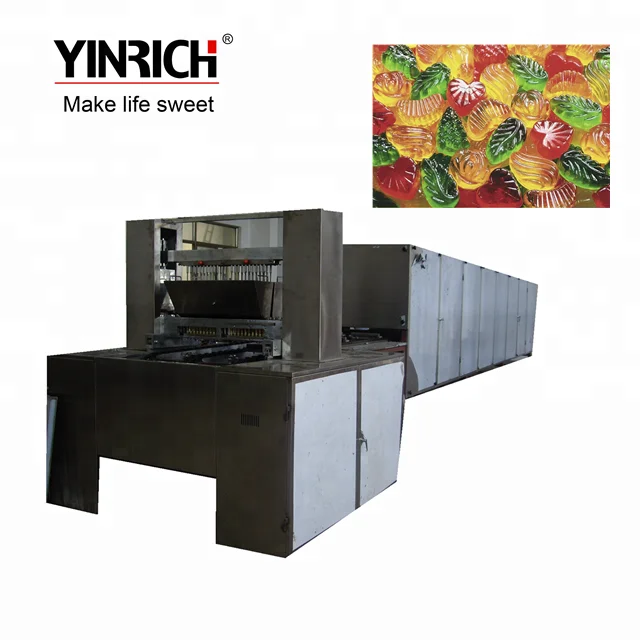

Automatic Gummy/Jelly(QQ) Candy Depositing Line



The processing line is an advanced and continuous plant  for making different sizes of gelatin or pectin-type soft candies . It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

UUCOMMODITY:

GDQ150/300 /450

Automatic Gummy/Jelly (QQ)candy depositing processing line



  TECHNICAL SPECIFICATIONS:

Model	GDQ150A	GDQ300A	GDQ450A
Production capacity   ( kg/h)	50~100	100~250	250~400
Rated depositing times(n/min)	25~30	25~30	25~30
Weight of each candies(g): 1.  two colors 2.  single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	28kw/380V	35kw/380V	38Kw/380V
Refrigerator	MT160 x1 15,000 kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 36,000kcal/h 24kw
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa	0.      25m3/min 0.4-0.6 Mpa	0.25 m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature() 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line   (m)	12m	12m	18m
Gross weight           ( Kgs)	Approx.5000	Approx.9000	Approx.12000
