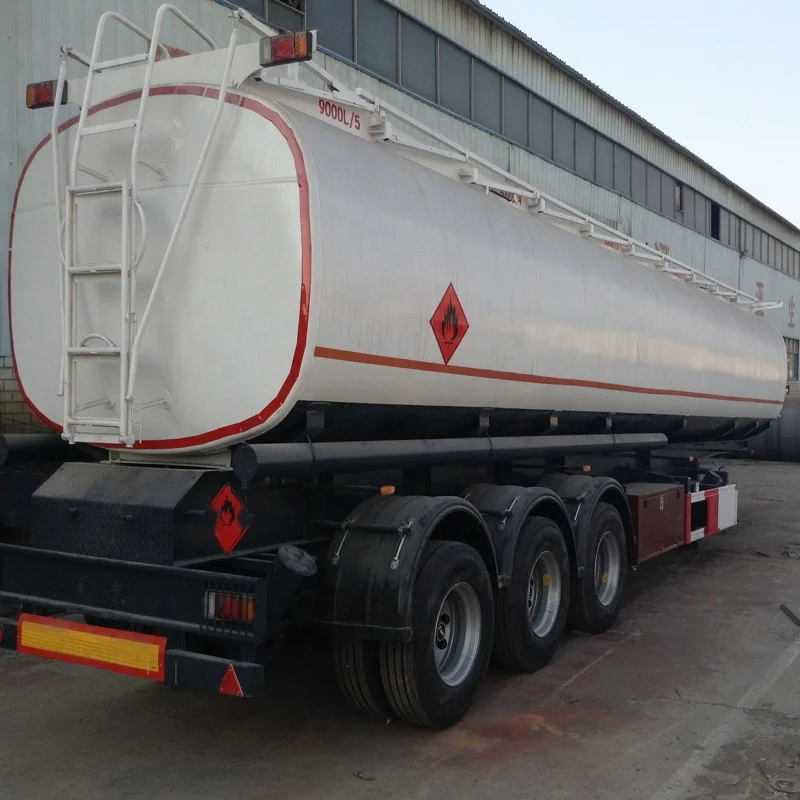

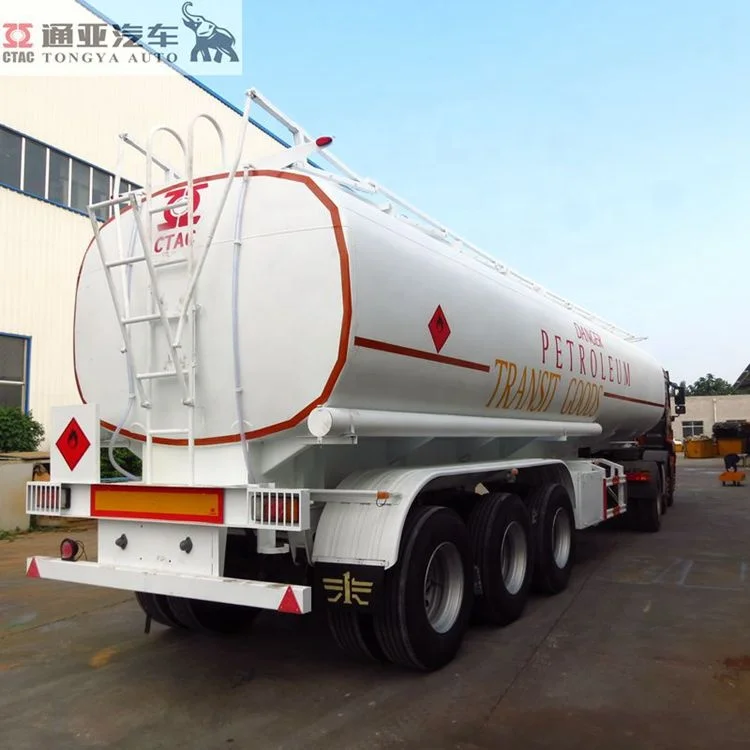

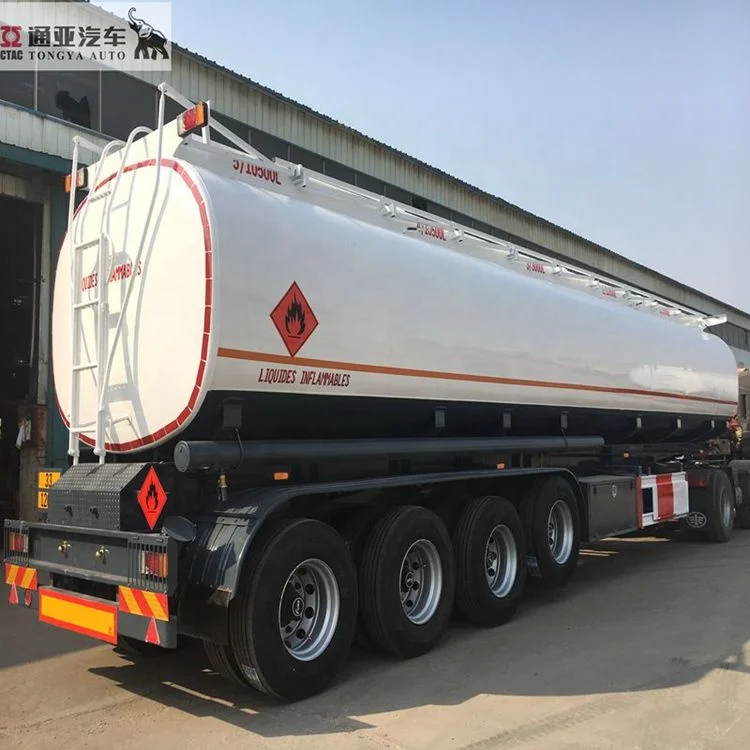

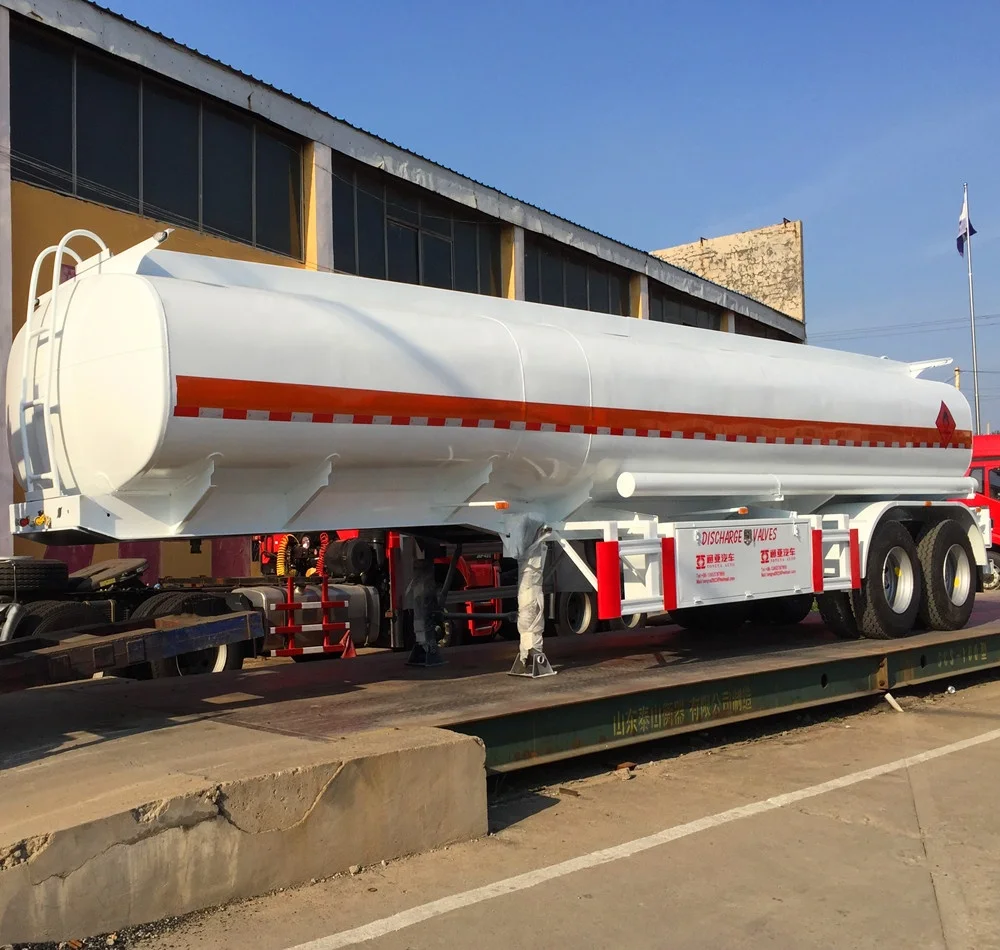

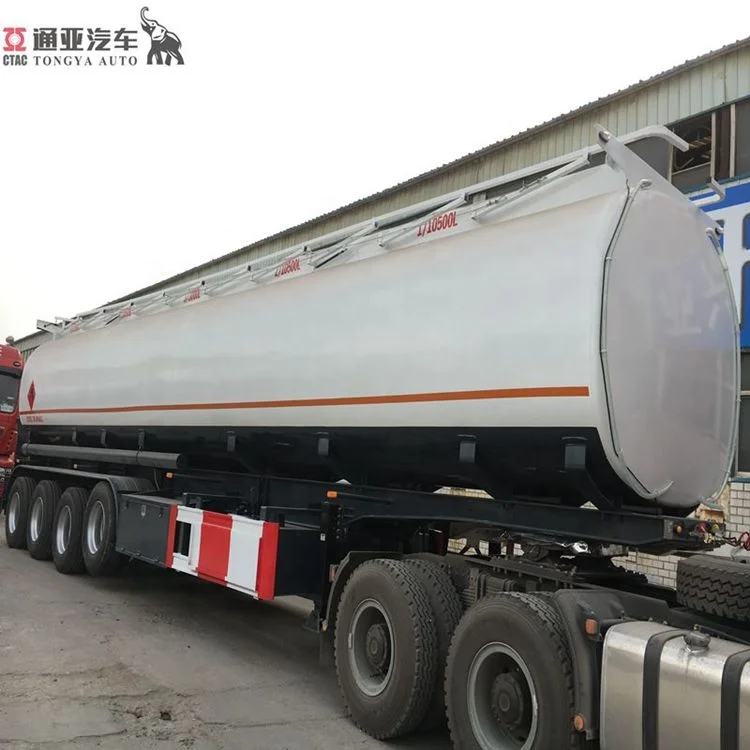

| | Tank Body | | |
Shape | Optional ( Round or Suare) | | | |
Dimension | 13500mm*2490mm*3800mm ( Exact size depends on the final design) | | | |
Tare weight | About 12000KGS | | | |
Total Volume（m3） | 50m³ | | | |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel | | | |
End Plate | 5mm or 6mm /Q235 carbon steel | | | |
Manhole Cover | Cabon steel or API manhole cover, ∮500mm | | | |
Bottom Valve | Aluminum API Pneumatic Bottom Valve | | | |
Discharging Valve | Diameter is 3 or 4 inch | | | |
Compartments | 5 | | | |
Discharging Pipe | 4”rubber hose, 2 pcs, 6m/each | | | |
Cat Walk | With (Common model or special design) | | | |
| | Chassis | | |
Main Beams | Weldding design , connected by bolts and nuts
Q345 carbon steel material | | | |
Axle | 3 axles,FUWA brand | | | |
Landing Gear | CHINA BRAND 28T | | | |
King Pin | JOST 3.5 inch bolt-in king pin | | | |
Suspension | Mechanical suspension/Germany or America type /air suspension | | | |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without | | | |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. | | | |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand | | | |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional | | | |
ABS | Optional | | | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | | | |
Accessories | One standard tool box | | | |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers | | | |
FOB PRICE | 17500USD---20500USD | | | |
