Product Overview
Description

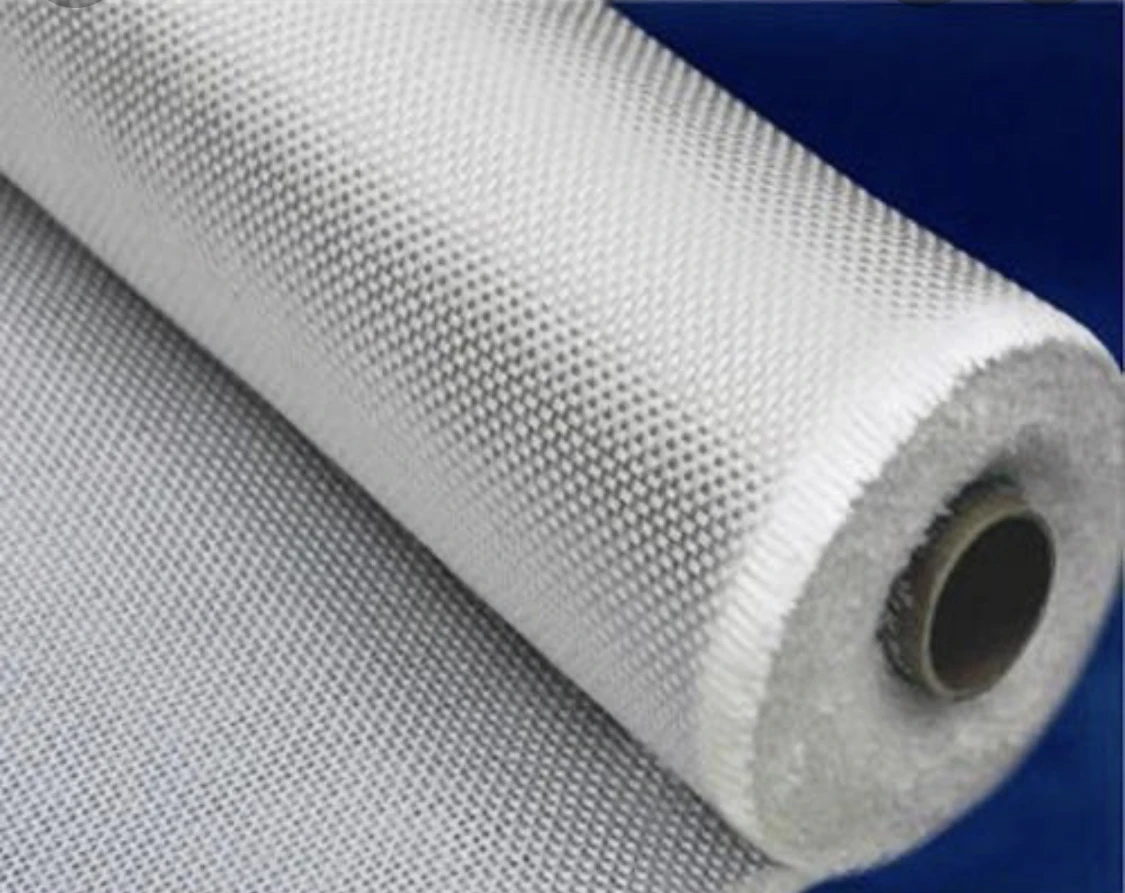

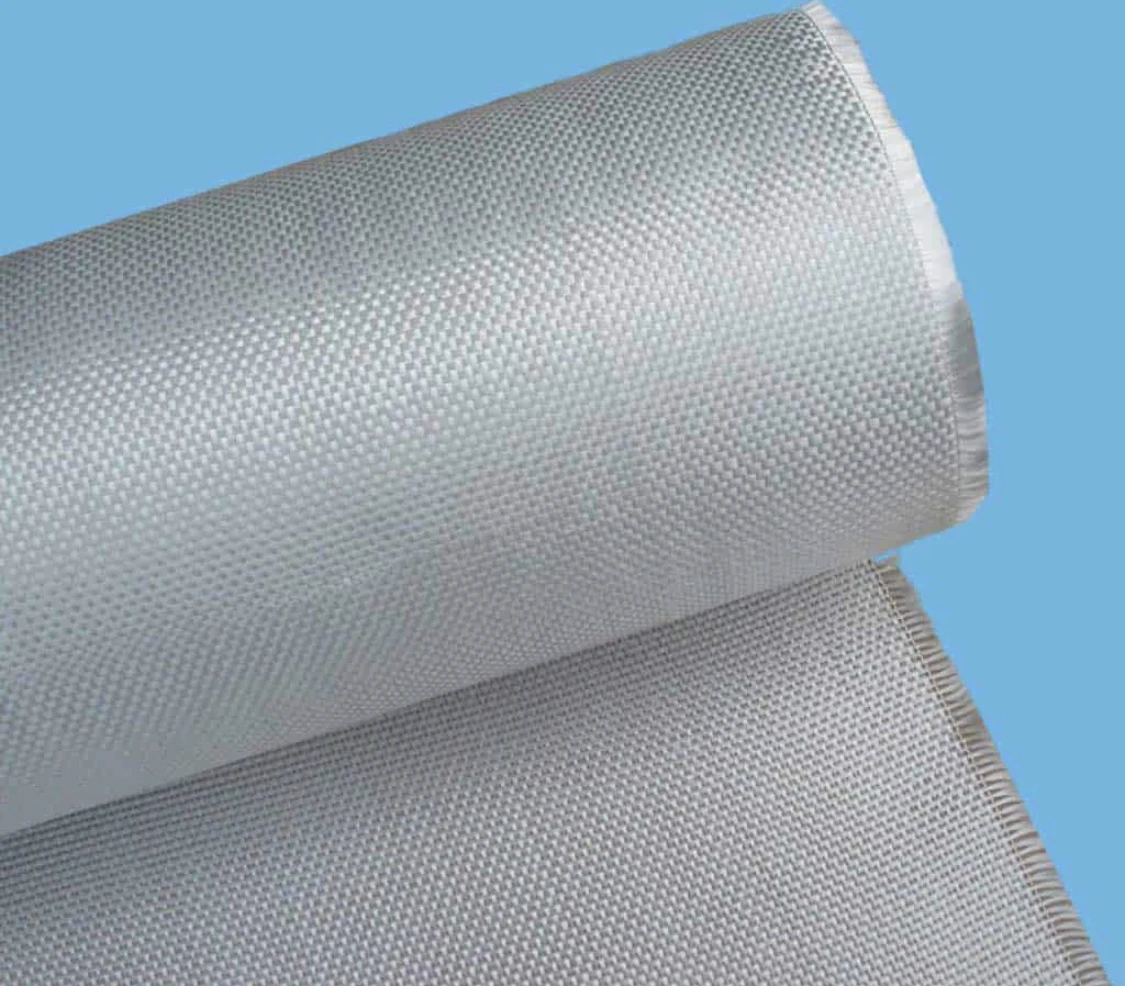

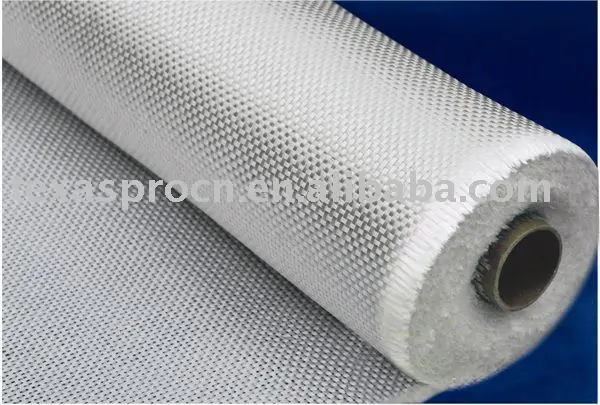

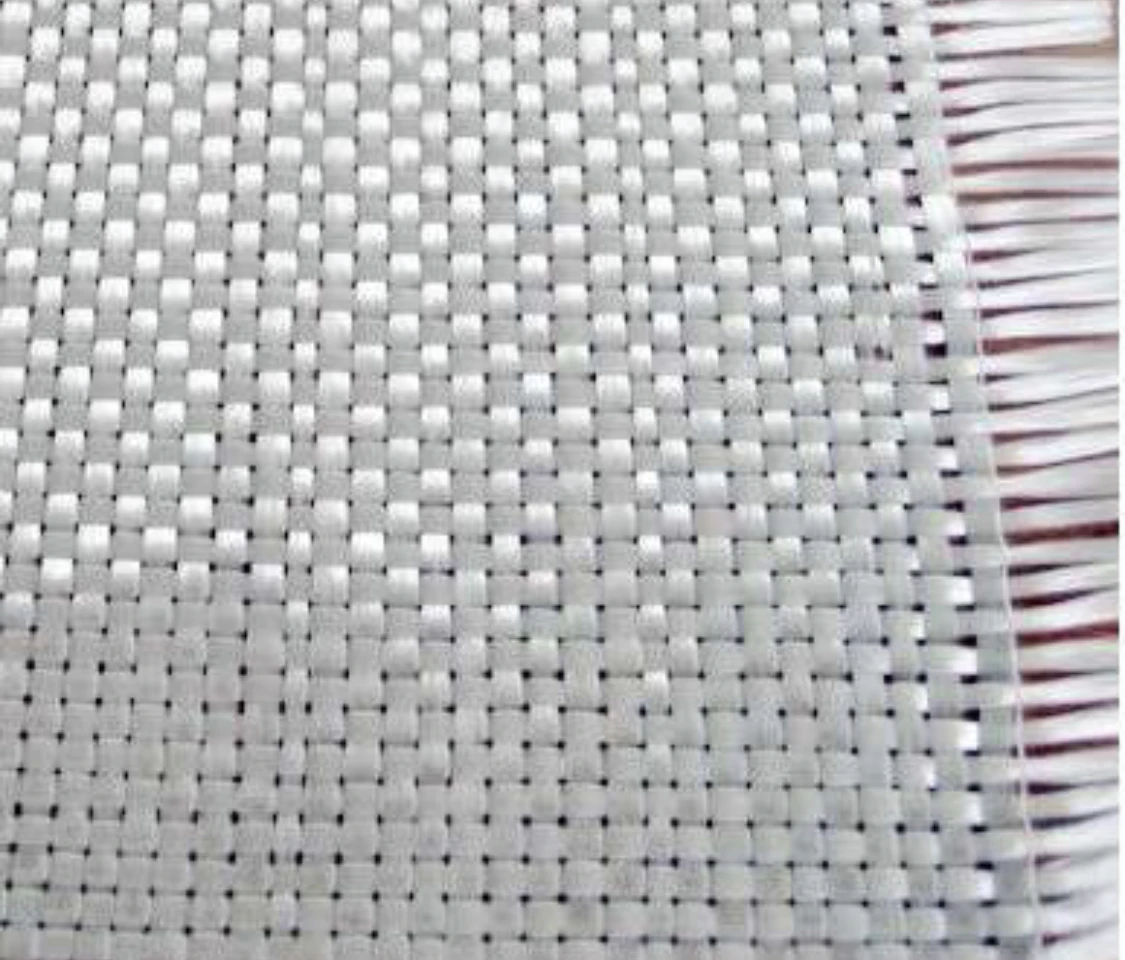

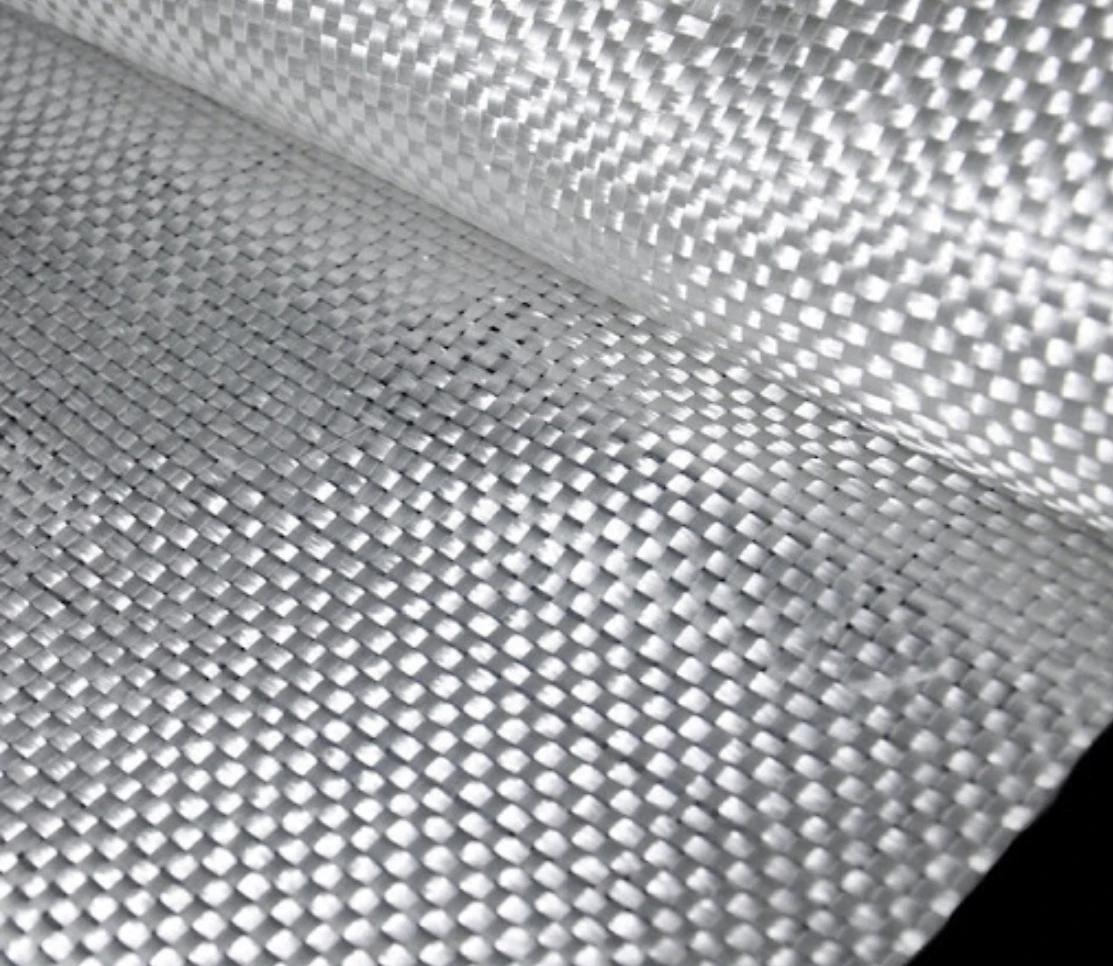

Woven roving is a fabric made by interweaving roving and mainly used for hand lay-up of large, high strength FRP products such as boats, rolling stock, tanks and architectural structures.
It can also be chopped into certain length as per customer's requirement.
Heat-resistant glass fiber woven roving is compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins. It's widely used in hand lay up, mold press, GRP forming process adn robot processes to manufacture boats, vessels, plane, automobile parts, panels, storage tanks. Except for normal specifications. Special specification can be customized.
Product Specification
| Item | Tex | Count of cloth (root/cm) | Unit area mass (g/m) | Breaking strength (N) | |||
| Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | ||
| EWR200 | 180 | 180 | 6.0 | 5.0 | 200±15 | 1300 | 1100 |
| EWR300 | 300 | 300 | 5.0 | 4.0 | 300±15 | 1800 | 1700 |
| EWR400 | 576 | 576 | 3.6 | 3.2 | 400±20 | 2500 | 2200 |
| EWR500 | 900 | 900 | 2.9 | 2.7 | 500±25 | 3000 | 2750 |
| EWR600 | 1200 | 1200 | 2.6 | 2.5 | 600±30 | 4000 | 3850 |
| EWR800 | 2400 | 2400 | 1.8 | 1.8 | 800±40 | 4600 | 4400 |
Product Features
1. Warp and weft roving aligned in a parallel and flat manner, resulting in uniform tension.
2. Densely aligned fibers, resulting in high dimensional stability and making handing easy.
3. Good mold ability, fast and complete wet in resins, resulting in high productivity.
4. Good transparency and high strength of composite products.
Product Application
Main application automotive, vessels, gratings, bathtub, FRP composite, tanks, waterproof, reinforcement, insulation, spraying, spray gun, mat, gmt, boat, csm, frp, panel, car body, knitting, chopped strand, pipe, gypsum mold, boat hulls, wind energy, wing blades, fiberglass boat huls, boat fiberglass, fiberglass pools, fiberglass fish tank, fiberglass fishing boat, fiberglass molds, fiberglass rods, fiberglass swimming pool, fiberglass boats molds, fiberglass pool, fiberglass chopper gun, fiberglass spray gun, fiberglass water tank, fiberglass pressure vessel, fiberglass poles, fiberglass fish pond, fiberglass resin, fiberglass car body, fiberglass panels, fiberglass ladder, fiberglass insulation, fiberglass dinghy, fiberglass car roof top tent, fiberglass statue, fiberglass grating, fiberglass rebar, glass fiber reinforced concrete, fiber glass swimming pool and etc.
Packaging & Shipping
Woven roving could be produced into different widths. Each roll is wound on a suitable cardboard tubes with inside diameter of 100mm, then put into a polythylene bag, fastened the bag entrance and packed into a suitable cardboard box. Upon to customer's request, this product could be shipped either with carton packaging only or with packaging. In pallet packaging, the products could be horizontally put on the pallets and fastened with packing straps and shrink film.
Shipping: by sea or by air
Delivery: 30 days after receipt of deposit payment
