XSZ-2108 (CX21) Infinity Optical system Multi-purpose Binocular Microscope
Product Description
Viewing Hend
Seidentopf Binocular Head ,Interpupilary distance adjustment range 48-75mm
Eyepiece
WF 10X
Objective
Achromatic Objective, 4X 10X 40X(s) 100X(s,oil)
Stage
Double layers mechanical stage,140x140mm/75x45mm
Condenser
Abbe NA=1.25 with Iris diaphrame and filter
Illumination
Built in illumination, 6V/20W Halogn lamp,Adjustable brightness
Focusing
Coaxial Coarse and fine Adjustment, Foucing range 30mm,Focusing interval 0.002mm
Voltage
230V/50HZ,VDE cable &plug
Standard accessory:
l 6V/20W spare halogen lamp ---1pc
l BGX1-20(0.5A)fuse----1pc
l 2filters (blue,green)
l Immersion oil---1 bottle
l Dust cover—1pc
l Instruction manual in English---1pc
Model: XSZ-107BN
Specification:
Certificate:
CE, ISO9001,
Achromatic objectives:4X,10X,40X(S),100X(S,OIL)
Wide field eyepiece:WF10X,WF16X(Optional)
Eyepiece head:Sliding binocular head inclined at 45
Stage: Double layer mechanical stage:Size 140x140mm,moving range 75x45mm
Focusing:Coaxial coarse and fine adjustment, focusing range 30mm,focusing interval 0.002mm
Nosepiece:Quadruple
Illumination:110V or 220V 6V20W Halogen Lamp
Quantity:
1 Set
Packing:
Faom with carton (Wooden case for Choice)
G.W/N.W:
8/7 KGS
MEASURE:
32*27*43cm

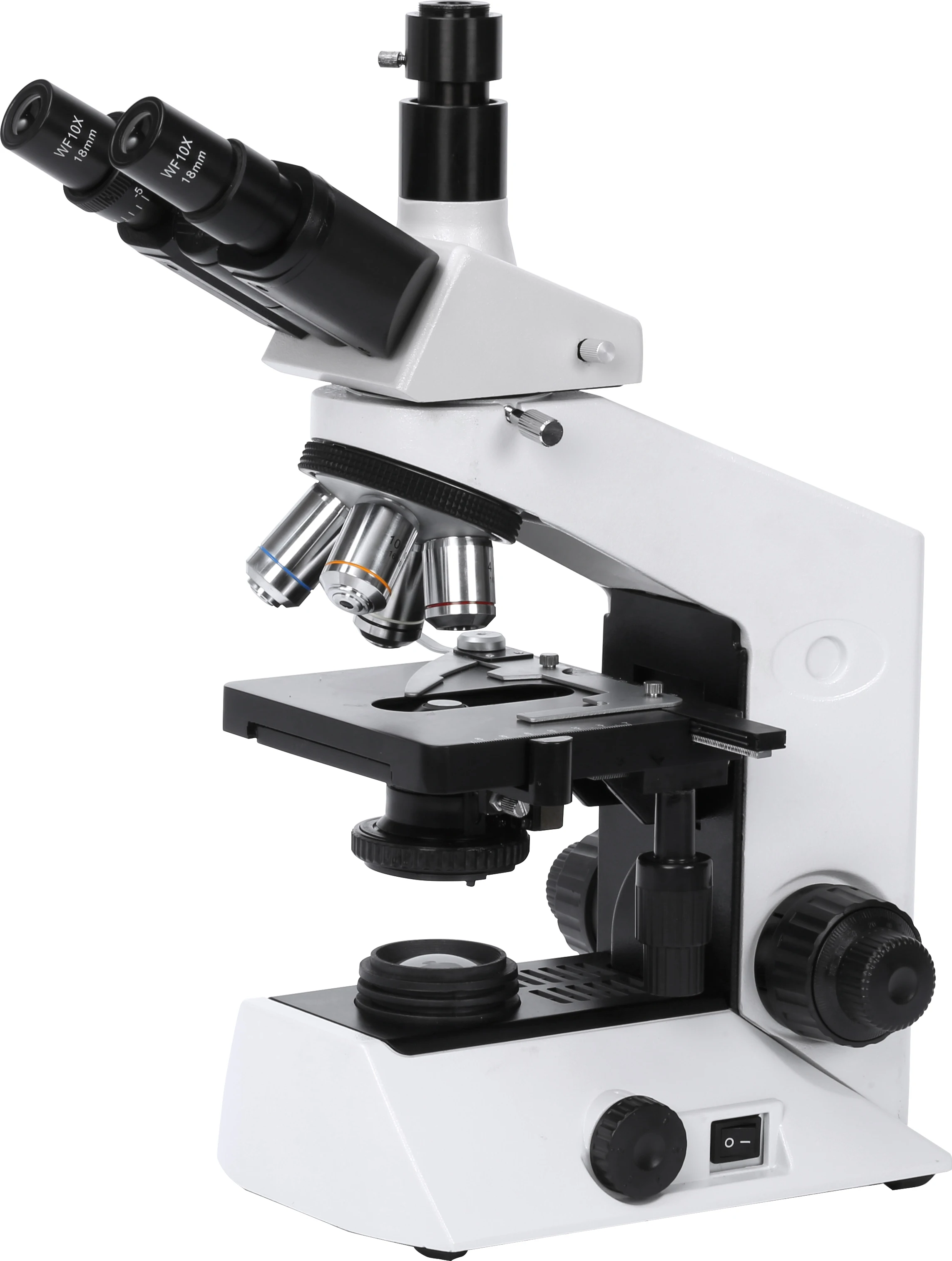

Model: SHD-32
Specification:
Certificate:
CE, ISO9001,
Achromatic objectives:4X,10X,40X(S),100X(S,OIL)
Wide field eyepiece:WF10X,WF16X(Optianal)
Eyepiece head:Sliding Trinocular head inclined at 45
Stage: Double layer mechanical stage:Size 140x140mm,moving range 75x45mm
Focusing:Coaxial coarse and fine adjustment, focusing range 30mm,focusing interval 0.002mm
Nosepiece:Quadruple
Illumination:110V or 220V 6V20W Halogen Lamp
Pixels:2.0 MEGA Pixel Imaginesenser
Interface: USB
Software: Driving software, process software, measuring software(Optional)
Quantity:
1 Set
Packing:
Faom with carton (Wooden case for Choice)
G.W/N.W:
8/7 KGS
MEASURE:
32*27*43cm
Model: 107E
Specification:
Certificate:
CE, ISO9001,
Achromatic objectives:4X,10X,40X(S),100X(S,OIL)
Wide field eyepiece:WF10X,WF16X(Optional)
Eyepiece head:Sliding binocular head inclined at 45
Stage: Double layer mechanical stage:Size 130x125mm, moving range 75x45mm
Focusing:Coaxial coarse and fine adjustment, focusing range 30mm,focusing interval 0.002mm
Nosepiece:Quadruple
Illumination:110V or 220V 6V20W Halogen Lamp
Quantity:
1 Set
Packing:
Faom with carton (Wooden case for Choice)
G.W/N.W:
8/7 KGS
MEASURE:
32*27*43cm
Model: XSP-106
Specification:
Certificate:
CE, ISO9001,
Achromatic objectives:4X,10X,40X(S),100X(S,OIL)
Wide field eyepiece:WF10X,WF16X (Optional)
Eyepiece head: Compensation binocular head inclined at 30°
Stage: Double layer mechanical stage:Size 125x115mm, moving range 70x15mm
Focusing:Coaxial coarse and fine adjustment, focusing range 20mm
Nosepiece:Quadruple
Illumination:110V or 220V 6V20W Halogen Lamp
Quantity:
1 Set
Packing :
Faom with carton (Wooden case for Choice)
G.W/N.W:
6/4 KGS
MEASURE:
32*27*43cm
Model: XSP-104
Specification:
Certificate:
CE, ISO9001,
Achromatic objectives:4X,10X,40X(S),100X(S,OIL)
Wide field eyepiece:WF10X,WF16X(Optional)
Eyepiece head: Monocular head inclined at 45
Stage: Double layer mechanical stage: Size 125x115mm, moving range 60x25mm
Focusing:Coaxial coarse and fine adjustment, focusing range 20mm
Nosepiece:Quadruple
Illumination:110V or 220V 6V20W Halogen Lamp
Quantity:
2 Set
Packing:
Faom with carton (Wooden case for Choice)
G.W/N.W:
6/4 KGS
MEASURE:
38x26.5x39cm
Model: XSP-13A
Specification:
Certificate:
CE, ISO9001,
Achromatic objectives:10X,40X(S),100X(S,OIL)
Wide field eyepiece: H5X, H10X, H12.5X, H16X(For choice)
Eyepiece head: Monocular Head
Stage: Stage +Moving Scale
Focusing: Separate Coarse
Nosepiece:Triple
Illumination:Abbe NA1.25 Condenser with Iris Diaphragm
Quantity:
4 Set
Packing:
Faom with carton (Wooden case for Choice)
G.W/N.W:
11.5/10.5 KGS
MEASURE:
81.5x26.5x37.5cm
Our Services
We offer OEM and ODM service for our customer. We did do export business for 10 year ago. we offer complete supplier line for our customer. All microscope approved one year Warranty!
