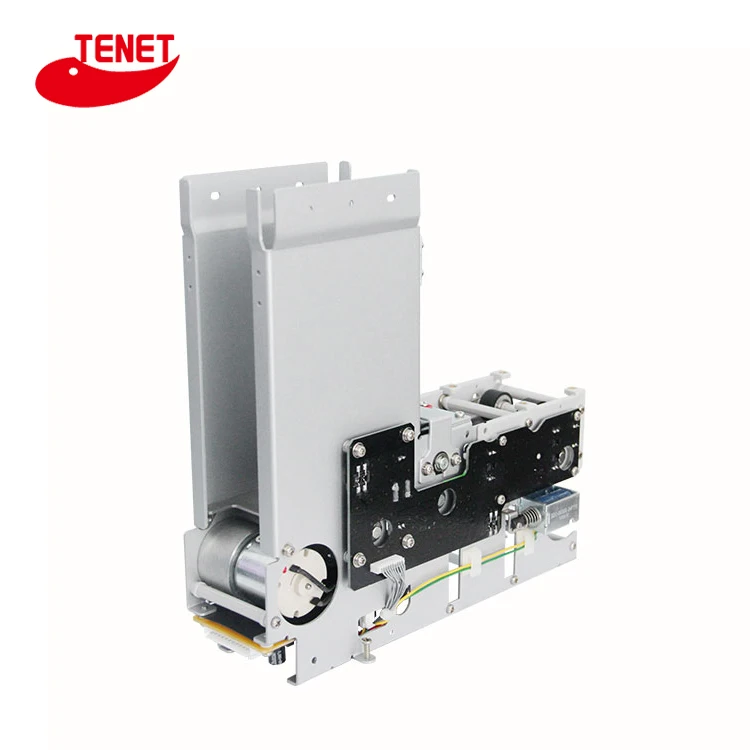

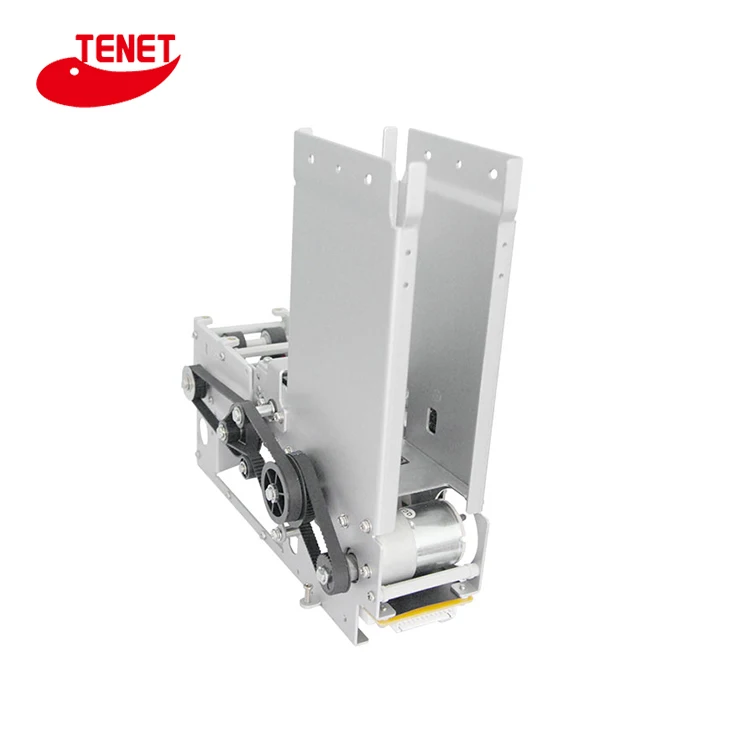

Product Overview

Description

1)Industrial design, adjust to high temperature and other bad environments;

2)Simulated manpower friction card issuers ,better adaptability to various deformed cards;

3)Watchdog of hardware and embedded operating system to ensure properly running;

4)Pre-dispense function accelerate dispensing speed;

5)Connectable with the vehicle detector to achieve card issuing and “one car, one card”;

6)Automatic buzzer alarm when no cards, fewer cards or failure.

7)Provide both RS232 and I/O voltage control interface;

8)Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;

9)Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;

10)Slide card stacker with a capacity of 40pc;

11)Adjustable of card stacker with a capacity of 120pc each;

12)Automatic withdrawal to prevent card lost (only for TCD800F series

13)Slide design to make installation and disassembling easier;

14)Molded production to ensure high consistency of precision and quality.

(B)Main technical data

ü  Operating voltage: 24V DC(max current 2A, static current 0.1A)

ü  Operating temperature: -20°C to 85°C

ü  Operating humidity: 30-90% (comparatively)

ü  Use condition: install in bin

ü  Card available: width: +/-0.5mm    Length: 85+/-0.5mm

ü  Thickness: 0.3-2.5mm (adjustable)

ü  Card material: Paper or Polyester card

ü  Net weight of card dispenser: 2.0kg (including the briquette)

ü  Time of issuing: max0.5s

ü  Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed

(C)Control interface

This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm) socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.



Pins	Signal Definiens	Signal Description
1	-24V	Operating Voltage cathode
2	+24 VDC	Operating Voltage anode
3	0 V(input and output )	Link with Operating Voltage anode
4	Pay out (out card signal)	Input, Low-Level(min 200mS) effective
5	Reset( reset input)	Input, Low-Level(min 200mS) effective
6	OV	Link with Operating Voltage cathode
7	VD( loop detector input)	Input, Low-Level (min 200mS) effective. use as Enable Signal
8	Callback( back card)	Input, Low-Level (min 200mS) effective
9	Out ok( card on or get card signal )	Output Low-Level effective
10	Lower( less card)	Output Low-Level effective
11	Error( pre-dispense card error or block card)	Output Low-Level effective
12	Empty ( card box empty or collecting box empty)	Output Low-Level effective



2. RS232 control interface (CN7)

Pins	Signal Definiens	Signal Description
1	GND	Ground
2	RXD	RS232 receiver port
3	TXD	RS232 send port
