Нержавеющая сталь 2 ходовой клапан коллектора инструмент коллектор клапан
- Category: Needle Valves >>>
- Supplier: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Share on (458860060):
Product Overview
Description
Product Description

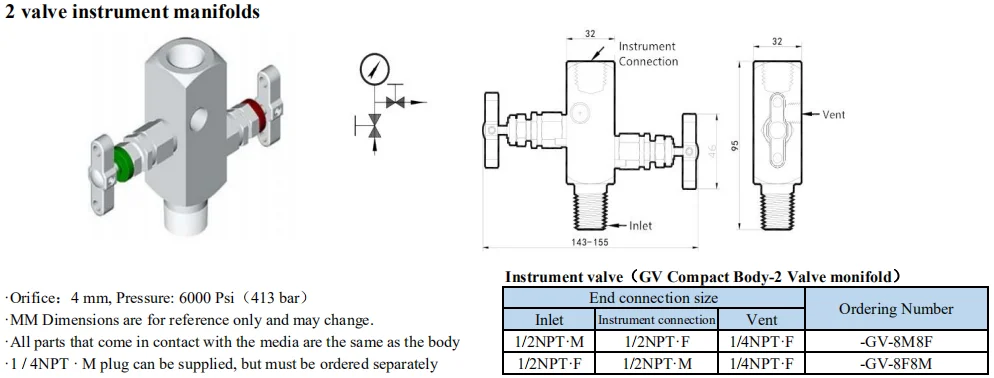

Type | 2 Way Valve Manifold |
Body Material | SS 316, SS304 |
Process size | 1/2" NPT Female |
Instrument size | 1/2" NPT Male |
Vent size | 1/4" NPT Female |
Packing | PTFE packing standard |
Stainless Steel 2 Way Valve Manifold Instrument manifold Valve
TESTING :
APPLICATION
* General Plant Service
• Pressure Instrumentation devices
• Differential pressure Instrumentation devices
• Pressure equalization
• Block and bleed applications
• Venting
• Pressure Instrumentation devices
• Differential pressure Instrumentation devices
• Pressure equalization
• Block and bleed applications
• Venting
FEATURES

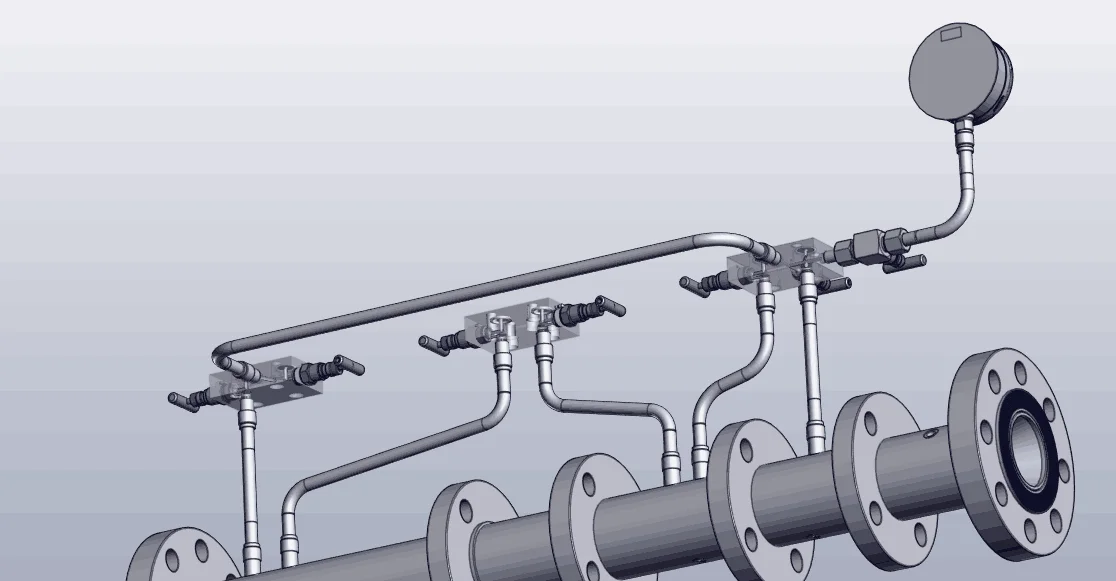

1. Designed for mounting on differential pressure transmitters
2. Pressure Rating: up to 6000 psig (408 bar) at CWP
3. Temperature Rating: -54ºC to 232ºC with PTFE packing
4. Packing: PTFE packing standard, Graphite packing for high temperature on request
5. Available with Pipe to Pipe, Pipe to Flange, Flange to Flange, Direct instrument mount and remote mount
6. Options: Available with 2 way, 3 way and 5 way valve manifolds
7. MM Dimensions are for reference only and may change
TESTING :
•Standard Test : Each Valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing,
the maximum allowable leak rate of 0.1 sccm
the maximum allowable leak rate of 0.1 sccm
Note:
△ A packing adjustment may be required periodically to increase service life and to prevent leakage.
△ Valves that have not been cycled for a period of time may have a higher initial actuation torque.

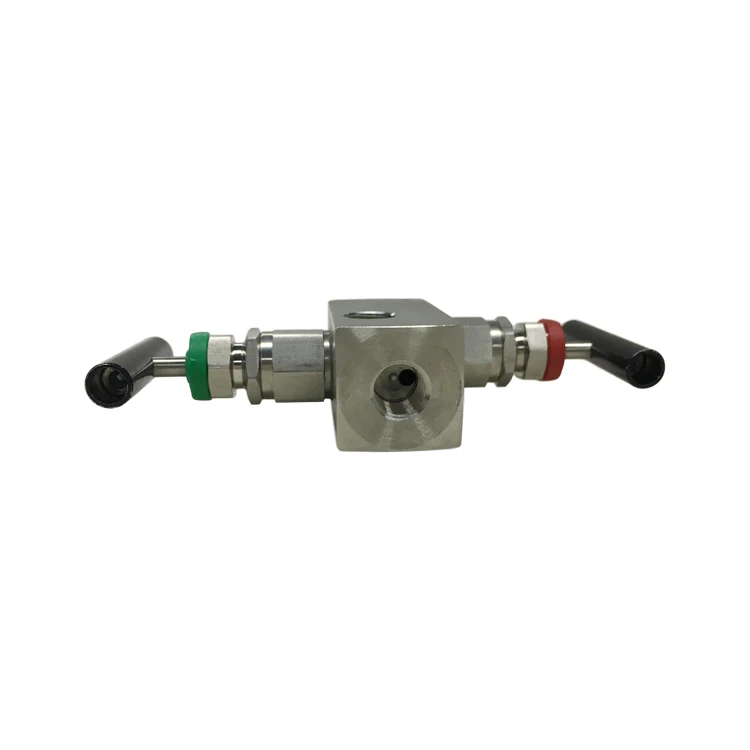

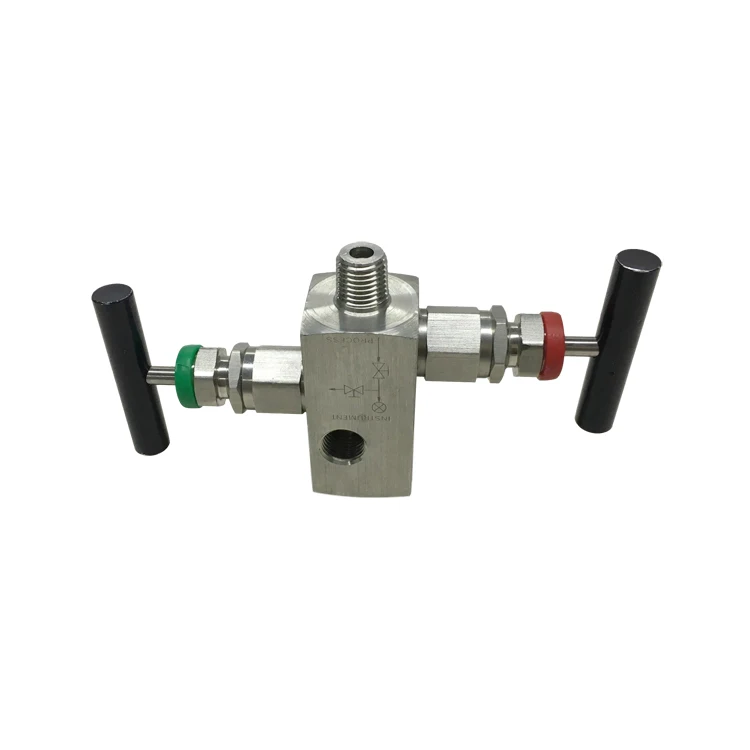

Detailed pictures

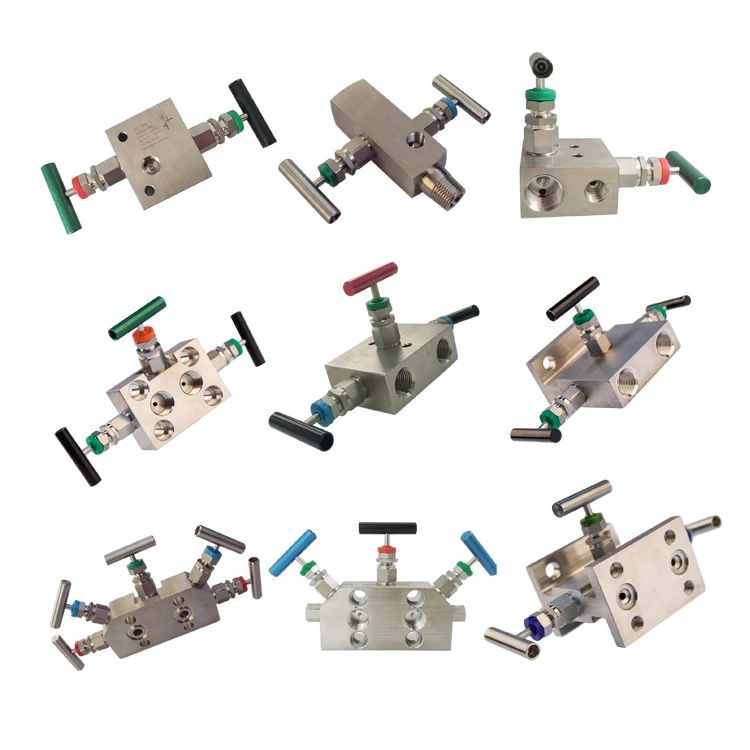

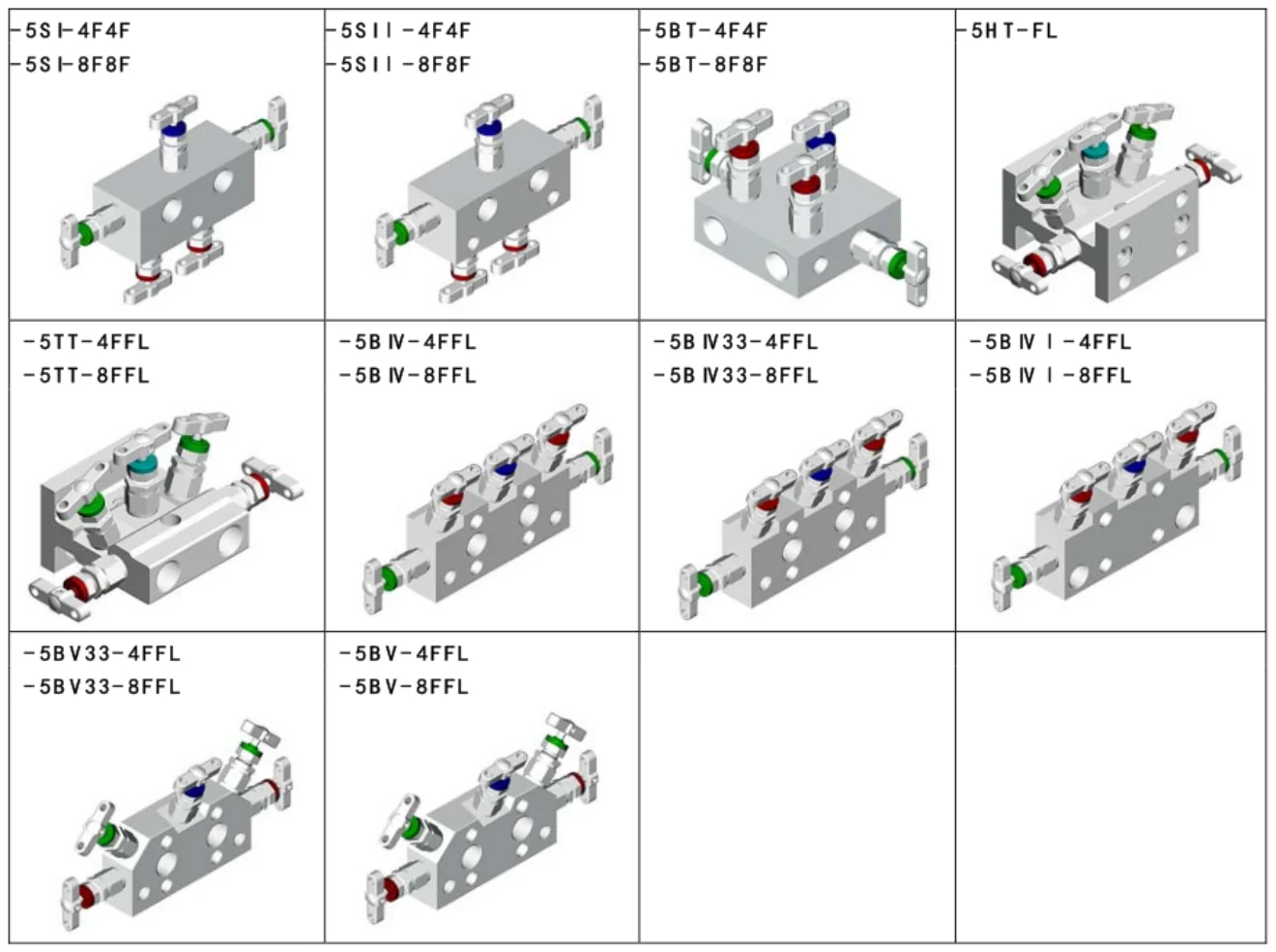

More options
Packaging pictures
Related Products
Customers feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
