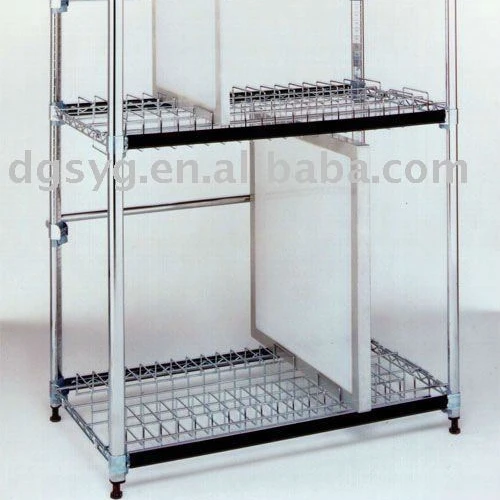

SMT Stencil Storage Shelf
- Category: >>>
- Supplier: Dongguan Yingguang Metalware Co. Ltd.
Share on (459106814):
Product Overview
Description
Store and identify your valuable SMT Reel inventory with this fl exible and versatile system. Each storage level offers capacity for either 2 rows of 7" and 13" size reels or 1 row of 15" reels. Select complete cart shown below. To build your own unit, choose number of storage levels (below) and select posts (stationary or mobile)
SMT Reel Storage Features:
• 5 stainless steel dividers included per row
• Dividers can be moved in 3/4" increments
• Each row has 35 1/2" of usable reel storage space (capacity will vary depending upon width of reel)
• Each storage level has a weight capacity of 200 lbs. For mobile units total weight must not exceed three times load rating factor of casters selected.
ESD Classifi cation: Conductive with the use of a grounding cable.
| Model No. | Description | Dimensions | Weight |

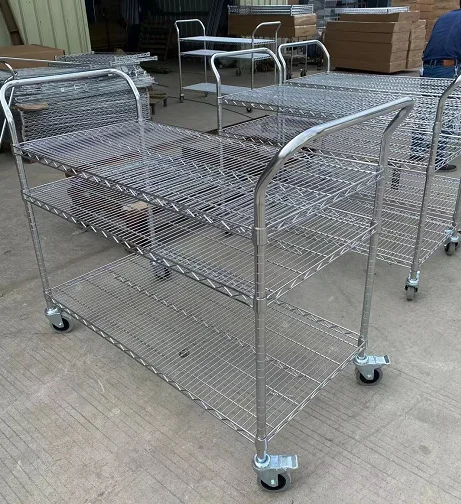

| YG021W | 54" high, 3-level reel cart | 24" W x 42" L | 119 lbs. |
| YG013W | 54" High, 3 level reel cart | 24" W x 42" L | 83 lbs. |
| YG321W | Complete 2-pan 7" and 13" reel storage level | 24" W x 42" L | 32 lbs. |
| YG123W | Complete 1-pan 15" reel stroage level | 24" W x 42" L | 20 lbs. |
| Model No. | Description | Dimensions | Weight |
 | Set of 5 stainless steel dividers | .25" W x 10 1/2" L | 4.25 lbs. |
| Set of 5 divider label holders | 4" W x 6" L | 4.25 lbs. |
The Components drop into 24" x 24" footprint to form a partial or dedicated stencil storage unit.SMT Stencil Storage Shelf

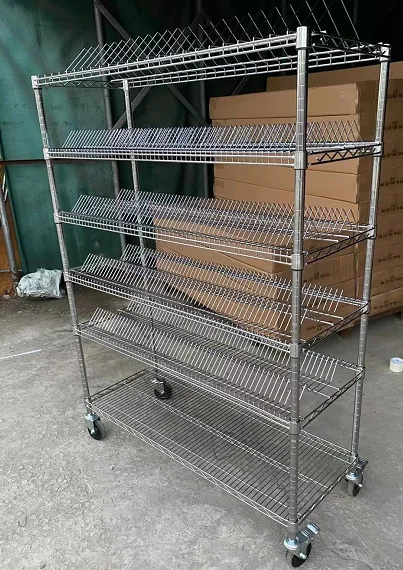

SMT Stencil Storage Features:
• Designed to accept stencil frames up to 1 1/2" wide
• Each storage level has a weight capacity of 200 lbs.
• Each storage level has a unit capacity of 19 stencil frames.
ESD classification: Conductive with the use of a grounding cable.
SMT Stencil Storage Features:
• Designed to accept stencil frames up to 1 1/2" wide
• Each storage level has a weight capacity of 200 lbs.
• Each storage level has a unit capacity of 19 stencil frames.
ESD classification: Conductive with the use of a grounding cable.
| Model No. | Dimensions | Description | Weight |
| QN546CSTL | 24" x 42" | Stationary Stencil Storage Unit | 80 lbs. |
