NF630 CS 3P MCCBMOULDED CASE CIRCUIT BREAKER

Product Overview

Description

NF630-CS 3P MCCB

moulded case circuit breaker





APPLICATION:



           CS series circuit breaker is features of reliable working out and stead performance, reasonable structure, beautiful appearance and small volumc etc. It can be used in the circuit of 50Hz or 60Hz, rated voltage up to 600V. It is used to distribute electric energy in distribution network and be overload or short circuit protection power equipment, and alsocan be used in transformation of circuit unfrequency under the normal conditions.





TECHNICAL DATA:

NF-CP	Pole number	Rated current(A)	Rated voltage(A)	on & off capacity
NF50-CP	3	10,15,20,30,40,50	600V	400V AC/5kA  500V AC/2.5kA
NF60-CP	3	60	600V	400V AC/5kA  500V AC/2.5kA
NF100-CP	3	60,75,100	600V	AC 400V/10kA AC500V/7.5kA
NF250-CP	3	125,150,175,200,225,250	600V	AC 400V/18kA AC500V/10kA





Type	NF30-CS	NF50-CS	NF60-CS	NF100-CS	NF250-CS	NF400-CS	NF630-CS	NF800-CS	NF1250-CS
Rated current of frame(A)	30	50	60	100	250	400	630	800	1250
rated current(40 °C)	3,5,10 15,20,30	10,15,20 30,40,50	60	60,75,100	125,150 175,200 225,250	250,300 350,400	500 600,630	600,700 800	800,1000 1200,1250
Rated insulation voltage(V)	600	600 60	600	600	600	600	600	600	600
Rated ultimate short circuit breaking capacity(KA)	1.5	5	5	18	18	25	35	35	85
Pole Number(P)	3	2,3	2,3	2,3	3	3	3	3	3
a	67.5	50,75	75	60,90	105	140	210	210	210
b	96	130	130	155	165	175	275	275	406
c	52	68	68	68	68	103	103	103	140
d	67	86	86	86	86	132	155	155	190

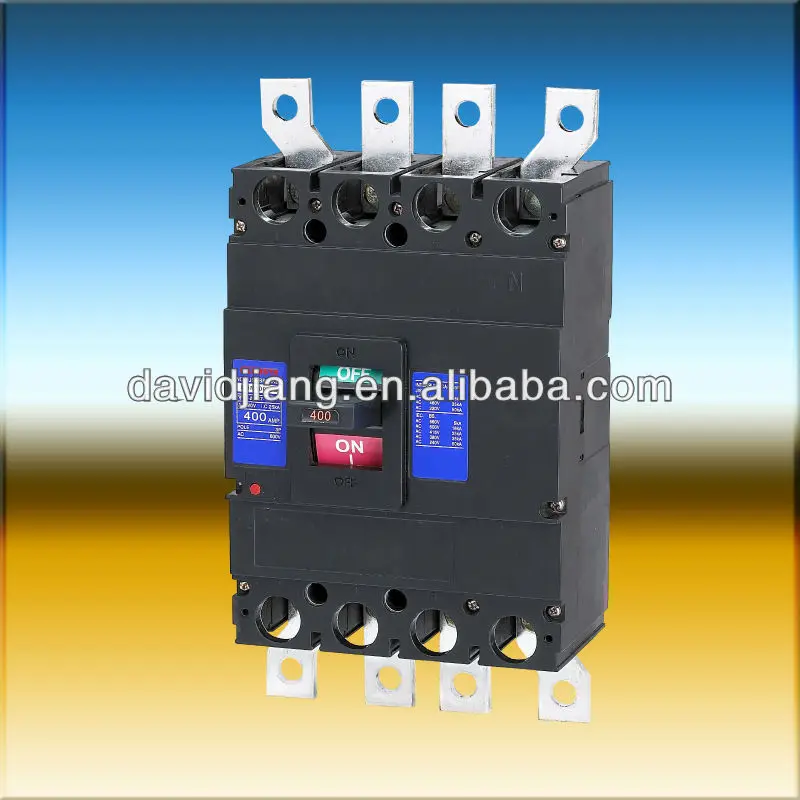

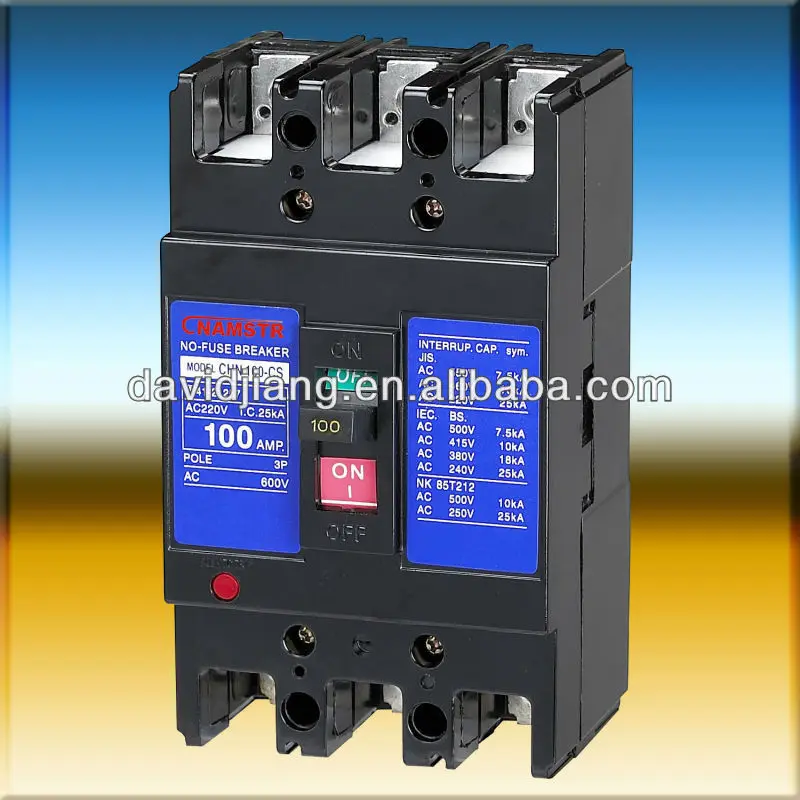

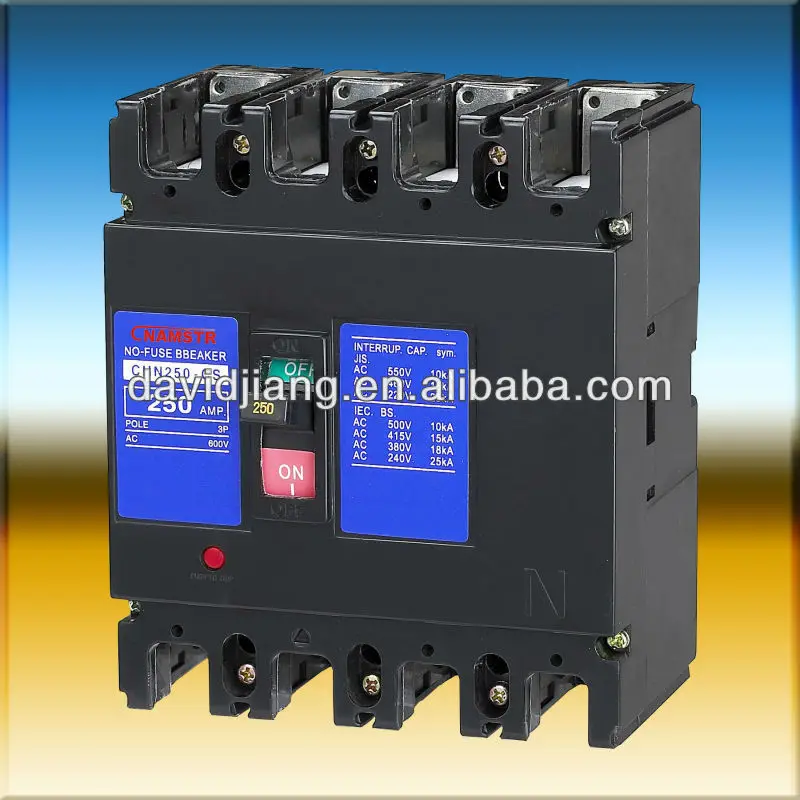

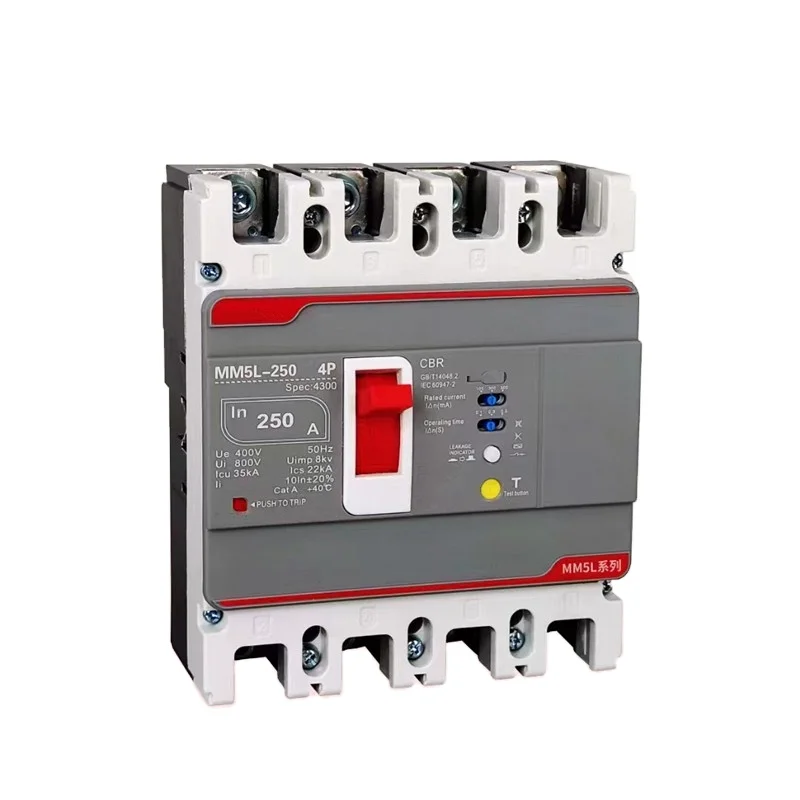

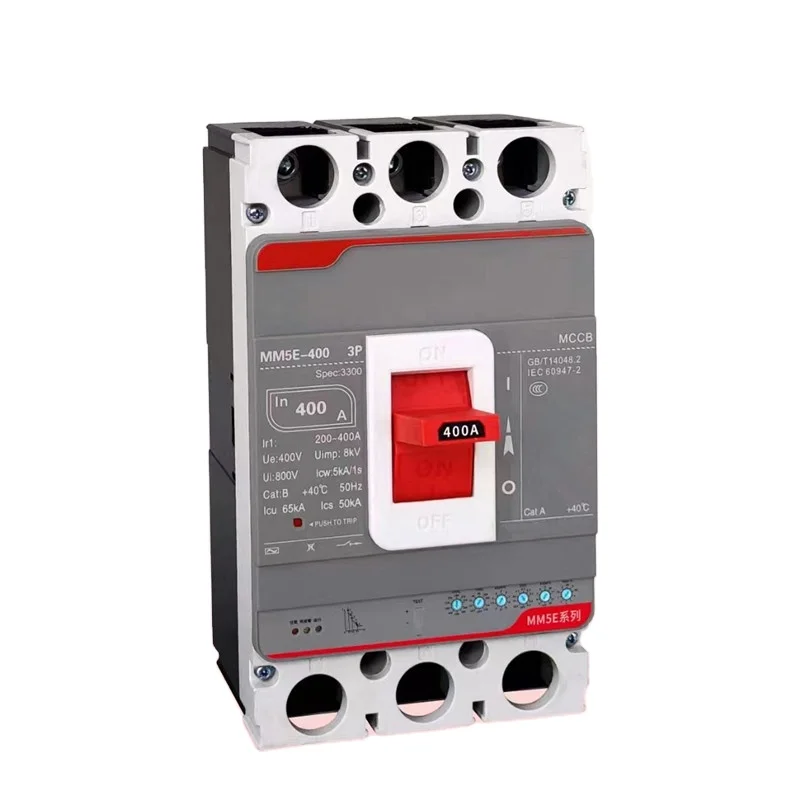

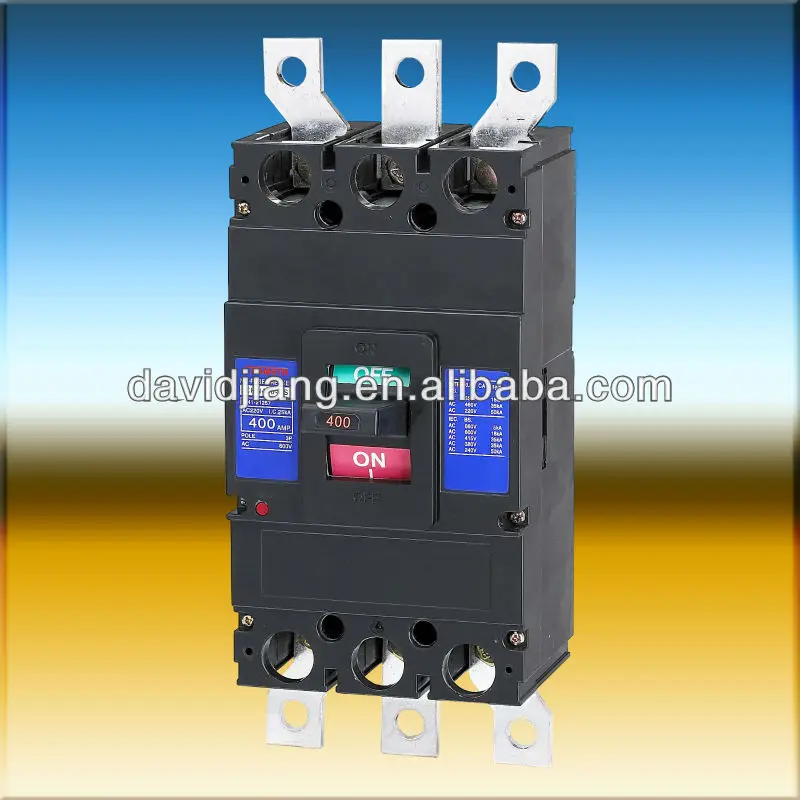

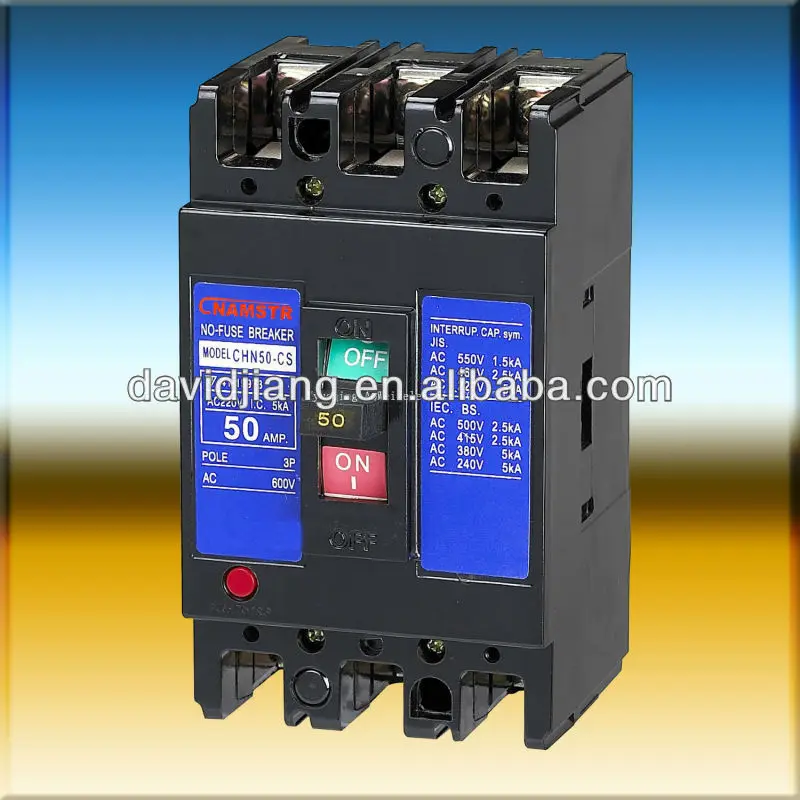

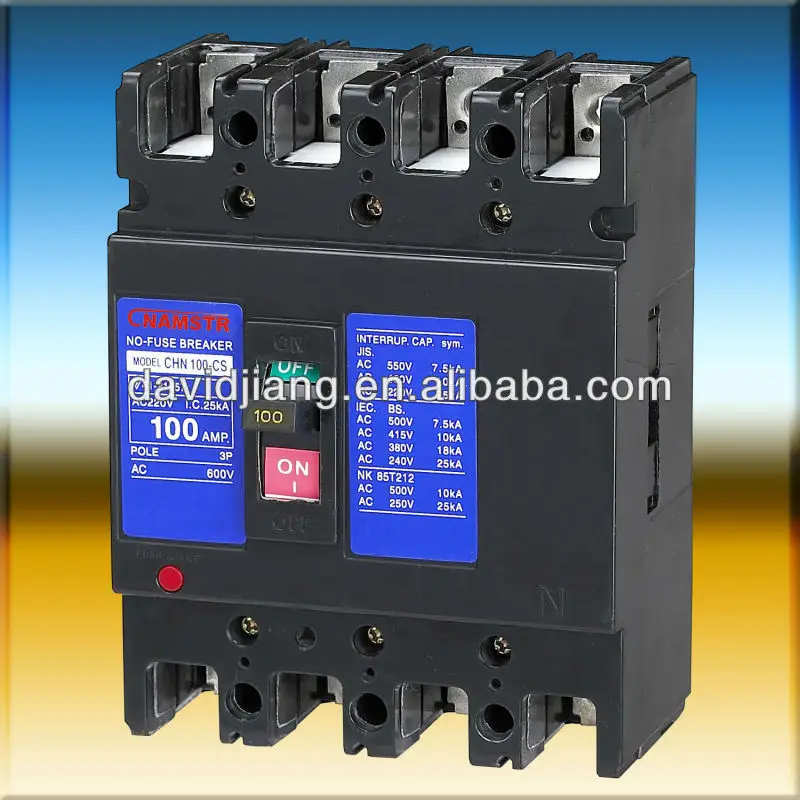

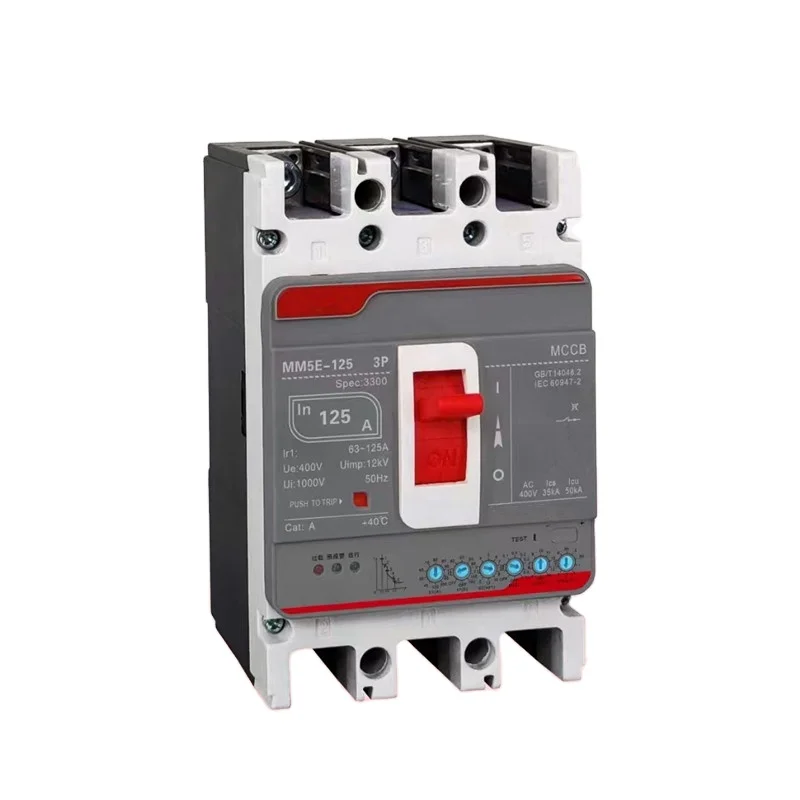

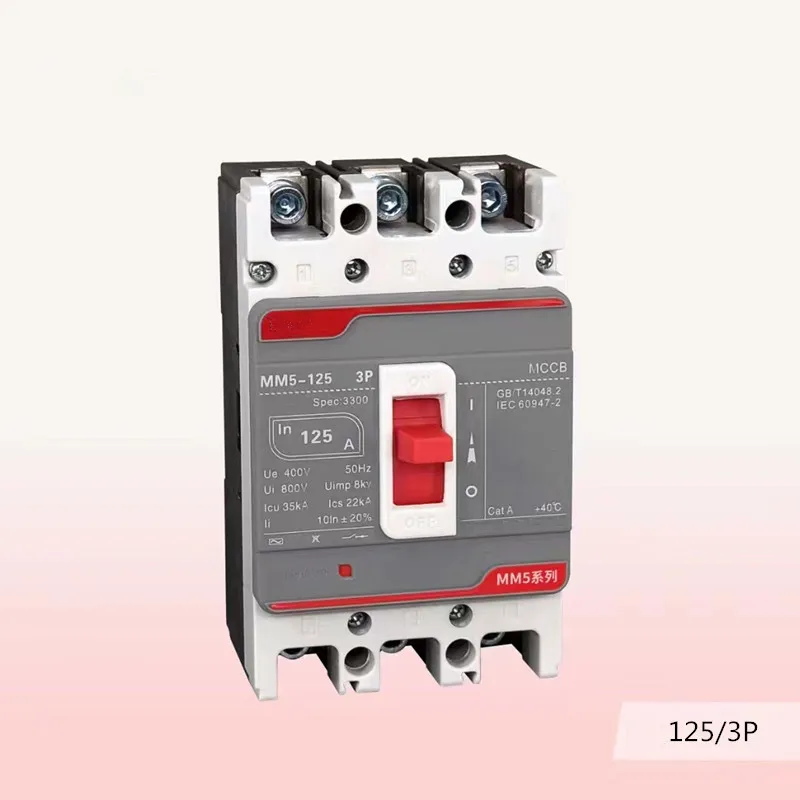

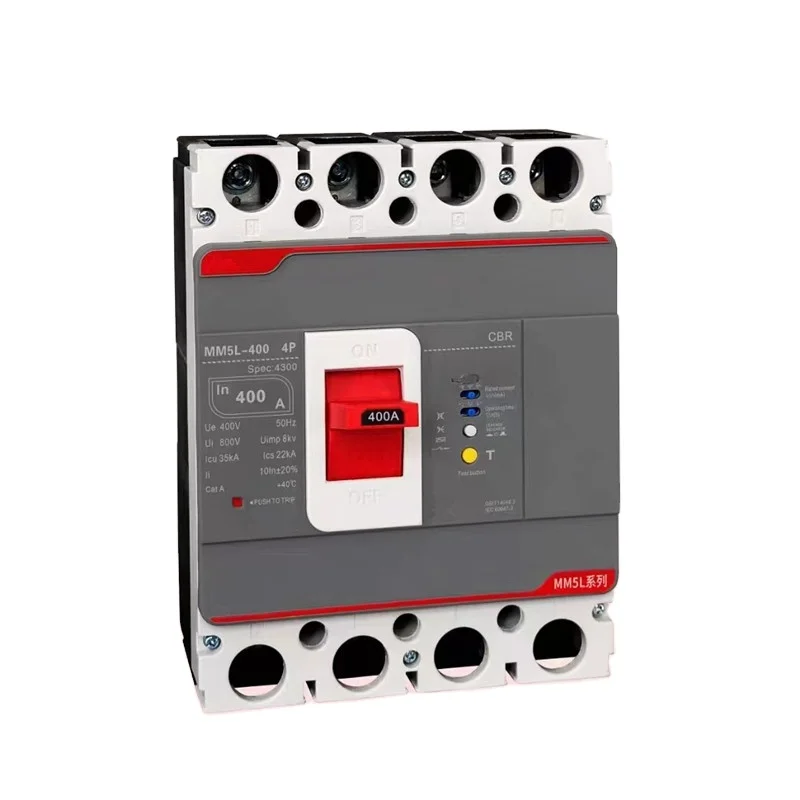

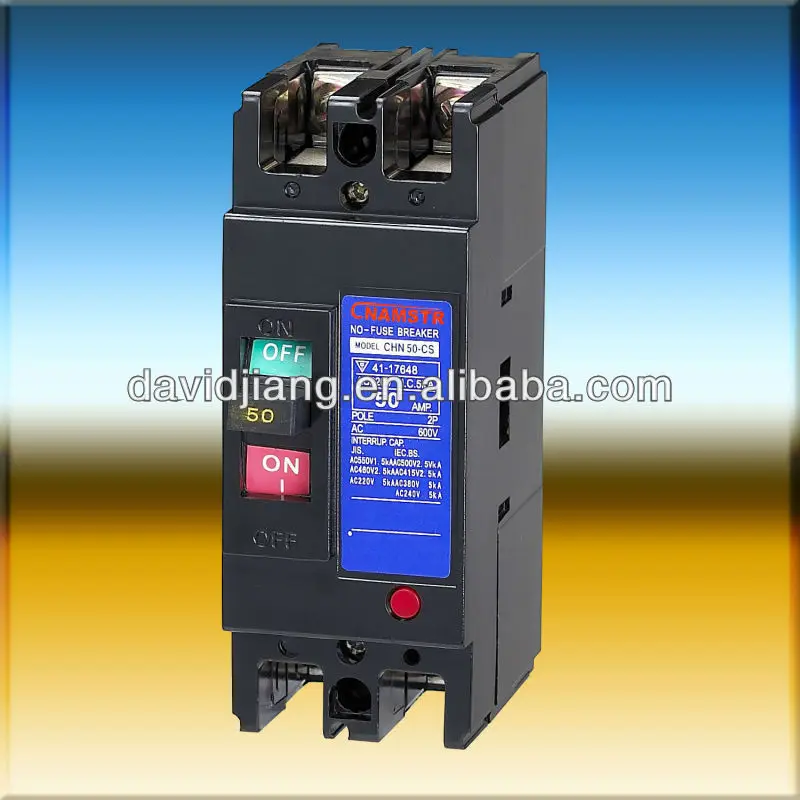

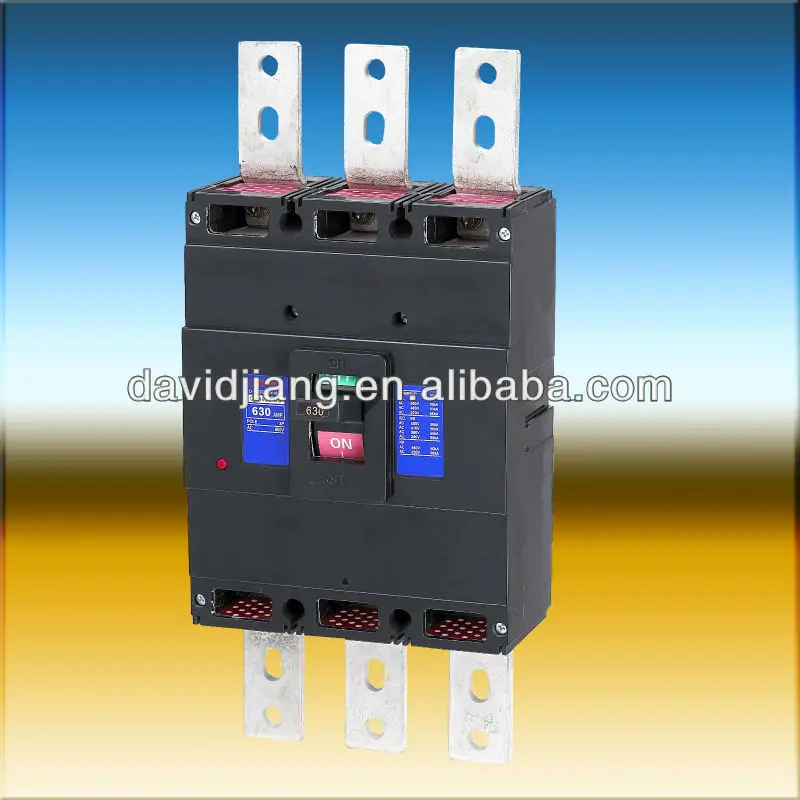

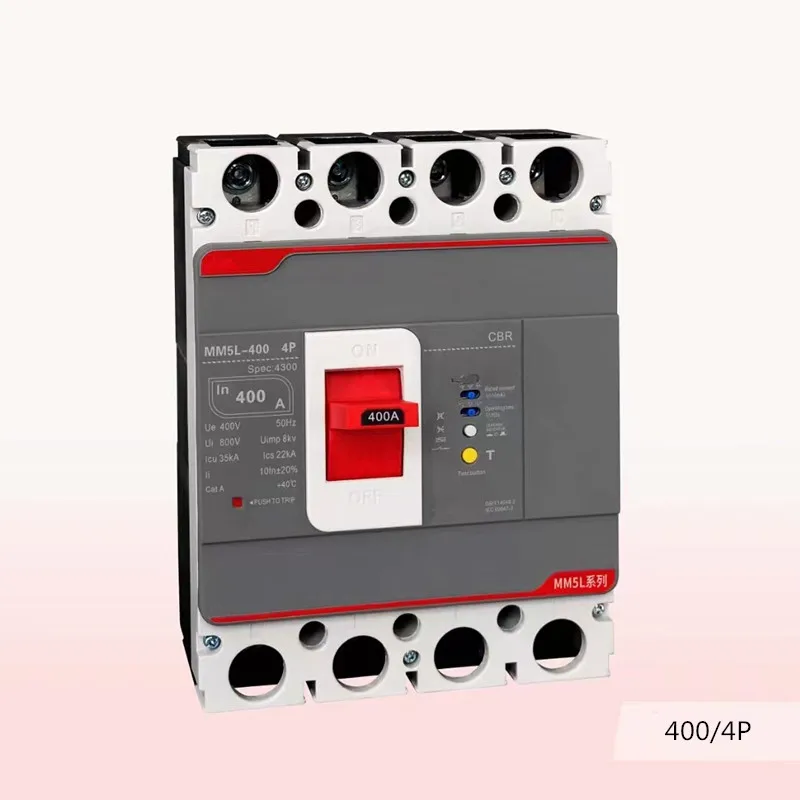

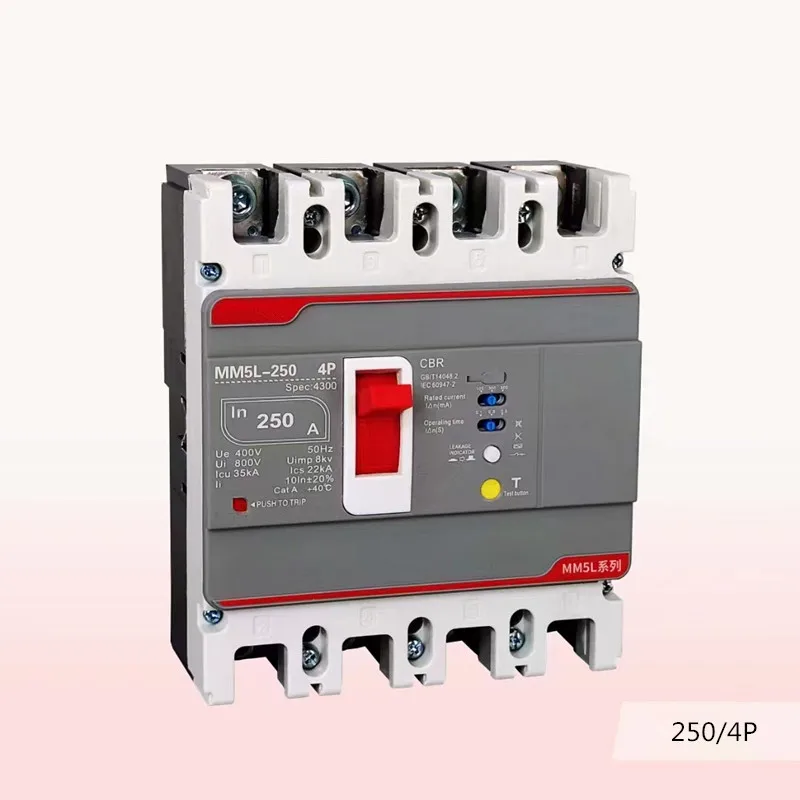

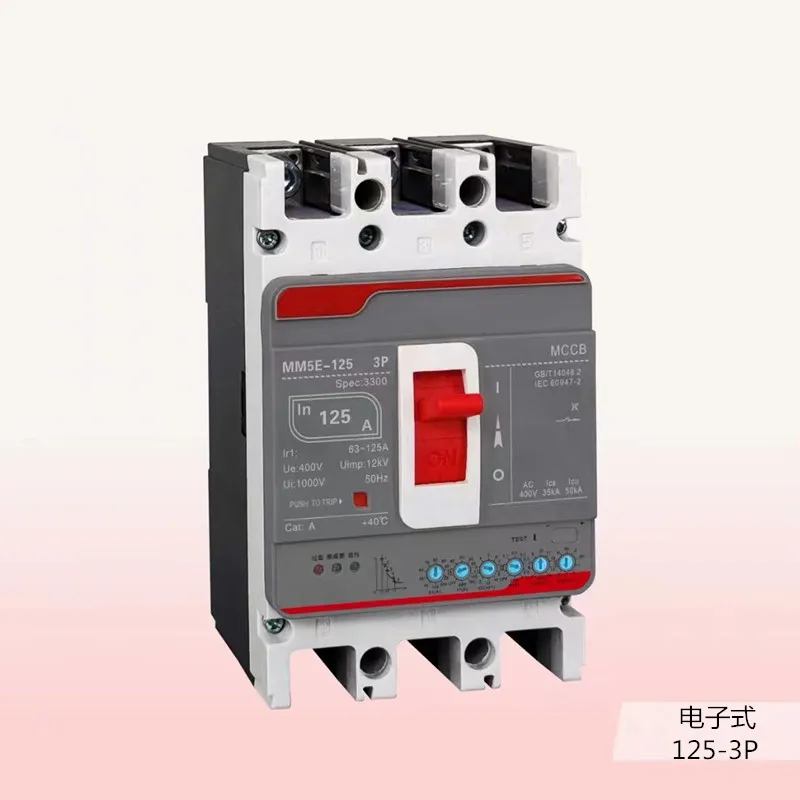

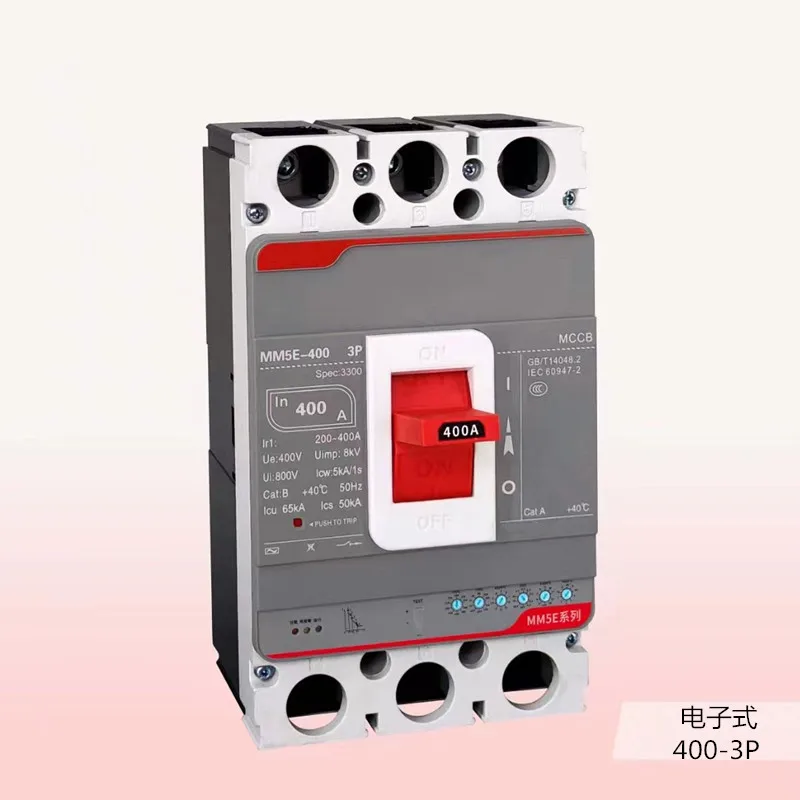

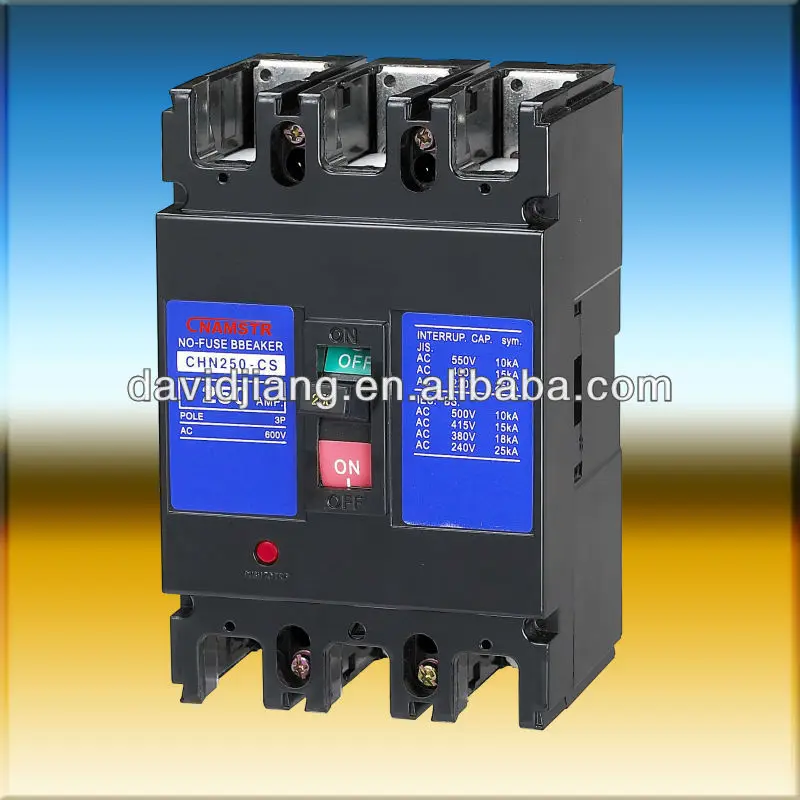

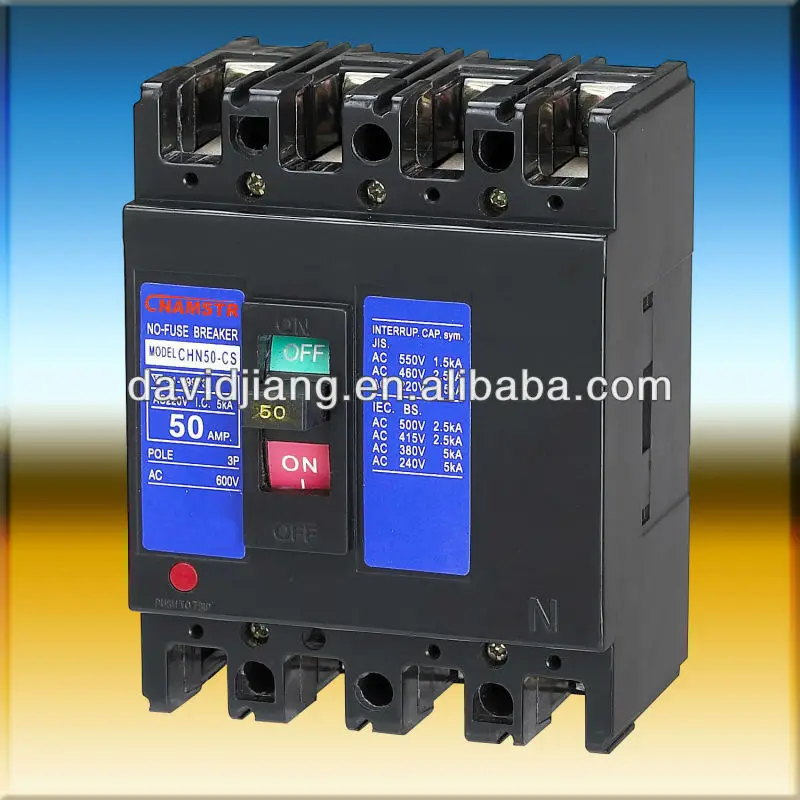

Product photos:



Express delivery:





Sample:

1.Free charge sample: Could provide,freight collect.

2.Samples time: Need 3-15 days to preparing the samples after receiving the payment.

3.Samples payment term: T/T.



Quality Guarantee:

Strictly quality control  before leave factory.



Advantage:

1.Low MOQ: 50~100PCS.

2.New design Accepted: As your requirement.

3.Good Service: Customer as.

4.Good Quality: Strict quality control  and good reputation.

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract).



Order Guide:

1.Inquiry-Professional quotation.

2.Confirm the price, lead time, packing requirement, payment term etc.

3.sales send the Proforma Invoice with seal.

4.Customer make the payment and send us Bank receipt.

5.Will inform client that we have got the payment, arrange the production & inform the estimated time.

6.After delivery will inform the tracking number and check the status for clients.

7.Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

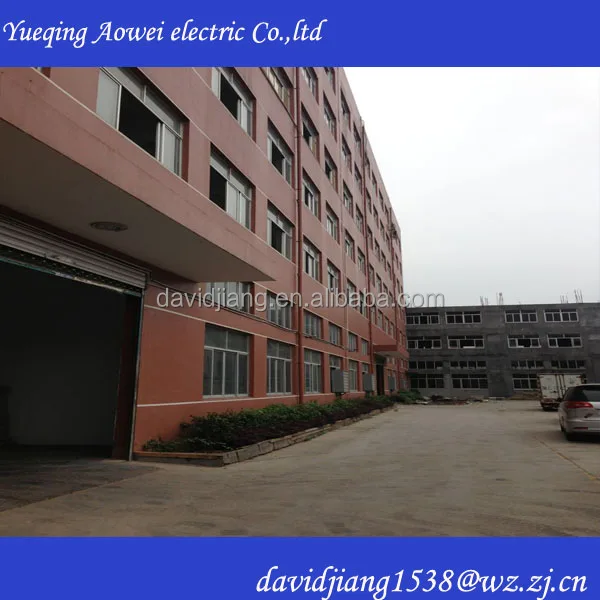

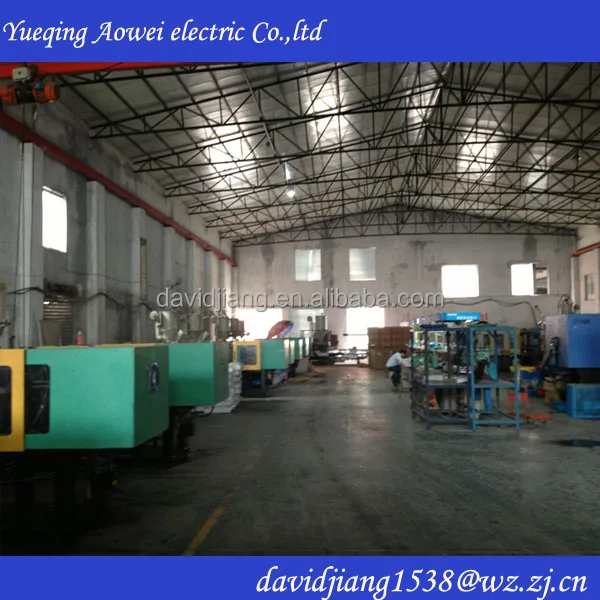

Company image:
