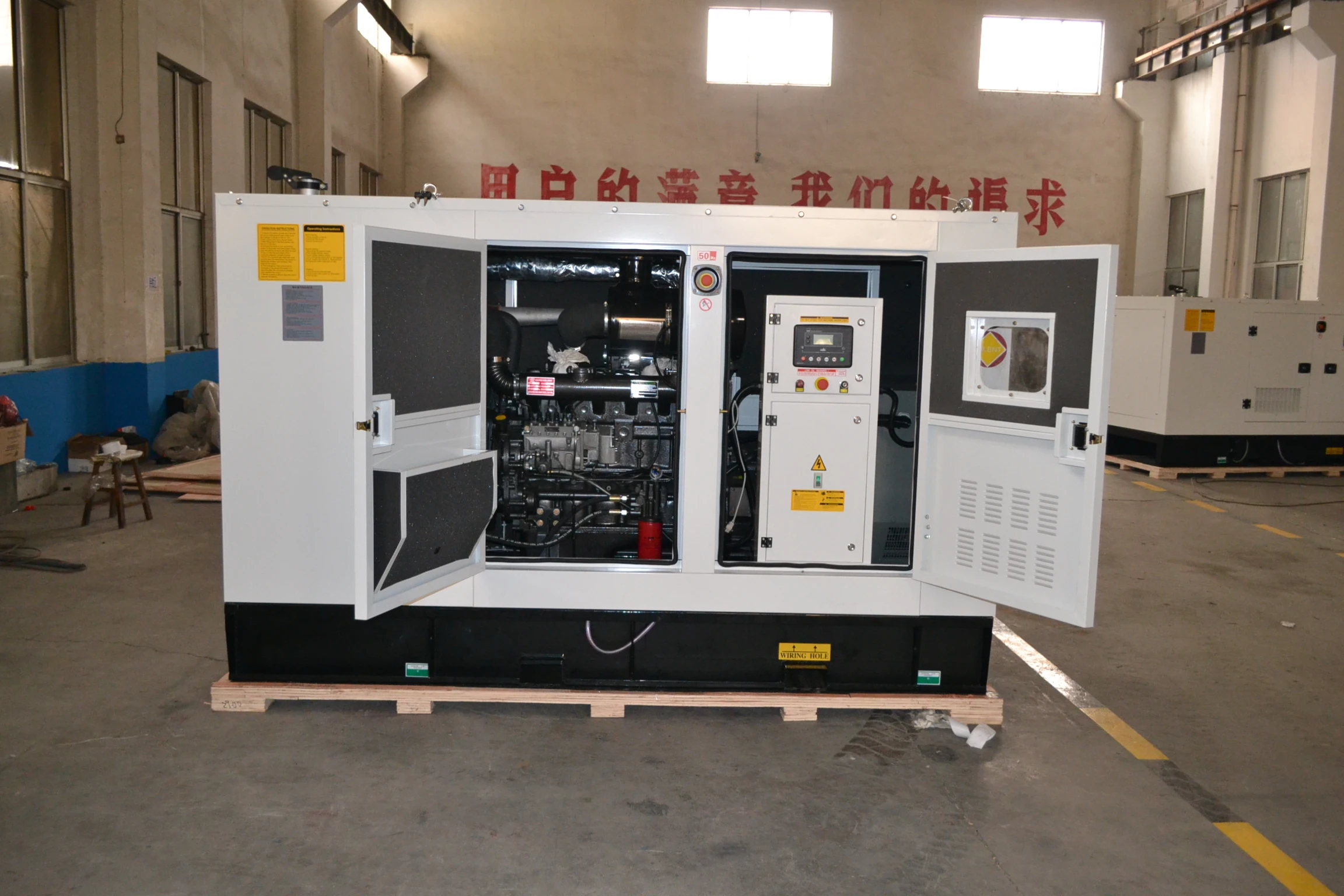

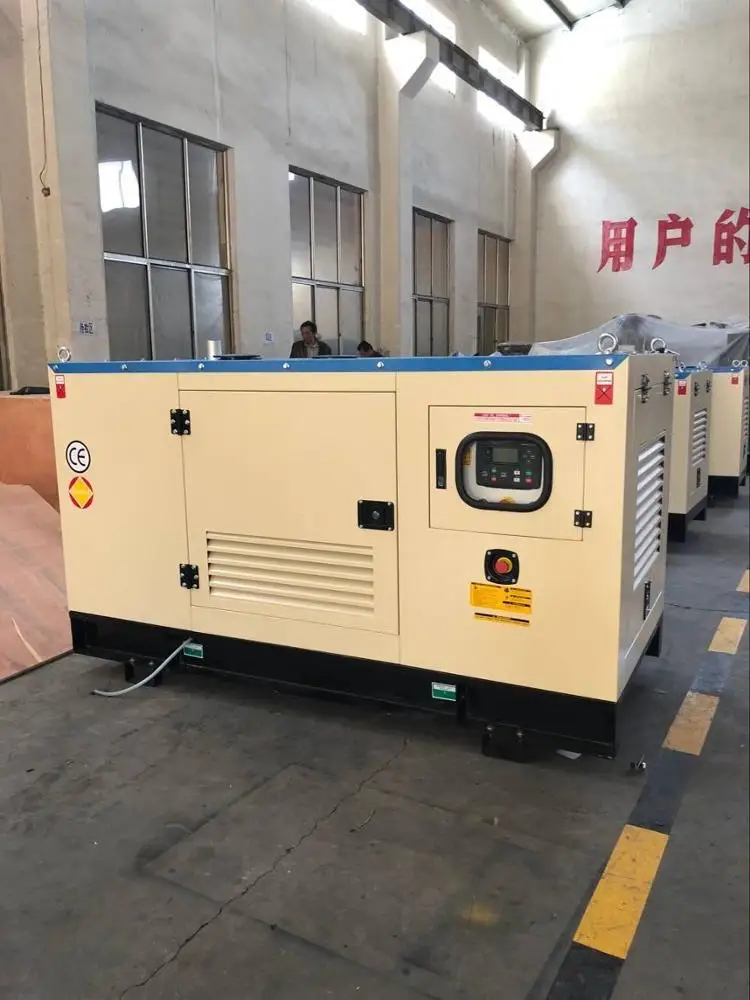

Hot sale! 180kw chinese power diesel generator set

CHINESE POWER DIESEL GENERATOR

Genset model

GF-180

Prime power  (KW/KVA)

180/225

Standby power  (KW/KVA)

198/247

Frequency & voltage

50HZ, 400V

No. of  Phase

3

Genset type

Soundproof/silent type

Reference Dimension & Weight

(W*H, mm)/KGS

3700*1300*1900; 2400kgs

DIESEL ENGINE

Engine brand & Model

6LTAA8.9-G2

Rated output

220KW

Rated Speed

1500RPM

Engine Type

Vertical in-line, four stroke

No. of cylinder

6

Bore*stroke

114*144mm

Aspiration method

Turbocharged after air-air cooled

Governor

Electrical

Starting method

Electric starting

Cooling method

Forced water cooled

Displacement

8.9L

Compression ratio

17.0:1

Fuel consumption

197g/kw.h

Speed stability

≤5%

Total lubrication system capacity

24L

Coolant capacity(without radiator)

12.3L

Starter motor

DC24V

Alternator

AC24V

ALTERNATOR

Alternator brand & model

Stamford/China reputed brand

Type

Brushless & self-excited

No. of phase

3

Voltage

400V

Frequency

50HZ

Power Factor

0.8

Insulation Grade

H

Protection Grade

IP22/23

Altitude

≤1000m
