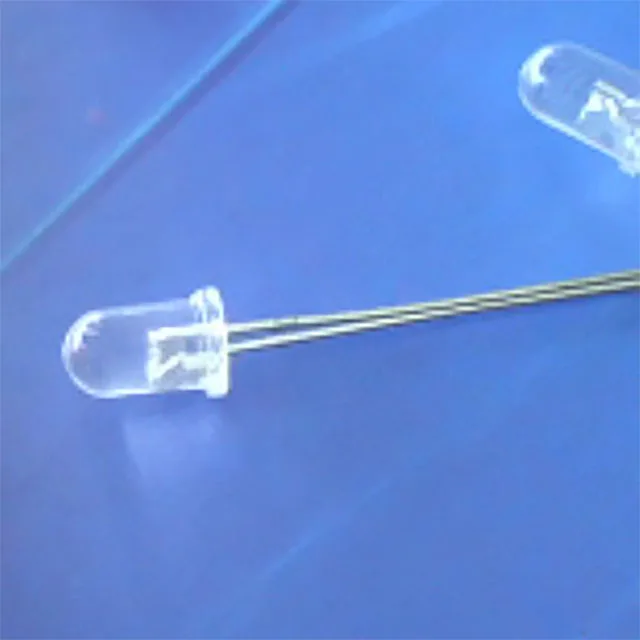

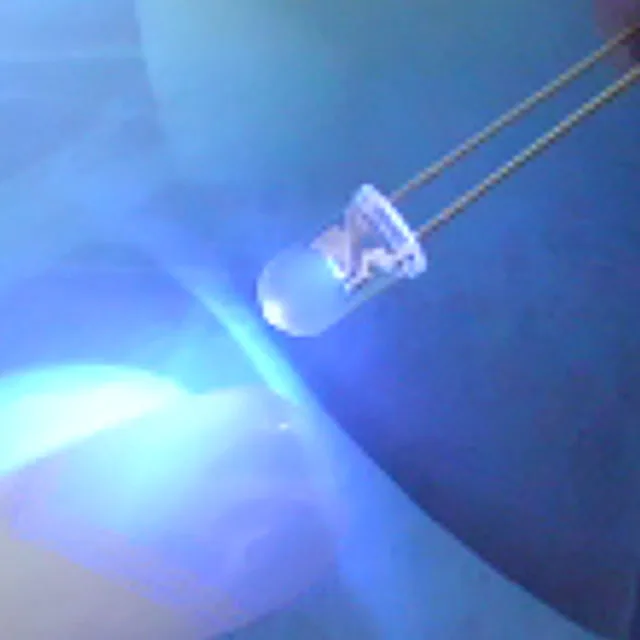

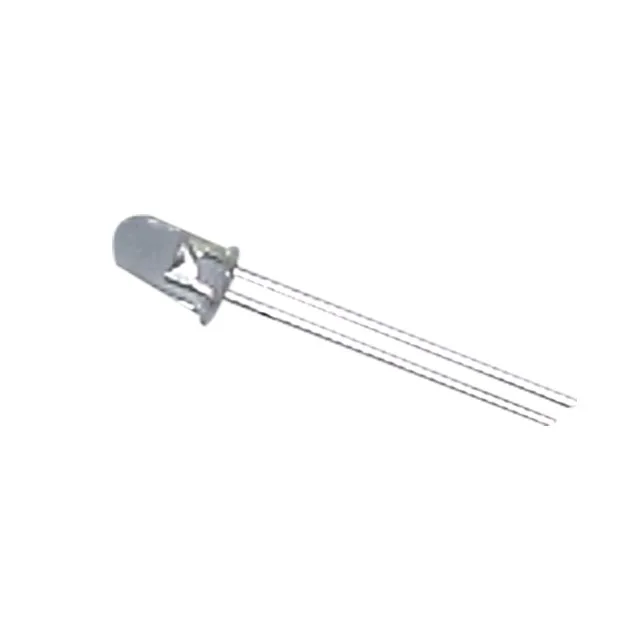

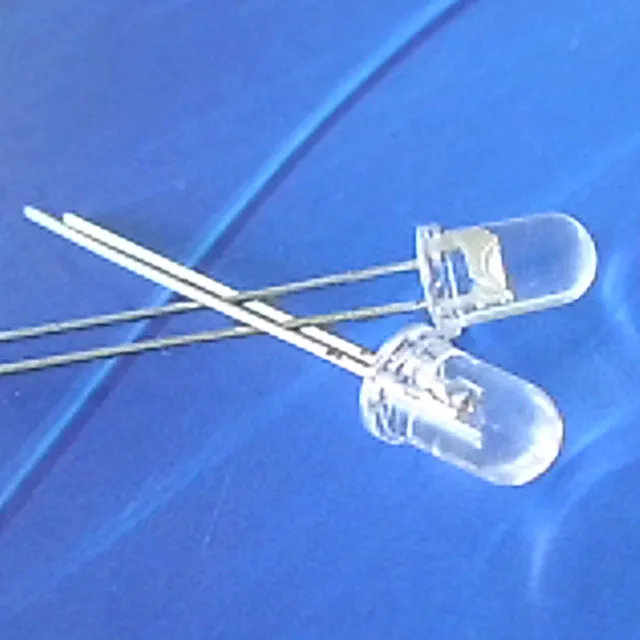

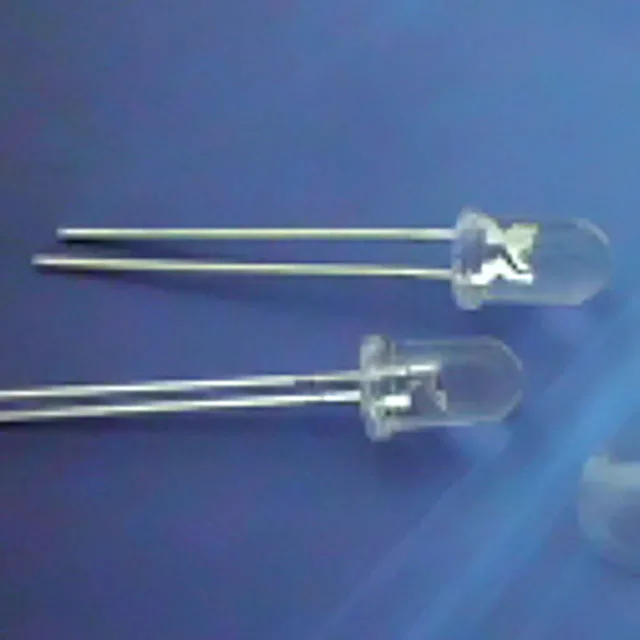

Ультрафиолетовый светодиодный Диод 3 мм 365 нм

Product Overview

Description

  3mm 365nm uv led diode

 ♦ Specifications:



3mm 365nm round uv leds



Part Number	Size  (MM)	Working Current IF(mA)	Forward Voltage VF(V)	Wavelength  λD(nm)	Optical Output	Viewing Angle (°)
					(MW)
TH-UV360S0.5E	3	20	3.6-4.2	360-365	0.5-2MW	20
TH-UV365S1E	3	20	3.6-4.2	365-375	1-3MW	20
TH-UV370S2EA	3	20	3.5-4.0	370-375	2-3MW	20
TH-UV375S4EA	3	20	3.5-4.0	375-380	4-6MW	20
TH-UV375S4E	3	20	3.5-4.0	375-385	4-6MW	20
TH-UV380S4EA	3	20	3.5-4.0	380-385	4-6MW	20
TH-UV385S4E	3	20	3.5-4.0	385-395	4-6MW	20
TH-UV395S5E	3	20	3.5-4.0	395-405	5-6MW	20
TH-UV415S7EA	3	20	3.2-3.8	415-420	7-8MW	20





 ♦ Dimension Package:













♦ Application Fields:

1. Currency Detector system


2. Light Solidfication system


3. Water Purification system


4. Medical equipment


5. Cosmetic equipment


6. Leakage testing system


7. Mosquito Killing


8.

   Other required systems







♦ Advantages of our UV LEDs:

• Accurate wavelength;


• Low luminous decay;


• Long service life;


• Good lighting effective;


• No color difference;


• Environmental friendliness;


• Energy conservation;


• …….



All kinds of products of a wide range of power are available to you, and various packaging methods can also be chosen at your own will!
