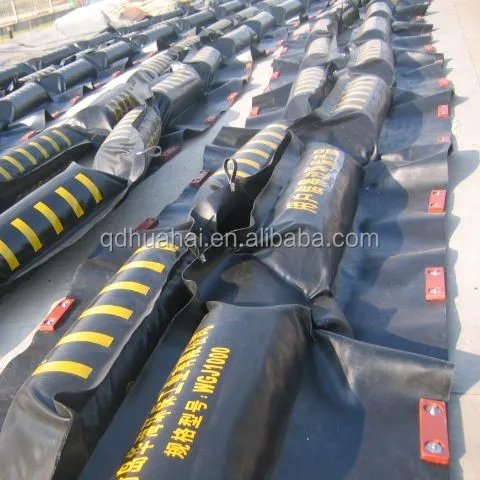

The quick-laying boom is used to contain and control oil spills on water areas such as sea or harbors. It is usually wound on the reel. In operating, it can be laid on waters without the need to inflate it. Therefore, the boom is the new oil spill control equipment that allows for the fastest deployment.

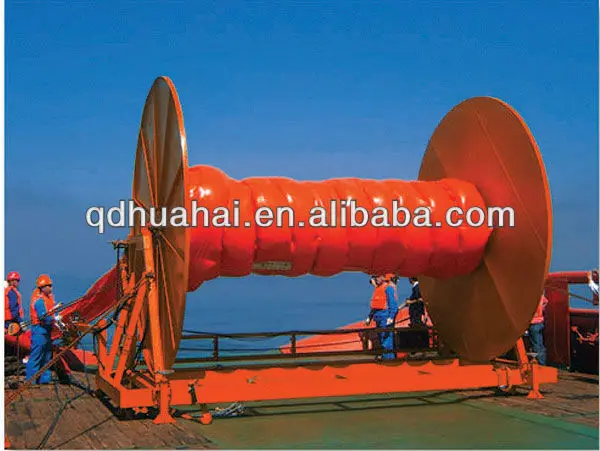

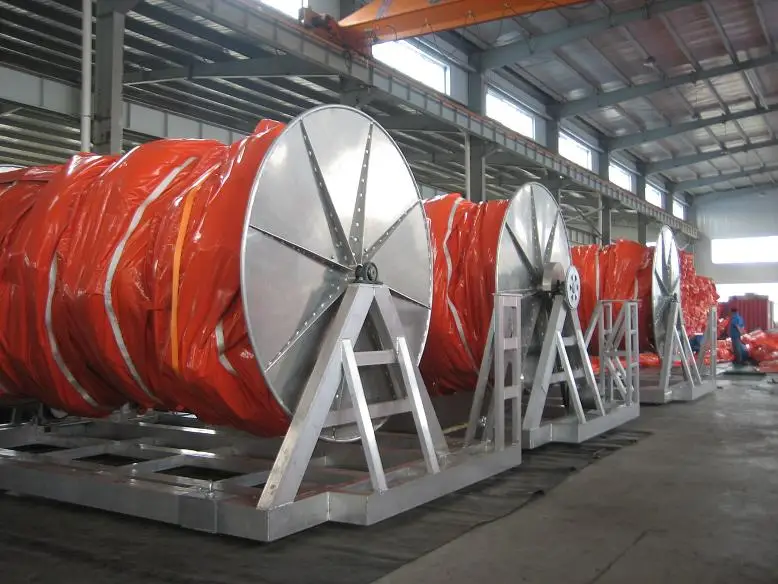

Accessories: relevant boom reel frame and power station
Features
1.With the double-layer casing made of high strength flexible materials, having high resistance to oil and sunlight and long service life

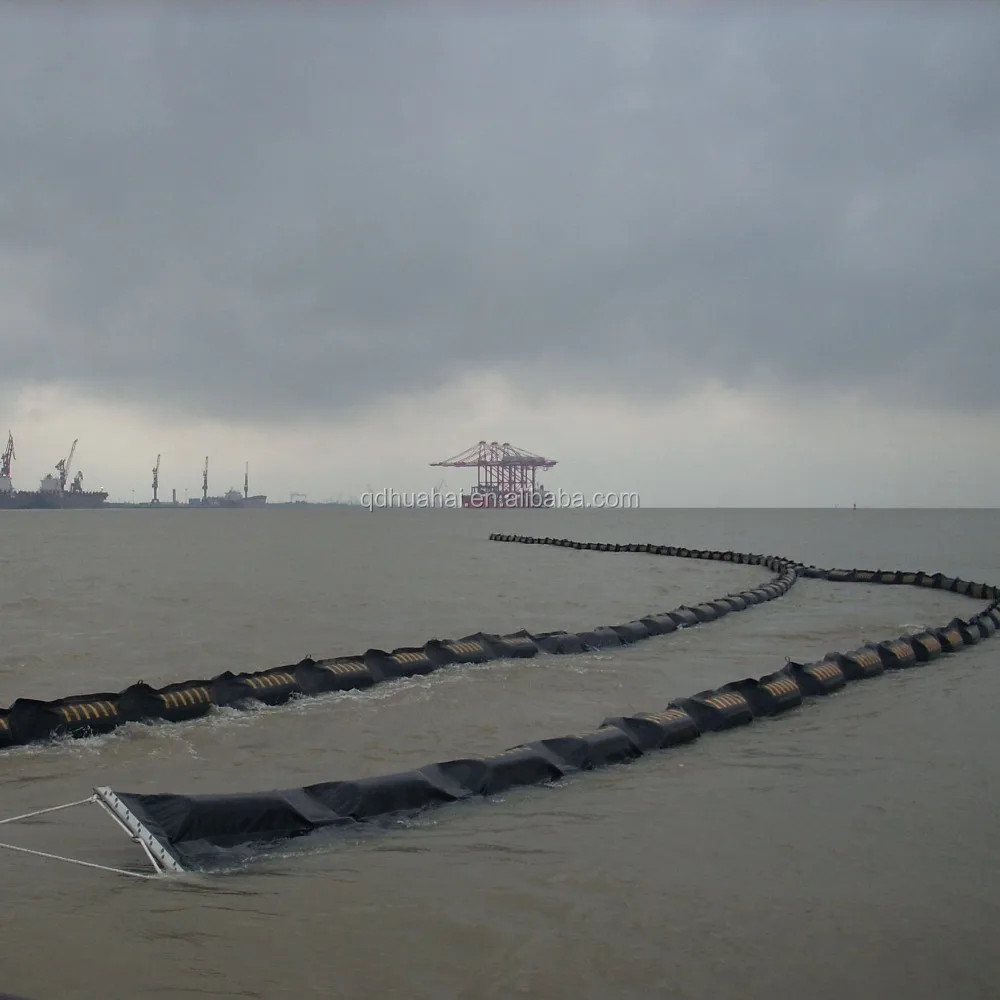

2.Used on water areas such as sea or harbors to contain and control oil spills from spreading. It can be deployed rapidly
3.Only two operators are needed, recovery method, mechanical
Item
KW800
KW900
KW1000
KW1200
KW1600
Overall height(mm)
800
900
1000
1200
1600
Water height(mm)
280
320
340
380
530
Underwater Depth(mm)
420
490
540
650
840
Each standard length(m)
200
200
200
200
200
Total tensile strength(KN)
60
65
70
80
100
Laying speed(m/min)
≥40
≥40
≥40
≥40
≥40
Max.wave speed to withstand(m)
0.8
1.2
1.5
1.8
2
Max.wave speed to withstand(m/s)
6
8
10
12
15
Max.wave speed to withstand(KN)
0.8
1.2
1.5
1.5
2

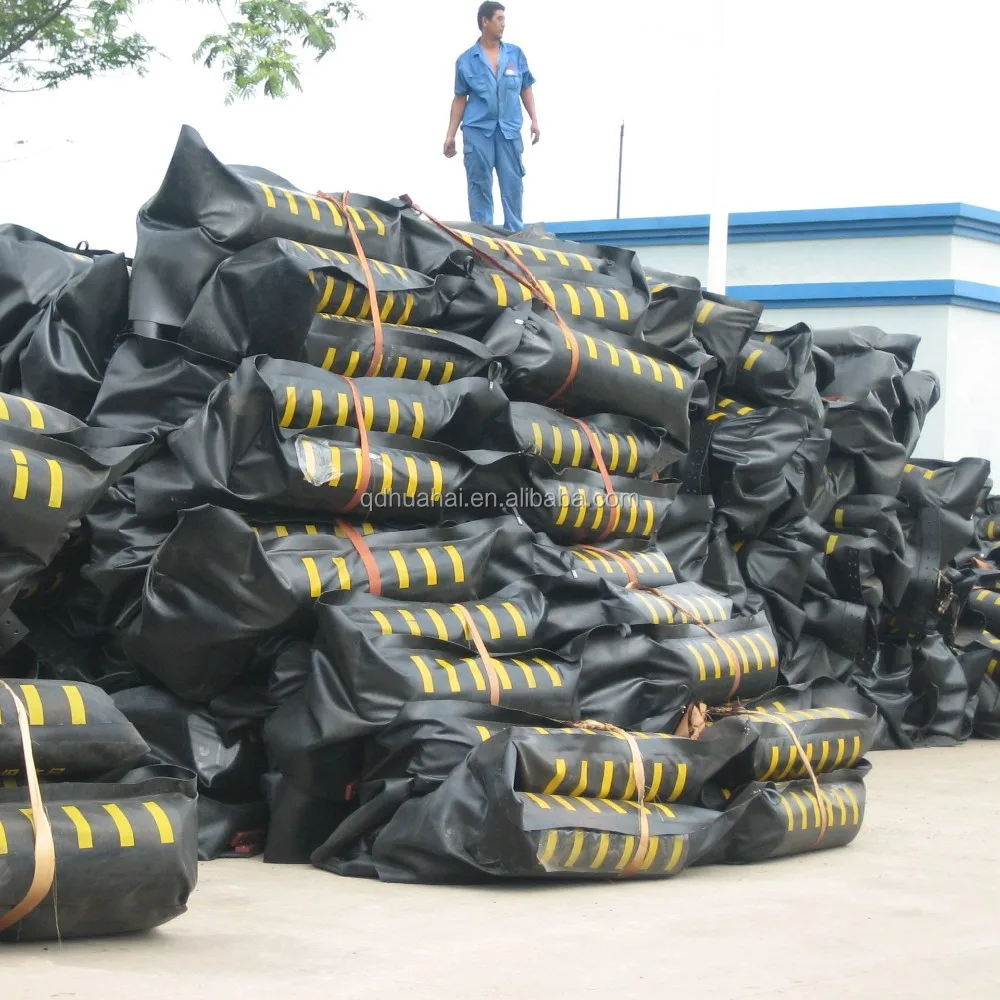

Packaging & Shipping
Company Information
Qingdao huahai environmental protection industry Co., Ltd is located in the center of haibin industrial zone in Qingdao, China, which covers a total land of 92,713 square meters and has about 30,000 square meter construction facilities and 500 employees, including 120 technical engineers. In 1990, the company successfully developed series oil spill response equipments, including oil containment booms, oil skimmers etc. In 1994, it was renamed Qingdao Huahai Environmental Protection Industry Co., Ltd, which developed rubber dams in 1996 and took the lead in obtaining the ISO9002 Certificate in 1998. In 2000, Huahai introduced new equipments and advanced technology to improve productivity. In 2008, Huahai invested 3 million RMB in production of oil sorbent mats and took part in the operation to clean enteromorpha prolifera from the water area in Qingdao where the 29th Olympic Regatta and Beijing Paralympic Sailing Event were held. Huahai owns entire production lines of rubber dam and oil spill response equipments, mainly including skimmers, oil booms, storage facilities, oil spill monitoring systems and oil spill recovery boats etc.Huahai has six branches currently and keeps the trend of group development under the circumstance of blue economy.
