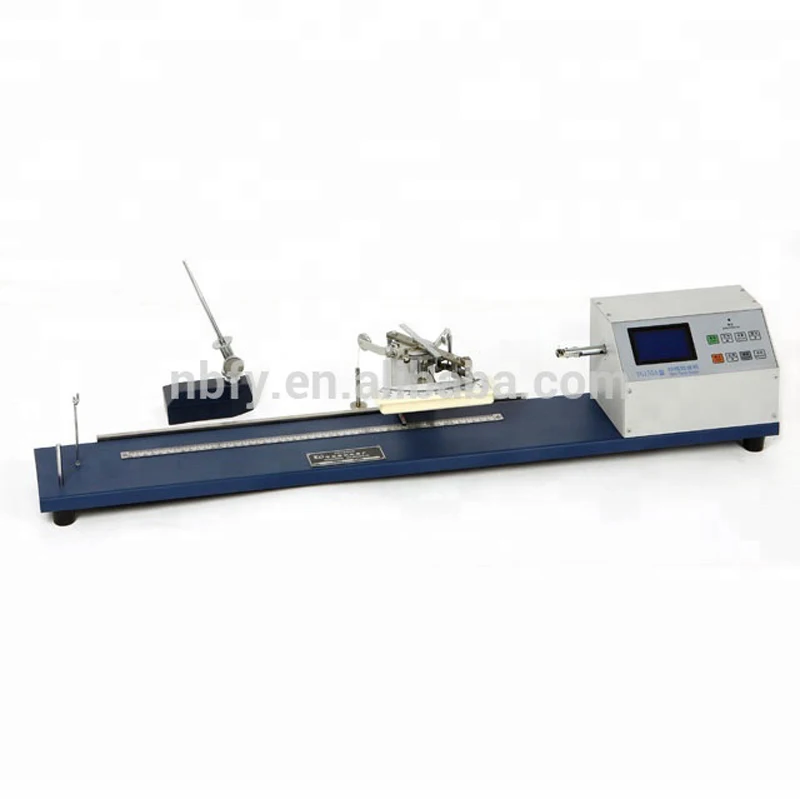

Yarn Twist Tester Is Used To Measure The Twist Of Cotton Wool And Other Yarns
- Category: >>>
- Supplier: Ningbo Textile Instrument Factory
Share on (460473038):
Product Overview
Description
Product Description
Specification
Scope of application | It is used to measure the twist of cotton, wool, silk, hemp, chemical fiber and other yarns, and can automatically print test data and statistical results. |
Method standard | GB/T2543.1.2/14345 FZ/T10001 ISO2061 ASTM D1422/1423 JIS L1095, etc. |
Test method | direct counting method; one-time untwisting and twisting method; two-time untwisting and twisting method; three-time untwisting and twisting method |
item | value |
Warranty | 1 Year |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Brand Name | NINGFANG |
Model Number | YG155A |
Power | Electronic |
Speed | 1500/min |
test range | 1-9999.9 |
color | blue |
Power supply | AC220V, 40W |
Dimensions | 1070*204*200mm |
Test length | 25, 50, 100, 200, 250, 500mm |
Measuring range (twist) | 1~9999.9 |
Features | 1. Using microcomputer control, LED digital tube displays the test value. 2. The "zero" position detection adopts an optocoupler sensor to avoid the misalignment of the positive and negative "zero" position generated by the Hall sensor. 3. The combination of the swing plate supported by the high-precision rolling bearing is sensitive and reliable in rotation, which can effectively prevent the impact of the insensitivity of the swing plate on the test results. 4. The high-performance stepping motor is used to directly drive the gripper, the speed can be set in any number, and the service life is long. |
For more information, such as the operation video, please contact customer service.
Recommend Products

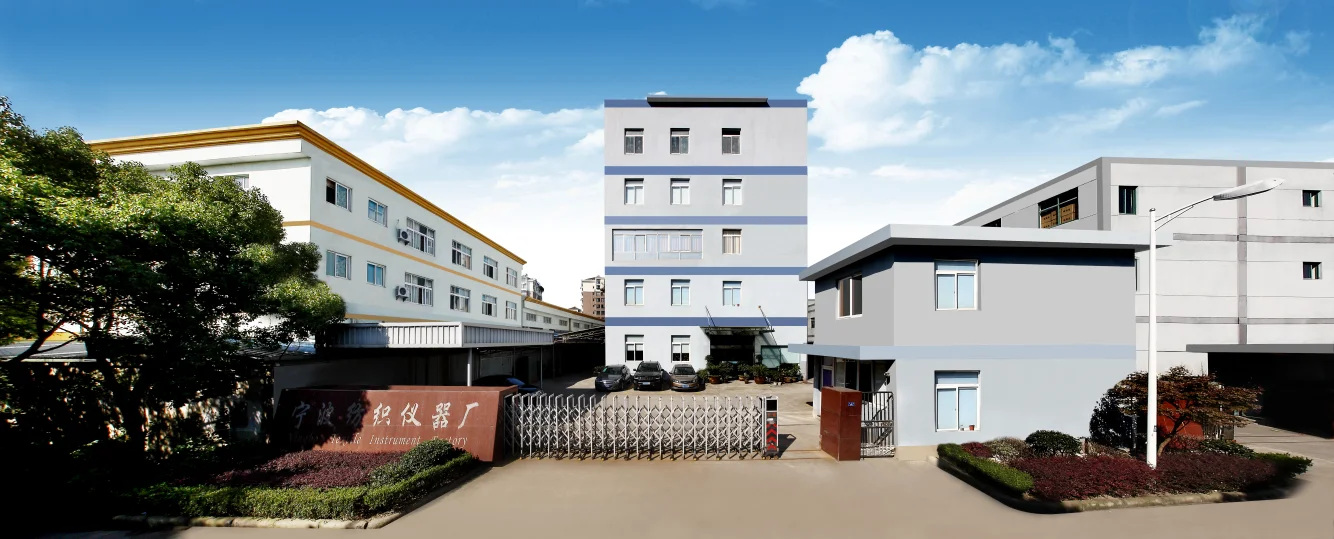

Company Profile
Our company produces more than 200 kinds of textile testing instruments and equipment, with an average annual production capacity of more than 30 million. The annual growth rate is far ahead of the domestic counterparts. Because the company fully adopts the ISO90001:2008 international quality management system and WTO international management model, has a complete set of production management and processing technology in the professional R&D and manufacturing process for many years. The company has strong scientific research and technical force. Now it has fixed assets of more than 56 million yuan, a factory building area of about 11,000 square meters, and a total of more than 80 employees.

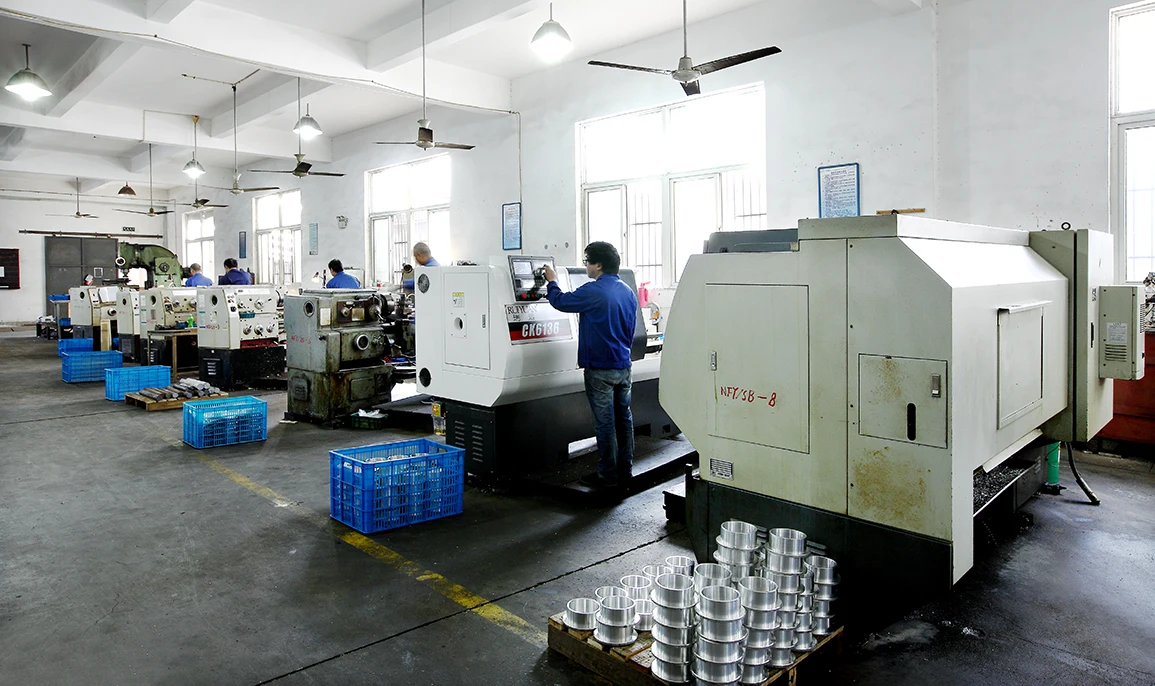

Our factory has two CNC machining centers
Three sets of automatic CNC lathes
One set of precision coordinate boring machine
Three sets of precision gear hobbing machines
Four sets of precision wire cutting machines
One No. 1 large-scale milling machine, and more than 28 other processing equipment such as various turning and milling machines, grinding machines, etc.
The possession and advanced nature of production equipment are at the leading domestic level.
Three sets of automatic CNC lathes
One set of precision coordinate boring machine
Three sets of precision gear hobbing machines
Four sets of precision wire cutting machines
One No. 1 large-scale milling machine, and more than 28 other processing equipment such as various turning and milling machines, grinding machines, etc.
The possession and advanced nature of production equipment are at the leading domestic level.
The company is a high-tech enterprise integrating R&D, production and technical services of high-tech products. At present, it is mainly committed to the planning of textile testing instruments, textile laboratories, constant temperature and humidity laboratories, high temperature aging rooms (rooms), biological laboratories, clean rooms (plants), sterile rooms, computer communication rooms and other special environmental projects. Design and production, sales and installation of supporting equipment. The company has strong scientific research and technical strength. The company has more than 60 professional and technical personnel, of which middle and senior engineers account for about 68% of the total scientific research personnel. (employing professors and experts from well-known domestic colleges and universities)

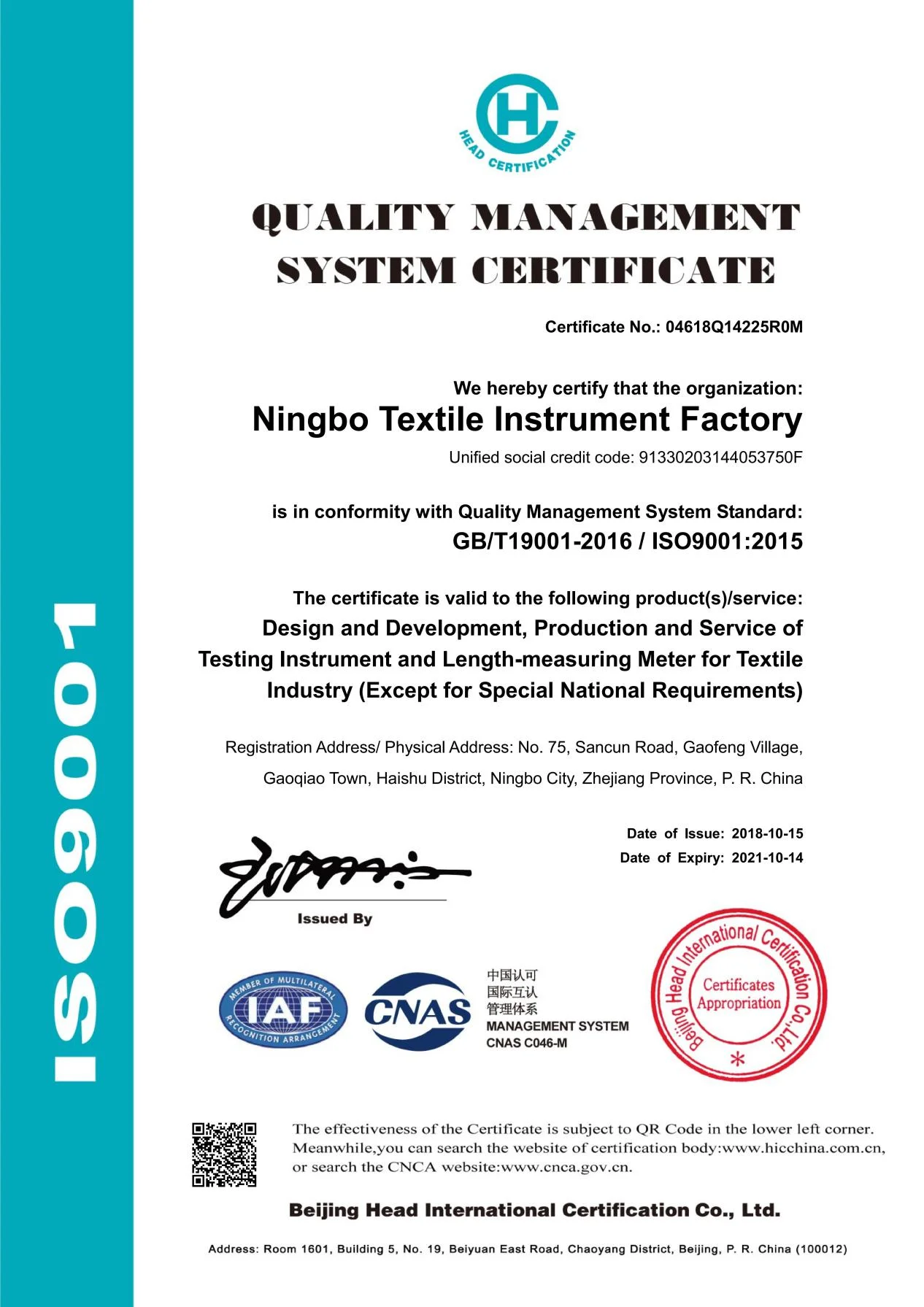

Certifications
Product packaging
FAQ
1. Are you a factory?
Yes, we are.
2. What's the product delivery time?
If we have stock, the delivery time will be greatly shortened.
3. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
Yes, we are.
2. What's the product delivery time?
If we have stock, the delivery time will be greatly shortened.
3. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
