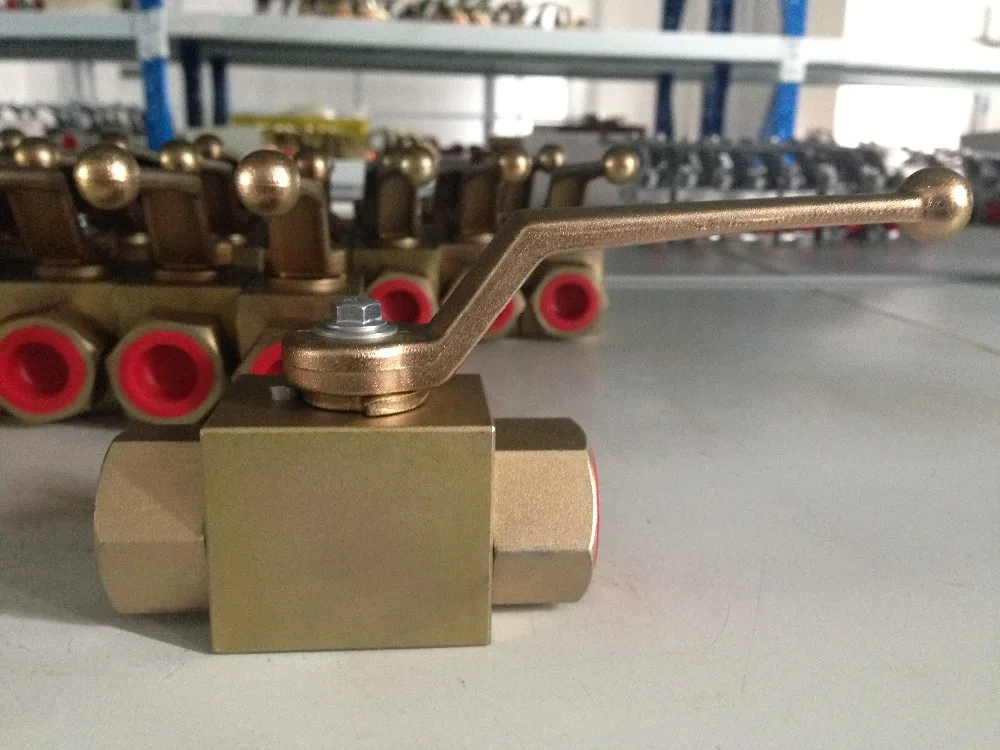

high pressure 15 LR or 15L hydraulic shut off ball valve
- Category: >>>
- Supplier: Ningbo Huarui Automation Equipment Co. Ltd.
Share on (460675667):
Product Overview
Description
Product Description

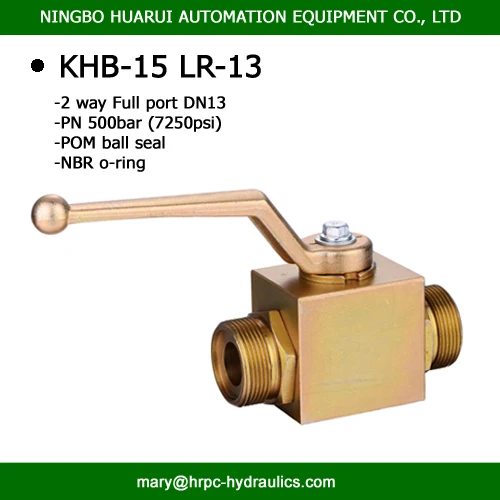

Product Name: hydraulic 2 way male thread oil ball valves full port dn13 high pressure 7250psi
Description of high pressure ball valve
china ball valves
high quality
lower price enlarge market
1 year quality warranty

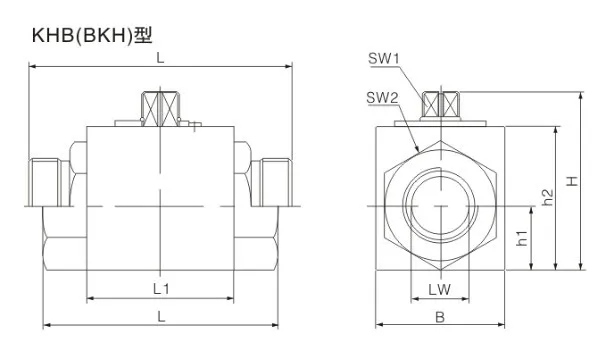

Overall Dimension:
PORT:
Specific dimension sheet:
| Model | PN(Bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | SW1 | SW2 |
| KHB-15LR | 500 | 13 | 12 | 15 | M22X1.5 | 12 | 82 | 48 | 35 | 53 | 17 | 40 | 09 | 30 |
Material sheet:
Dimension Sheet:
| Model | PN(bar) | DN(mm) |
| 06LR | 500 | 04 |
| 08LR | 500 | 06 |
| 10LR | 500 | 08 |
| 12LR | 500 | 10 |
| 15LR | 500 | 13 |
| 15LR | 400 | 12 |
| 18LR | 500 | 13 |
| 18LR | 400 | 16 |
| 22LR | 315 | 20 |
| 28LR | 315 | 25 |
| 35LR | 315 | 32 |
| 42LR | 315 | 40 |
Specifications:
HYDRAULIC BALL VALVE MODEL:
HRPC hydraulic ball valves with models of KHB, KHB3K, VH2V, VH3V, BKH, KHP, YJZQ, QJH, Q11F...
BALL VALVE SIZE:
Connector size from 1/8 inch to 2 inch,
Diameter from 4mm to 50mm,
Pressure from 1.6MPa to 50MPa.
HYDRAULIC BALL VALVE CONNECTORS:
Female thread BSP, NPT, PT (1/8"~2")
Male thread M, LR, SR (M16*1.5~M60*2)
HYDRAULIC BALL VALVE MATERIALS:
1.Carbon Steel
2.Stainless Steel (SS316, SS304)
HYDRAULIC BALL VALVE SURFACE DISPOSAL:
1.Blank-Phosphoric polish (black color)
2.G-electroplated yellow zinc (yellow color)
3.G-electroplated yellow zinc (white color)
More products for your to choose:
Company Information
we are producing ball valve and hydraulic cylinders with quick delivery and competitive price. Ball valves covers the size from 1/4 inch to 2 inch in 2-way & 3-way type, with the materials of carbon steel, stainless steel and brass, connection type include female thread, male thread, flange, manifold mounting.
Besides, customers can specify the surface disposal, such as Blank-Phosphoric Polish, G-Electroplated Yellow (or White) Zinc. and the handles can be designed for special requirements.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
