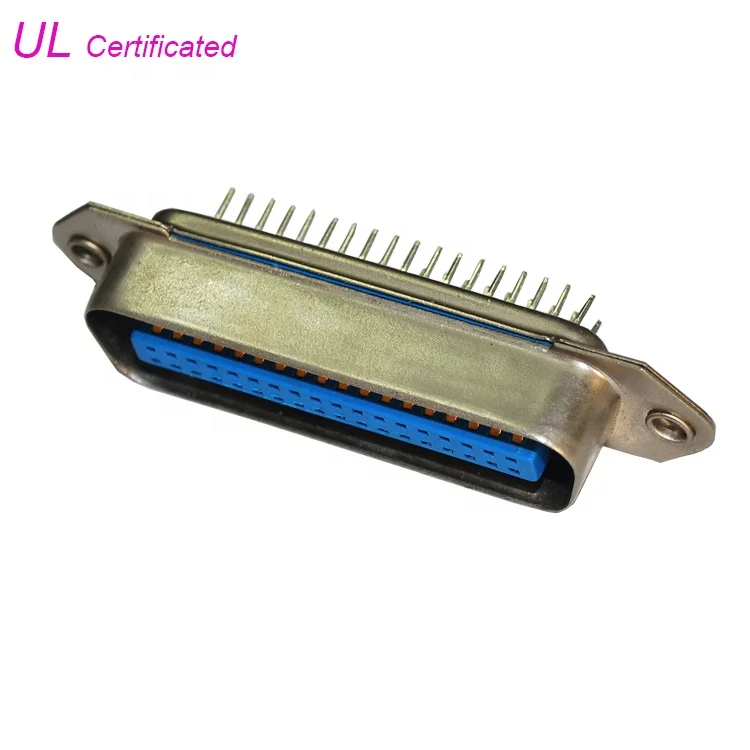

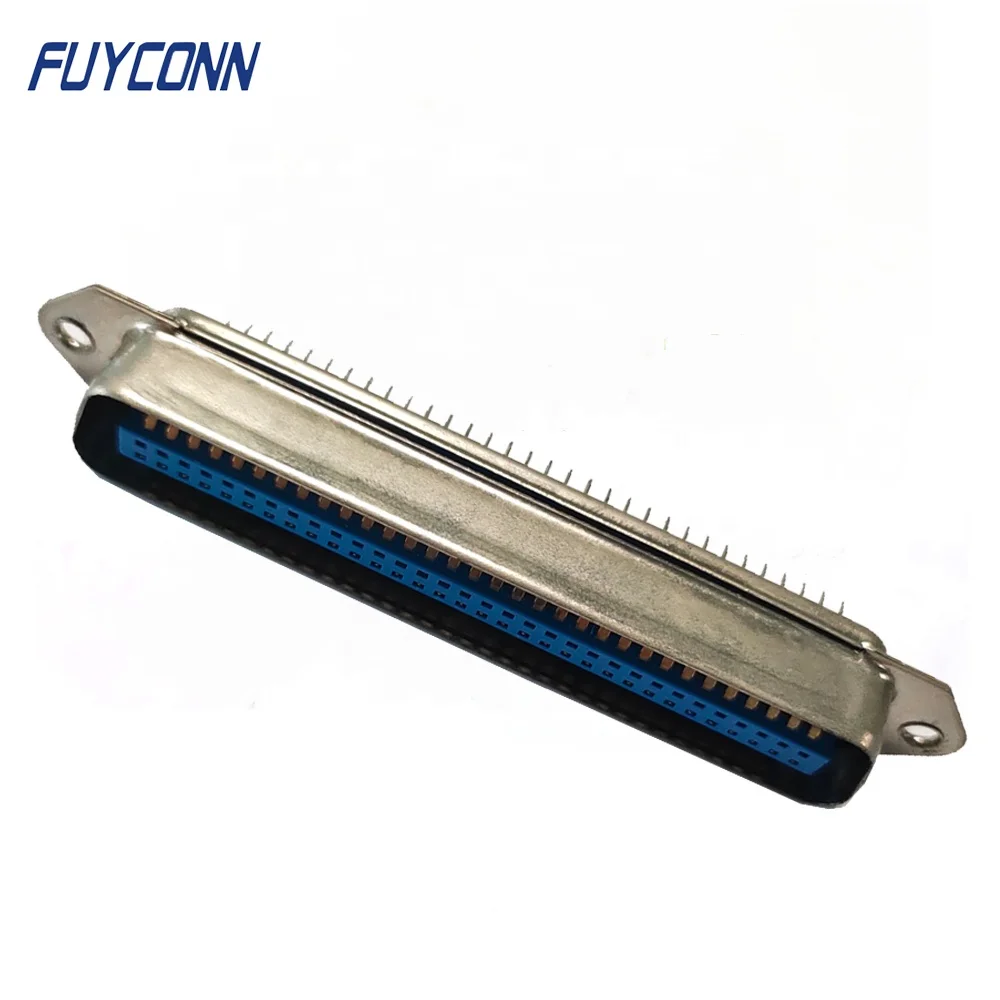

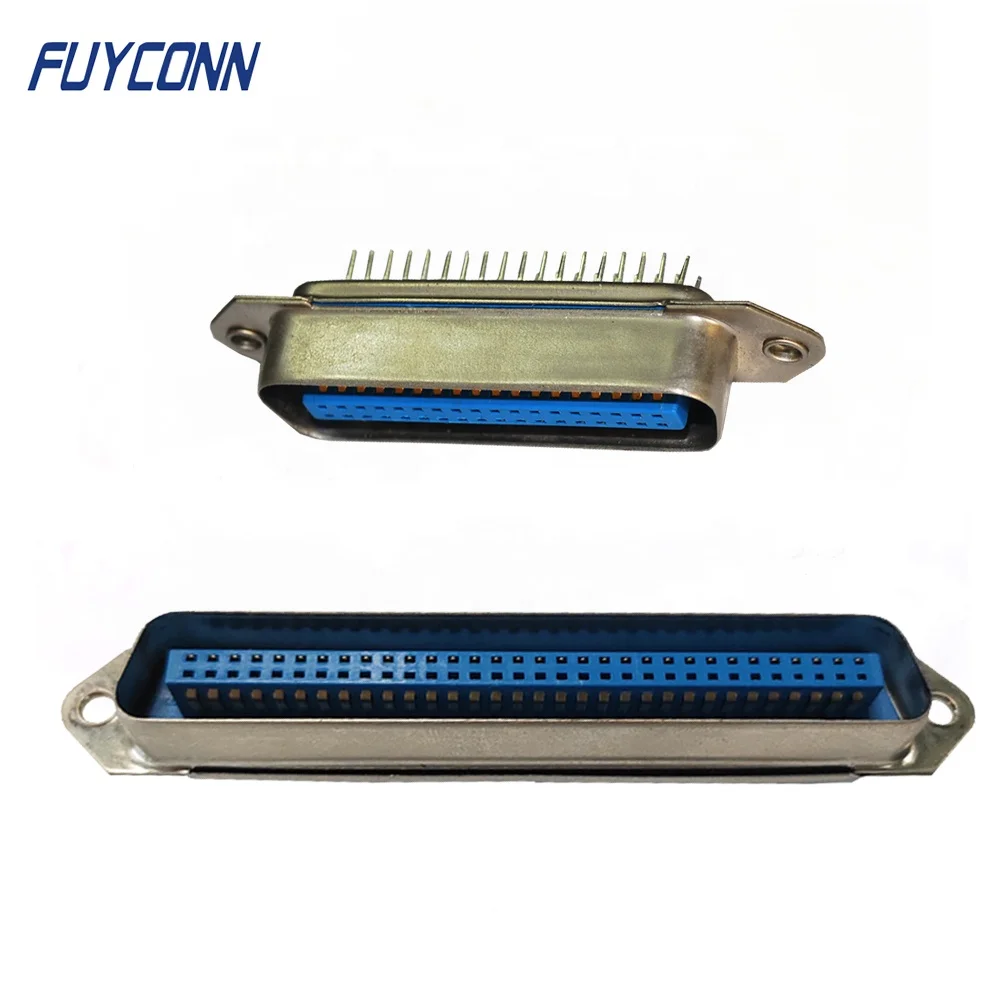

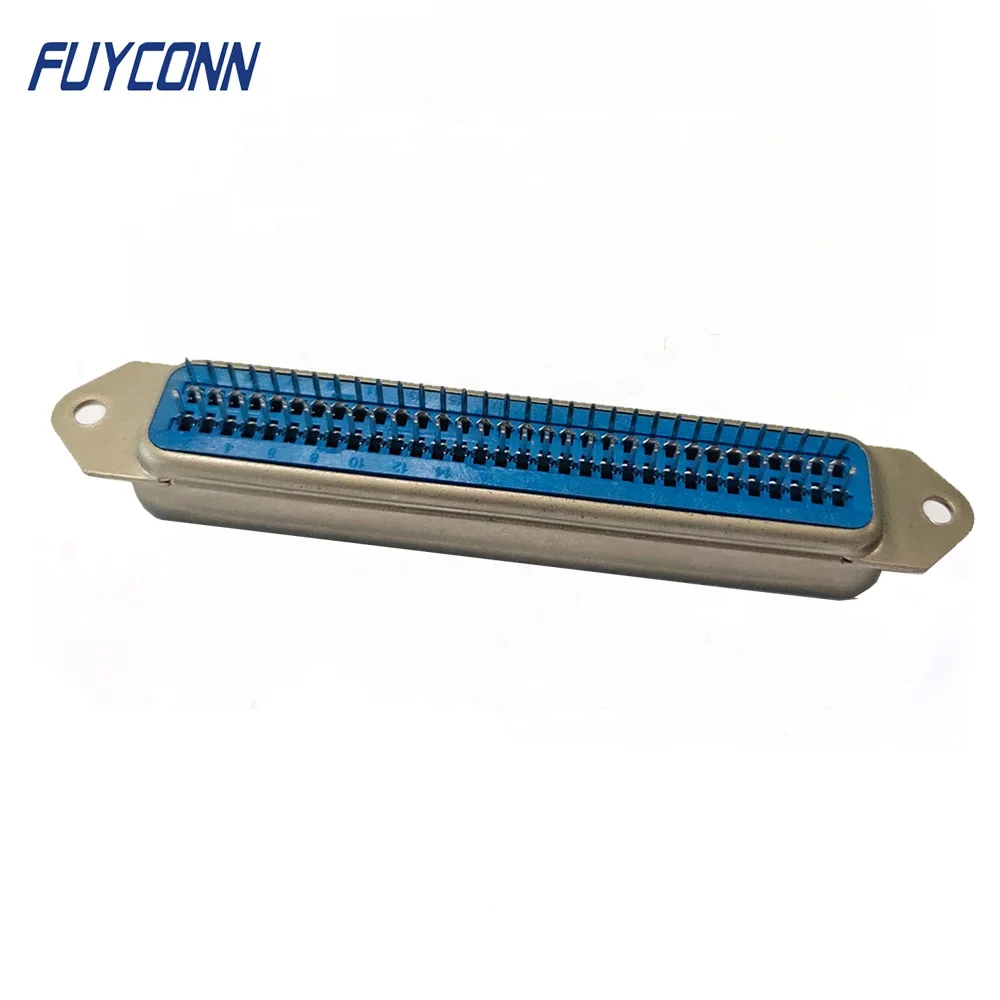

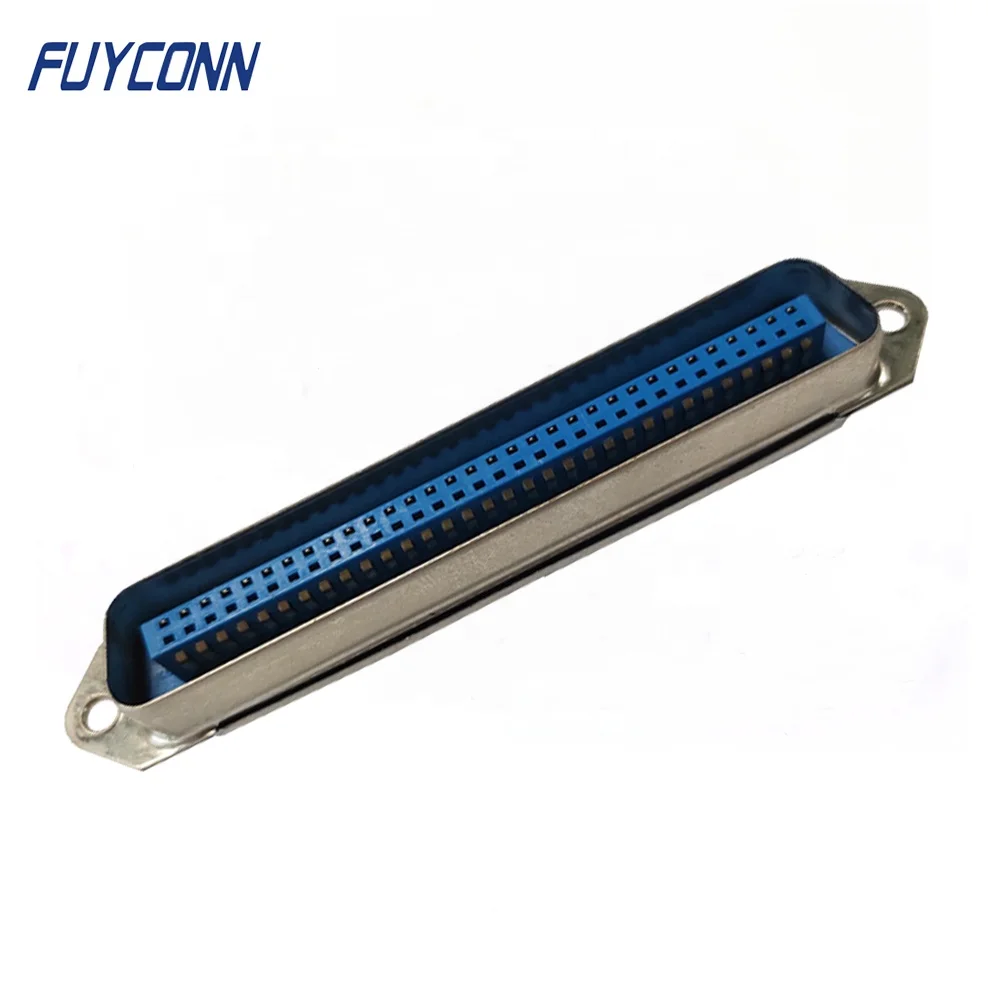

14 24 36 50 pin Champ DDK centronic PCB Straight Solder DIP Termination Ribbon Cable Connector, PCB Male Centronic Connector
- Category: >>>
- Supplier: Dongguan Fuyconn Electronics Co. Ltd.
Share on (460769489):
Product Overview
Description
14 24 36 50 pin Champ DDK centronic PCB Straight Solder DIP Termination Ribbon Cable Connector, PCB Male Centronic Connector
Power Dynamics shielded and unshielded Centronic connectors offer low cost cable-to-board and board-to-board connections. They are available in 14, 24, 36, and 50 64 contacts. Termination types include P.C.B., solder cup, and I.D.C. They can be used in a wide variety of computer and data interface applications. All PDI Centronic connectors carry UL afety approvals.
The Centronics 36-pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36-pin connector is often used for parallel applications, especially for printers.
Why Choose Us
1, 16 years Centronic Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
Product Description
Product Features | |
1. Product Line: | Centronic Connector |
2. Product Name: | PCB 57 Connector |
3. Connector Gender: | male Centronic Connector |
4. Number of Position: | 14pin 24pin 36pin 50pin 64pin |
5. Contact Material: | Phosphore Bronze |
6. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
7. Insulation Material: | PBT |
8. Color | Black or Blue |
9. UL Flammability Rating | UL-94-V0 |
10. Certification | UL Certificated |
11. Shell: | Nickel plated steel |
12. Connector Type | PCB Straight connector |
13. Pitch | 2.16mm pitch |
14. PCB Mounting | Board Lock |
Electrical Specifications | |
1. Current Rating: | 5Amp |
2. Voltage rating: | DC 1000v per minute |
3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
4. Operation Temperature: | -55°C to +105°C |
Application
1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
Related Products
Packing&Shipping
Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co,. Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you choice.
Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.
