oil and gas magnetic oil level switch

Product Overview

Description

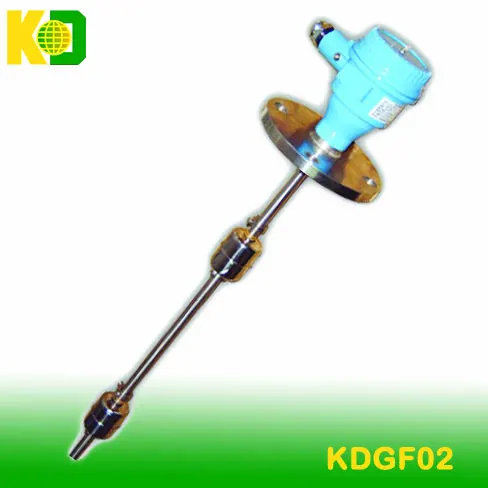

Oil and gas Magnetic oil level switch

We can design a tank level sensor to indicate your tank levels or to maintain the level of your fluid in a tank or vessel. Our base models are GF tank switches, and can be designed to control 1-6 tank levels with standard materials in stock. If you need Level/Temperature, Oil/Water interface or if you just want help designing your own custom tank level sensor,Contact us now!





Contact capacity	AC220V/1A; DC24V/0.5A
Working pressure	≤ 4MPa
Share float	0.7
Output signal	SPST NO / NC
Operating temperature	-30 ~ 130 C
Protection class	IP65
Float material	SUS304/SUS316L
Body Material	SUS304/SUS316L
Connection	G1 / 8 "(thread can be scheduled)
Outlet length	Can be Customized
For occasions	Water, sewage, oil, liquid
Installation	Vertical installatio
