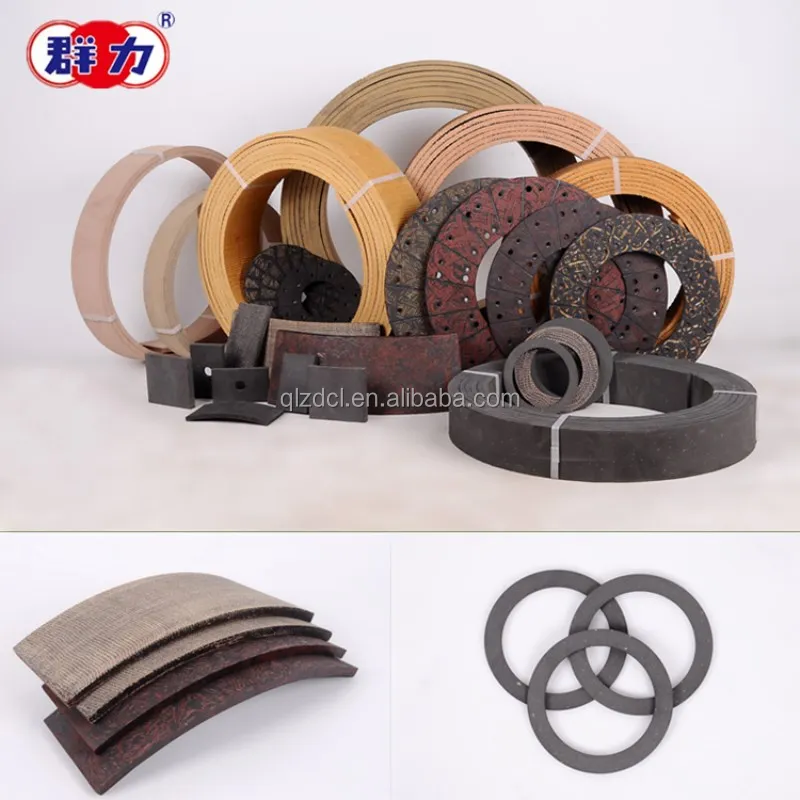

Non Asbestos Woven Industrial Brake Lining roll

Non Asbestos Woven Industrial Brake Lining roll

 Brake lining

Wear Performance

Interface
Temperature

Friction
Coefficient

Wear  Rate

(cm³/N·m)

100°C

212°F

0.40—0.65

≤0.7×10-7

150°C

302°F

0.35—0.65

≤1.1×10-7

200°C

392°F

0.30—0.60

≤1.3×10-7

Certificate

ISO9001:2008

Material

Viscose Fiber, Glass Fiber, Brass Wire, Cashew Resin.

Working Condition

Temperature ≤200°C,  Pressure ≤1.0mpa

Application

Heavy Machine, Engineering Plant, Mining Machine,

Traction Machine,  Conveyor, Anchor Winch, Windlass, etc.

Specification

Thickness(5mm-30mm)×Width(≤600mm)×Length(10m, 15m, 20m), Or on request

Advantage

Natural Fiber→Green Products, Corrosion Resisting, Abrasion Performance.

High Tensile/Breaking Strength, Fatigue Resisting.

Remarks

The information listed here is for the regular product. We take special orders according to your request, such as special specification, color, appearance, even the specific performance etc
