GMACC 76NC European Style Easy Operation Manual Feeding Tube Bending Machine

Product Overview

Description

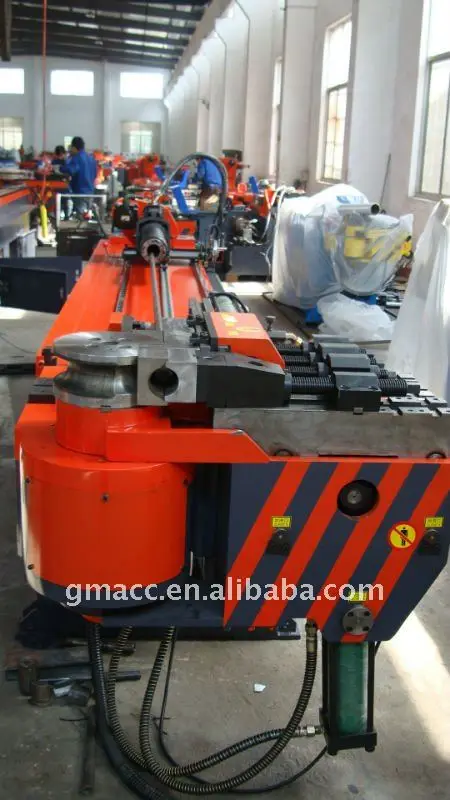

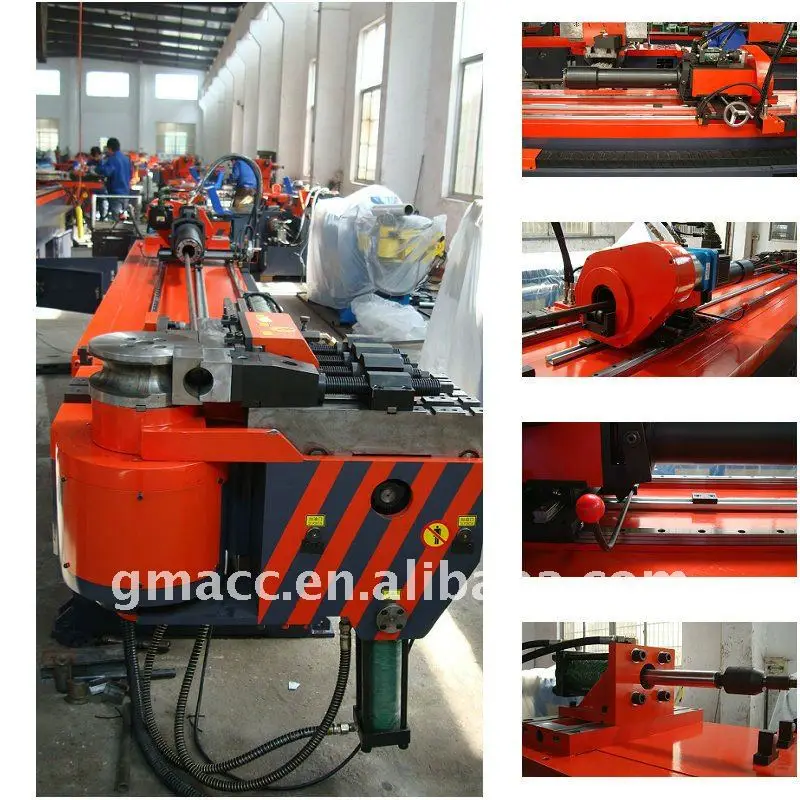

GMACC 76NC European Style Easy Operation Manual Feeding Tube Bending Machine

Machine features

1.Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.

2.Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc

3.Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

4. Servo motor controlled rotating ensures the three-dimensional bending and efficiency working.

5.Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.

6.About 200 programs can be inputted into PLC, then show on dialogue-style operation

touch screen, easy to learn and understand.

7.Various Touch screen language are available for choice as per request.

8.Adoption of hydraulic valve and oil way board can control actions individually to prolong

the lifespan of hydraulic parts.

9.Guiding module has auxiliary pushing function and at the same time it possesses

reiteration and entering repeat functions that can make the guiding module length shorten.

10.Counter function can accurately count work piece’s quantity and save data whether in

power-on or power-off situation.

11.Auto lubrication system to protect components and improve the working life of machine;

12.Possess automatic error detection function and limit protecting function, removing or

changing faults easily and quickly.

13.Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.

14.Optional function of core reversing slowly.

15.Optional function of slow bending.

16.Optional function of anticipated mandrel extraction.

Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	76*5
Bending Radius Range	mm	30-350
Max. Bending Angle	°	190°
Though Effective Distance	mm	2600
Bending speed	°/sec	30
Turning speed	°/sec	160
Bending precision	°	±0.10
Turning precision	°	±0.10
Rotating Servomotor Power	KW	1
System Motor Power	KW	7.5
Oil Pump Delivery Volume	L	25
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension))	mm	5000*1200*1350
Weight	T	3.5































Ø Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Taiwan Guangyuan
Hydraulic Pump	Japan Yuken
Hydraulic Valve	Japan Yuken
Oil way Board	Taiwan Shanghong
Cylinder	Shanghai Jingsheng
Oil tube	Taiwan TATUNG
Touch screen	Taiwan Delta
PLC	Taiwan Delta
Servo Motor	Taiwan Delta
Angle controller	Japan Omron
Switch power	Taiwan Mean Well
Contactor	Taiwan SHIHLIN
Other Electric Parts	SCHNEIDER,Omron, Taiwan SHILIN



Above configuration is common kind for NCBA, which also can be equipped with brand appointed by customers.





Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd
