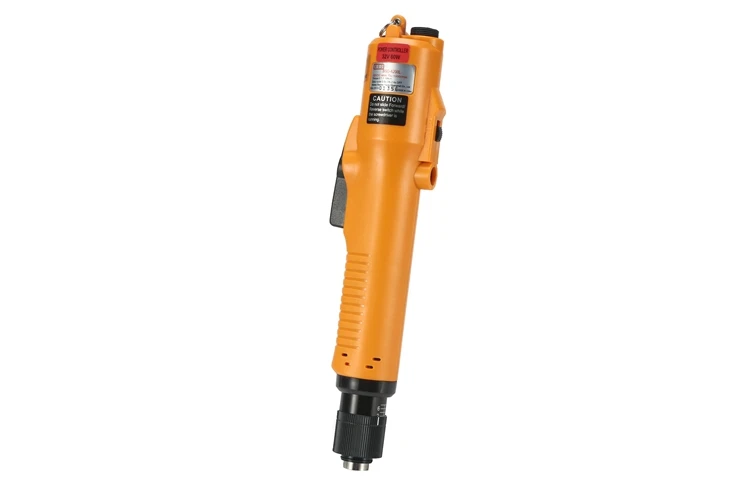

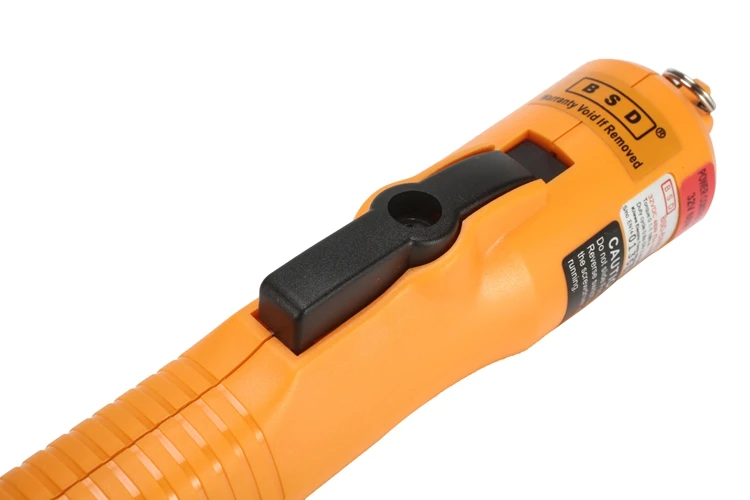

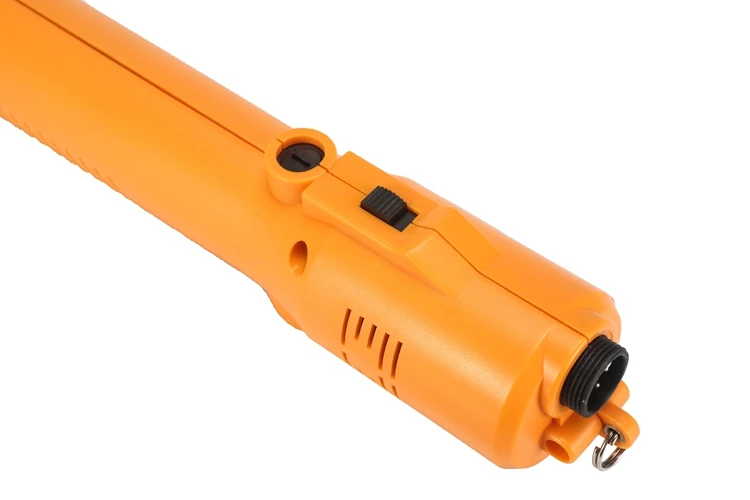

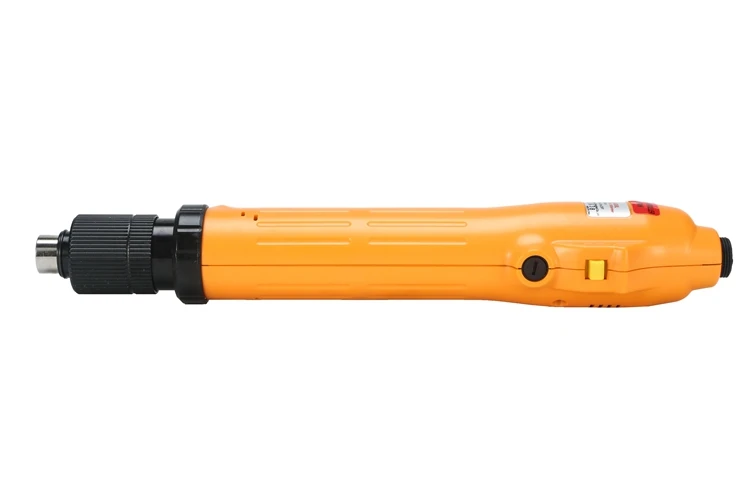

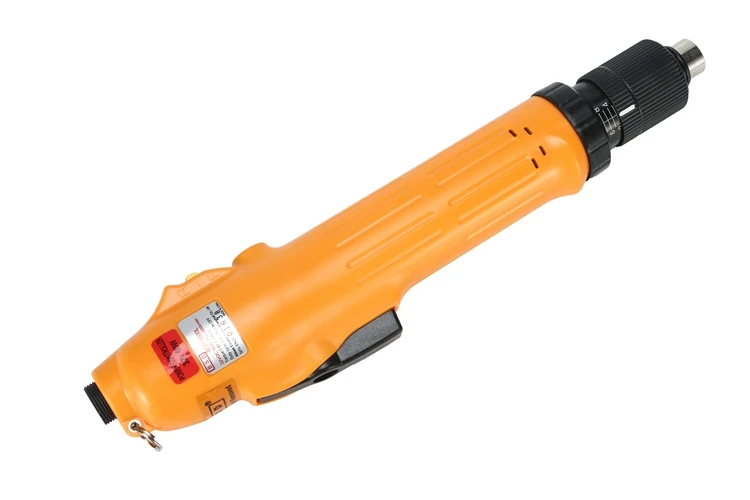

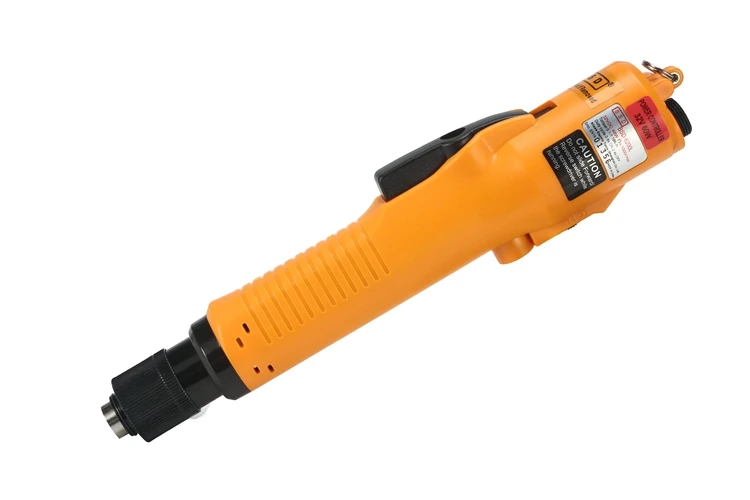

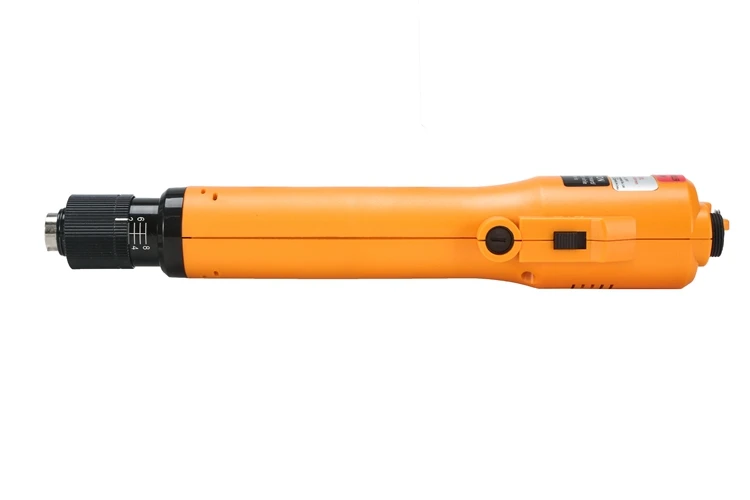

BSD 6600L Torque Precision Fully Automatic Electric Screwdriver ( power tool,drill ) Trigger Start Clutch
- Category: Power Screw Drivers >>>
- Supplier: Kilews Electric Tools (Shanghai) Co. Ltd.
Share on (462831795):
Product Overview
Description
Product Overview
Medium torque Compact DC Automatic Electric Screwdriver (electric screw driver for assembly)

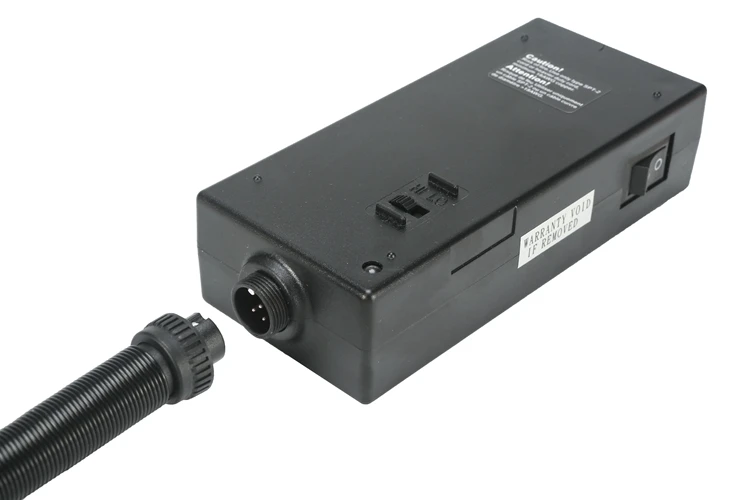

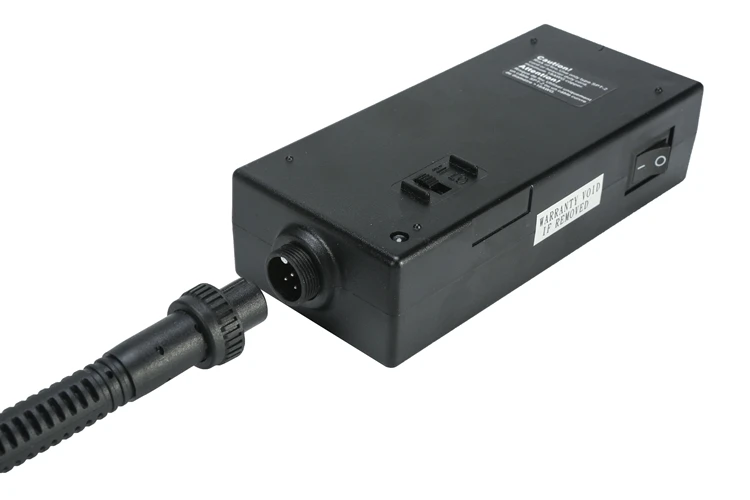

1) The power controller features:
a) Model: BSP-32HL-60W
b) Input voltage: AC 100~240V 50/60HZ
c) Output voltage: 32V DC
d) Outside dimensions: 145*60*35mm
e) Weight: 0.25KG
1) The power controller features:
a) Model: BSP-32HL-60W
b) Input voltage: AC 100~240V 50/60HZ
c) Output voltage: 32V DC
d) Outside dimensions: 145*60*35mm
e) Weight: 0.25KG
f) Remark: RoHS

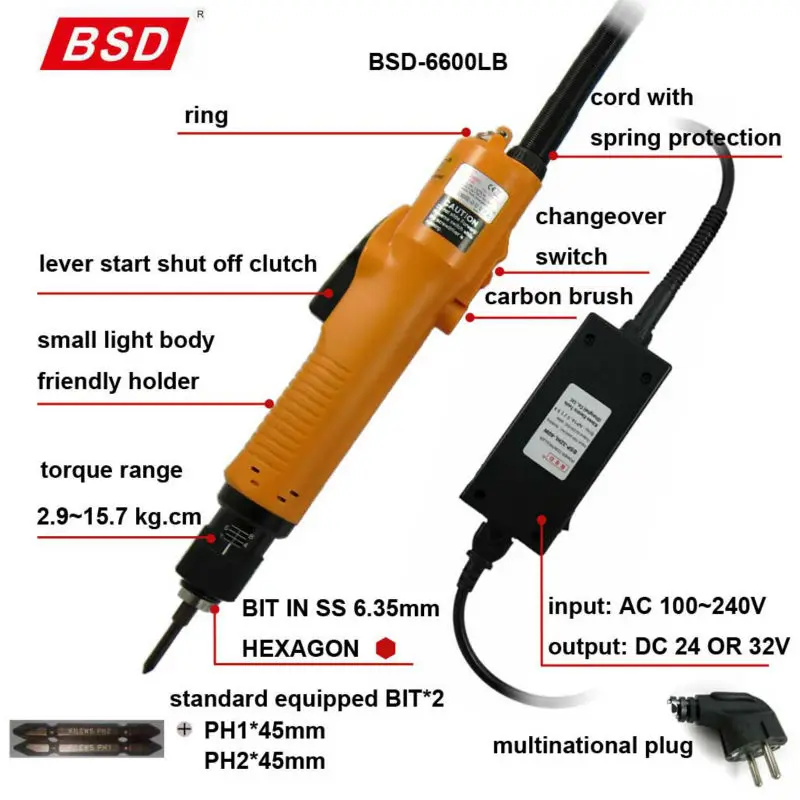

2) Screwdriver features:
a) Torque range: 0.3-1.57N.m
b) High stability,not impact of Voltage changes,free from fatigue under long-time using
c) Small,light body,specially design for the precise needing of tiny screws

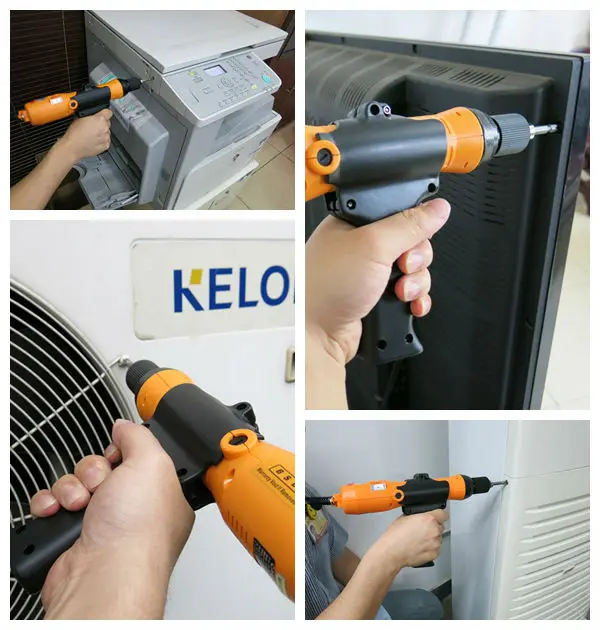

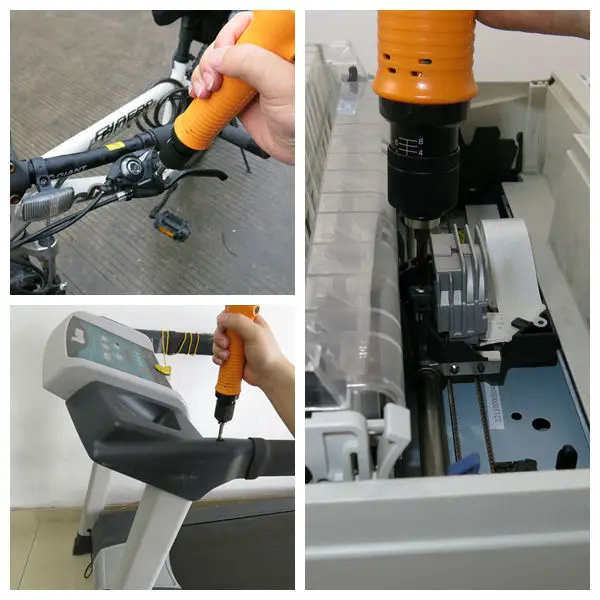

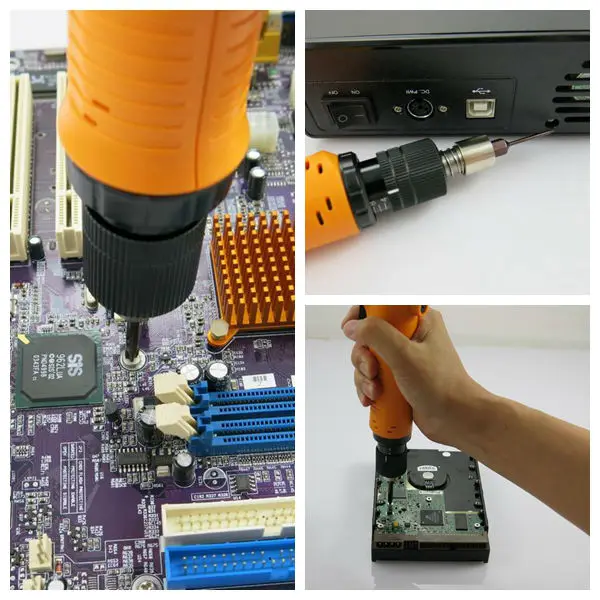

d) Best applied to Small appliances.Electronics,Toys,Processing and assembly industry
2) Screwdriver features:
a) Torque range: 0.3-1.57N.m
b) High stability,not impact of Voltage changes,free from fatigue under long-time using
c) Small,light body,specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics,Toys,Processing and assembly industry
FEATURES AT A GLANCE
Economical solution for general assembly
High speed model available
CE available upon request
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Torque | 0.3~1.57N.m | 3~16kgf.cm | 2.64~14.08Lbf.in |
2 | Unloaded Rotation Speed(r.p.m) | 600-1000 | ||
3 | Torque Adjustment | Stepless | ||
4 | Screw Size Dia(mm) | 2.3~3.5(Machine Screw) | 2.3~3.0(Tapping Screw) | |
5 | Power Consumption | 48W | ||
6 | Weight(g) | 480 | ||
7 | Length(mm) | 230 | ||
8 | Repeatable Torque Accuracy (%) | ±3% |
PRODUCT CONFIGURATION
Successful Project
Project in Thailand
Project in India
Project in Russia
SALES AND SERVICE NETWORK

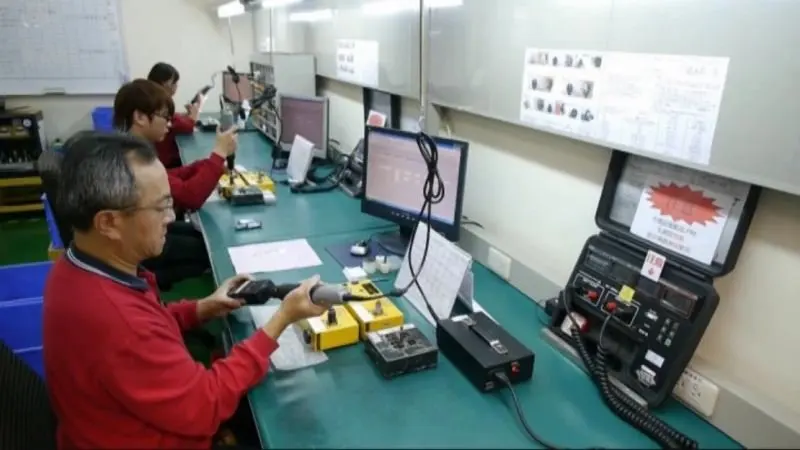

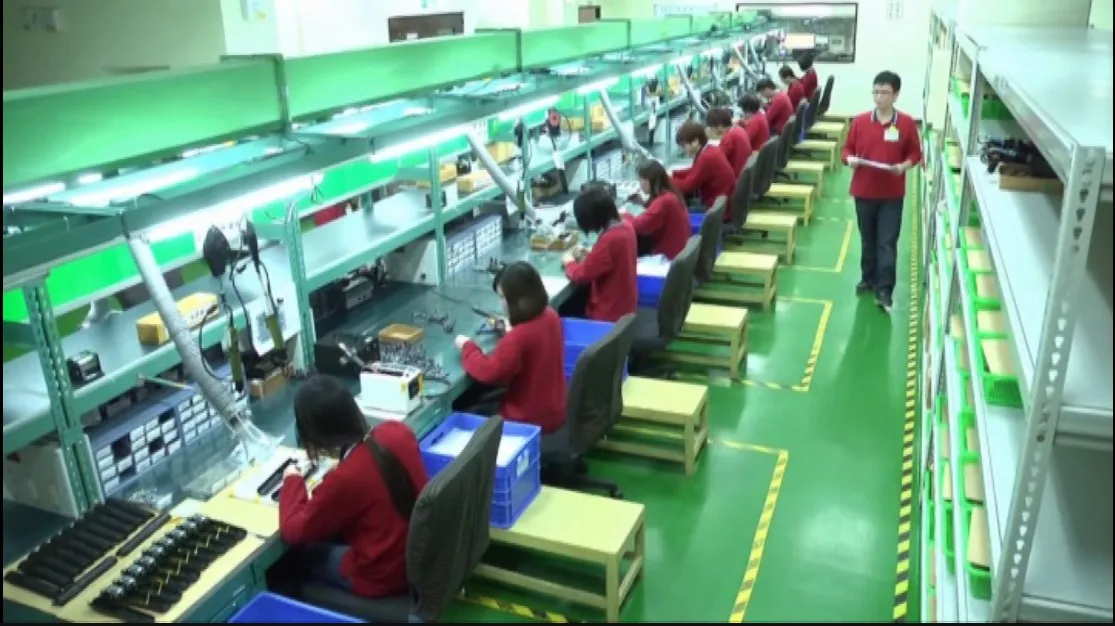

company photo
