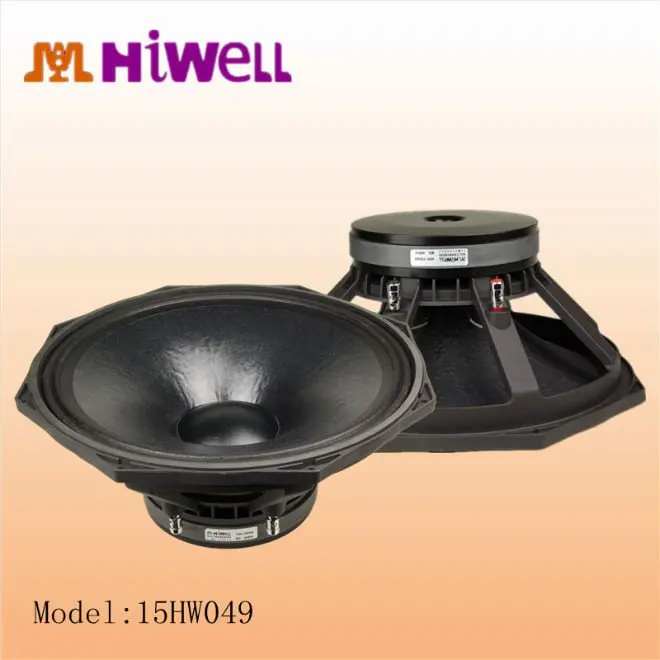

Speakers PS series 15 inch speaker unit

Product Overview

Description

1. 800 W continuous program power capacity audio

2. 75.5mm voice coil woofer speakers

3. 45 - 3500 Hz response

4. 99 dB sensitivity midrange 15 audio







Specifications
Nominal Diameter	383/15	mm/inch
Nominal Impedance	8	Ohm
Minimum Impedance	7.2	Ohm
Power handling
(50-500Hz)
Nominall	400	Watts
Continuous Program	800	Watts
Sensitivity (1W/1m)3	96.1	dB

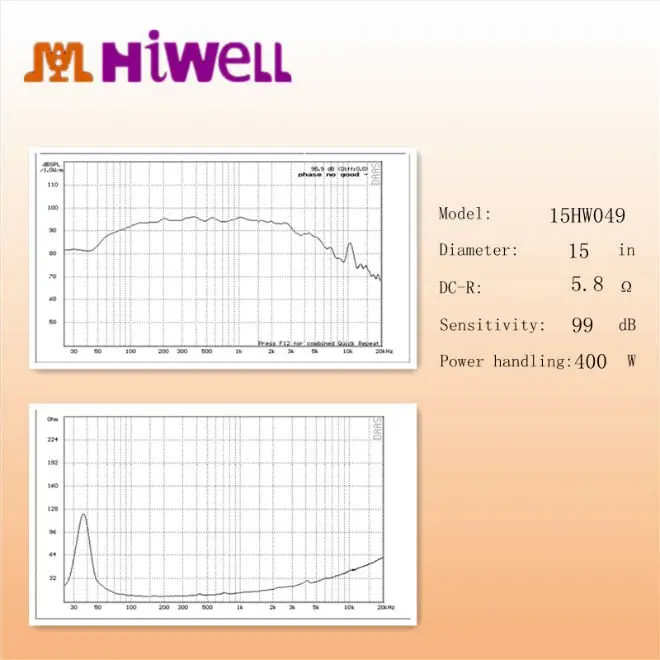

Frequency Range	38.8-3500	Hz
Voice Coil Diameter	75.5/3	mm/inch
Winding Material	Aluminium	outside
Former Marerial	KSV
Winding Depth	14/0.5	mm/inch
Magnetic Gap Depth	10/0.4	mm/inch
Flux density	1.2	T
Thiele-Small parameters4
Fs	38.8	Hz
Re	6.8	Ohm
Qes	0.57
Qms	6.43
Qts	0.53
Vas	258.7	liters
η0	2.54	%
X max	3	mm
X var	2	mm
Mms	82.4	gr
BL	15.4	N/A
Le	0.8	mH

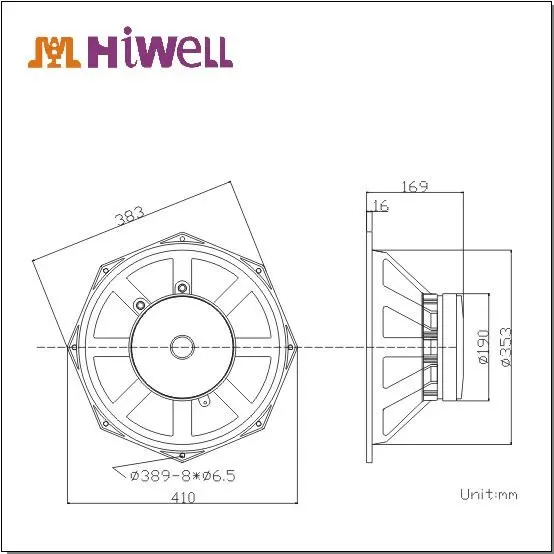

Mounting and Shipping Information
Blot Circle Diameter	389/15	mm/inch
Overall Diameter	383/15	mm/inch
Baffie Cutout Diameter	353/13.8	mm/inch
Depth	169/6.7	mm/inch
Flang and Gasket Tickness	16/0.6	mm/inch
Net Weight	8.1	Kg
Shipping Weight	8.7	Kg
Shipping BOX	400*400*180	mm
Magnet Size	190*90*20	mm
