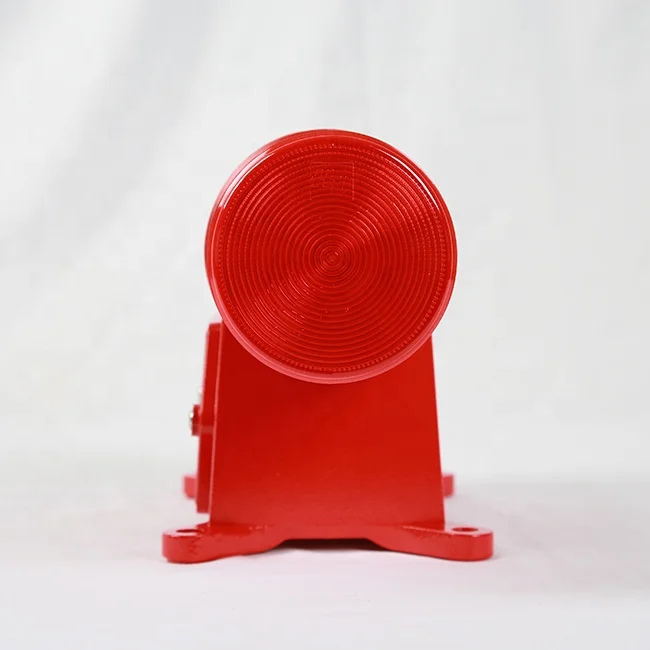

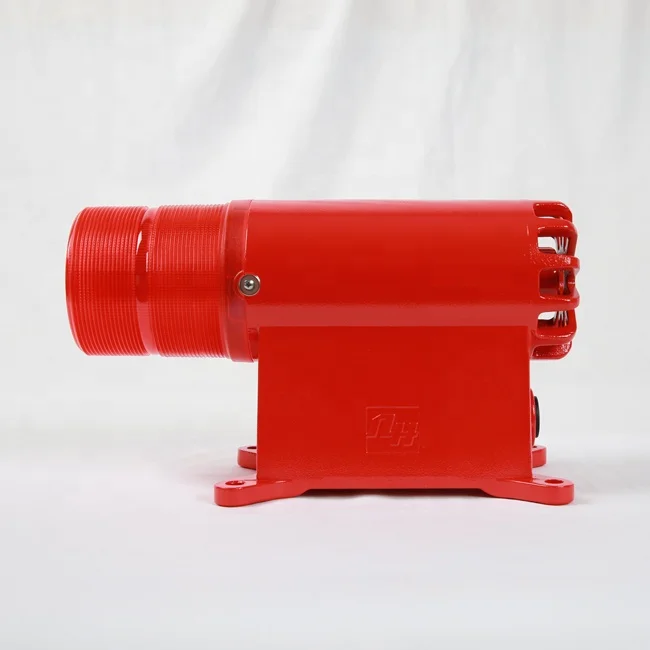

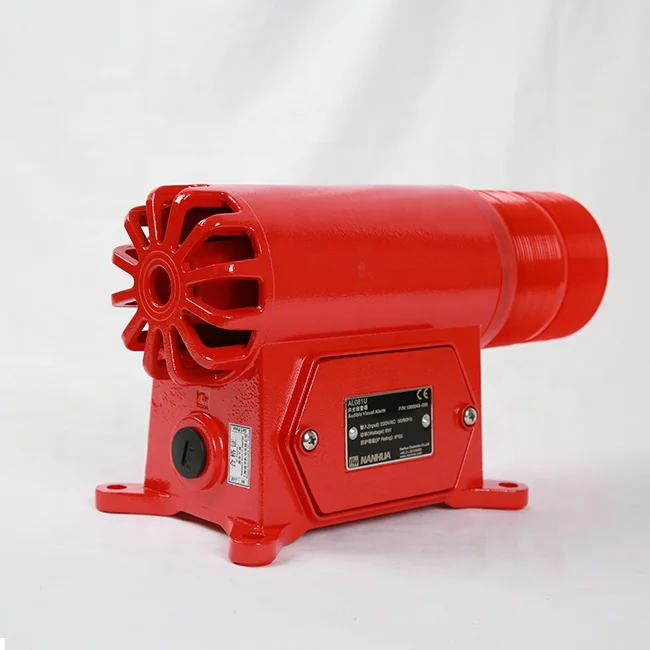

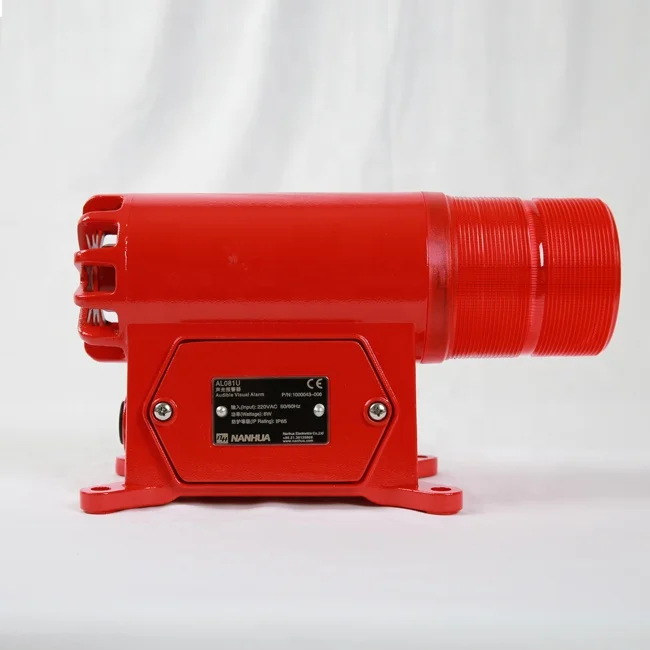

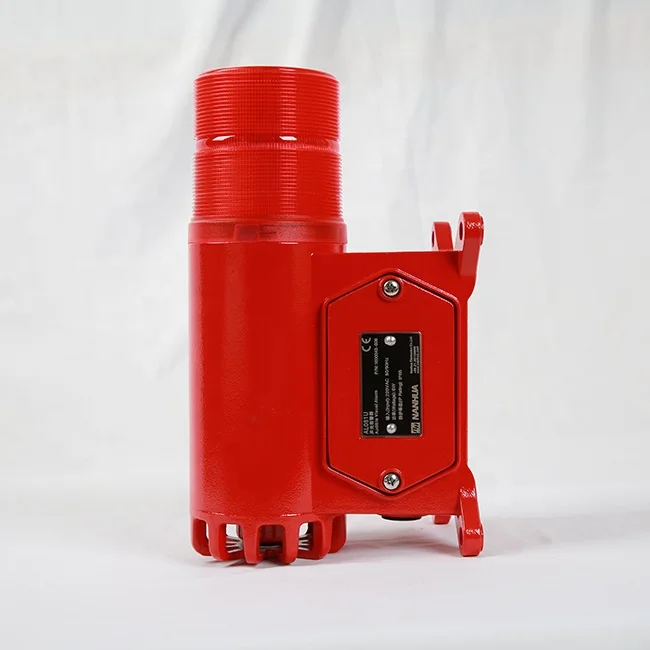

Outdoor siren and LED warning Light
- Category: >>>
- Supplier: Shanghai Nanhua Electronics Co. Ltd.
Share on (463164013):
Product Overview
Description
Product Description
Special design for all kinds of engineering machinery (mobile crane, crawler crane, overhead travelling crane, etc.), Port machinery (gantry crane, bridge crane, etc.), Plant (Electronic cabinet), Metallurgies, Chemical industry, Mines and Marine etc.
Title goes here.
Die casting aluminum enclosure, providing good appearance, light weight and corrosion resistance. Sealed structuredesign,dustproof and waterproof.
Title goes here.
Super bright LED technology, lifespan up to 100,000 hours. Fresnel PC lens provides excellent impact resisting strength, thermal stability and gloss.
Title goes here.
Professional integrated circuit design provides strong anti-EMI capability. Various tones/voices and adjustable volume for option
Product Size
Product Presentation
General Specifications
Electric | ||||||||
Rated voltage | AC36V/DC12~48V/AC110V/AC220V/ AC380V | Rated power consumption | <16W | |||||
AC frequency | 50Hz ~ 60Hz | |||||||
Acoustics | ||||||||
Single tone/Dual tones | 16 kinds of tones/ 32 kinds of tones | Single voice/Dual voices | 16 kinds of voices/ 32 kinds of voices | |||||
Sound leve | 116dB (max) | Volume adjustable | Yes | |||||
Optics | ||||||||
Color | Red, Yellow | Alarm mode | Audible visible synchronized Audible visible separated | |||||
Mechanical | ||||||||
Operating temperature | -40˚C ~ +55˚C | IP rate | IP65 | |||||
Ambient humidity | 10% ~ 95% (non-condensing) | Weight | 3.0Kg | |||||
Enclosure material | Aluminum alloy | Lens material | PC | |||||
* Die casting aluminum enclosure, providing good appearance, light weight and corrosion resistance.
* Sealed structure design,dustproof and waterproof.
* Super bright LED technology, lifespan up to 100,000 hours.
* Fresnel PC lens provides excellent impact resisting strength, thermal stability and gloss.
* Professional integrated circuit design provides strong anti-EMI capability.
* Various tones/voices and adjustable volume for option
Product packaging
Certificate
NANHUA quality strategy
Build trust, pursue excellent quality, provide products and services that exceed customer's expectationsNANHUA is committed to develop high quality products, we are proud to provide highly reliable products for use in extreme environments.
Category | Model | CAAC | ICAO | FAA | CE | OTHER |
Low Intensity | LS710 | √ | √ | √ | ||
LS810 | √ | √ | √ | SABS | ||
Medium Intensity | LM101 | √ | √ | √ | ||
LM100 | √ | √ | √ | √ | SABA | |
LM40 | √ | √ | √ | SABS | ||
LM102 | √ | |||||
LM403 | √ | |||||
High Intensity | LH88 | √ | √ | √ | SABS |
