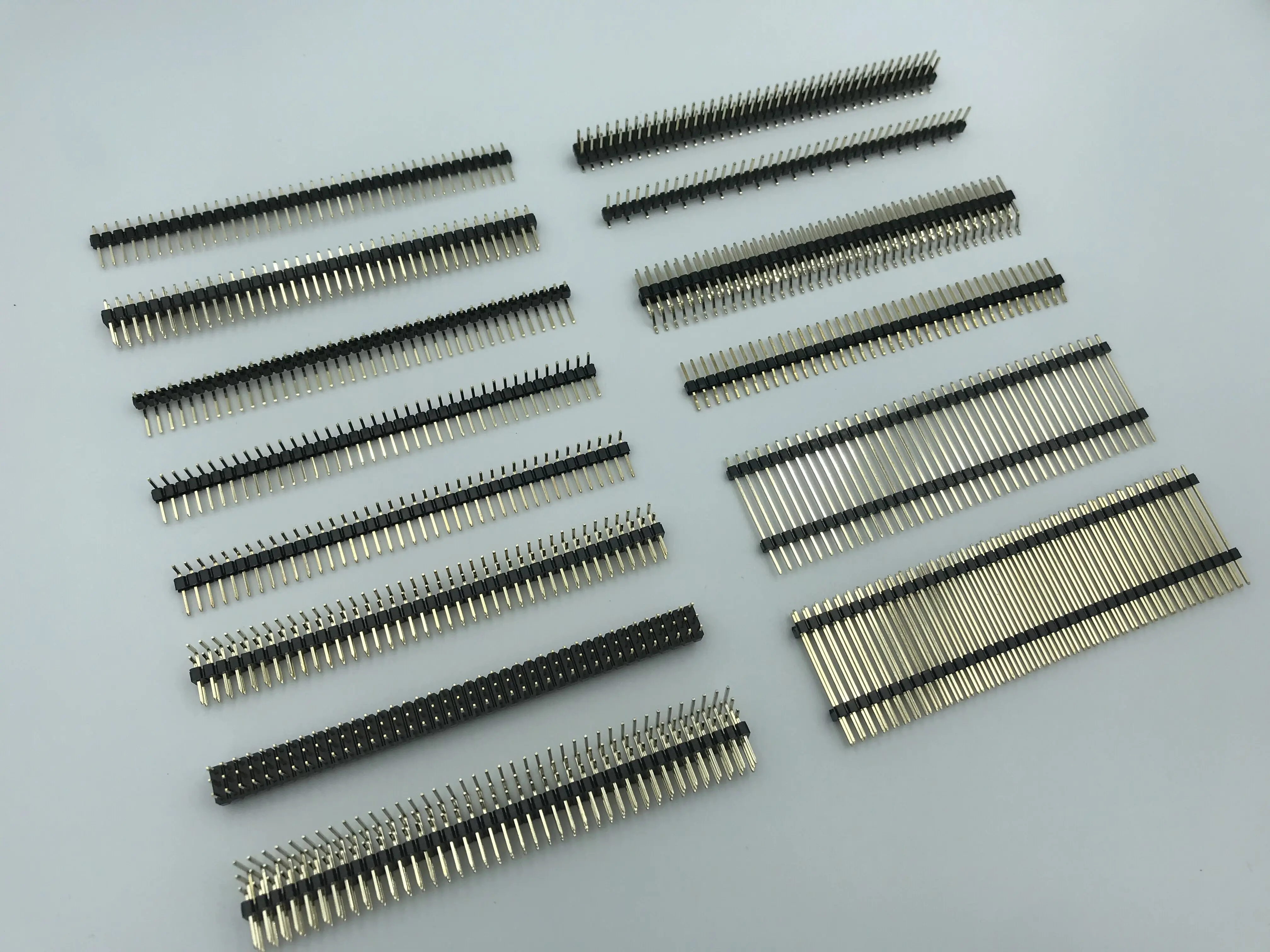

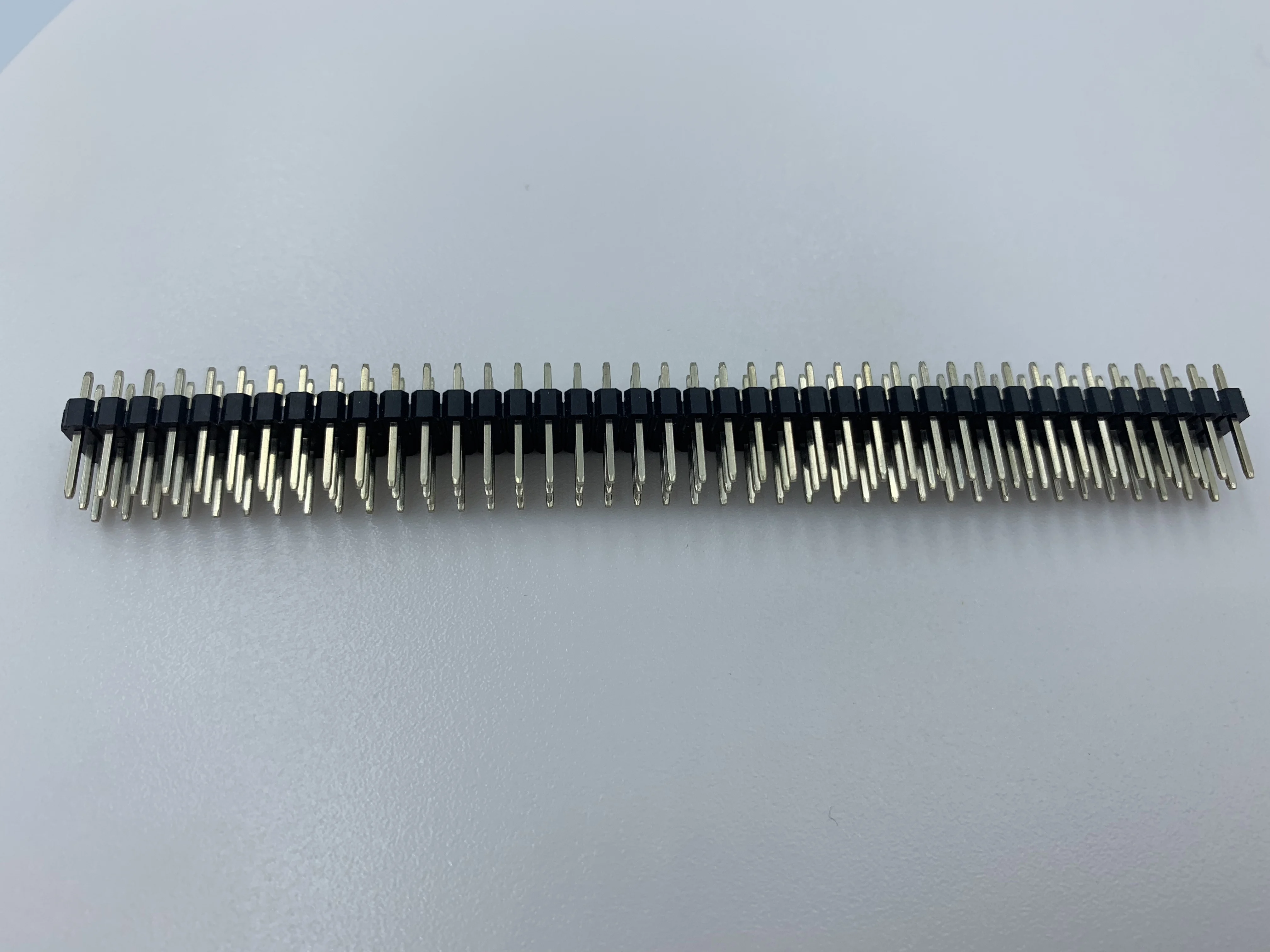

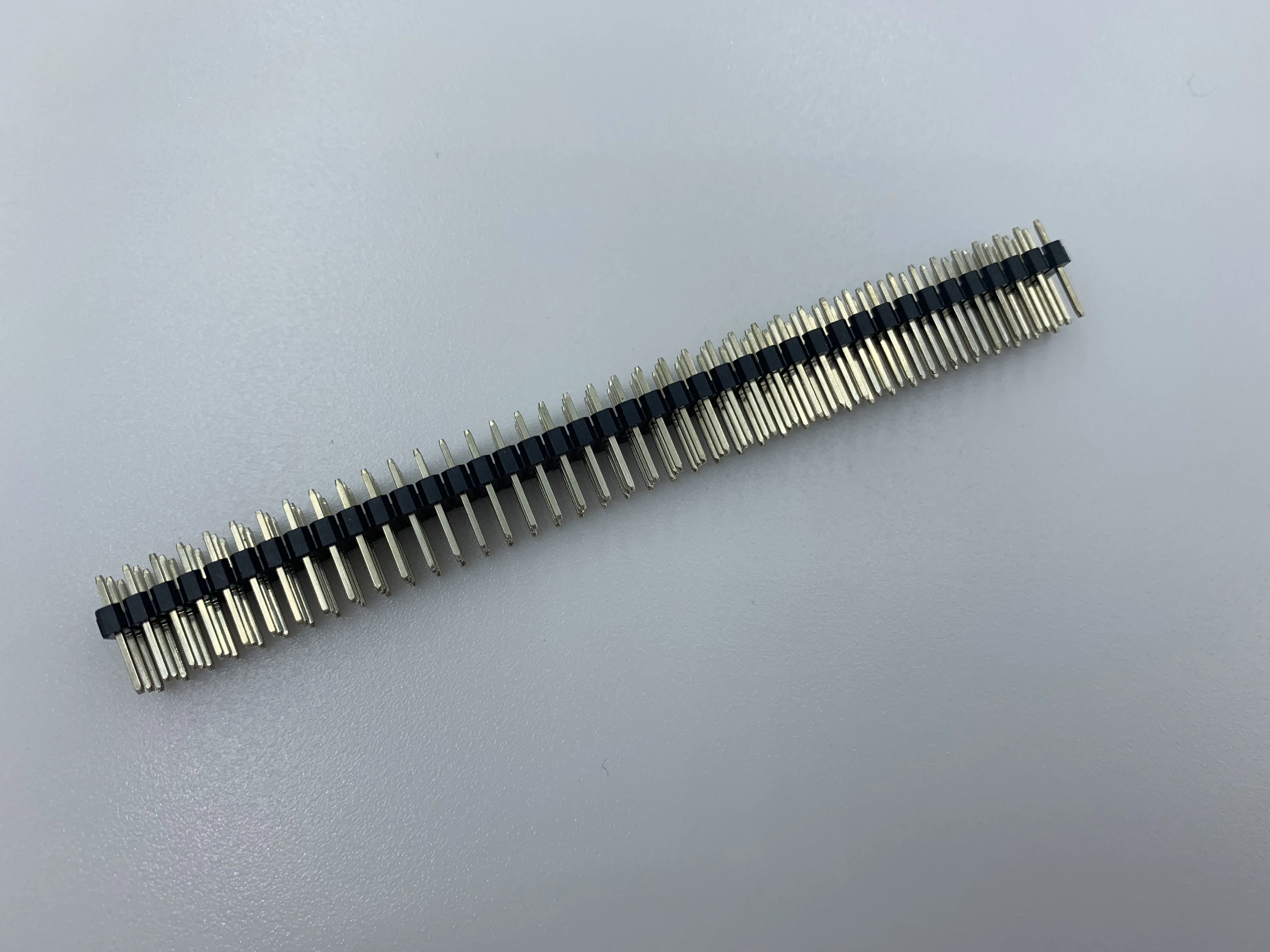

2.54mm male pin header three row straight pin header 40pins gold plated

Product Overview

Description





three row pin header S/T pitch 2.54mm male pin header



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc





No. of Contacts:1 Row:1*2P……1*60P

                          2 Row:2*1P……2*40P

PIN  HEADER PITCH 2.54mm
Material:
Insulator:	thermoplastic(ul 94v-0).
Color:	as per order.
Contact:	copper alloy.
Contact plated:	see ordering information.
Specification:
Storage Temperature:	-20-70°C.
Operating temperature:	0-85°C.
Contact resistance:	20mΩMax.(initial).
Insulation resistance:	1000mΩ Min.
Dielectric withstanding voltage:	AC 1000V.
