Our static pile driver is used to do jack in pile driving for piling jobs. it can press any shape of PHC piles, so do the steel tubes,triangle pile,sheet pile and so on. the pile size is from 150mm to 1000mm.
2.where can be used?
It is very good for coastline cities for civil construction jobsite. maybe you are very tired with the complaint from the government and citizens about the noise and pollution that the hammer made,this static pile driver can solve all the problems you faced now. static pile driver features with no noise,no pollution,controled by hydraulic system. very suitable to do piling in cities.
3. how does it works and move?

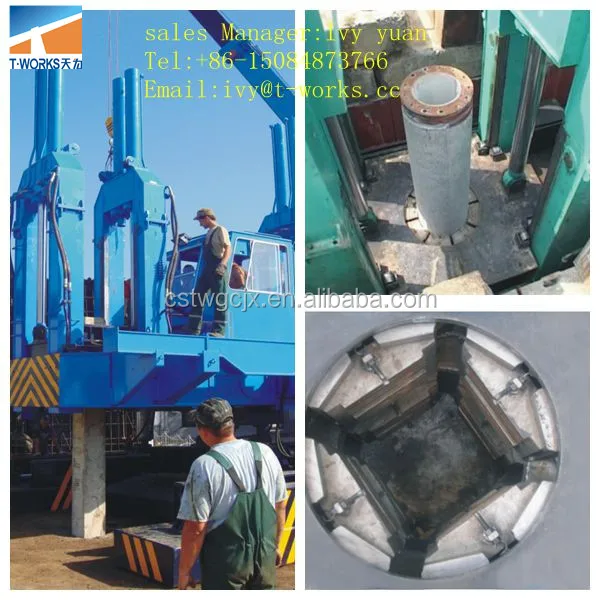

The static pile driver press the pile by embracing clamping box controled by hydraulic system speedly.it can press 600meters per day. movement mechanism is also controled by hydraulic system called short boat and long boat,very stable,hard to sink to the ground.
4. our advantages:
1) we have over ten years in manufacturing the static pile driver,accumulated much experiences on R & D in this area.
2) over 20 patents in improving the design.
3) exported more than 400units overseas.
4) perfect after-sale service all ove the world.
5) better spare parts for the machine to ensure the quality.
6) we are only the manufacturer who just produce this static pile driver in China,more attention,better quality that can ensure.
5.Suitable conditions: clay,soft soil,sand layer etc; noise regulated urban area; vibration regulated areas,such as near old buildings,precision instrument buildings,subway,overpass and so on.Meanwhile,we can provise special design for customer's requirements.
Main technical specifications of ZYC800B-B
paramete / type
ZYC800B-B
rated piling pressure(KN)
8000
piling speed(m/min)
fast
6.8
low
1.02
piling stroke(m)
1.9
pace(m)
longitudinal
3.6
horizontal
0.7
angle range(°)
11
rise stroke (m)
1.2
square pile(mm)
max
550/600
cirle pile(mm)
max
600/800
side piling space(mm)
1420
cirle piling space(mm)
2850
lifting weight(t)
16.0
lifting pile's lengh(m)
15.0
power(KW)
piling
141
lifting
30
main dimension(m)
lenth of work
14.0
width of work
8.32
transprorting height
3.15
total weight(T)≥
800
Transporation
Customer visit
Our machine is popular in many countries, like Singapore, Malaysia, Indonesia, Thailand, Vietnam, Cambodia,Myanmar , Ukraine, Russia and so on. We are always grateful for all customers' trust and consist to supply the best quality for all of you.
Our Services
♣ Always be ready to answer technical questions concerned from our customers.
♣ Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
♣ To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
♣ Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
