Air Culling Sieveless Chinese Herbal Powder Crusher

Product Overview

Description

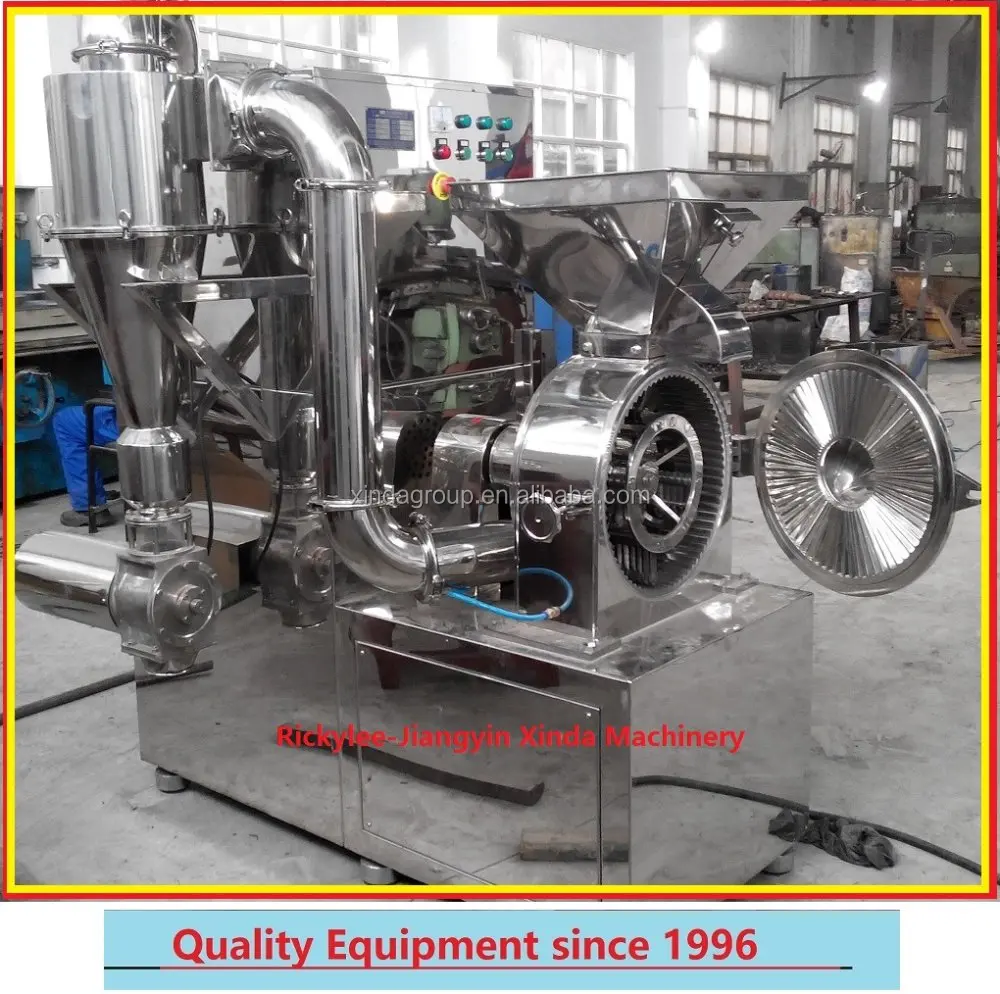

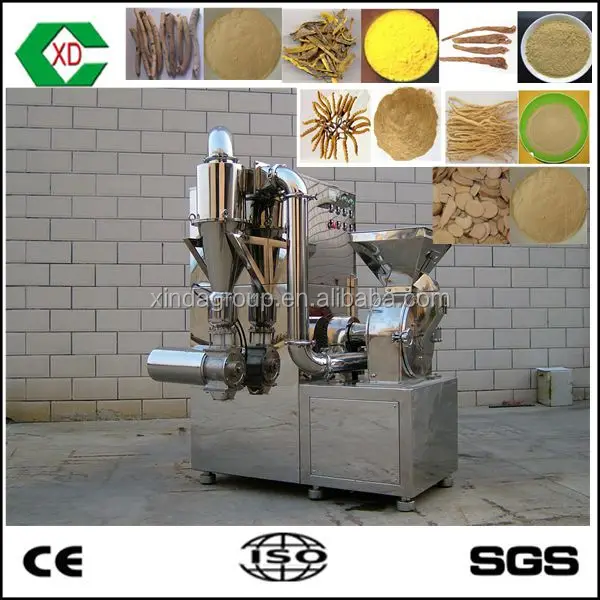

Air Culling Sieveless Chinese Herbal Powder Crusher



Main application
The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not
Limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal
Medicines with fibers and those with oils.



Model	Model 200	Model 300	Model 400
				Capacity (kg/h  )	10-150	20-300	50-500
Size of input granules( mm  )	≤ 5	≤ 12	≤ 15
				Fineness of products	20-250	20-250	20-250
Grinding power (kw  )	5.5	7.5	11
				Dust absorption power (kw  )	1.5	2.2	3
Weight  ( kg  )	320	550	680
				Overall size  ( L× W× H )(mm  )	1000× 800× 1600	1200× 850× 1780	1500× 900× 1950
