1 30MHz High power double amplifier module

Product Overview

Description

Model:PA-1-30-200-53
Parameter	Symbol	Min	Type	Max	Unit
Operating Frequency	BW	1		30	MHz
Power Output CW	Psat	200			W
Power Output @ 1dB	P1dB	250			W
Power Gain @ CW	G1dB		53	60	dB
Input Power	Pin		0		dBm
Small Signal Gain Flatness	G		±1	±1.5	dB
Input VSWR	S11		1.5:1
Third order intermodulation@ CW	IMD3	-28	-30		dBc
Harmonics @ CW	H	-10	-11		dBc
Harmonics @ CW	H	-12	-15		dBc
Noise Figure	NF		8	10	dB
Spurious Signals	Spur		-80	-60	dBc
OperatingVoltage	VDC	18	24	32	Volt
Current Consumption@ Po=20W	ID		18	20	Amp
Operating Temperature	Tc	-55		70	°C
Non-perating Temperature	Tstg	-60		80	°C

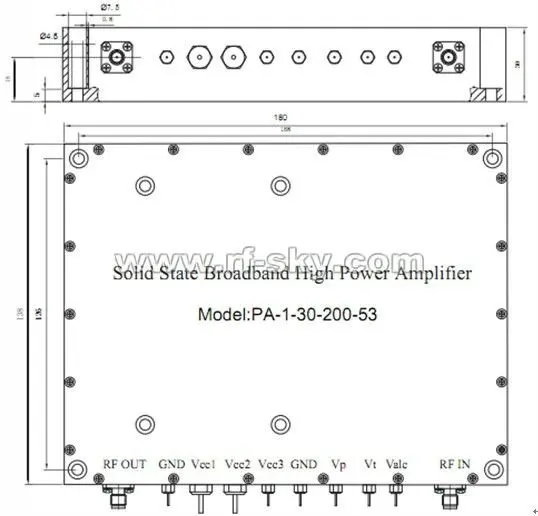

Outline Drawing	L*W*H	180	138	30	mm
Electrical Specifications@ T=25°C, VDD=+24VDC; 50Ω System
